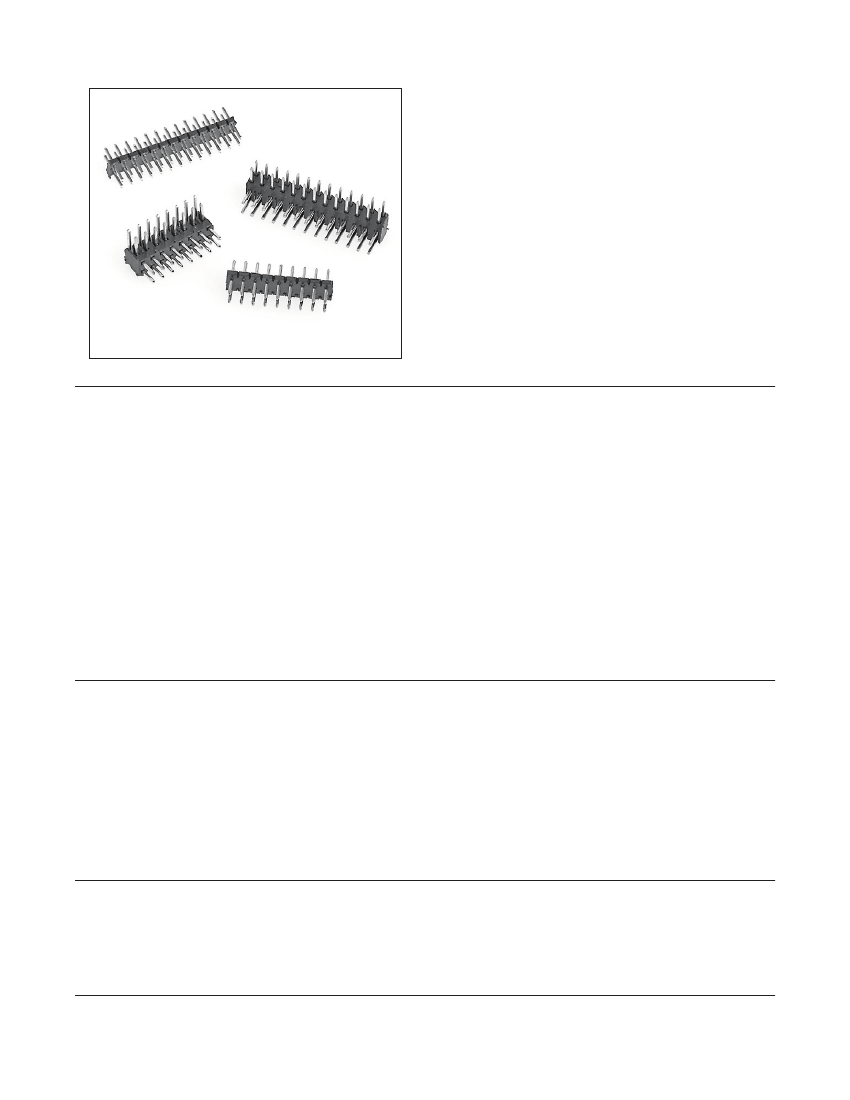

2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight
1512 Series
• Mates with a variety of dual row 2 mm board mount and
wire mount sockets
• High temperature insulator compatible with lead-free
solder processes
• Extensive pin count availability from 4 to 80 positions
• Available with vacuum cap in tape and reel packaging for
automatic placement
• Minimizes use of PC board space
• End and side stackable design
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS Compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: January 14, 2013
TS-0808-H
Sheet 1 of 4
Physical
Insulation:
Material: Glass-filled LCP
Flammability: UL 94V-0
Color: Black
Contact:
Material: Copper Alloy
Plating:
Underplating: 50 μ" [1.27 μm] Nickel
Wiping Area: 30 μ" [ 0.76 μm ] Gold Avg.
Solder Tails: 200-300 μ" [5.08-7.62 μm] Matte Tin
Marking:
None
Electrical
Current Rating:
3.50 A, 1 Line Powered
1.75 A, 6 Adjacent Lines Powered
1.00 A, All Lines Powered
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise,
20% derated. Reference appropriate 3M Product Specification for detailed current
derating curves.
Insulation Resistance:
> 1 × 10
9
Ω
at 250 V
DC
Withstanding Voltage:
500 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

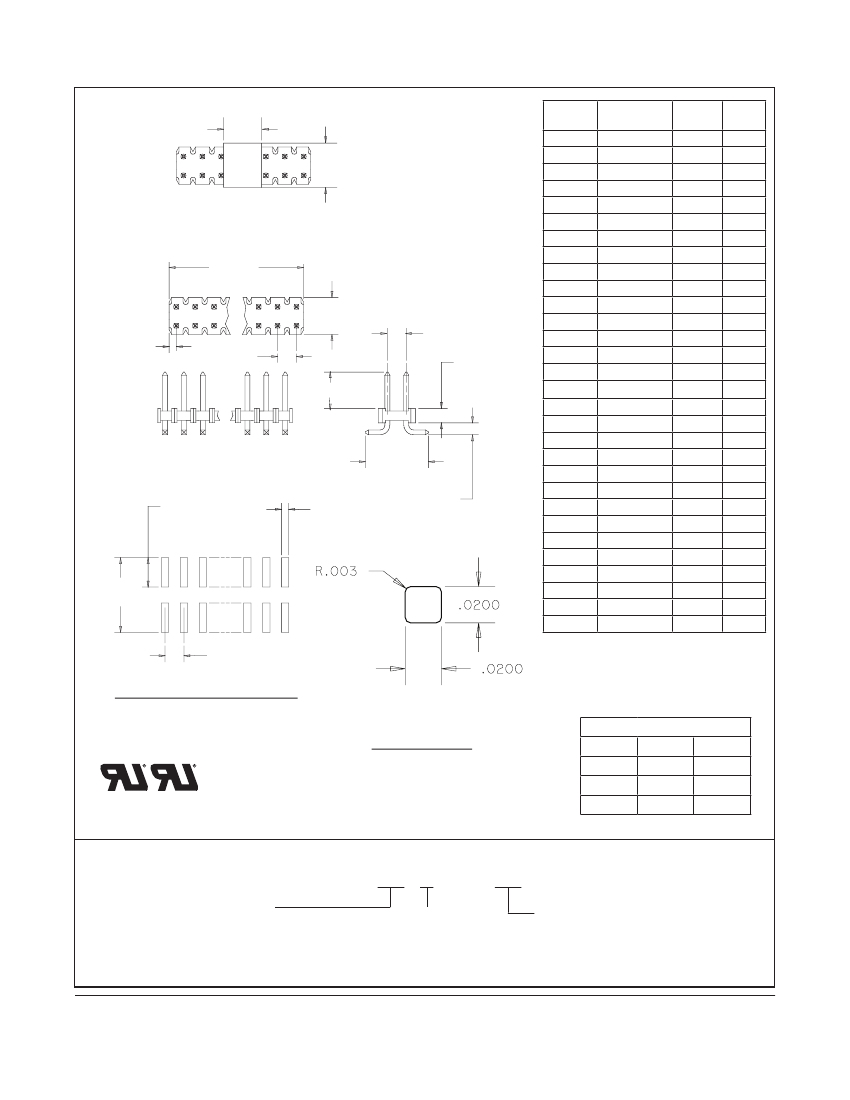

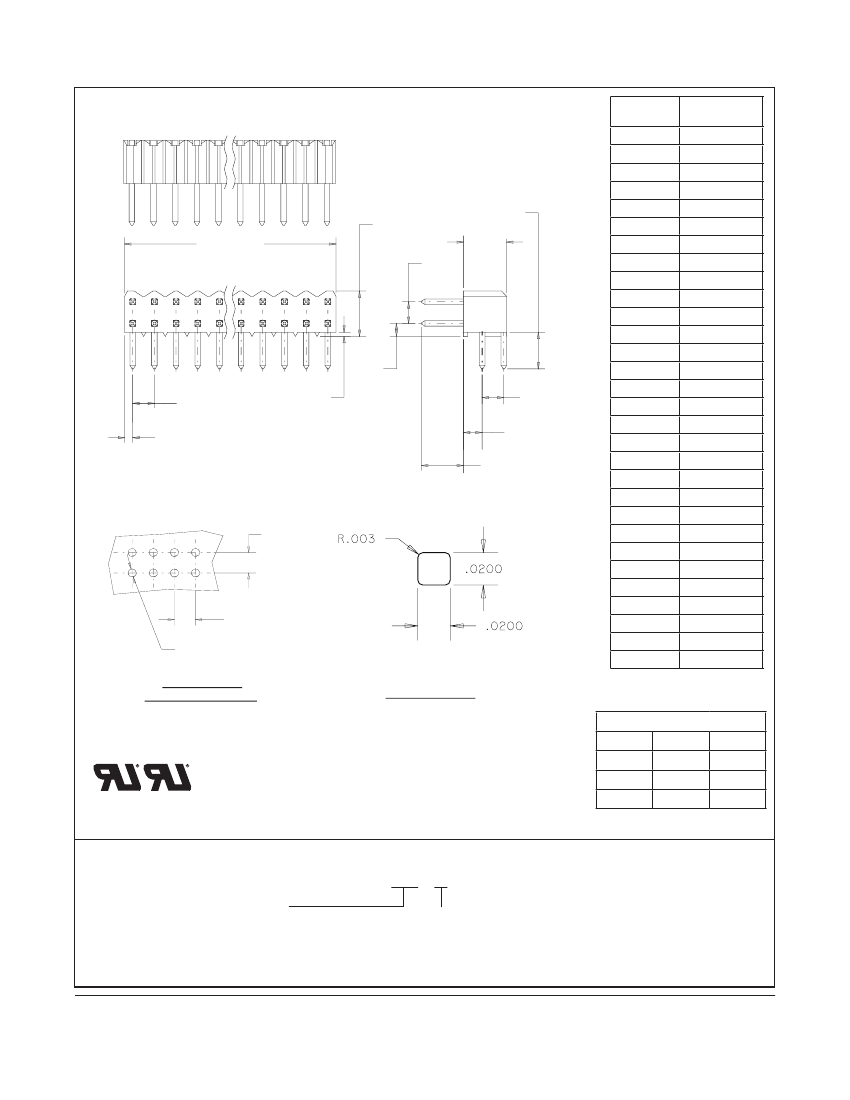

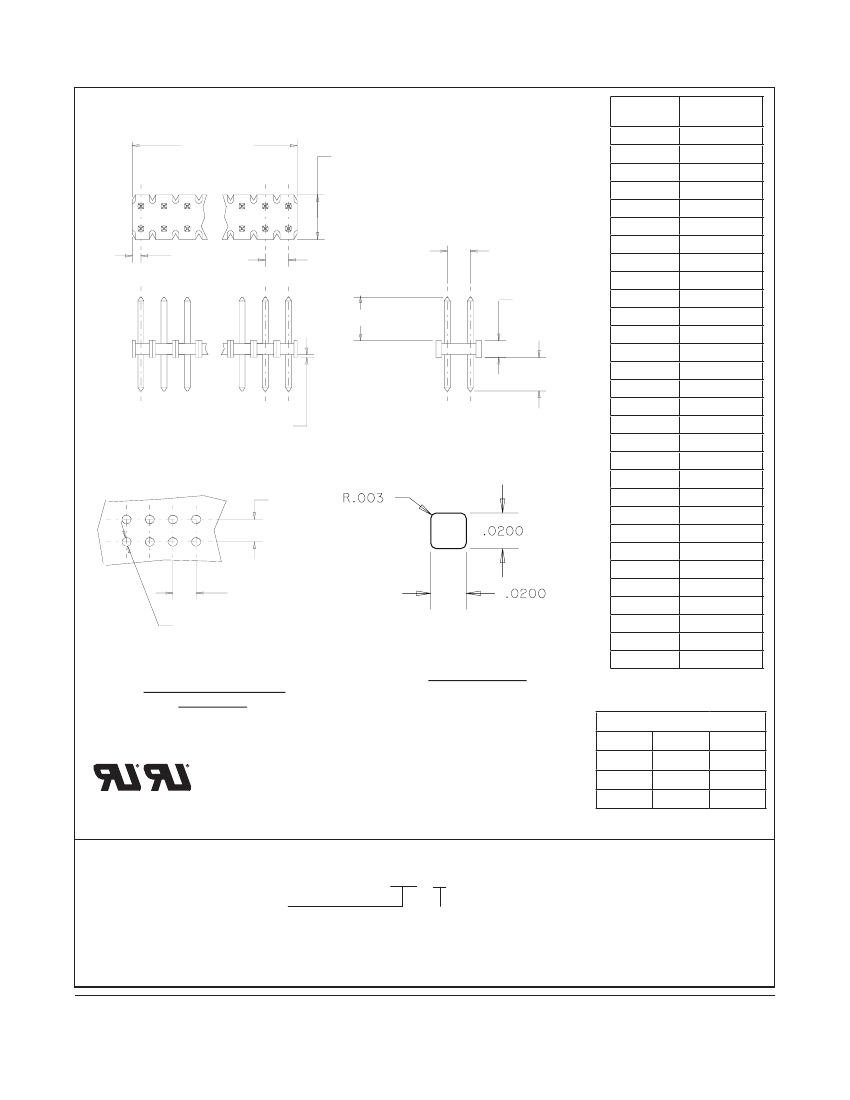

Pin Strip Header
2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight
Straight
C +.000
-.020
.155
[3.94]
1512 Series
Contact
Quantity
04
06
08
10
12
14
Dimension C
0.157 [4.0]
0.236 [6.0]
0.315 [8.0]
0.394 [10.0]
0.472 [12.0]
0.551 [14.0]
0.63 [16.0]
0.709 [18.0]
0.787 [20.0]
0.866 [22.0]
0.945 [24.0]
1.024 [26.0]
1.102 [28.0]
1.181 [30.0]
1.26 [32.0]
1.339 [34.0]
1.417 [36.0]
1.496 [38.0]
1.575 [40.0]
1.654 [42.0]
1.732 [44.0]
1.811 [46.0]
1.89 [48.0]
1.969 [50.0]
2.047 [52.0]
2.126 [54.0]
2.205 [56.0]
2.283 [58.0]
2.362 [60.0]
3.15 [80.0]
mm
[Inch]
Tolerance Unless Noted
in.
0.X
-
±0.01
±0.005
0.XX
0.XXX
mm
±0.5
±0.25
±0.13
0.039
[1.00]
.0787
[2.000]
.0787
[2.000]
.059
[1.50]
16
18
20
22
24
26
28
.118
±
.010
A
±
.008
30
32
34
.009
±
.001
[0.23]
36
38
40
42
.0787
±
.003
[2.000]
44
46
48
50
52
54
56
58
60
80
.0787
±
.003
[2.000]
∅.032 ±
.003
[0.81]
After Plating
Recommended Mounting
Hole Pattern
Pin Cross Section
C
[ ] Dimensions for Reference Only
Ordering Information
Contact Quantity
(See Table 1)
1512XX-8X22-RB
(RIA E1 & C1 Apply)
Pin Length
Dim ‘A'
3 = .130"
4 = .152"
TS-0808-H
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight
Right Angle
Contact
Quantity
04
06
08
10
.165
[4.19]
.0787
[2.000]
.118
±
.010
.157
[3.99]
1512 Series
Dimension C
0.157 [4.0]
0.236 [6.0]
0.315 [8.0]
0.394 [10.0]
0.472 [12.0]
0.551 [14.0]
0.63 [16.0]
0.709 [18.0]
0.787 [20.0]
0.866 [22.0]
0.945 [24.0]
1.024 [26.0]
1.102 [28.0]
1.181 [30.0]
1.26 [32.0]
1.339 [34.0]
1.417 [36.0]
1.496 [38.0]
1.575 [40.0]
1.654 [42.0]
1.732 [44.0]
1.811 [46.0]
1.89 [48.0]
1.969 [50.0]
2.047 [52.0]
2.126 [54.0]
2.205 [56.0]
2.283 [58.0]
2.362 [60.0]
3.15 [80.0]
mm
[Inch]
Tolerance Unless Noted
in.
0.X
-
±0.01
±0.005
0.XX
0.XXX
mm
±0.5
±0.25
±0.13
12
14
16
18
20
22
24
26
28
C +.000
-.020
.047
[1.19]
.0787
[2.000]
.029
[0.74]
.015
[0.38]
Standoff
.0787
[2.000]
.068
[1.73]
A
±
.008
30
32
34
36
38
40
42
44
46
.0787
±
.003
[2.000]
48
50
52
54
56
58
60
80
.0787
±
.003
[2.000]
∅.032 ±
.003
[0.81]
After Plating
Recommended
Mounting Hole Pattern
Pin Cross Section
C
[ ] Dimensions for Reference Only
Ordering Information
Contact Quantity
(See Table 1)
1512XX-7X22-RB
(RIA E1 & C1 Apply)
Pin Length
Dim ‘A'
3 = .130"
4 = .152"
TS-0808-H
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight
0.299
[7.6]
0.197
[5.0]
Example of vacuum cap on part
Contact
Quantity
Dimension C
1512 Series
Tape
Width
Order
Code
10
12
14
04
06
08
C +.000
-.020
.155
[ 3.94 ]
.0787 [ 2.00 ]
.03
[ 0.8 ]
.0787
[ 2.00 ]
A
±
.008
.059
[ 1.50 ]
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
0.394 [10.0]
0.472 [12.0]
0.551 [14.0]
0.157 [4.0]
0.236 [6.0]
0.315 [8.0]
n/a
n/a
24 mm
0.63 [16.0]
0.709 [18.0]
0.787 [20.0]
0.866 [22.0]
0.945 [24.0]
1.024 [26.0]
1.102 [28.0]
1.181 [30.0]
1.26 [32.0]
1.339 [34.0]
1.417 [36.0]
1.496 [38.0]
1.575 [40.0]
1.654 [42.0]
1.732 [44.0]
1.811 [46.0]
1.89 [48.0]
1.969 [50.0]
2.047 [52.0]
2.126 [54.0]
2.205 [56.0]
24 mm
24 mm
24 mm
24 mm
32 mm
32 mm
44 mm
44 mm
44 mm
44 mm
44 mm
56 mm
56 mm
56 mm
56 mm
56 mm
56 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
WC
WC
WC
n/a
n/a
WB
WC
WC
WC
WD
WD
WD
WD
WD
WE
WE
WE
WE
WE
WE
WF
WF
WF
WF
WF
WF
WF
.263
±
.02
[ 6.68 ]
.122
[ 3.10 ]
.030
[ 0.76 ]
.050
[ 1.27 ]
.310
[ 7.87 ]
58
60
80
.0787
[ 2.00 ]
2.283 [58.0]
2.362 [60.0]
3.15 [80.0]
88 mm
88 mm
n/a
WG
WG
n/a
Notes: 1.Tape & reel include vacuum pick-up cap for pick n
place handling equipment.
2. Parts in tray packaging are supplied without vacuum cap.
Recommended PCB Pad Layout
mm
[Inch]
Pin Cross Section
C
Tolerance Unless Noted
in.
0.X
0.XX
0.XXX
-
±0.01
±0.005
mm
±0.5
±0.25
±0.13
[ ] Dimensions for Reference Only
Ordering Information
Contact Quantity
(See Table 1)
1512XX-2X20-RB-XX
(RIA E1 & C1 Apply)
Pin Length
Dim ‘A'
3 = .130"
4 = .152"
Packaging suffix:
Blank = Tray Packaging
WX = Tape & Reel Packaging
(see table 1)
TS-0808-H
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
