CD4009UBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD4009UBF

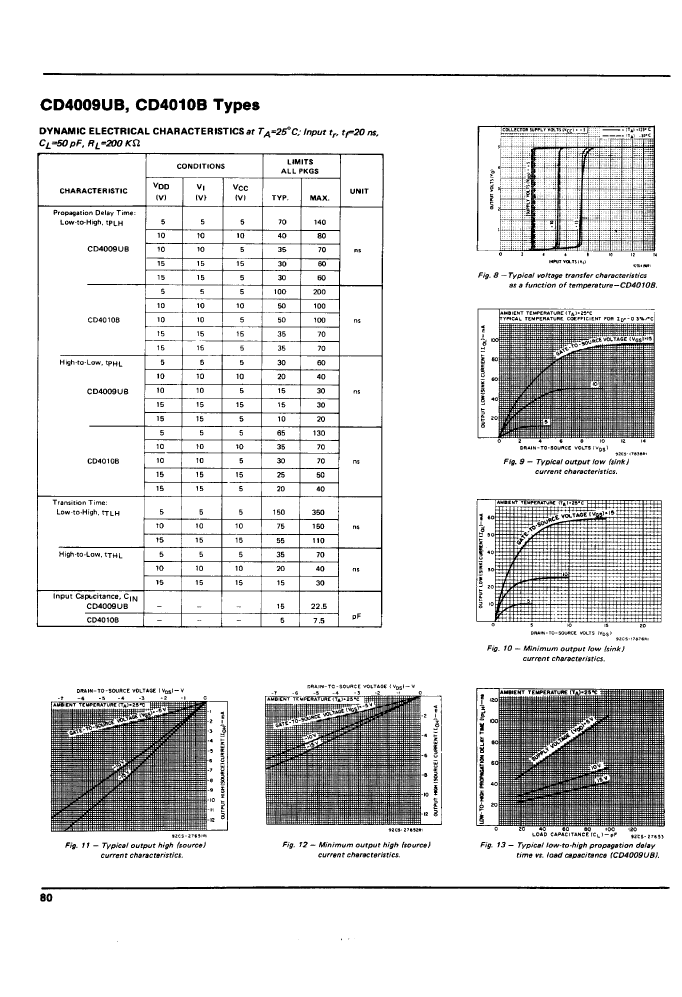

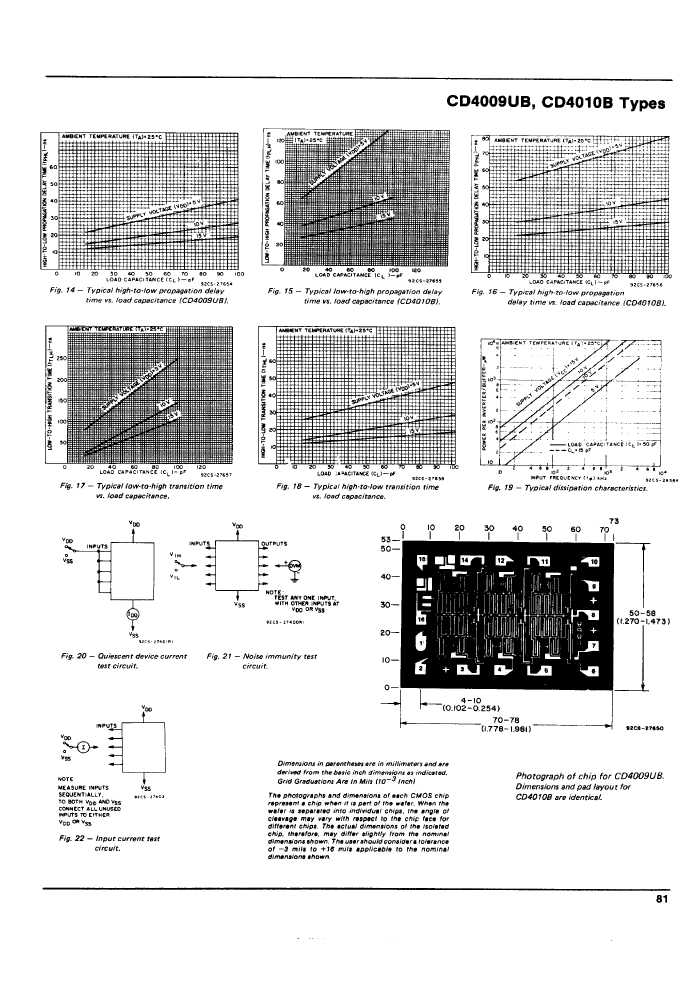

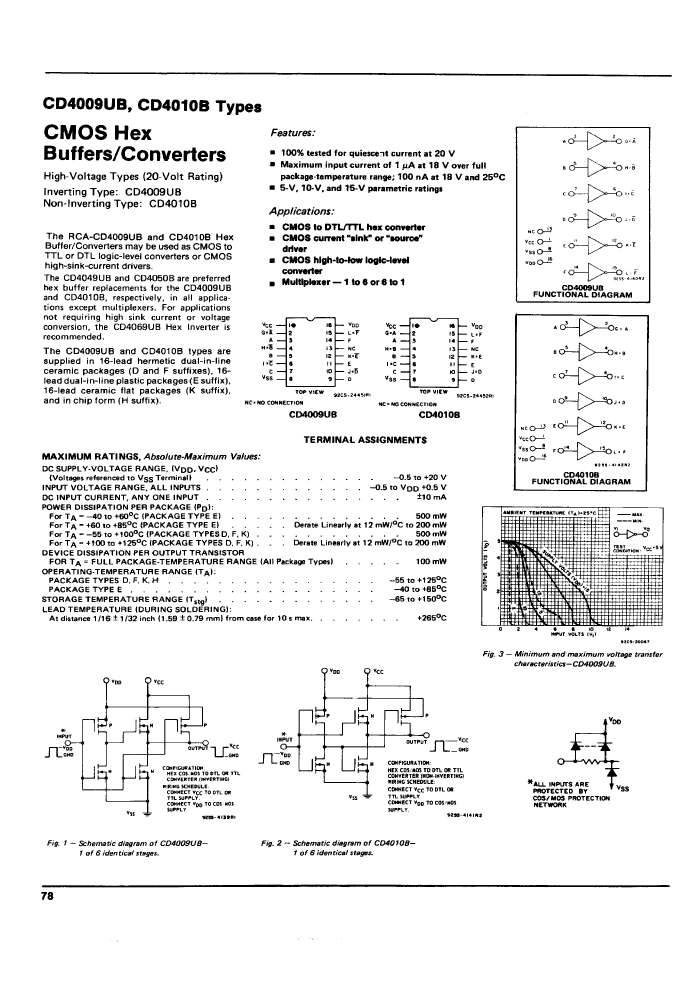

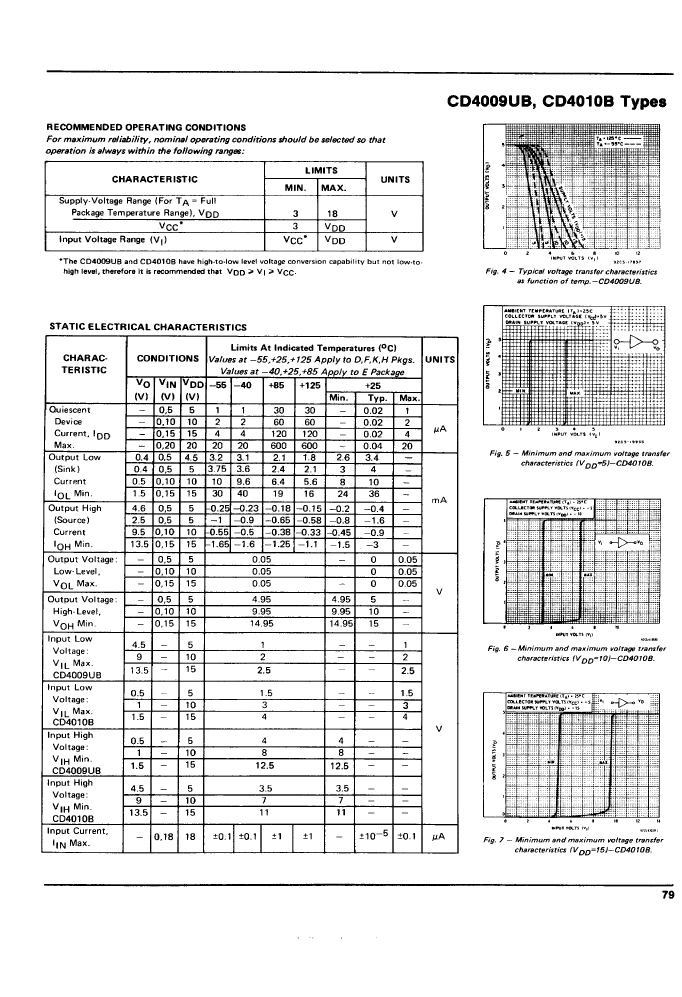

CD4009UBF: DescriptionInverter, CMOS, CDIP16,; Categorylogic logic; File Size334KB，4 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD4009UBF Overview

Inverter, CMOS, CDIP16,

CD4009UBF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	INVERTER
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CD4009UBF Related Products

	CD4009UBF	CD4010BE	CD4010BF	CD4009UBE	CD4010BH	CD4009UBD	CD4009UBH	CD4010BK	CD4009UBK	CD4010BD
Description	Inverter, CMOS, CDIP16,	Buffer, CMOS, PDIP16,	Buffer, CMOS, CDIP16,	Inverter, CMOS, PDIP16,	Buffer, CMOS,	Inverter, CMOS, CDIP16,	Inverter, CMOS,	Buffer, CMOS, CDFP16,	Inverter, CMOS, CDFP16,	Buffer, CMOS, CDIP16,
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	, DIE OR CHIP	DIP, DIP16,.3	, DIE OR CHIP	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Logic integrated circuit type	INVERTER	BUFFER	BUFFER	INVERTER	BUFFER	INVERTER	INVERTER	BUFFER	INVERTER	BUFFER
Maximum operating temperature	125 °C	85 °C	125 °C	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIE OR CHIP	DIP16,.3	DIE OR CHIP	FL16,.3	FL16,.3	DIP16,.3
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	-	incompatible	incompatible	incompatible
Maker	RCA	-	-	RCA	RCA	RCA	RCA	RCA	RCA	RCA
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	-	R-XDIP-T16	-	R-XDFP-F16	R-XDFP-F16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	-	e0	-	e0	e0	e0
Number of terminals	16	16	16	16	-	16	-	16	16	16
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	-	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	-	DIP	-	DFP	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	-	FLATPACK	FLATPACK	IN-LINE
surface mount	NO	NO	NO	NO	-	NO	-	YES	YES	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	-	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	-	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	-	DUAL	DUAL	DUAL
