2N3766LEADFREE: DescriptionPower Bipolar Transistor, 4A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-66, Metal, 2 Pin, TO-66, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size171KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

2N3766LEADFREE Overview

Power Bipolar Transistor, 4A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-66, Metal, 2 Pin, TO-66, 2 PIN

2N3766LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-66
package instruction	TO-66, 2 PIN
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	4 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-66
JESD-30 code	O-MBFM-P2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN (315)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	10 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

2N3766

2N3767

NPN SILICON

POWER TRANSISTOR

Central

TM

Semiconductor Corp.

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 2N3766, 2N3767 types

are silicon NPN power transistors manufactured by the

epitaxial base process designed for power amplifier and

medium speed switching applications.

MARKING CODE: FULL PART NUMBER

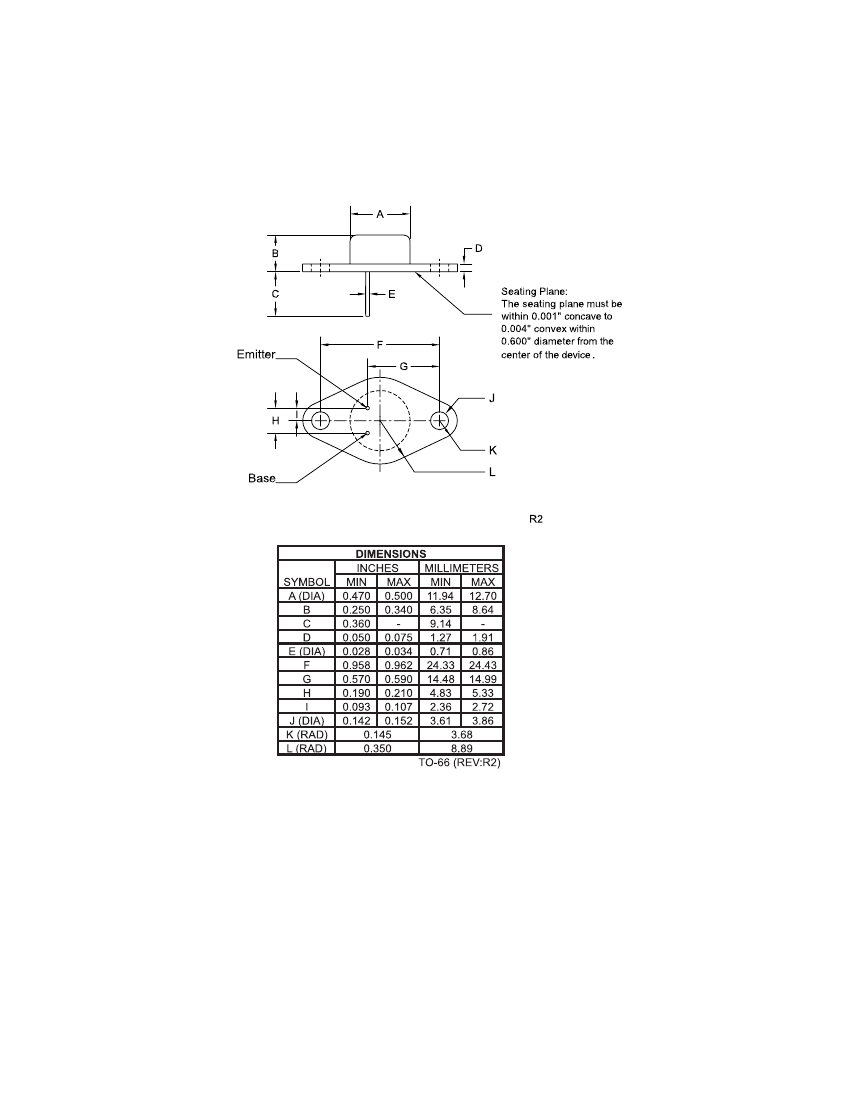

TO-66 CASE

MAXIMUM RATINGS:

(TC=25°C unless otherwise noted)

SYMBOL

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current

Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

VCBO

VCEO

VEBO

IC

IB

PD

TJ, Tstg

Θ

JC

2N3766

80

60

6.0

4.0

2.0

25

-65 to +200

7.0

2N3767

100

80

UNITS

V

A

W

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

ICEV

ICBO

ICEO

IEBO

BVCEO

VCE(SAT)

VBE(ON)

hFE

fT

Cob

VCE=Rated VCBO, VBE=1.5V

VCB=Rated VCBO

VCE=Rated VCEO

VEB=6.0V

IC=100mA (2N3766)

IC=100mA (2N3767)

IC=500mA, IB=50mA

IC=1.0A, IB=100mA

VCE=10V, IC=1.0A

VCE=5.0V, IC=50mA

VCE=5.0V, IC=500mA

VCE=10V, IC=1.0A

VCE=10V, IC=500mA, f=10MHz

VCB=10V, IC=0, f=100KHz

30

40

20

10

60

80

MAX

10

500

UNITS

μA

V

1.0

2.5

1.5

160

V

MHz

50

pF

R1 (25-October 2007))
