KT3225PFREQDCU30TAA datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KT3225PFREQDCU30TAA

KT3225PFREQDCU30TAA: DescriptionSine Output Oscillator, 12.6MHz Min, 40MHz Max, ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN; CategoryPassive components oscillator; File Size154KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

KT3225PFREQDCU30TAA Overview

Sine Output Oscillator, 12.6MHz Min, 40MHz Max, ROHS COMPLIANT, ULTRA-MINIATURE, SMD, 4 PIN

KT3225PFREQDCU30TAA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2%
Installation features	SURFACE MOUNT
Maximum operating frequency	40 MHz
Minimum operating frequency	12.6 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	3.2mm x 2.5mm x 1.0mm
Nominal supply voltage	3 V
surface mount	YES

Preview

Download Datasheet

View All

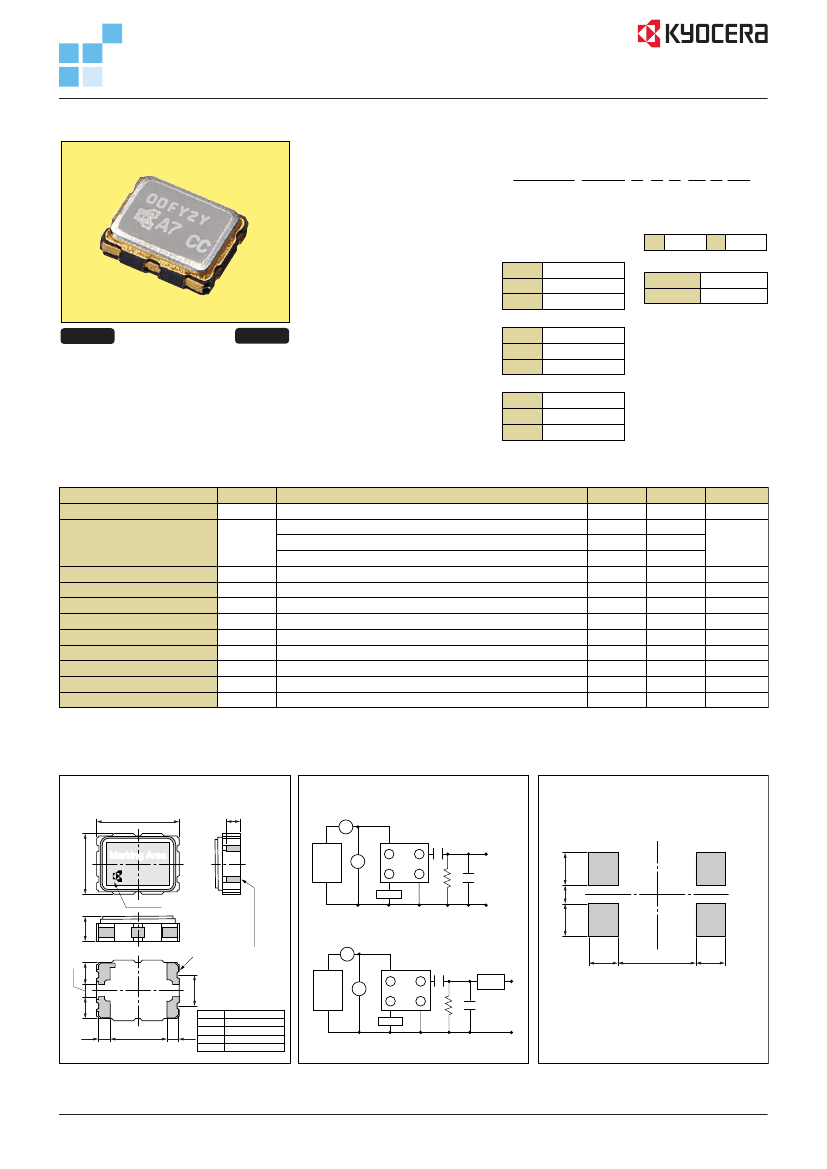

Temperature Compensated Crystal Oscillators (TCXO)

Surface Mount Type TCXO (LSI Type) KT3225 Series

3.2×2.5mm

Features

• Ultra-miniature SMD type

(3.22.51.0mm)

• Reflow compatible

• AFC function available

• 2.3 to 3.5V drive available

• Frequency stability

2.010

6

/30 to

85°C

How to Order

KT3225P 26000 D C W 28 T AA

①

②

③ ④⑤ ⑥ ⑦ ⑧

⑥Supply

Voltage

2.8V

3.0V

⑦Voltage

Control Range

TCXO

VCTCXO

Customer Spec

⑧Option

Code

①Series

②Output

Frequency

③Frequency

Tolerance

1.010

6

1.510

6

2.010

6

Applications

Pb Free

RoHS Compliant

• 3G (CDHA, W-CDHA)

GPRS, GSH

④Lower

Operating Temp.

30°C

20°C

10°C

⑤Upper

Operating Temp.

85°C

80°C

75°C

Specifications

Item

Output Frequency

Frequency Tolerance

Frequency Aging

Storage Temperature Range

Operating Temperature Range

Voltage Control Range

Supply Voltage

Output Level

Current Consumption

Symmetry

Harmonics

Symbol

_tol

_aging

_stg

_use

f/V

Vcc

Vpp

SYM

—

vs Temperature

vs Load

vs Voltage

Per Year

Conditions

Min.

12.6

2

0.2

0.3

1

40

30

8

2.3

0.8

—

Max.

2

0.2

0.3

1

85

15

3.5

—

5

Units

MHz

10

6

10

6

°C

10

6

Vp-p

dBc

Positive

10k ohm // 10pF

@50% V

Dimensions

3.20.2

0.5

(Unit : mm)

Test Circuit

Test circuit 1

(Amplitude)

0.01µF

POWER

SUPPLY

Vcc

Recommended Land Pattern

(Unit : mm)

2.50.2

Marking Area

#1 pin mark

Vcon

10k

10%

1.0max.

Test circuit 2

(Harmonics & Frequency)

Terminal:W+Ni(2 to 6m)+Au(0.3 to 0.6m)

0.87

CL include Probe Capacitance

(0.50)

CL=10pF

10%

0.87

VC-TCXO

Oscilloscope

(100MHz)

#4pin

#3pin

#1pin

Spectrum Analyzer

& Counter

FET

PROBE

CL=10pF

10%

0.78

(2.24)

#2pin

0.78

0.01µF

POWER

SUPPLY

Vcc

(0.50)

0.87

#1pin

#2pin

1.27

0.87

#4pin

#3pin

#1pin

#2pin

#3pin

#4pin

VC-TCXO

Vcon

10k

10%

0.40

2.24

0.40

Pin Configuration

Vcon

GND

OUTPUT

Vcc

Note: A capacitor of value 0.01µF between V

and GND is recommended.

CL include Probe Capacitance
