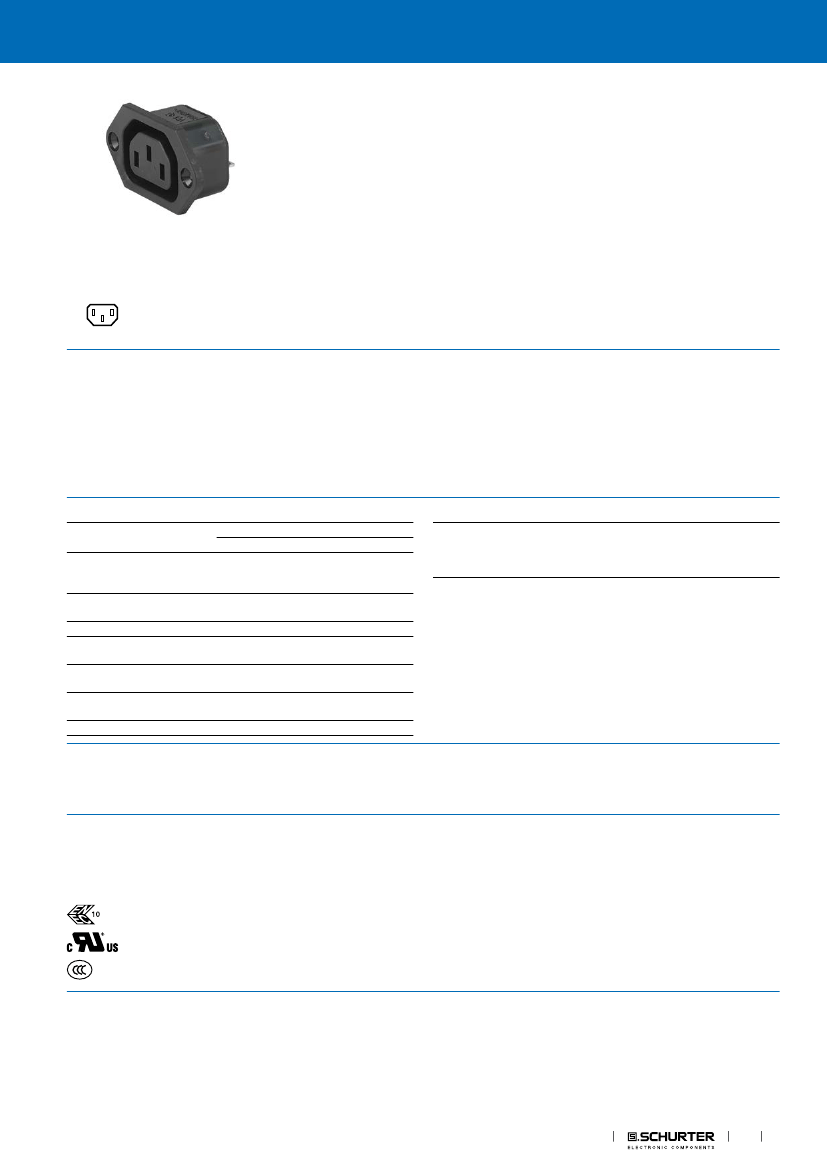

IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
6600-3
F
Approvals and Compliances
70° C
See below:
Description
- Panel mount :
Screw-on mounting from front side
- 1 Function
- Connector , Pin temperature 70 °C , Protection class I
- Solder terminals or quick connect terminals
Other versions on request
- Types for enhanced glow wire test requirements acc. IEC 60695-2-
12 and -13 for the use in unattended household equipment acc. IEC
60335-1
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 30 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Solder terminals or quick connect ter-
minals
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
F acc. to IEC 60320-3
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 10 A, Protection Class I
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 6600-3
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
Certificate Number: 40017345
UL File Number: E103791
CCC Certificate Number: 2012010204546362
Product standards
Product standards that are referenced
Connectors
1
6600-3
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60320-3
UL 60320-1
CSA C22.2 no. 60320-1
Description
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
Appliance couplers for household and similar general purposes
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Meets the requirements of IEC 60335-1 for appliances in unattended use.
This includes the enhanced requirements of glow wire tests acc. to IEC
60695-2-12 and -13.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
White paperGlow wire test
SCHURTER AG
Dimensions [mm]
6600-3
32.5
6.3x90°
3.5
28
24.8
+0.2
0
max.R4
40
50
E
3
40
E: Solder terminals: 24.1 mm
E: Quick connect terminals 4.8 x 0.8 mm: 26.5 mm
E: Quick connect terminals 6.3 x 0.8 mm: 27.5 mm
2
Connectors
M3
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
6600-3
All Variants
Panel mounting
Screw
Screw
Screw
Screw
Screw
Screw
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Suffix ".21" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset. The cord lat-
ching system prevents against accidental removal of the cordset.
Articles for enhanced glow wire test requirements acc. IEC 60695-2-12 and -13 can be ordered with ending ".15" (xxxx.xxxx.15). They are suitable for the use in
unattended household equipment acc. IEC 60335-1.
Panel Thickness s [mm]
-
-
-
-
-
-
Terminal
Quick connect terminals 4.8 x 0.8 mm
Quick connect terminals 4.8 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Solder terminals
Solder terminals
IP Protection Class Front Side
IP 30
IP 30
IP 30
IP 30
IP 30
IP 30
Order Number
6600.3200
6600.3200.21
6600.3300
6600.3300.21
6600.3100
6600.3100.21
█
█
█
█
Packaging unit

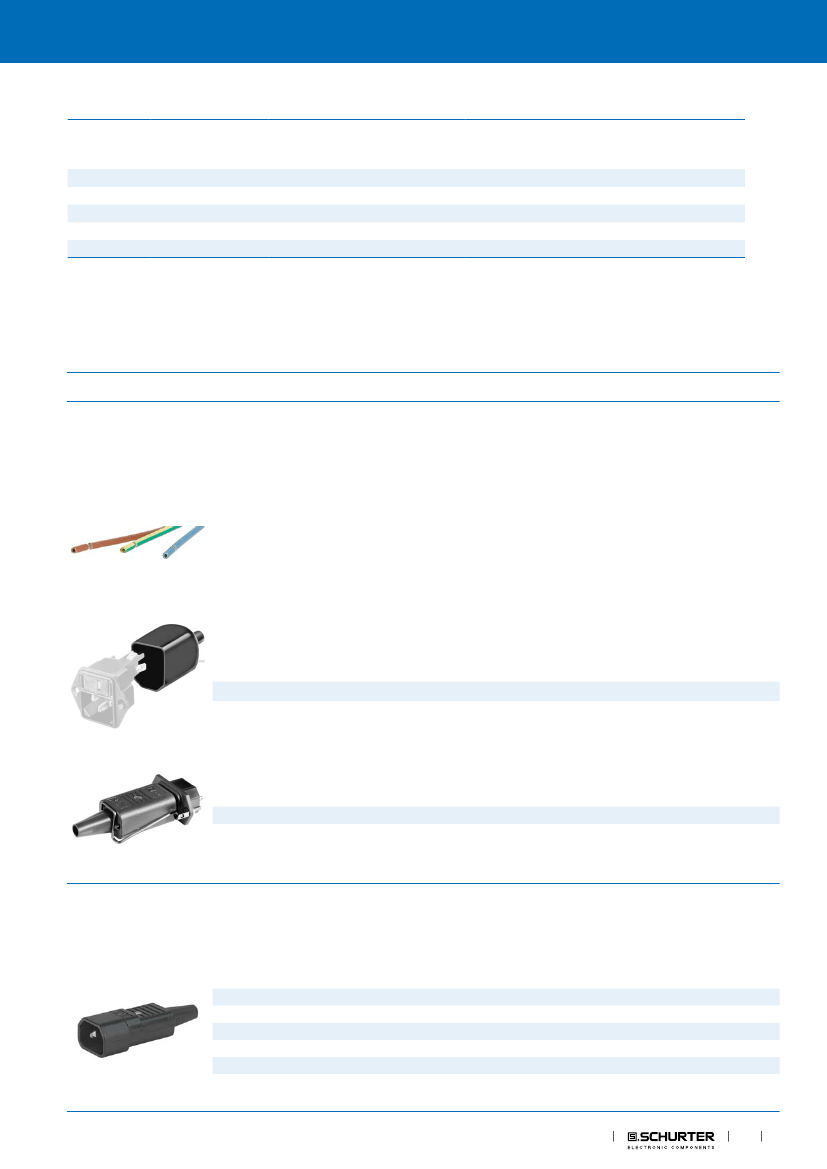

Accessories
50 Pcs
Description
Wire Harness
Wire harness for SCHURTER products
Assorted Covers
Rear Cover
0859.0047
Cord retaining kits
Cord retaining strain relief
Flat head, E
Flat head, G
4700.0005
4700.0007
Mating Inlets/Plugs
Category / Description
Plug Overview complete
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
Plug further types to 6600-3
4732
4735
9009
4733
4736
...
Connectors
3
6600-3
Mating Inlets/Plugs shuttered
Interconnection Cord Overview complete
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
VAC13KS, Interconnection, V-Lock cord retaining, 0.6 m, Connector IEC C13, H05VV-F3G0.75 / SVT 3x18 AWG, black
VAC13KS, Interconnection, V-Lock cord retaining, 1.2 m, Connector IEC C13, H05VV-F3G0.75 / SVT 3x18 AWG, black
VAC13KS, Interconnection, V-Lock cord retaining, 1.5 m, Connector IEC C13, H05VV-F3G0.75 / SVT 3x18 AWG, black
VAC13KS, Interconnection, V-Lock cord retaining, 3.0 m, Connector IEC C13, SVT 3x18 AWG, black
VAC13KS, Interconnection, V-Lock cord retaining, 1.8 m, Connector IEC C13, H05VV-F3G0.75 / SVT 3x18 AWG, black
Interconnection Cord further types to 6600-3
3-100-354
3-100-355
3-100-356
3-100-361
3-100-734
...
4
Connectors
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
