R6513ACE datasheet, PDF - EEWORLD Datasheet

R6513ACE: DescriptionMicroprocessor, 8-Bit, 2MHz, NMOS, CDIP28, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，15 Pages; ManufacturerRockwell Automation

Download Datasheet Parametric View All

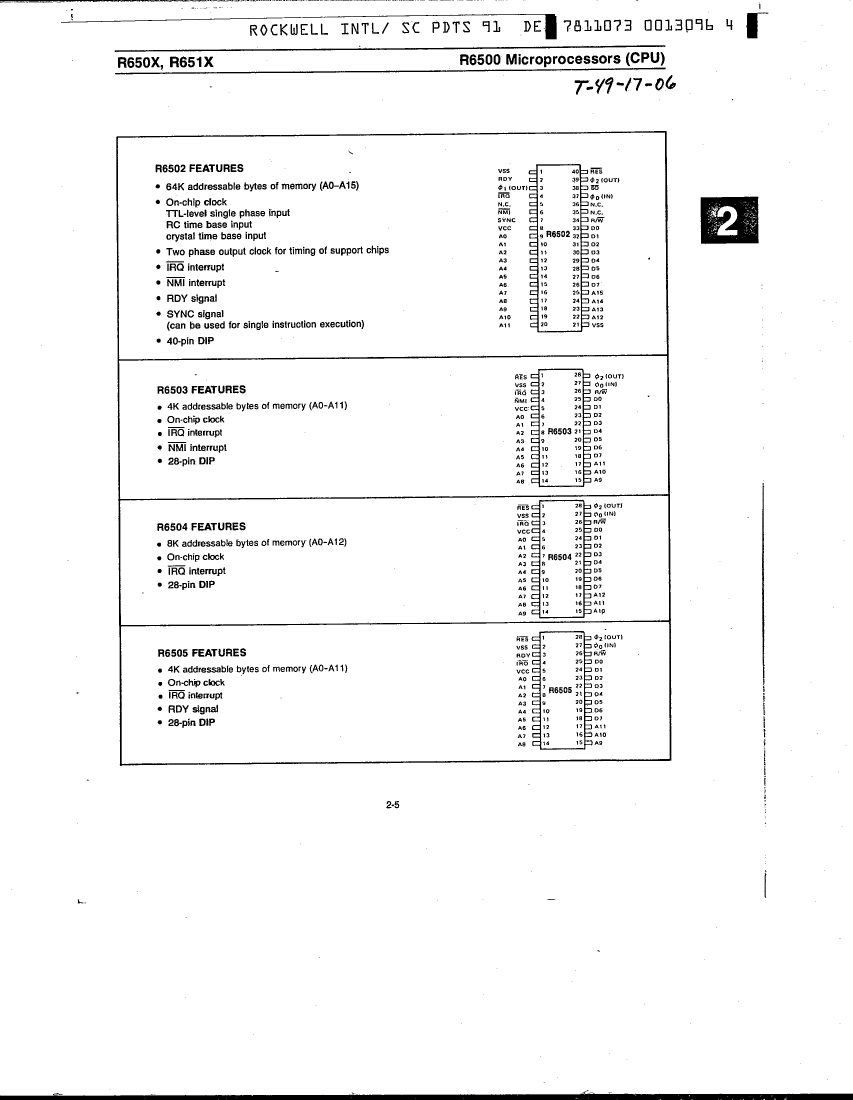

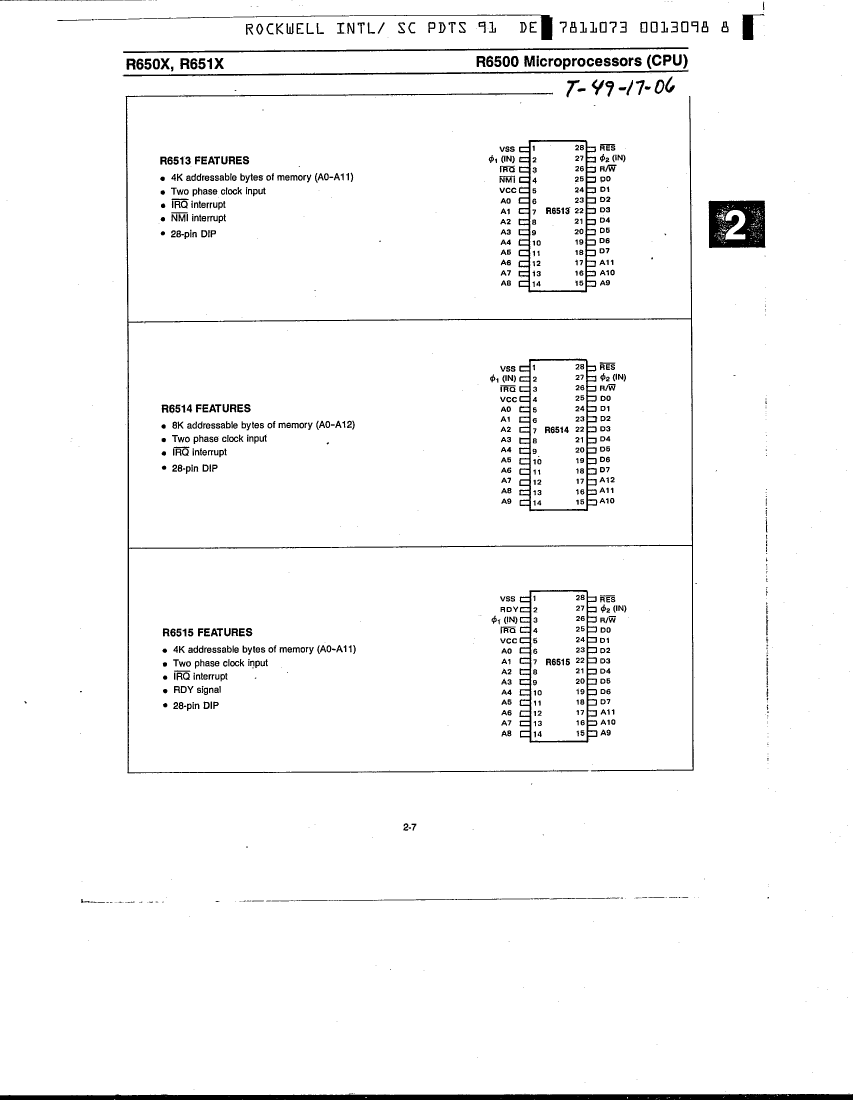

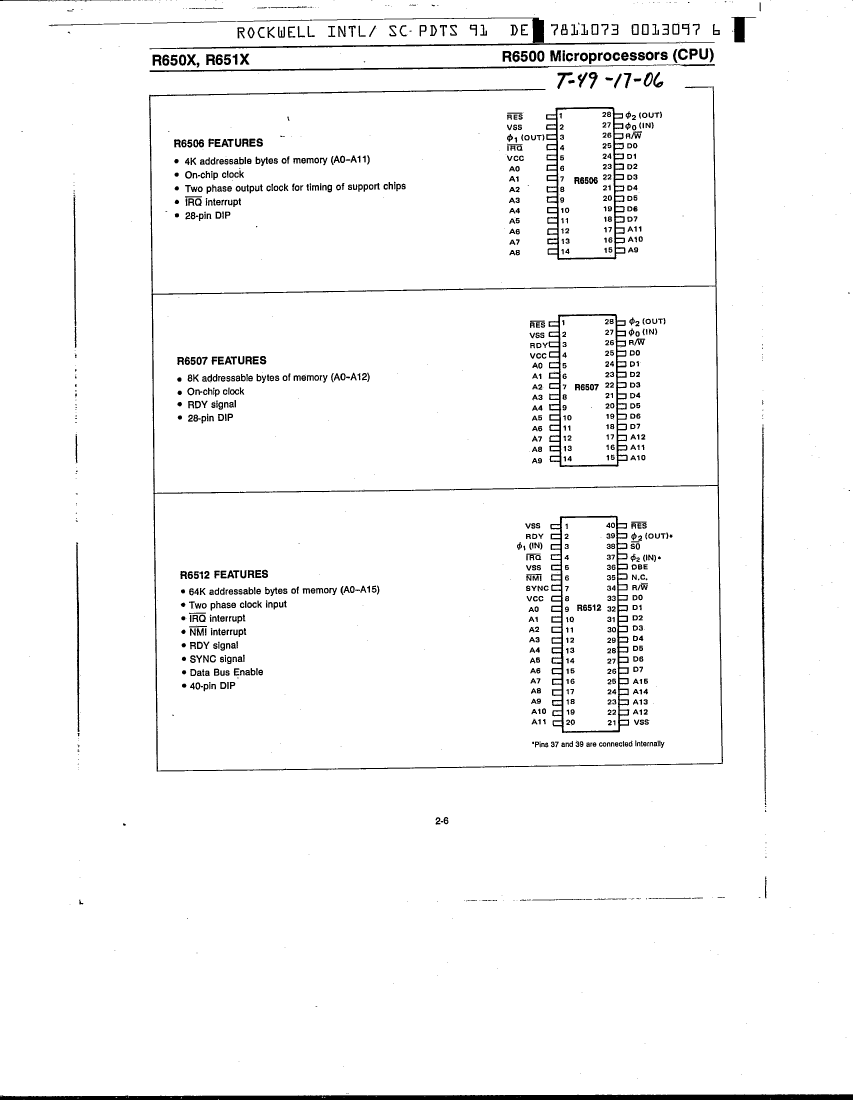

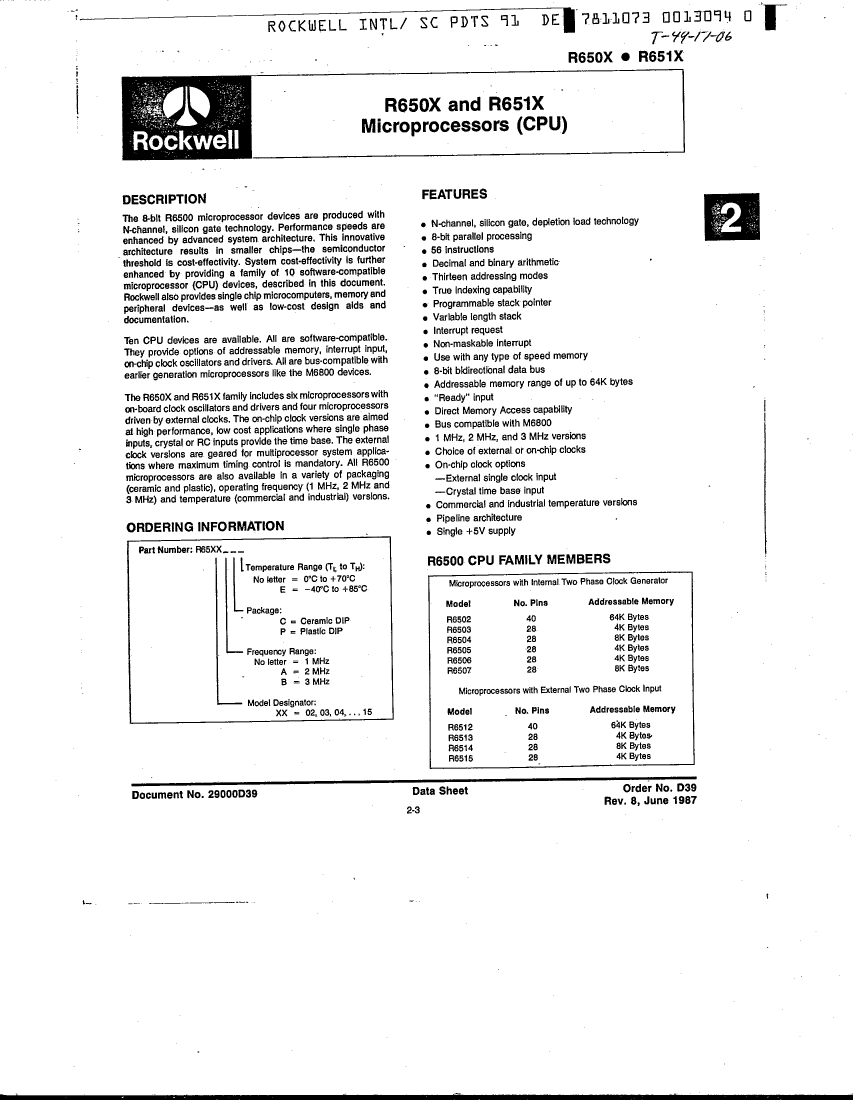

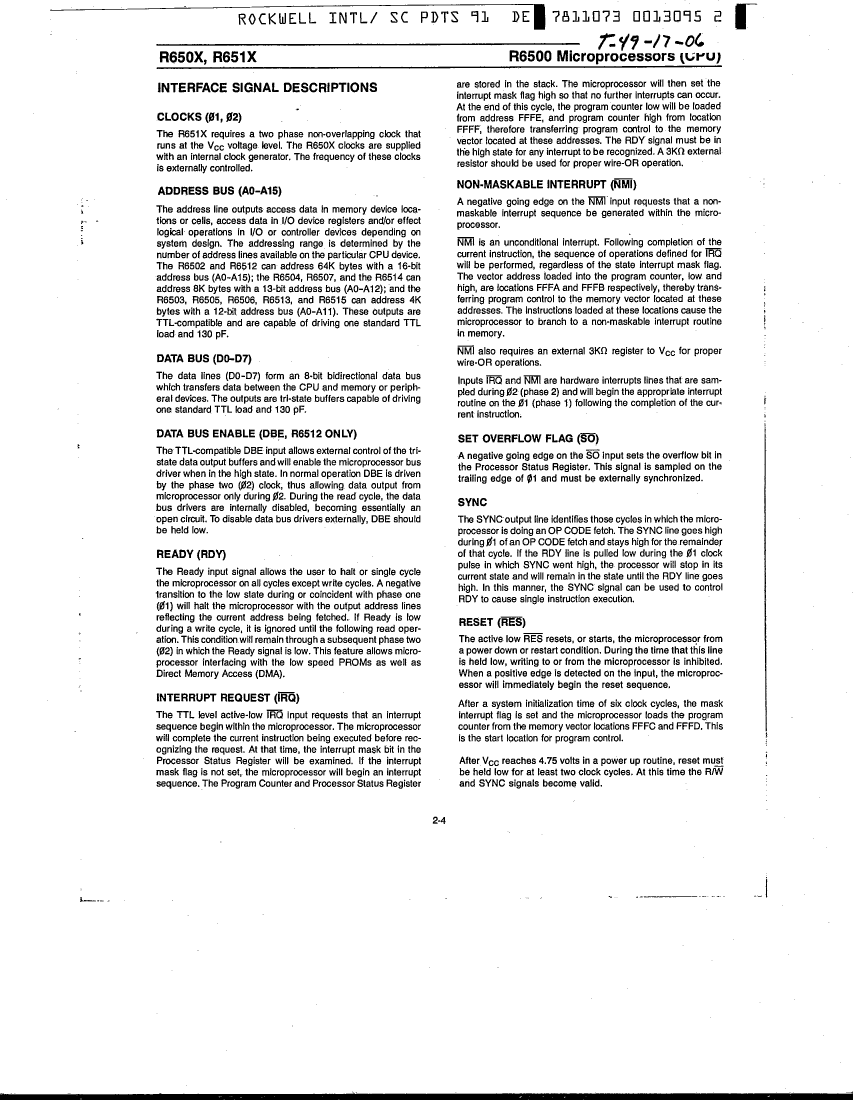

R6513ACE Overview

Microprocessor, 8-Bit, 2MHz, NMOS, CDIP28, DIP-28

Parameter Name	Attribute value
Maker	Rockwell Automation
package instruction	DIP,
Reach Compliance Code	compliant
Address bus width	12
bit size	8
boundary scan	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T28
low power mode	NO
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
speed	2 MHz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

Jameco Part Number 43191
