Power entry modules without line filter
https://www.schurter.com /PG05
KE
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole and Voltage Selector
Order required accessories separately
C14
See below:
70° C
Approvals and Compliances

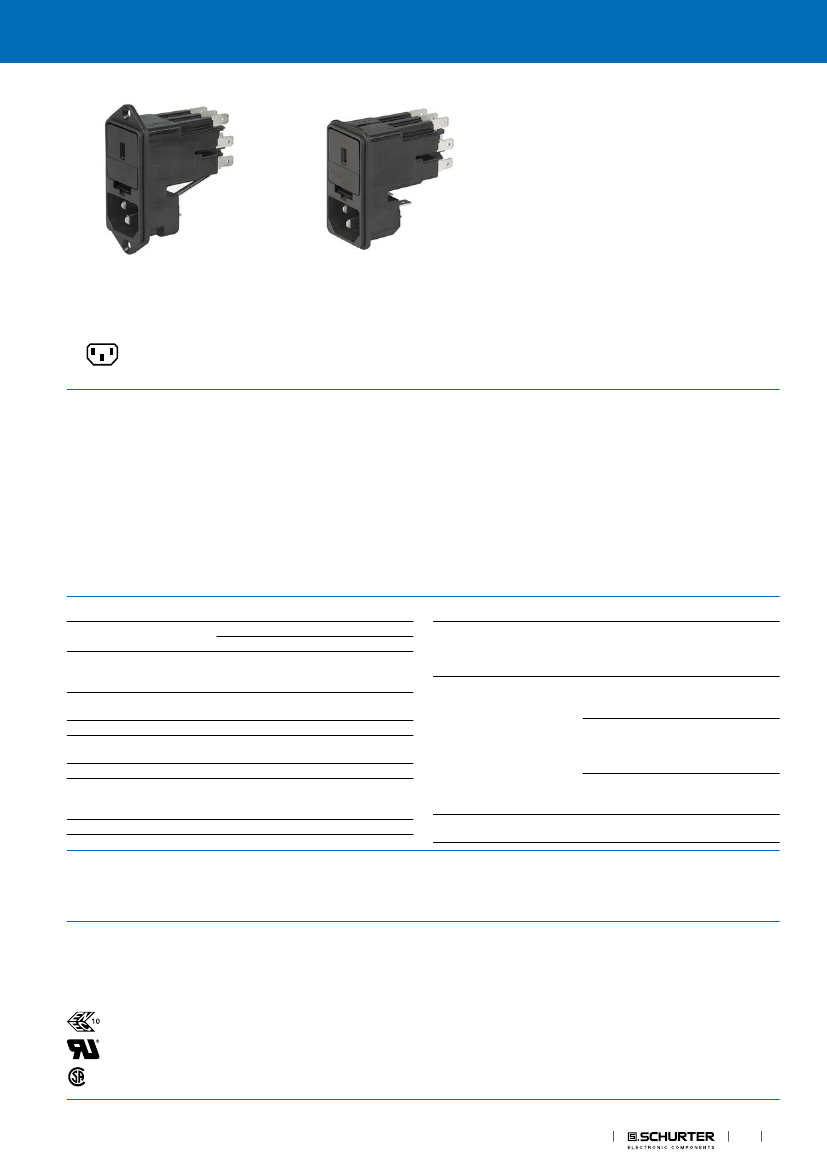

Description
Characteristics
- Panel mount :
Screw-on version from front or rear side, snap-in version from front
side
- 3 Functions :
Appliance Inlet Protection class I , Fuseholder with interchangeable
fuse drawer for Fuse-links 5x20 mm or 6.3x32 mm 1- or 2-pole , Vol-
tage Selector (series-parallel) Meets the requirements of IEC 60335-1
for appliances in unattended use. This includes the enhanced require-
ments of glow wire tests acc. to IEC 60695-2-12 and -13.
- Quick connect terminals 4.8 x 0.8 mm
- Available with or without internal partial wired connections
- For added safety "Extra-Safe" fuse drawers are available
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- For protection class II
References
Weblinks
Alternative: version with line filter
CE
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 125 VAC; 60 Hz
> 3 kVAC between L-N
> 4 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1.5/2/2.5 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 or 6.3 x 32 mm
5 x 20: 2.5 W (1 pole)/ 2 W (2-pole) per
pole
6.3 x 32: 3.15 W (1 pole)/ 2.5 W (2-pole)
per pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
series-parallel, 4, 3 or 2 switch positions
or usable as 2-pole change-over switch
Fuseholder
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Voltage Selector
Material: Housing

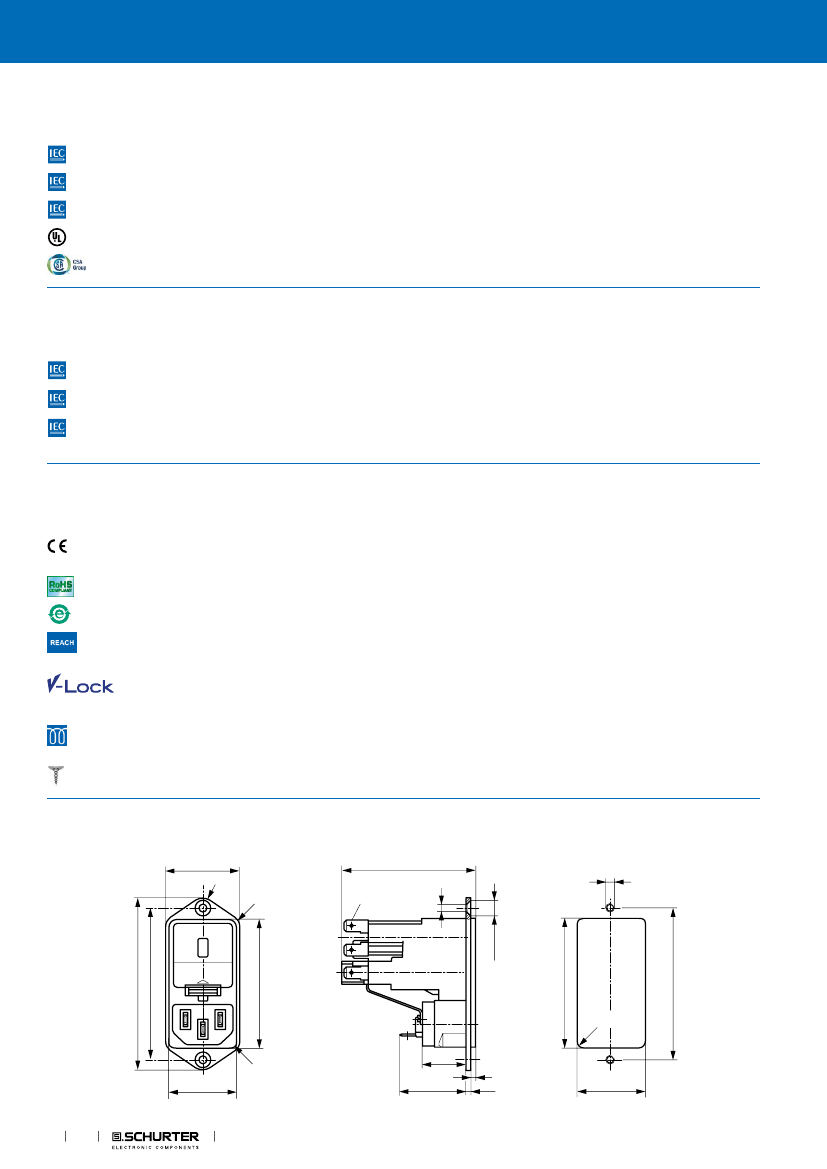

Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: KE
Approval Logo
Certificates
VDE Approvals
UL Approvals
CSA Approvals
Certification Body
VDE
UL
CSA
Description
Certificate Number: 40030339
UL File Number: E93617
CSA Certification Record: 38456
Connectors
1
KE
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60127-6
IEC 61058-1
UL 498
CSA C22.2 no. 42
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Appliance couplers for household and similar general purposes
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Meets the requirements of IEC 60335-1 for appliances in unattended use.
This includes the enhanced requirements of glow wire tests acc. to IEC
60695-2-12 and -13.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
White paperGlow wire test
SCHURTER AG
Medical Equipment
SCHURTER AG

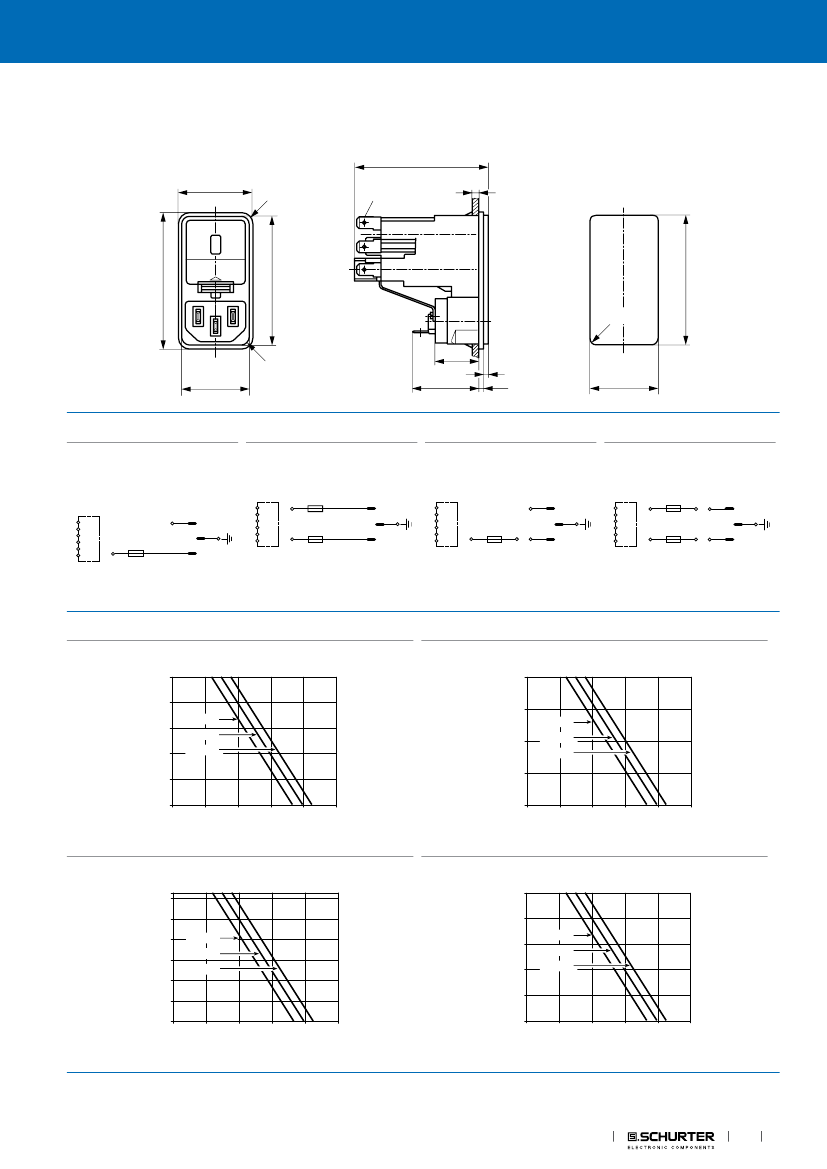

Dimensions [mm]
Screw-on mounting
30
R6
ø 3.2
R 4.5
4.8x0.8
55
M3/ø 3.6
ø 6.3x90°
230
R 3
-0.2
18
R 3.1
27.3
27.5
2
2.2
27.5
+0.2
0
0
2
Connectors
61.5
±0.15
69.8
61.5
52.2
52.5
+0.3
0
Power entry modules without line filter
https://www.schurter.com /PG05
KE
Snap-in mounting
55
30
R 4.5
4.8x0.8
S
±0.1
230
52.2
R 3
-0.2
18
R 3.1
27.3
27.5
2
2.2
27.5
+0.2
0
0
Diagrams
with partial wired internal connec-
tions
with partial wired
without internal connections
without conn.
5 6 7 8 9 10
5 6 7 8 9 10
5 6 7 8 9 10
N
5 6 7 8 9 10
4
N
N
52.5
55
+0.3
0
4
B
N
3
L
3
A
L
3
A
L
3
L
2-pole
1-pole
1-pole
2-pole
Derating Curves
Fuses
5 x 20 mm (1-pole)
Admissible power acceptance in
Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Fuses
5 x 20 mm (2-pole, per pole)
Admissible power acceptance in
Watt per pole
2.0
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = < < I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Fuses
6.3 x 32 mm (1-pole)
Admissible power acceptance in
Watt
3.15
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
Fuses
6.3 x 32 mm (2-pole, per pole)
Admissible power acceptance in
Watt per pole
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Connectors
3
KE
All Variants
Power entry modules without line filter
https://www.schurter.com /PG05
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
█
Most Popular.
Panel Thickness
s [mm]
1.5
1.5
2
2.5
1.5
2
2.5
1.5
2
2.5
-
-
-
-
-
Fuseholder
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
1 or 2 pole
1-pole
1-pole
2-pole
2-pole
Internally wired
unwired
partially wired
partially wired
partially wired
unwired
unwired
unwired
partially wired
partially wired
partially wired
prewired or unwired
unwired
partially wired
unwired
partially wired
V-Lock
Order Number
KE15.1100.105
KE16.5100.105
KE16.5100.107
KE16.5100.109
KE10.2100.105
KE10.2100.107
KE10.2100.109
KE10.6100.105
KE10.6100.107
KE10.6100.109
KE20.2100.151
KE15.1100.151
KE16.5100.151
KE10.2100.151
KE10.6100.151
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-
SCHURTER
Packaging unit

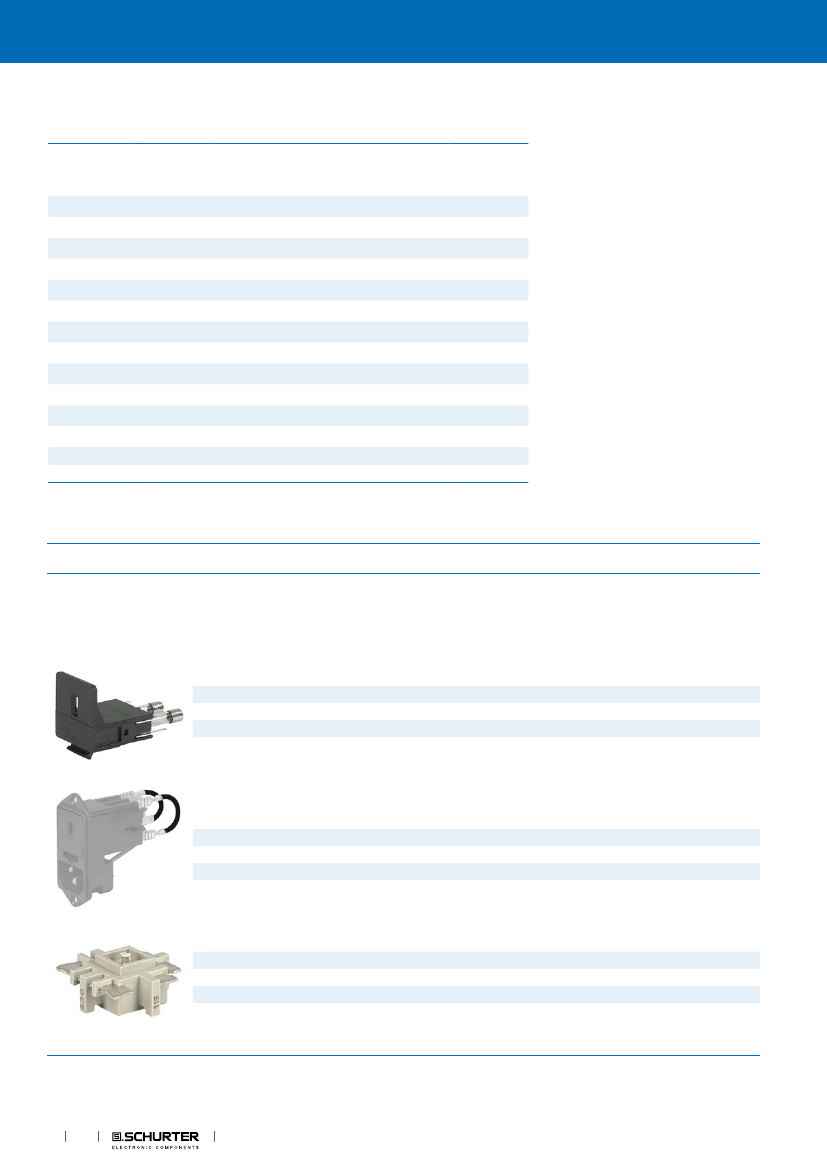

Required Accessory
20 Pcs
Description
Fusedrawer 1
Fusedrawer for Fuse Links 5x20 mm resp. 6.3x32 mm
5 x 20, 2-pole
5 x 20, 1-pole
6.3 x 32, 2-pole
6.3 x 32, 1-pole
4305.0001
4305.0006
4305.0011
4305.0016
...
Jumper Wire 1
Connection with Stranded Cable
Type A, 70 mm
Type A, 100 mm
Type B, 70 mm
Type B, 100 mm
0881.0074
0881.0075
0881.0076
0881.0077
Voltage Selectors Insert 1
Voltage Selector Insert to KE, CE, KG, CG
3 or 4 switch positions
1, 3 or 4 switch positions, 100, 120, 220, 240
3, 3 or 4 switch positions, 130, 110, 240, 220
2, 2 switch positions, 110, 220
4305.0048.00
4305.0048.01
4305.0048.02
4305.0048.03
...
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
KE

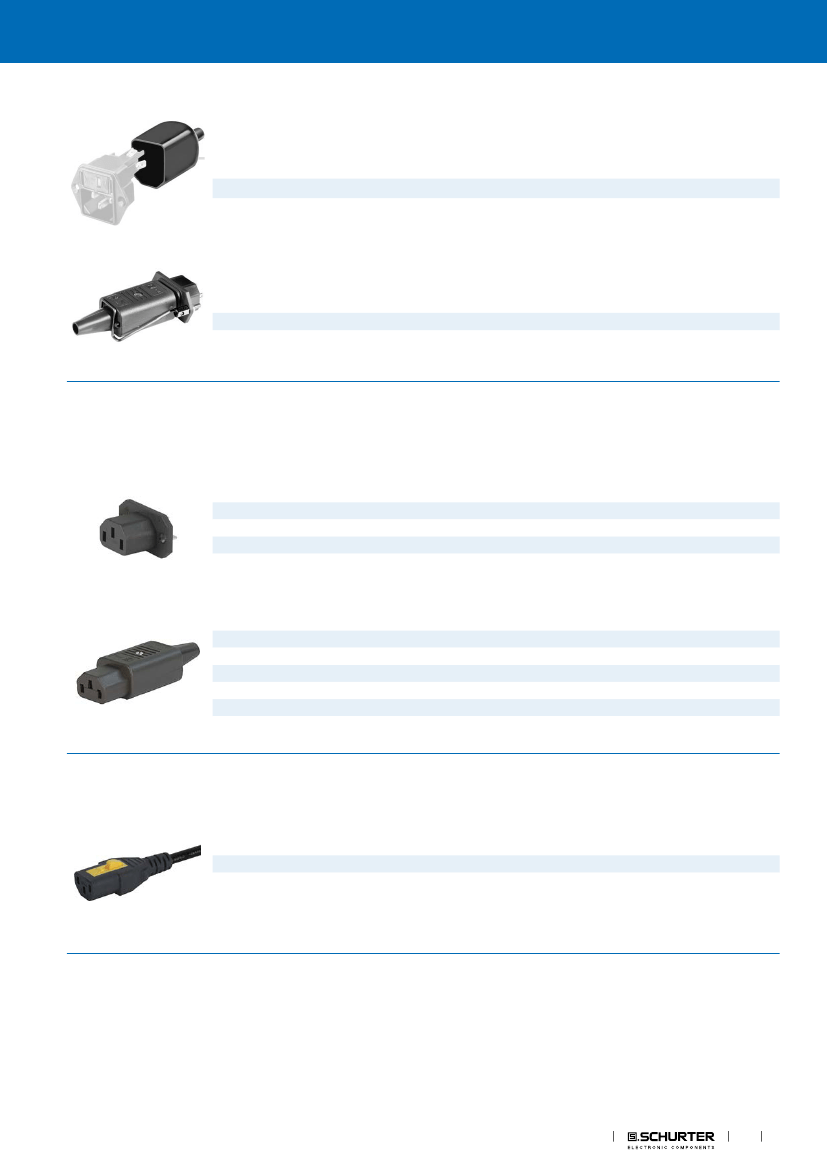

Accessories
Assorted Covers
Rear Cover
0859.0076
Cord retaining kits
Cord retaining strain relief
Flat head, A
4700.0001
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to KE
4787
4788
5091
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
IEC Connector C15 for hot conditions 120°C, Rewireable, Straight
IEC Connector C15 for hot conditions 120°C, Rewireable, Angled
Connector further types to KE
4782
4785
4300-06
4781
4784
...
Mating Outlets/Connectors shuttered
Power Cord Overview complete
VAC13KS, Overview, diverse Connector IEC C13, cord end:
Power cord with IEC connector C17, V-Lock, straight
Power Cord further types to KE
VAC13KS
VAC17KS
