BSR51-AMMO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BSR51-AMMO

BSR51-AMMO: DescriptionTRANSISTOR 1000 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size62KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BSR51-AMMO Overview

TRANSISTOR 1000 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal

BSR51-AMMO Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	60 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	2000
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	1500 ns
VCEsat-Max	1.6 V

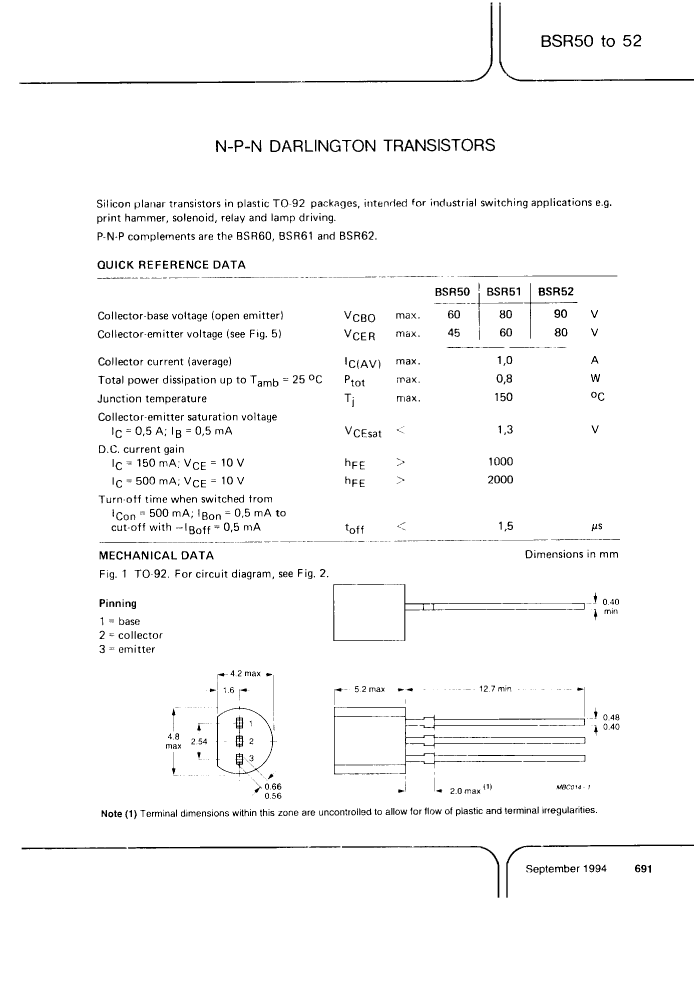

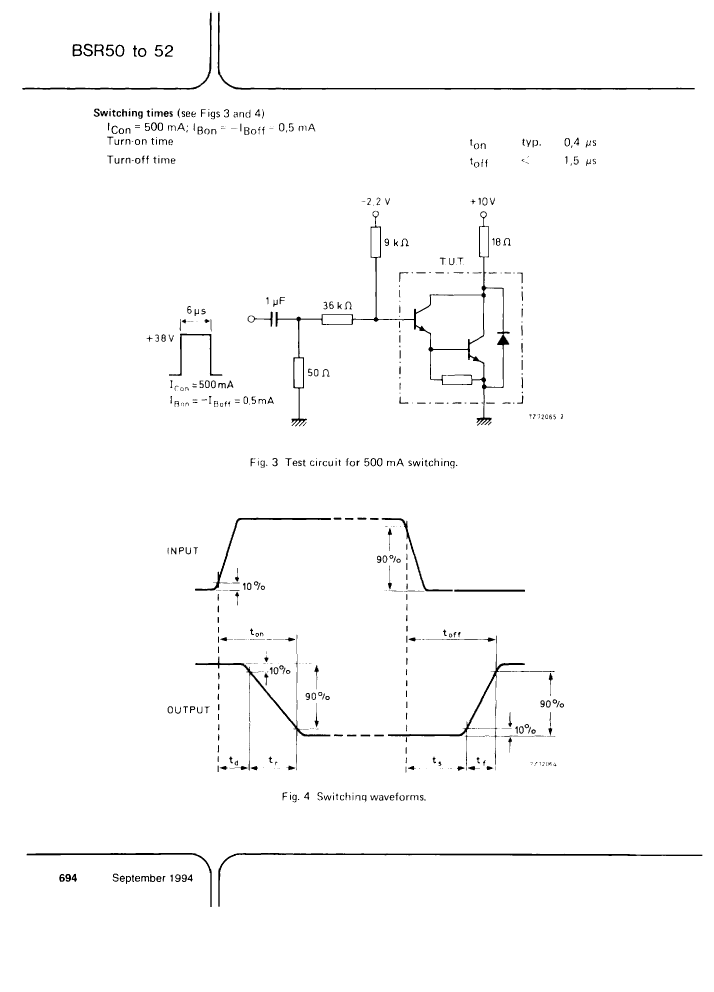

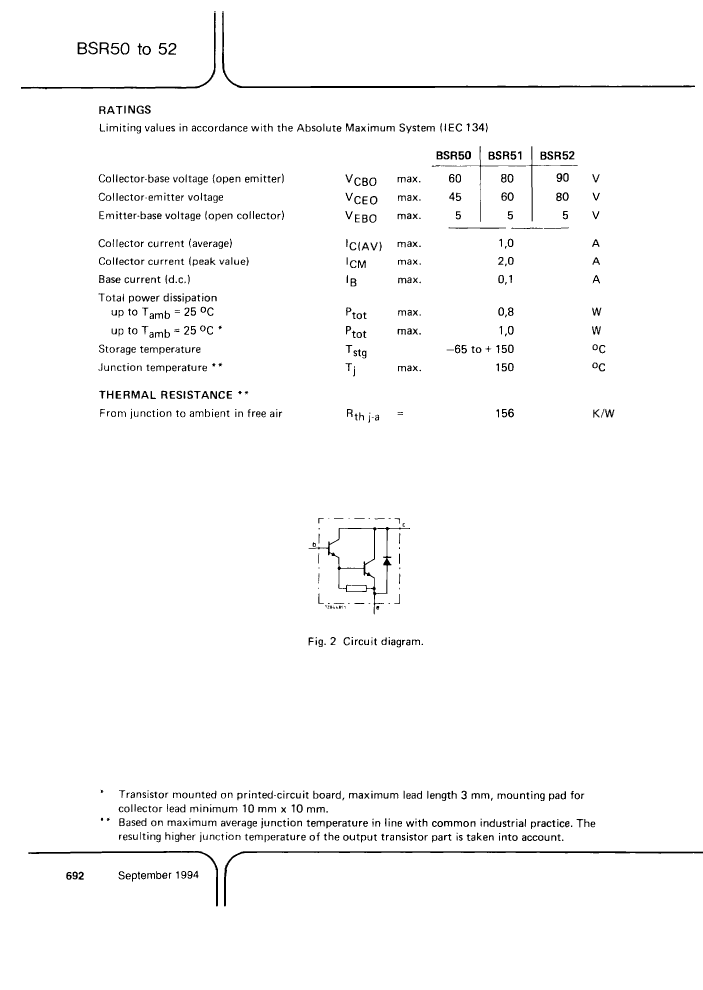

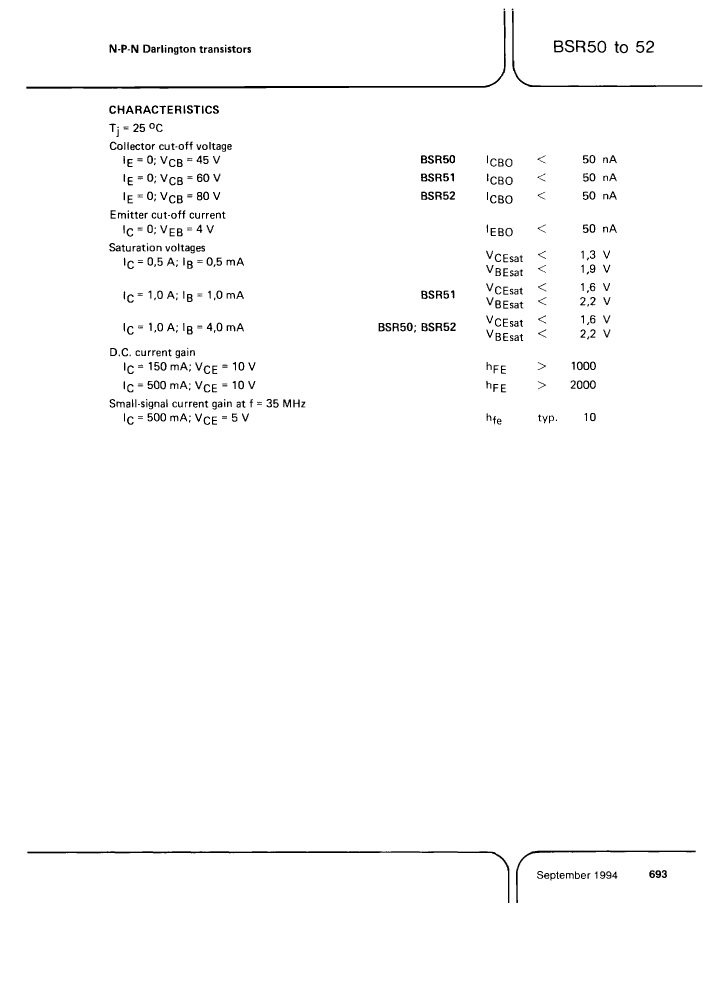

Preview

Download Datasheet

View All

BSR51-AMMO Related Products

	BSR51-AMMO	BSR52-AMMO	BSR50-AMMO	BSR50-T/R	BSR51-T/R
Description	TRANSISTOR 1000 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 1000 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 1000 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 1000 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal	TRANSISTOR 1000 mA, 60 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	60 V	80 V	45 V	45 V	60 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	2000	2000	2000	2000	2000
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	1500 ns	1500 ns	1500 ns	1300 ns	1300 ns
VCEsat-Max	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
Maker	NXP	-	NXP	NXP	NXP
