Part Number:
Status:
Description:
0022284148
Active
2.54mm (.100") Pitch KK® Header, Breakaway, Vertical, 14 Circuits, 0.76µm (30µ")
Gold (Au) Selective Plating, Mating Pin Length 7.49mm (.295")
Documents:
3D Model
Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
42375
Board-to-Board, Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Yes
14
14
Black
100
No
94V-0
No
No
None
None
Brass
Gold
Tin
High Temperature Thermoplastic
1
Vertical
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
30
0.75
100
2.5
No
No
No
No
Yes
0°C to +75°C
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
42375S
Mates
2695 ,
, 7859
70066a
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
260
Material Info
Old Part Number
42375-0294
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-40873-0041
PS-10-07
SD-42375-001
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
ENG. NO: A-42375-0002/0036
HEADER NUMBER:
42312-0036
PIN NUMBER:
42663-ABA154
PIN LENGTH: L
.455 / 11.56
MATING LENGTH: M
.240 / 6.09
GOLD POINT: G
N/A
PC TAIL LENGTH: P
.125 / 3.18
TIN: T
OVERALL
CKTS:
2-36
KINKS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK PK-40873-0041
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-4020 A-42375-0002 20 22-28-4200 A-42375-0020
03 22-28-4030 A-42375-0003 21 22-28-4210 A-42375-0021
04 22-28-4040 A-42375-0004 22 22-28-4220 A-42375-0022
05 22-28-4050 A-42375-0005 23 22-28-4230 A-42375-0023
06 22-28-4060 A-42375-0006 24 22-28-4240 A-42375-0024
07 22-28-4070 A-42375-0007 25 22-28-4250 A-42375-0025
08 22-28-4080 A-42375-0008 26 22-28-4260 A-42375-0026
09 22-28-4090 A-42375-0009 27 22-28-4270 A-42375-0027
10 22-28-4100 A-42375-0010 28 22-28-4280 A-42375-0028
11 22-28-4110 A-42375-0011 29 22-28-4290 A-42375-0029
12 22-28-4120 A-42375-0012 30 22-28-4300 A-42375-0030
13 22-28-4130 A-42375-0013 31 22-28-4310 A-42375-0031
14 22-28-4140 A-42375-0014 32 22-28-4320 A-42375-0032
15 22-28-4150 A-42375-0015 33 22-28-4330 A-42375-0033
16 22-28-4160 A-42375-0016 34 22-28-4340 A-42375-0034
17 22-28-4170 A-42375-0017 35 22-28-4350 A-42375-0035
18 22-28-4180 A-42375-0018 36 22-28-4360 A-42375-0036
19 22-28-4190 A-42375-0019
ENG. NO:
HEADER NUMBER:
PIN NUMBER:
PIN LENGTH: L
MATING LENGTH: M
GOLD POINT: G
PC TAIL LENGTH: P
TIN: T
CKTS:
KINKS:
VOIDED CKTS:
PACKAGING:
MATERIAL
ENG
CKTS
NUMBER
NUMB
02
22-28-4023 A-42375
03
22-28-4033 A-42375
04
22-28-4043 A-42375
05
22-28-4053 A-42375
06
22-28-4063 A-42375
07
22-28-4073 A-42375
08
22-28-4083 A-42375
09
22-28-4093 A-42375
10
22-28-4103 A-42375
11
22-28-4113 A-42375
12
22-28-4123 A-42375
13
22-28-4133 A-42375
14
22-28-4143 A-42375
15
22-28-4153 A-42375
16
22-28-4163 A-42375-
17
22-28-4173 A-42375
18
22-28-4183 A-42375
19
22-28-4193 A-42375
REV:
ECR/ECN INFORMATION:
EC No.:
DATE:
TITLE:
T15
UCP2009-1249
12/2/2008
CREATED / REVISED BY:

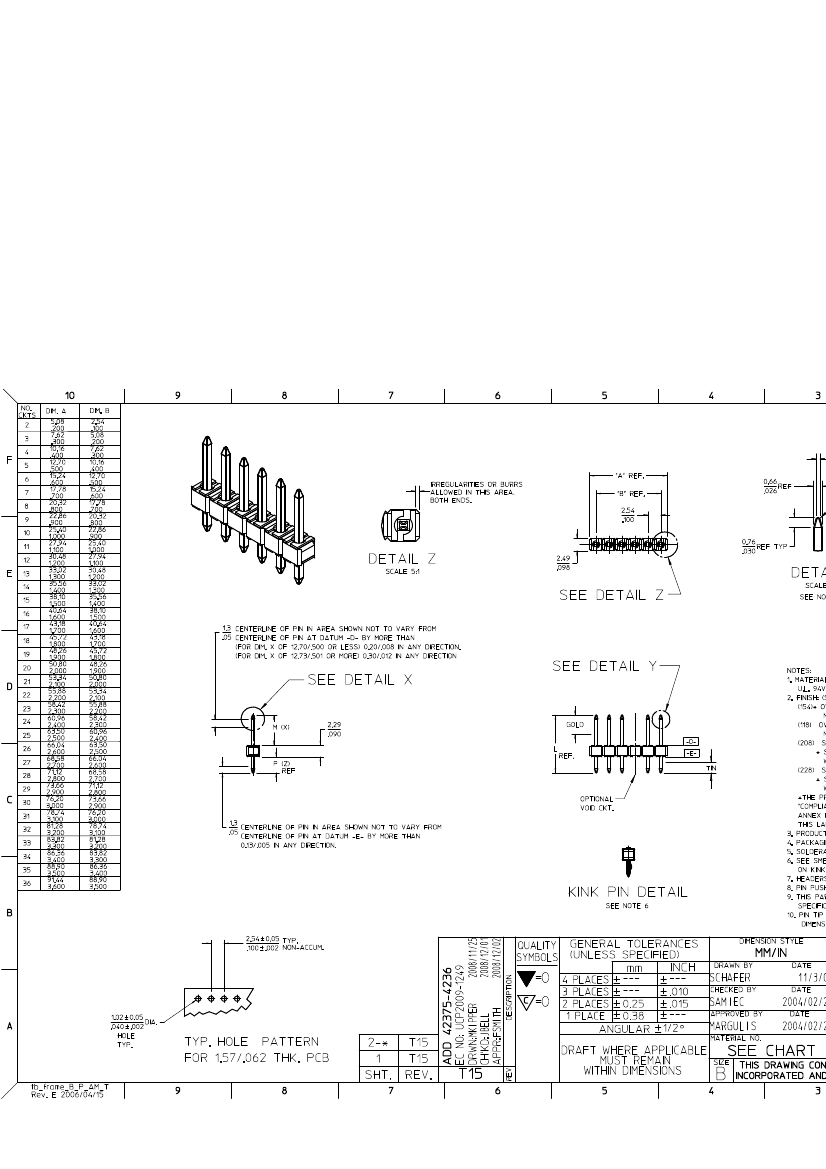

KK 100 HEADER ASSY
FLAT VERTICAL
BREAKAWAY
CHECKED BY:
DOCUMENT NUMBER:
SD- 42375-001
MKIPPER
JBELL
TE
ENG. NO: A-42375-0072/0106
HEADER NUMBER:
42312-0036
PIN NUMBER:
42663-ABB228
PIN LENGTH: L
.455 / 11.56
MATING LENGTH: M
.240 / 6.09
GOLD POINT: G
.100 / 2.54
PC TAIL LENGTH: P
.125 / 3.18
TIN: T
.100 / 2.54
CKTS:
2-36
KINKS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK PK-40873-0041
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-4026 A-42375-0072 20 22-28-4206 A-42375-0090
03 22-28-4036 A-42375-0073 21 22-28-4216 A-42375-0091
04 22-28-4046 A-42375-0074 22 22-28-4226 A-42375-0092
05 22-28-4056 A-42375-0075 23 22-28-4236 A-42375-0093
06 22-28-4066 A-42375-0076 24 22-28-4246 A-42375-0094
07 22-28-4076 A-42375-0077 25 22-28-4256 A-42375-0095
08 22-28-4086 A-42375-0078 26 22-28-4266 A-42375-0096
09 22-28-4096 A-42375-0079 27 22-28-4276 A-42375-0097
10 22-28-4106 A-42375-0080 28 22-28-4286 A-42375-0098
11 22-28-4116 A-42375-0081 29 22-28-4296 A-42375-0099
12 22-28-4126 A-42375-0082 30 22-28-4306 A-42375-0100
13 22-28-4136 A-42375-0083 31 22-28-4316 A-42375-0101
14 22-28-4146 A-42375-0084 32 22-28-4326 A-42375-0102
15 22-28-4156 A-42375-0085 33 22-28-4336 A-42375-0103
16 22-28-4166 A-42375-0086 34 22-28-4346 A-42375-0104
17 22-28-4176 A-42375-0087 35 22-28-4356 A-42375-0105
18 22-28-4186 A-42375-0088 36 22-28-4366 A-42375-0106
19 22-28-4196 A-42375-0089
ENG. NO:
HEADER NUMBER:
PIN NUMBER:
PIN LENGTH: L
MATING LENGTH: M
GOLD POINT: G
PC TAIL LENGTH: P
TIN: T
CKTS:
KINKS:
VOIDED CKTS:
PACKAGING:
MATERIAL
ENG
CKTS
NUMBER
NUMB
02
22-28-4021 A-42375
03
22-28-4031 A-42375
04
22-28-4041 A-42375
05
22-28-4051 A-42375
06
22-28-4061 A-42375
07
22-28-4071 A-42375
08
22-28-4081 A-42375
09
22-28-4091 A-42375
10
22-28-4101 A-42375
11
22-28-4111 A-42375
12
22-28-4121 A-42375
13
22-28-4131 A-42375
14
22-28-4141 A-42375
15
22-28-4151 A-42375
16
22-28-4161 A-42375
17
22-28-4171 A-42375
18
22-28-4181 A-42375
19
22-28-4191 A-42375
REV:
ECR/ECN INFORMATION:
EC No.:
DATE:
TITLE:
T15
UCP2009-1249
12/2/2008
CREATED / REVISED BY:
KK 100 HEADER ASSY
FLAT VERTICAL
BREAKAWAY
CHECKED BY:
DOCUMENT NUMBER:
SD- 42375-001
MKIPPER
JBELL
TE
