0009075098
Active
kk
3.96mm (.156") KK® IDT Double Cantilever Contact, 9 Circuits, Tin (Sn), Feed-To, 24
and 22 Solid or Fused Stranded, and 22 Stranded, Black ID Stri
Documents:
3D Model

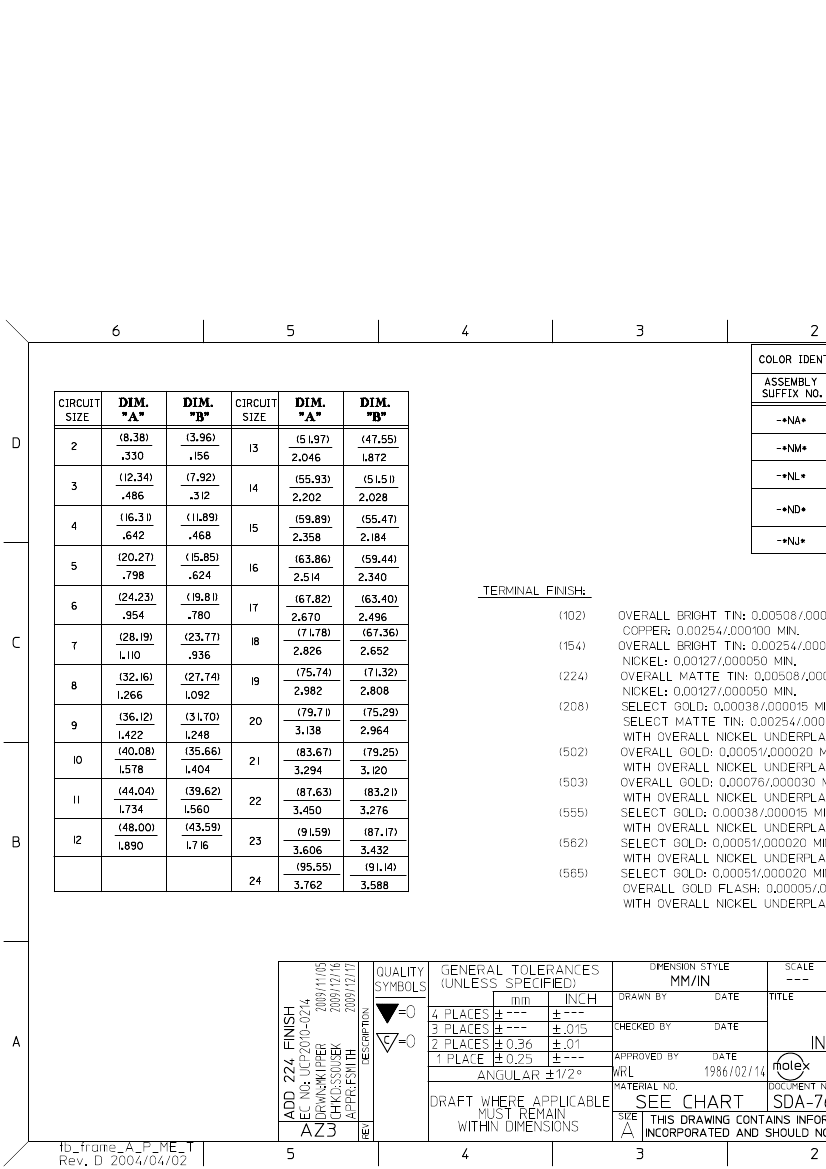

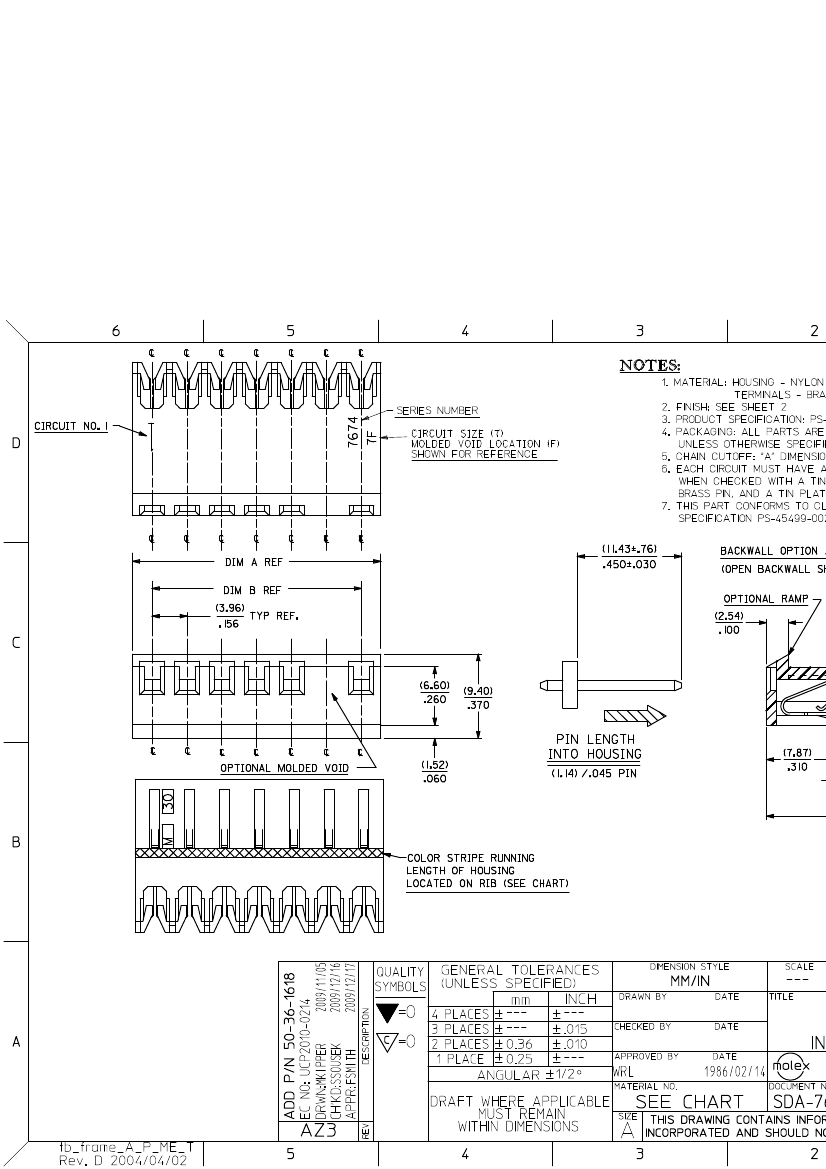

Drawing (PDF)
Product Specification PS-7660 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
IDT and Solder Connectors
7675
Double Cantilever contact
Yes
kk
KK®
Physical
Circuits (Loaded)
Color - Resin
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
9
Natural
Female
No
None
Brass
Tin
Tin
Nylon
1
Bag
No
0.156 In
3.96 mm
200
5
200
5
0°C to +75°C
IDT or Pierce
22 Solid, 22 Stranded, 22 Stranded Topcoat, 24 Solid,
24 Stranded Topcoat
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
7675Se
Electrical
Voltage - Maximum
250V
Material Info
Old Part Number
A-7675-C09J
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-7674-001
PS-7660
SDA-7675-****
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Insertio
3.96mm
KK® ID
Termin
IDT - S
- Bench
Termin
IDT - M
Handto
IDT Ma
