AE-3002-3B

Description
5.08mm (.200") Pitch KK PC Board Connector, Bottom Entry Mount Style B, 1.0mm (40") Tin (Sn), 3 Circuits
File Size136KB，3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

AE-3002-3B Overview

5.08mm (.200") Pitch KK PC Board Connector, Bottom Entry Mount Style B, 1.0mm (40") Tin (Sn), 3 Circuits

Preview

Download Datasheet
This document was generated on 06/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0010021032
Active
kk
5.08mm (.200") Pitch KK® PC Board Connector, Bottom Entry Mount Style B, 1.0µm
(40µ") Tin (Sn), 3 Circuits
Documents:
3D Model

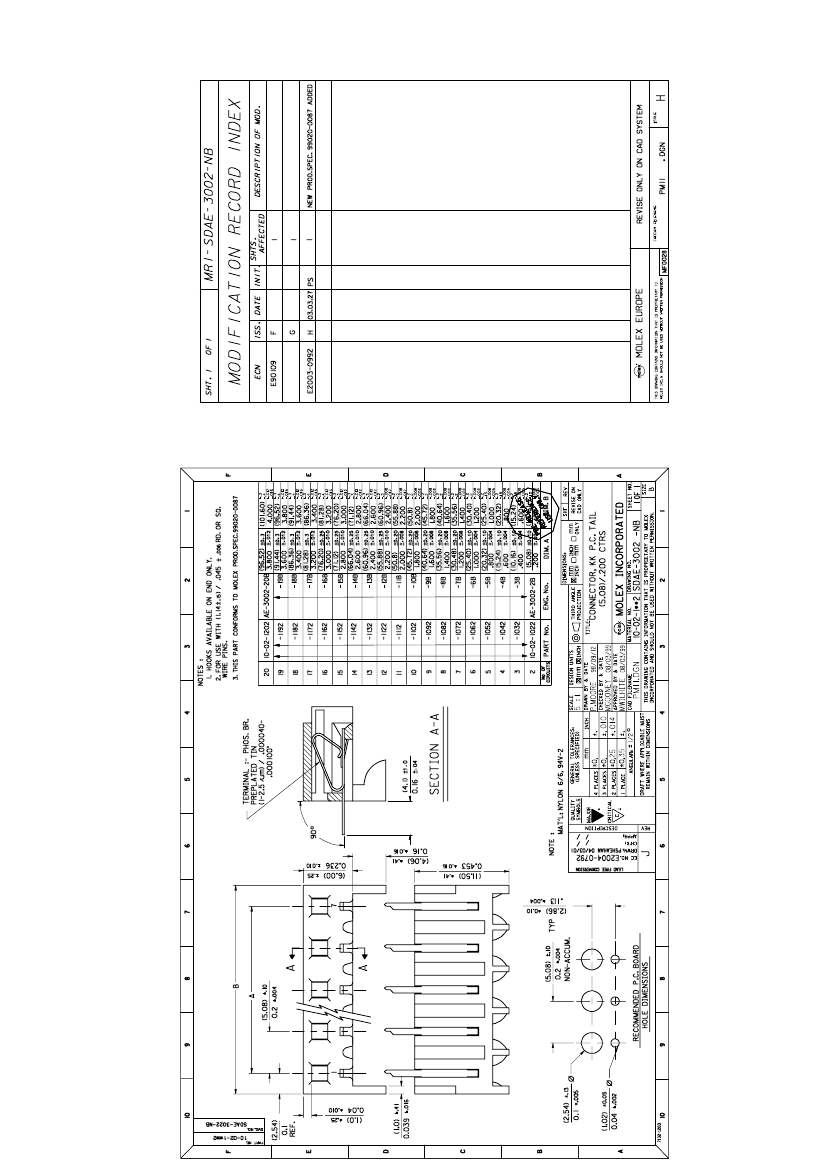

Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
3002
Board-to-Board
kk
KK®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
3
Natural
25
94V-2
No
Phosphor Bronze
Tin
Tin
Nylon
1
Bottom Entry
0.160 In
4.10 mm
No
None
0.062 In
1.60 mm
Tray
0.200 In
5.08 mm
40.00
1.000
40.00
1.00
No
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
3002Se
Mates
3003 ,
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
5
Wave Capable (TH only)

Recommended Resources

Gas-sensitive alarm circuit three

CD71061 Holiday Lights ASIC

Homemade color changing light circuit

Simple stepless speed fan circuit

Micropower field strength detection circuit

Low noise 8GHz small signal amplifier circuit
