GM71VS16160ALJ-8 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> GM71VS16160ALJ-8

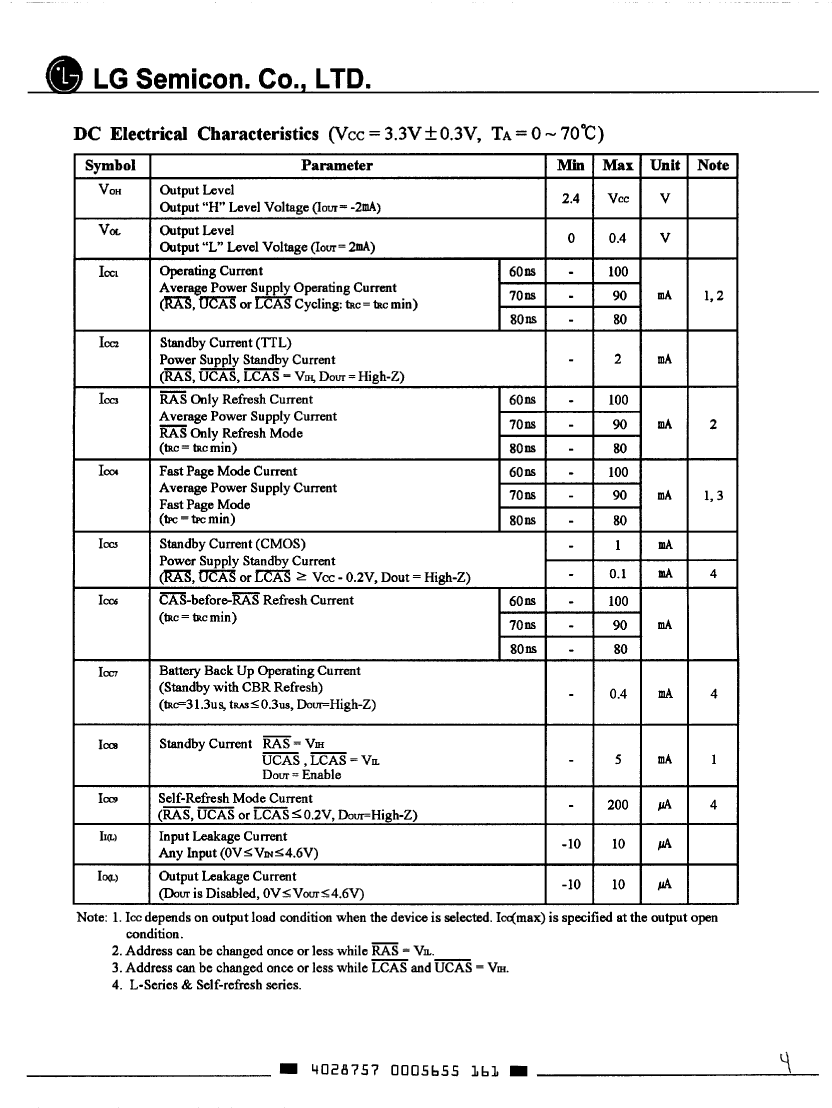

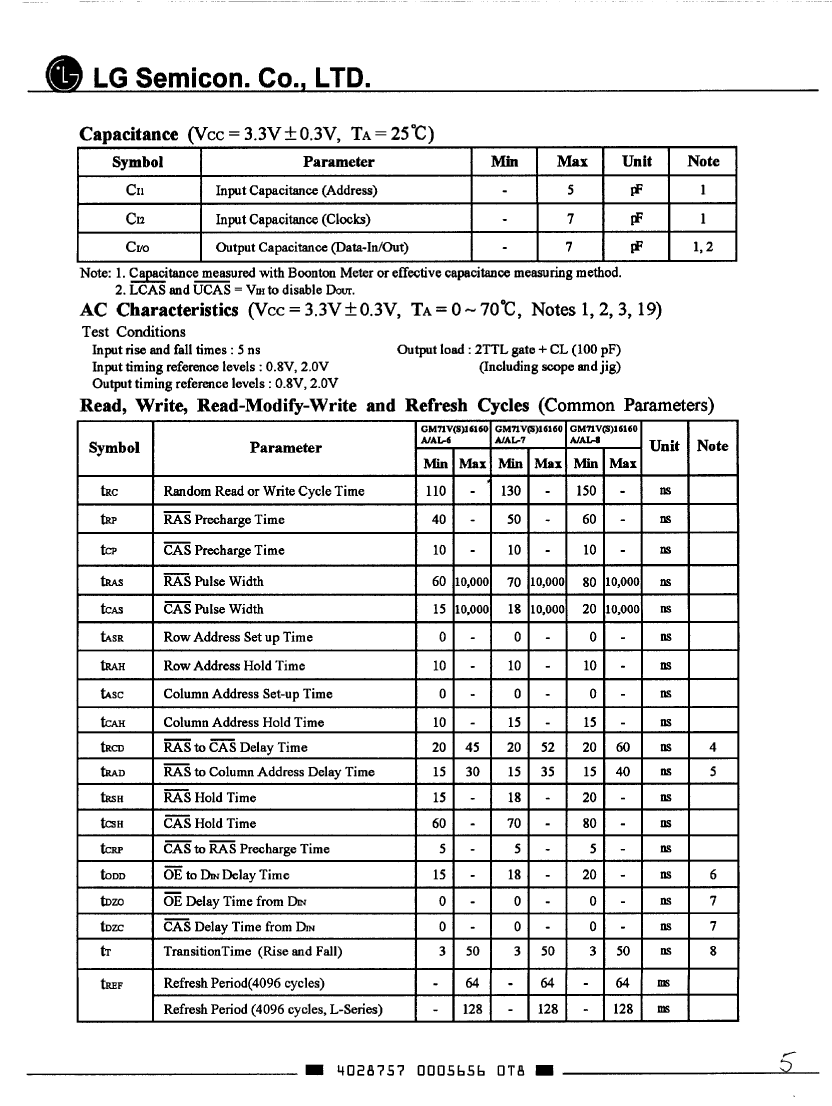

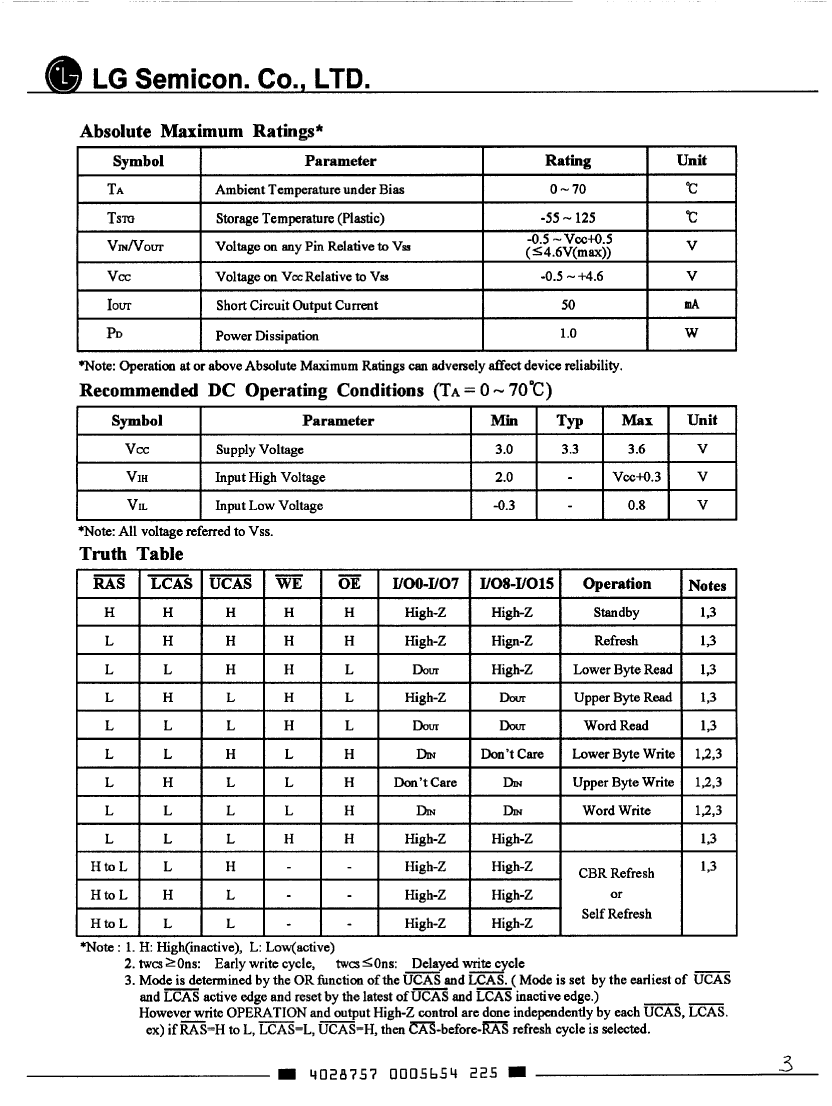

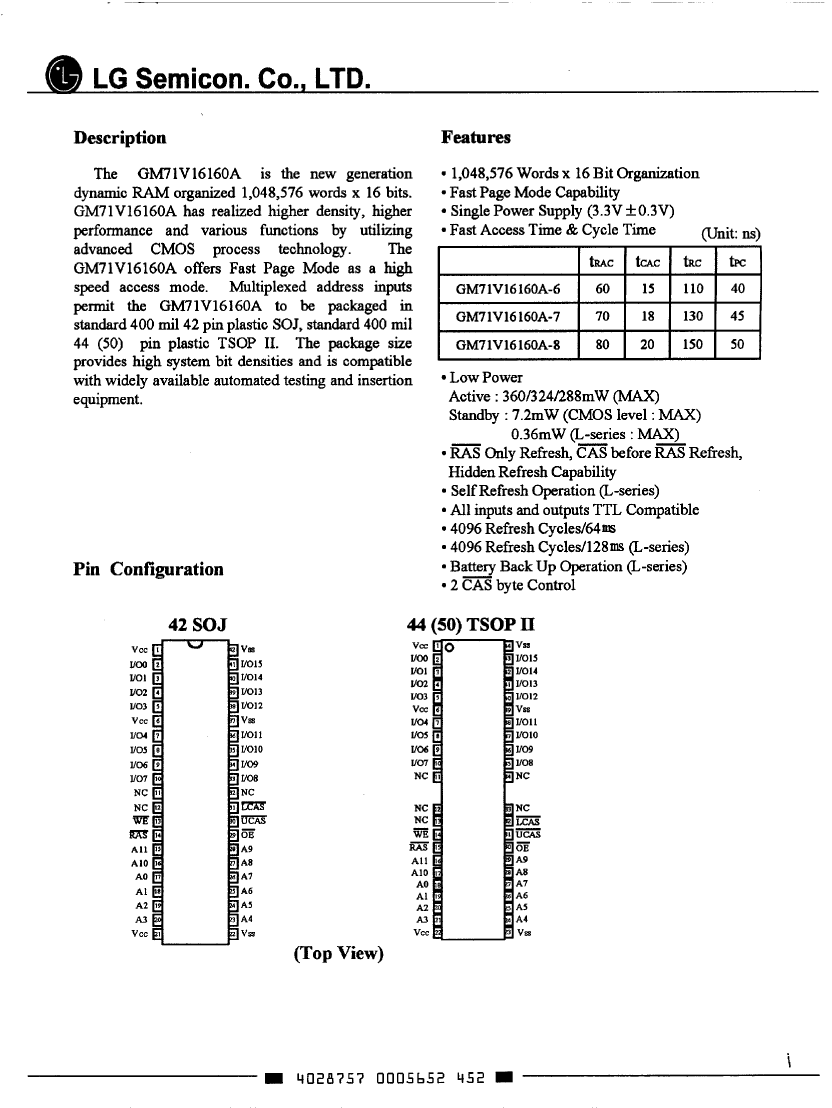

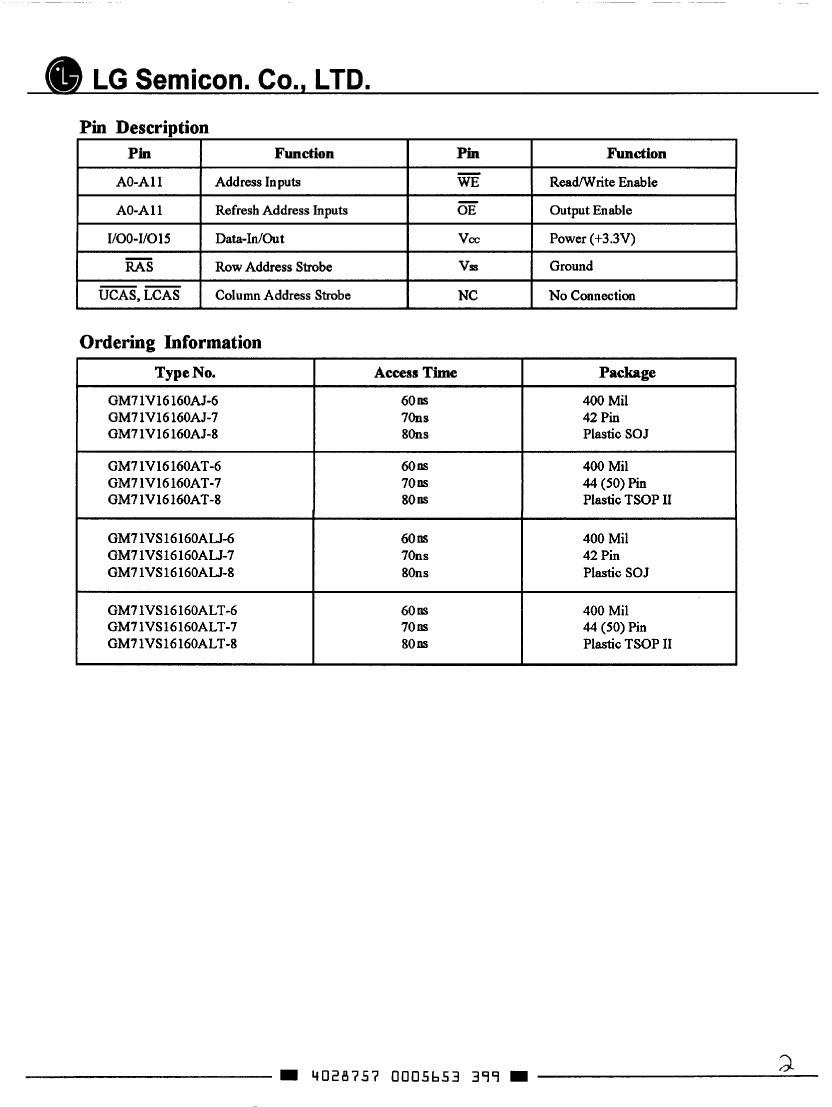

Preview

GM71VS16160ALJ-8: DescriptionFast Page DRAM, 1MX16, 80ns, CMOS, PDSO42; Categorystorage storage; File Size1MB，22 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

GM71VS16160ALJ-8 Overview

Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO42

GM71VS16160ALJ-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SK Hynix
package instruction	SOJ, SOJ42,.44
Reach Compliance Code	compliant
Maximum access time	80 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J42
JESD-609 code	e0
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of terminals	42
word count	1048576 words
character code	1000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ42,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum standby current	0.0001 A
Maximum slew rate	0.08 mA
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

GM71VS16160ALJ-8 Related Products

	GM71VS16160ALJ-8	GM71VS16160ALT-6	GM71V16160AT-7	GM71V16160AJ-7	GM71V16160AJ-6
Description	Fast Page DRAM, 1MX16, 80ns, CMOS, PDSO42	Fast Page DRAM, 1MX16, 60ns, CMOS, PDSO44	Fast Page DRAM, 1MX16, 70ns, CMOS, PDSO44	Fast Page DRAM, 1MX16, 70ns, CMOS, PDSO42	Fast Page DRAM, 1MX16, 60ns, CMOS, PDSO42
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix
package instruction	SOJ, SOJ42,.44	TSOP, TSOP44/50,.46,32	TSOP, TSOP44/50,.46,32	SOJ, SOJ42,.44	SOJ, SOJ42,.44
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Maximum access time	80 ns	60 ns	70 ns	70 ns	60 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J42	R-PDSO-G44	R-PDSO-G44	R-PDSO-J42	R-PDSO-J42
JESD-609 code	e0	e0	e0	e0	e0
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	16	16	16	16	16
Number of terminals	42	44	44	42	42
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	TSOP	TSOP	SOJ	SOJ
Encapsulate equivalent code	SOJ42,.44	TSOP44/50,.46,32	TSOP44/50,.46,32	SOJ42,.44	SOJ42,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096
self refresh	YES	YES	NO	NO	NO
Maximum standby current	0.0001 A	0.0001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.08 mA	0.1 mA	0.09 mA	0.09 mA	0.1 mA
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	GULL WING	GULL WING	J BEND	J BEND
Terminal pitch	1.27 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
