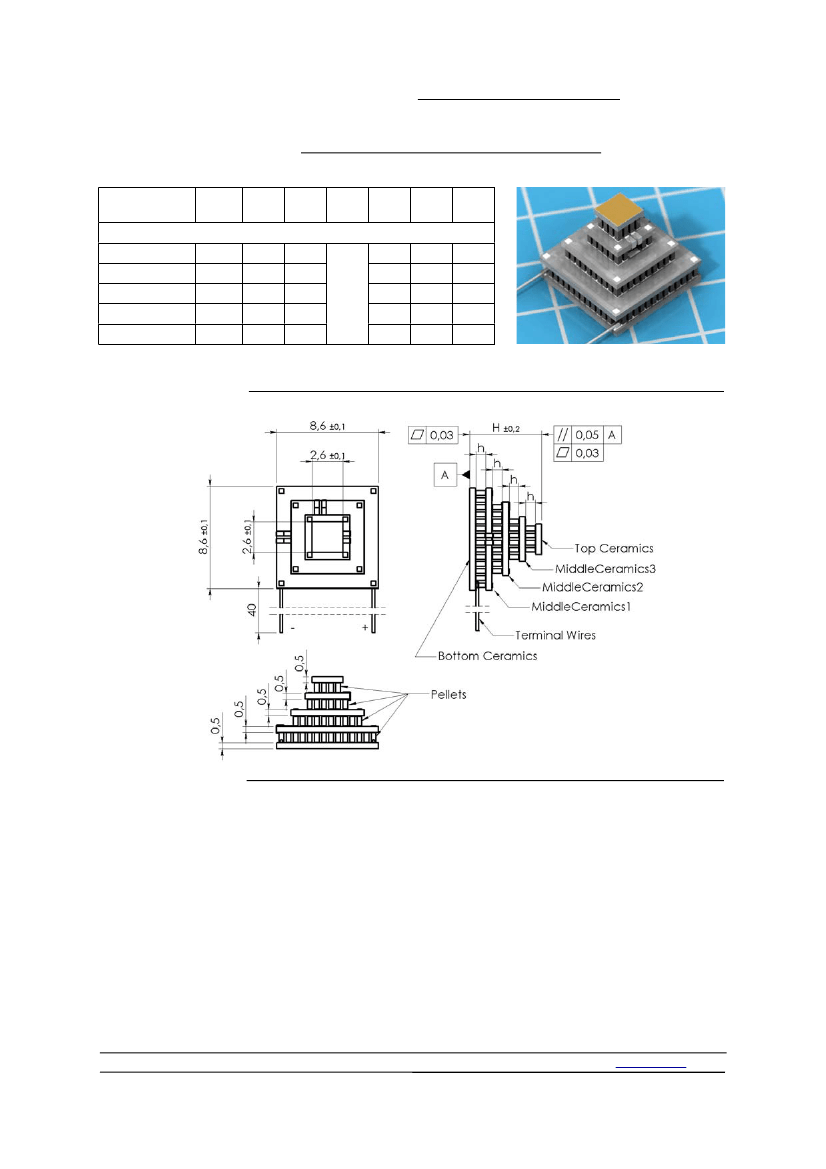

Thermoelectric Module Datasheet
Performance Parameters
Type
ΔT
max
K
124
125
125
125
125
Q
max
W
0.80
0.51
0.41
0.35
0.28
I
max
A
1.0
0.6
0.5
0.4
0.4
11.2
U
max
V
AC R
Ohm
9.69
15.20
18.90
22.69
28.19
H
mm
4.9
6.1
6.9
7.7
8.9
h
mm
0.5
0.8
1.0
1.2
1.5
RMT Ltd
4MD04-160-XX
4MD04-160-xx (N=6+17+41+96)
4MD04-160-05
4MD04-160-08
4MD04-160-10
4MD04-160-12
4MD04-160-15
Performance data are given at 300K, vacuum
Technical Drawing
Options available
A. TEC Assembly:
Solder SnSb (Tmelt=230°C)
C. Ceramics Surface Options
D. Thermistor (optional)
1. Blank ceramics
Can be mounted to cold side
2. Metallized:
ceramics edge. Calibration
2.1 Ni / Sn(Bi)
B. Ceramics:
is available.
2.2 Gold plating
1.Pure Al
2
O
3
(100%)
3. Metallized and pre-tinned:
2.Alumina (Al
2
O
3
- 96%)
E. Terminal wires
3.1 Solder 94 (PbSnBi, Tmelt=94°C)
3.Aluminum Nitride (AlN)
1. Pre-tinned Copper
3.2 Solder 117 (In-Sn, Tmelt=117°C)
2. Insulated Wires
3.3 Solder 138 (Sn-Bi, Tmelt=138°C)
100% Al
2
O
3
used as standard
3. Insulated Color Coded
3.4 Solder 183 (Pb-Sn, Tmelt=183°C)
53 Leninskij prosp. Moscow 119991 Russia, ph: +7-499-132-6817, fax: +7-499-783-3664, web:
www.rmtltd.ru
Copyright 2008. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 1 of 4

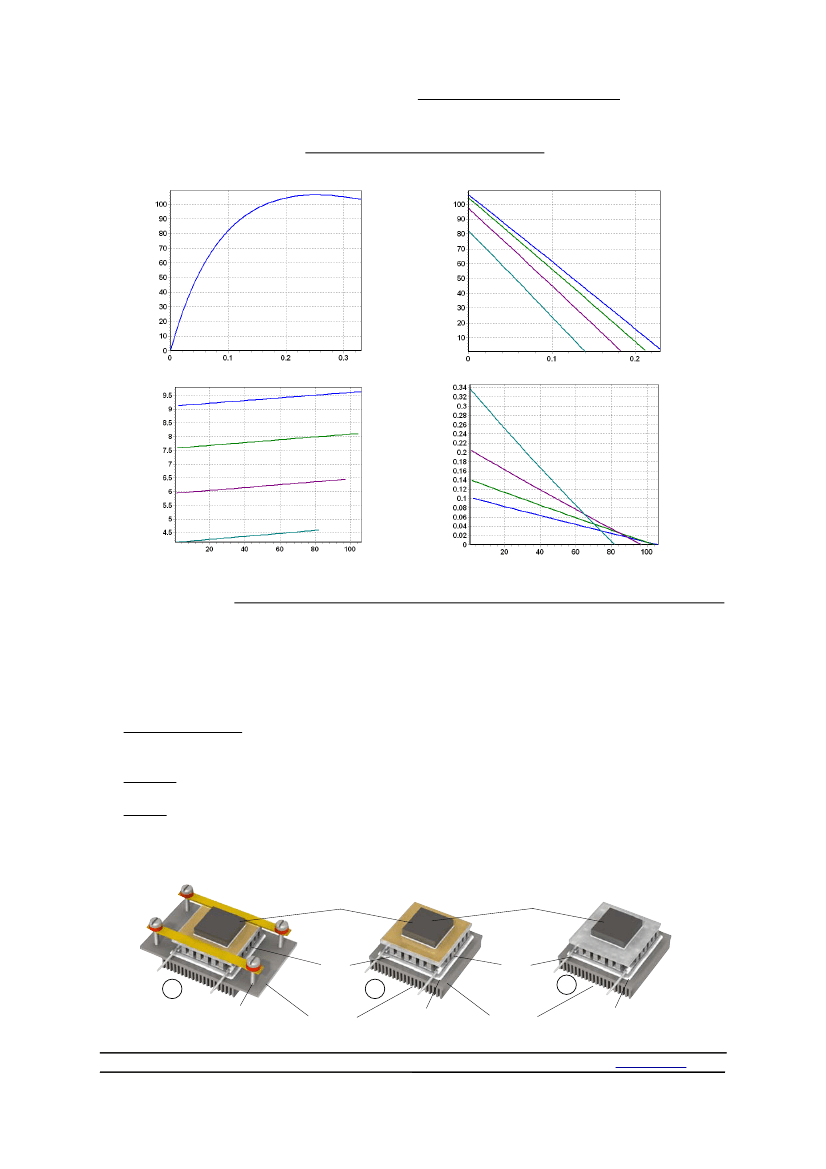

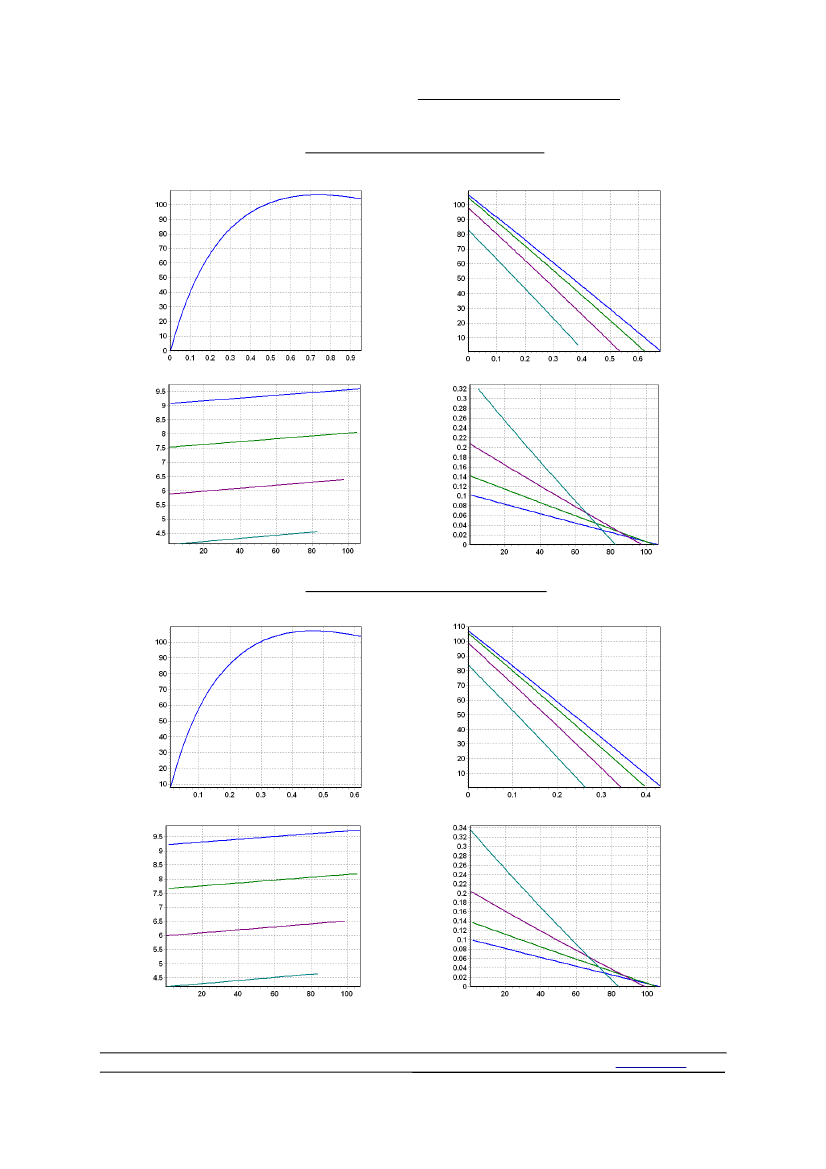

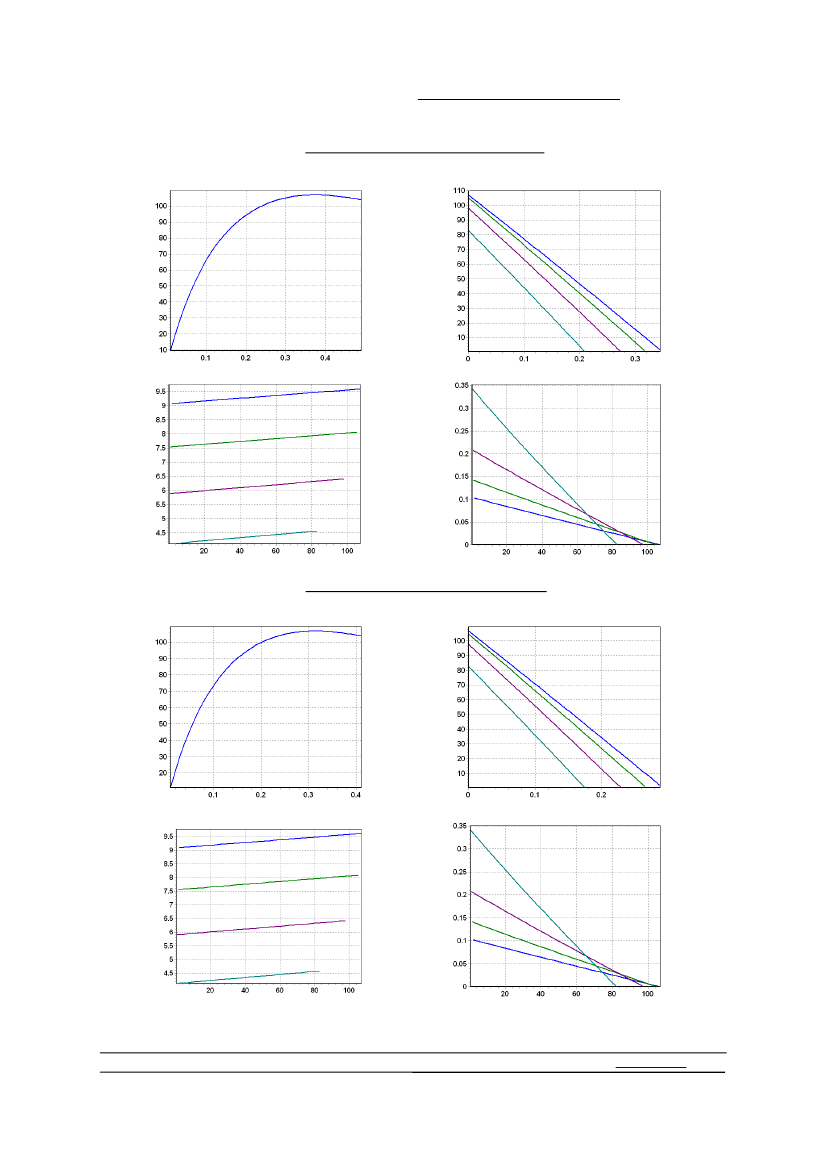

Thermoelectric Module Datasheet
Performance Plots
RMT Ltd
4MD04-160-05
Temperature difference, K
Current, A
Temperature difference, K
Heat Pumped at the Cold Side, W
Voltage, V
C.O.P
Temperature difference, K
Temperature difference, K
Performance Plots
4MD04-160-08
Temperature difference, K
Current, A
Temperature difference, K
Heat Pumped at the Cold Side, W
Voltage, V
C.O.P
Temperature difference, K
Temperature difference, K
Color Legend:
Imax,
0.8 Imax,
0.6 Imax,
0.4 Imax
53 Leninskij prosp. Moscow 119991 Russia, ph: +7-499-132-6817, fax: +7-499-783-3664, web:
www.rmtltd.ru
Copyright 2008. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 2 of 4
Thermoelectric Module Datasheet
Performance Plots
RMT Ltd
4MD04-160-10
Temperature difference, K
Current, A
Temperature difference, K
Heat Pumped at the Cold Side, W
Voltage, V
C.O.P
Temperature difference, K
Temperature difference, K
Performance Plots
4MD04-160-12
Temperature difference, K
Voltage, V
C.O.P
Temperature difference, K
Temperature difference, K
Temperature difference, K
Color Legend:
Imax,
0.8 Imax,
0.6 Imax,
0.4 Imax
53 Leninskij prosp. Moscow 119991 Russia, ph: +7-499-132-6817, fax: +7-499-783-3664, web:
www.rmtltd.ru
Copyright 2008. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 3 of 4
Thermoelectric Module Datasheet
Performance Plots
RMT Ltd
4MD04-160-15
Temperature difference, K
Current, A
Temperature difference, K
Heat Pumped at the Cold Side, W
Voltage, V
C.O.P
Temperature difference, K
Temperature difference, K
Color Legend:
Imax,
0.8 Imax,
0.6 Imax,
0.4 Imax
Application Tips
1. Never heat TE module more than 200˚C (TEC
assembled at 230˚C).
2. Never use TE module without attached heat sink
at hot (bottom) side.
3. Connect TE module to DC power supply
according to polarity.
4. Do not apply DC current higher than Imax.
Installation
1. Mechanical Mounting. TEC is placed between two heat exchangers . This construction is fixed by screws or
in another mechanical way. It is suitable for large modules (with dimensions 30x30mm and larger). Miniature
types require other assembling methods in most cases.
2. Soldering. This method is suitable for a TE module with metallized outside surfaces. RMT provides this
option and also makes pre-tinning for TE modules.
3. Glueing. It is an up-to-date method that is used by many customers due to availability of glues with good
thermoconductive properties. A glue is usually based on some epoxy compound filled with some
thermoconductive material such as graphite or diamond powders, silver, SiN and others. The application of
a specific type depends on application features and the type of a TE module.
Object being cooled
Object being cooled
TEC
1
Screw mounting
Heatsink
2
Soldering
TEC
3
Heatsink
Gluing
53 Leninskij prosp. Moscow 119991 Russia, ph: +7-499-132-6817, fax: +7-499-783-3664, web:
www.rmtltd.ru
Copyright 2008. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 4 of 4
