55K151-302L5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55K151-302L5

55K151-302L5: DescriptionRF Connector, Female, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size77KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

55K151-302L5 Overview

RF Connector, Female, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT

55K151-302L5 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	APPLICABLE CABLES : RG 316 /U, RG 174 A/U, RG 188 A/U, INSERTION LOSS MAX AT: 1 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	55K151-302L5
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.92

Preview

Download Datasheet

View All

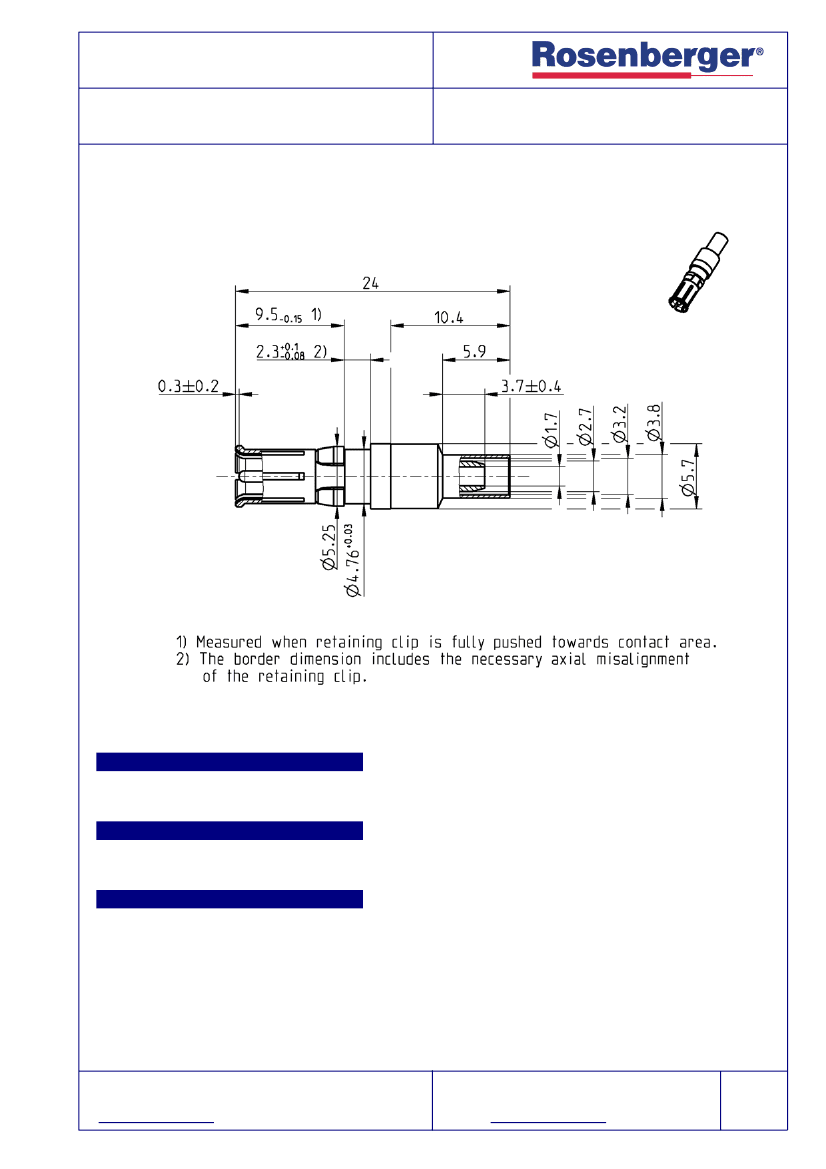

TECHNICAL DATA SHEET

D-SUB

Coax Insert

STRAIGHT JACK

55K151-302L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

D-Sub

Documents

Assembly instruction

55 A

Material and plating

Connector parts

Center contact

Outer contact

Body

Clip

Dielectric

Crimping ferrule

RF_35/11.05/3.1

Material

Brass

CuBe

PTFE

Brass

Plating

AuroDur®, gold plated

Nickel, 2.5-5 µm

Gold, 0.1 µm

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
