A-7674-C02J102A: Description2 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; Categorysemiconductor Other integrated circuit (IC); File Size208KB，14 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-7674-C02J102A Overview

2 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0009065020

Active

3.96mm (.156") KK® IDT Trifurcon™ Contact, 2 Circuits, Tin (Sn), Feed-To, 24 and 22

Solid or Fused Stranded, and 22 Stranded, Black ID Strip

Documents:

3D Model

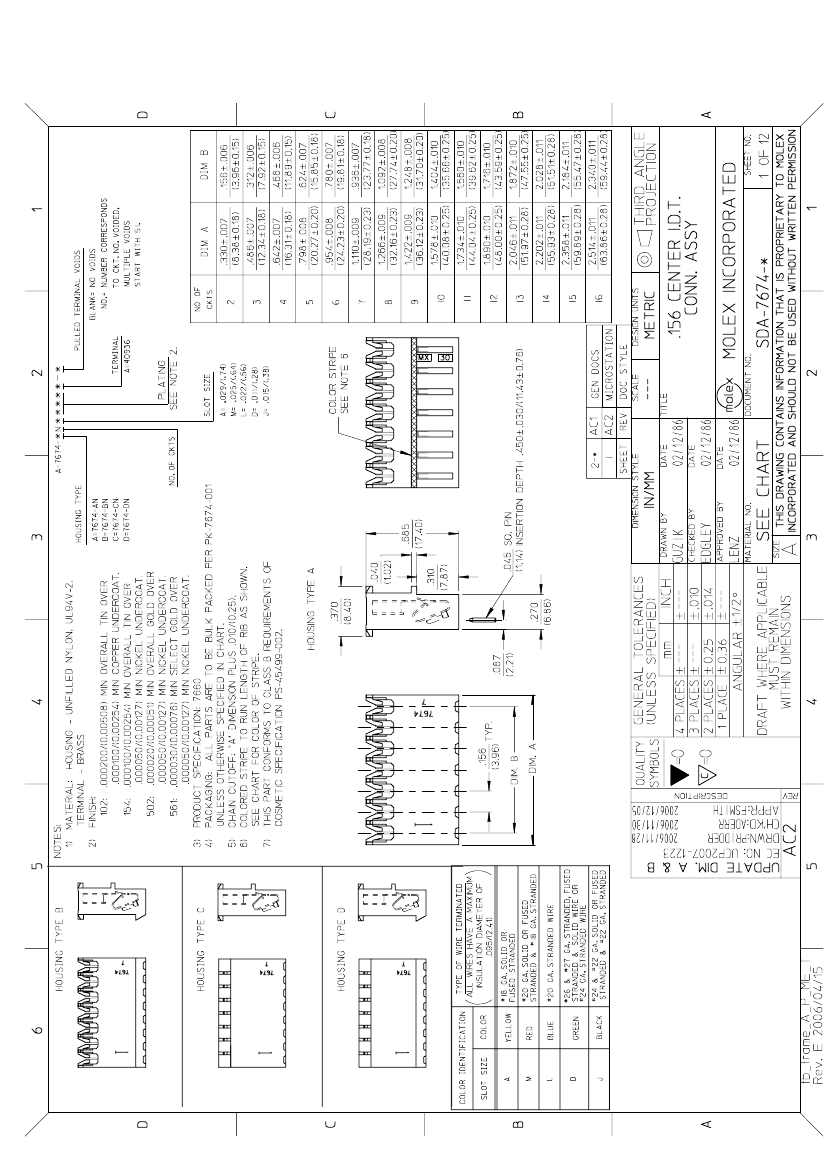

Drawing (PDF)

Product Specification PS-7660 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E29179

General

Product Family

Series

Comments

Crimp Quality Equipment

Overview

Product Name

IDT and Solder Connectors

7674

Trifurcon™ contact

Yes

KK®, Trifurcon™

Physical

Circuits (Loaded)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Natural

94V-2

Female

Yes

Brass

Tin

Nylon

Bag

0.156 In

3.96 mm

200

0°C to +75°C

IDT or Pierce

22 Solid, 22 Stranded, 22 Stranded Topcoat, 24 Solid,

24 Stranded Topcoat

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

7674Se

Electrical

Voltage - Maximum

250V

Material Info

Old Part Number

A-7674-D02J102A

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-7674-001

PS-7660

SDA-7674-*

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Insertio

3.96mm

KK® ID

Termin

IDT - M

For Rib

IDT - S

- Bench

Termin

IDT - M

Handto

IDT Ma
