5962-9562406HYC datasheet, PDF

Datasheet> All Categories > storage> storage> 5962-9562406HYC

5962-9562406HYC: DescriptionCache SRAM Module, 2MX8, 45ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68; Categorystorage storage; File Size517KB，8 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

5962-9562406HYC Overview

Cache SRAM Module, 2MX8, 45ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68

5962-9562406HYC Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Parts packaging code	QFP
package instruction	QFF,
Contacts	68
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	45 ns
Other features	USER CONFIGURABLE AS 512K X 32 OR 1M X 16
JESD-30 code	S-CQFP-F68
JESD-609 code	e4
memory density	16777216 bit
Memory IC Type	CACHE SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	68
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2MX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.556 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD

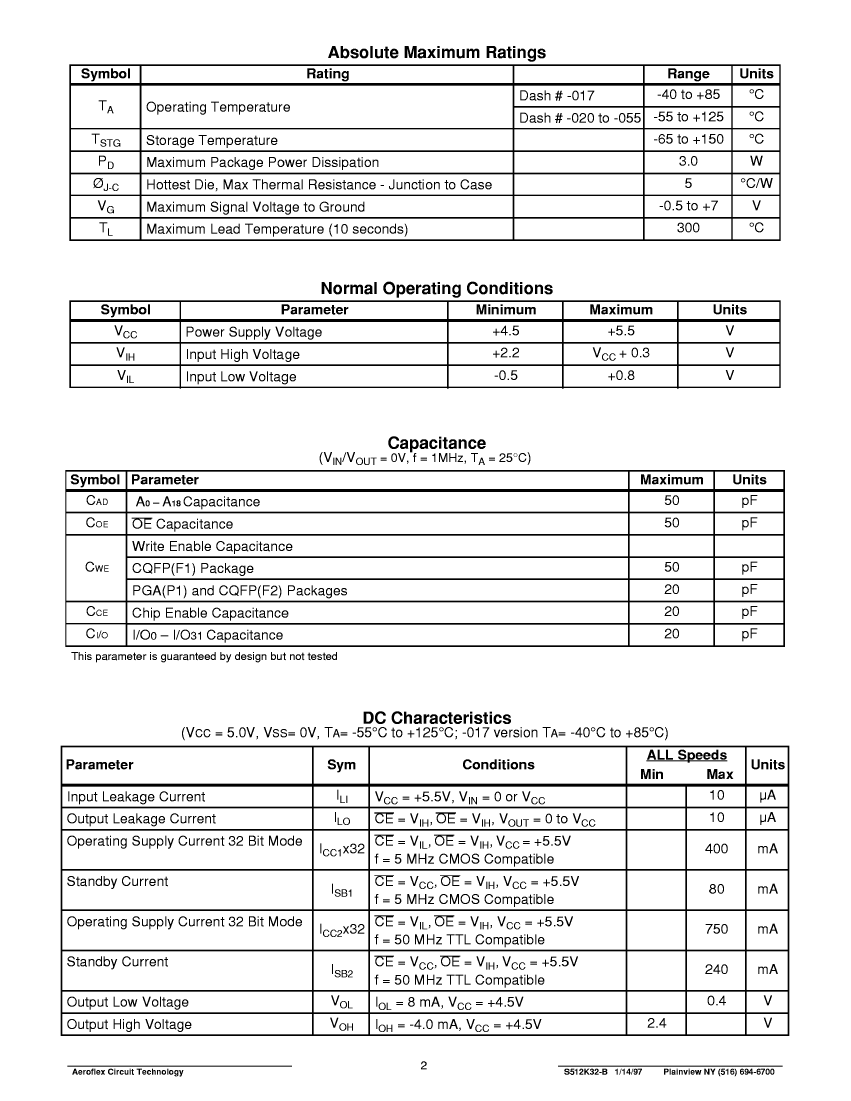

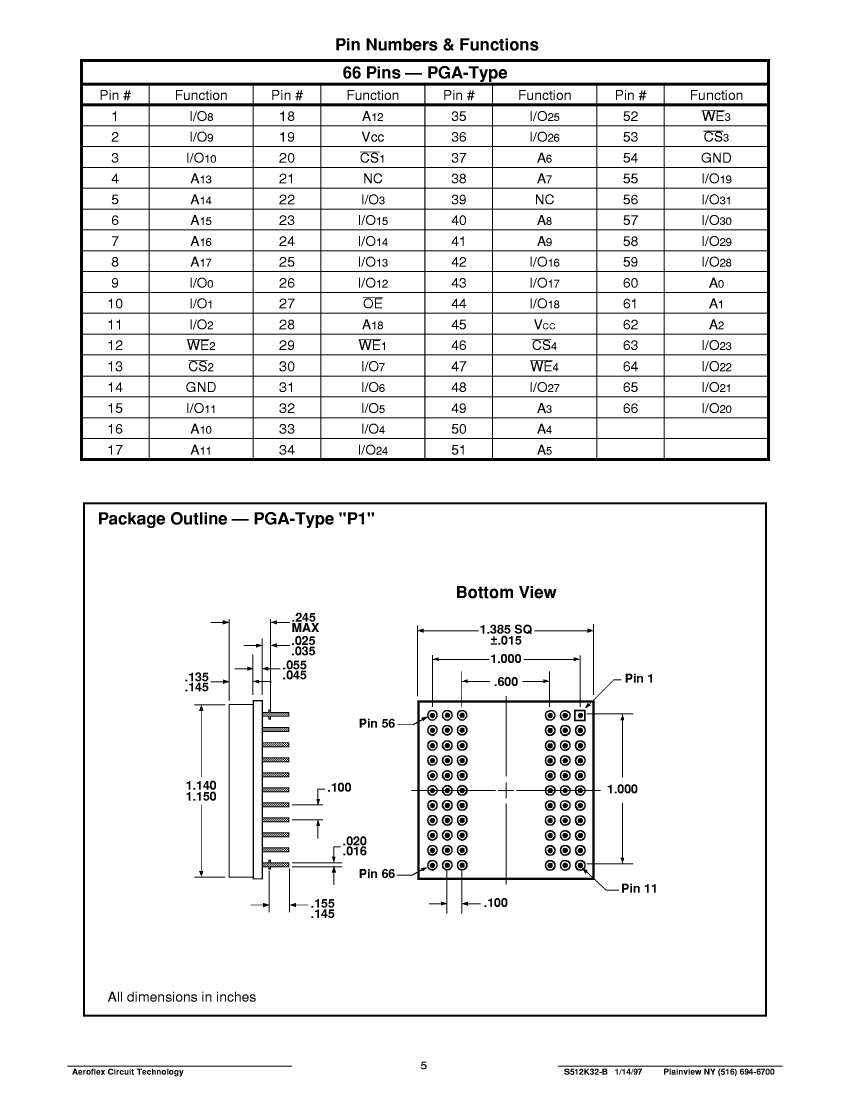

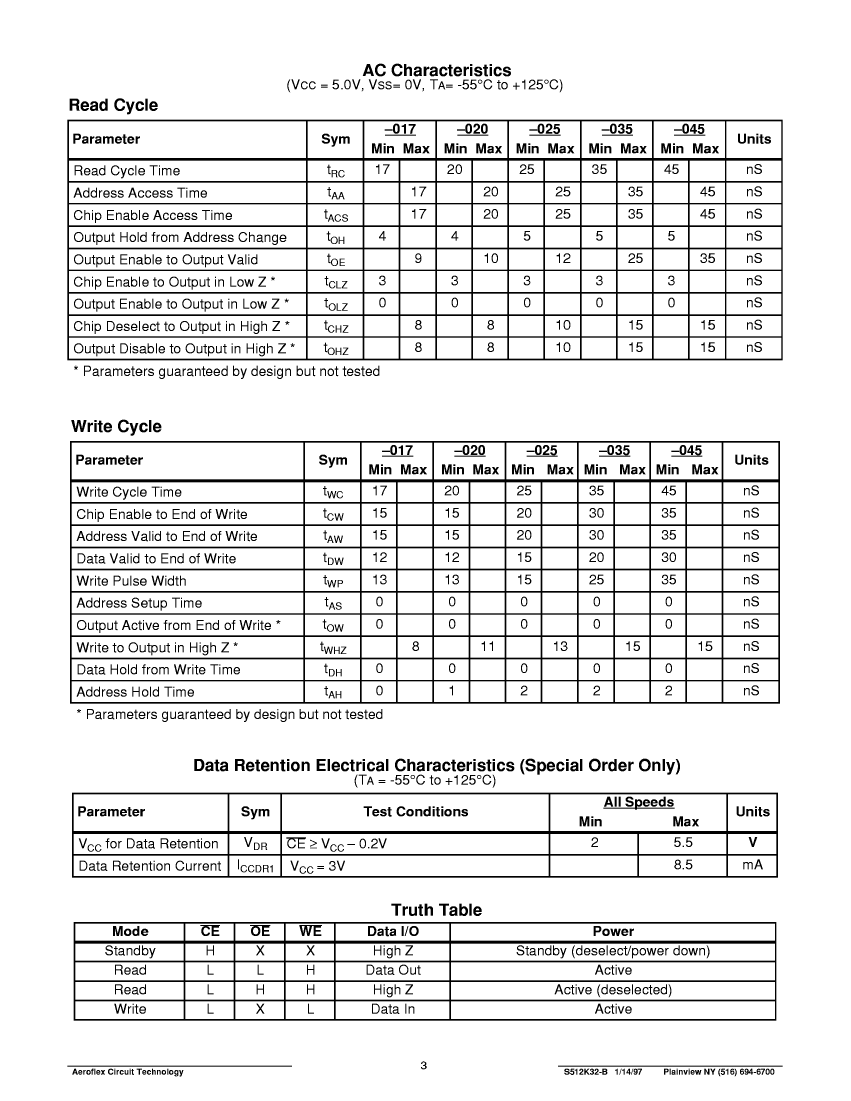

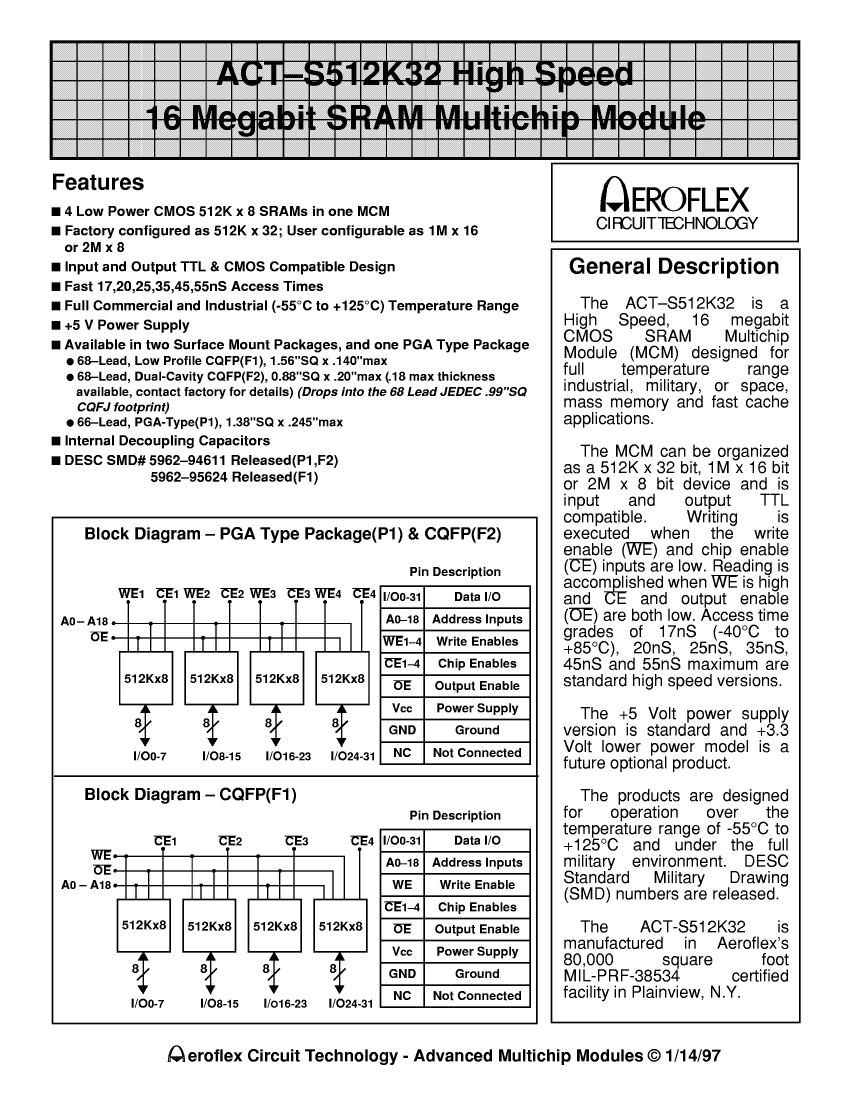

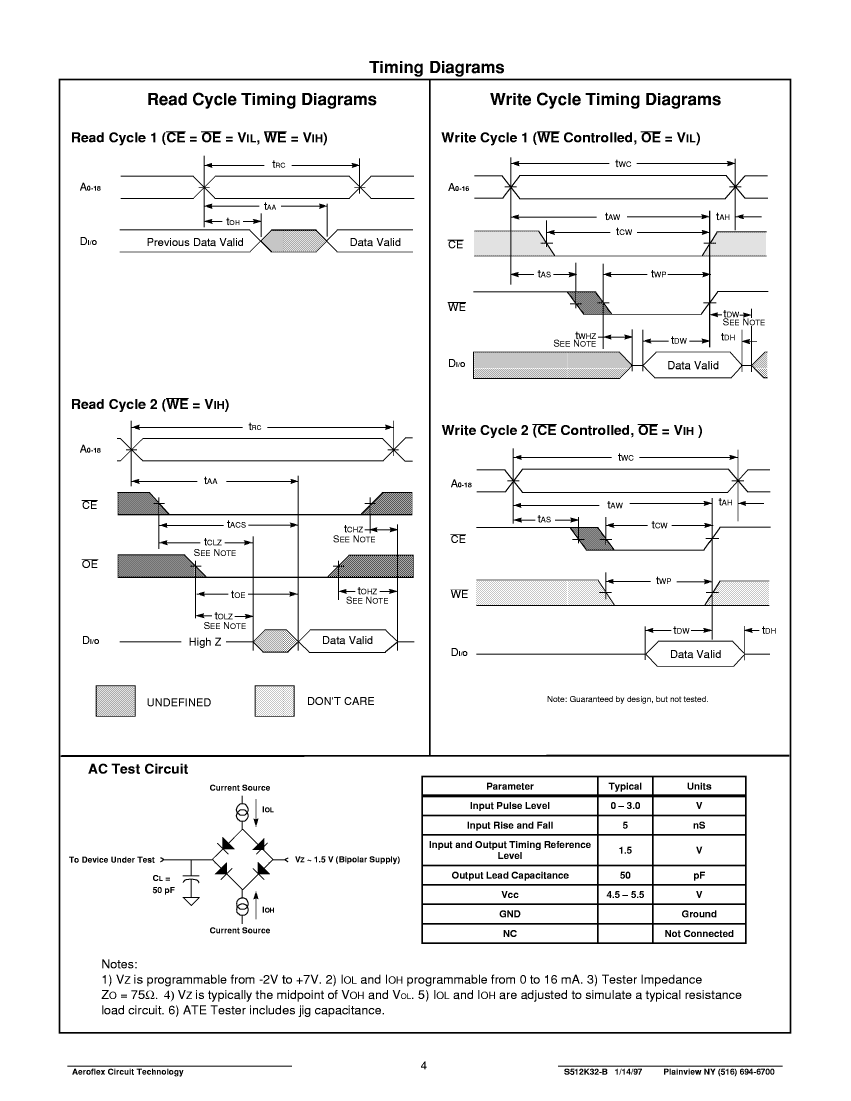

Preview

Download Datasheet

View All

5962-9562406HYC Related Products

	5962-9562406HYC	5962-9562407HYC	5962-9562405HYX	5962-9562405HYC	5962-9562409HYC	5962-9562408HYC	5962-9562410HXX	5962-9562408HYX	5962-9562406HYX
Description	Cache SRAM Module, 2MX8, 45ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 35ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 55ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 55ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 20ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 25ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 17ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 25ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68	Cache SRAM Module, 2MX8, 45ns, CMOS, CQFP68, 1.560 X 1.560 INCH, 0.140 INCH HEIGHT, CERAMIC, QFP-68
Maker	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	QFF,	QFF,	QFF,	QFF,	QFF,	QFF,	QFF,	QFF,	QFF,
Contacts	68	68	68	68	68	68	68	68	68
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	45 ns	35 ns	55 ns	55 ns	20 ns	25 ns	17 ns	25 ns	45 ns
Other features	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16	USER CONFIGURABLE AS 512K X 32 OR 1M X 16
JESD-30 code	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68	S-CQFP-F68
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	68	68	68	68	68	68	68	68	68
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8	2MX8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF	QFF	QFF	QFF	QFF	QFF	QFF	QFF	QFF
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.556 mm	3.556 mm	3.556 mm	3.556 mm	3.556 mm	3.556 mm	3.556 mm	3.556 mm	3.556 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
JESD-609 code	e4	e4	-	e4	e4	e4	-	-	-
Terminal surface	GOLD	GOLD	-	GOLD	GOLD	GOLD	-	-	-
Base Number Matches	-	1	1	1	1	1	1	-	-
