HY29F800TR-15E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HY29F800TR-15E

HY29F800TR-15E: DescriptionFlash, 512KX16, 150ns, PDSO48, TSOP-48; Categorystorage storage; File Size2MB，45 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HY29F800TR-15E Overview

Flash, 512KX16, 150ns, PDSO48, TSOP-48

HY29F800TR-15E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SK Hynix
package instruction	TSOP1-R, TSSOP48,.8,20
Reach Compliance Code	compliant
Maximum access time	150 ns
Spare memory width	8
startup block	TOP
command user interface	YES
Data polling	YES
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	18.4 mm
memory density	8388608 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of departments/size	1,2,1,15
Number of terminals	48
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512KX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Encapsulate equivalent code	TSSOP48,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
ready/busy	YES
reverse pinout	YES
Maximum seat height	1.2 mm
Department size	16K,8K,32K,64K
Maximum standby current	0.000005 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
switch bit	YES
type	NOR TYPE
width	12 mm

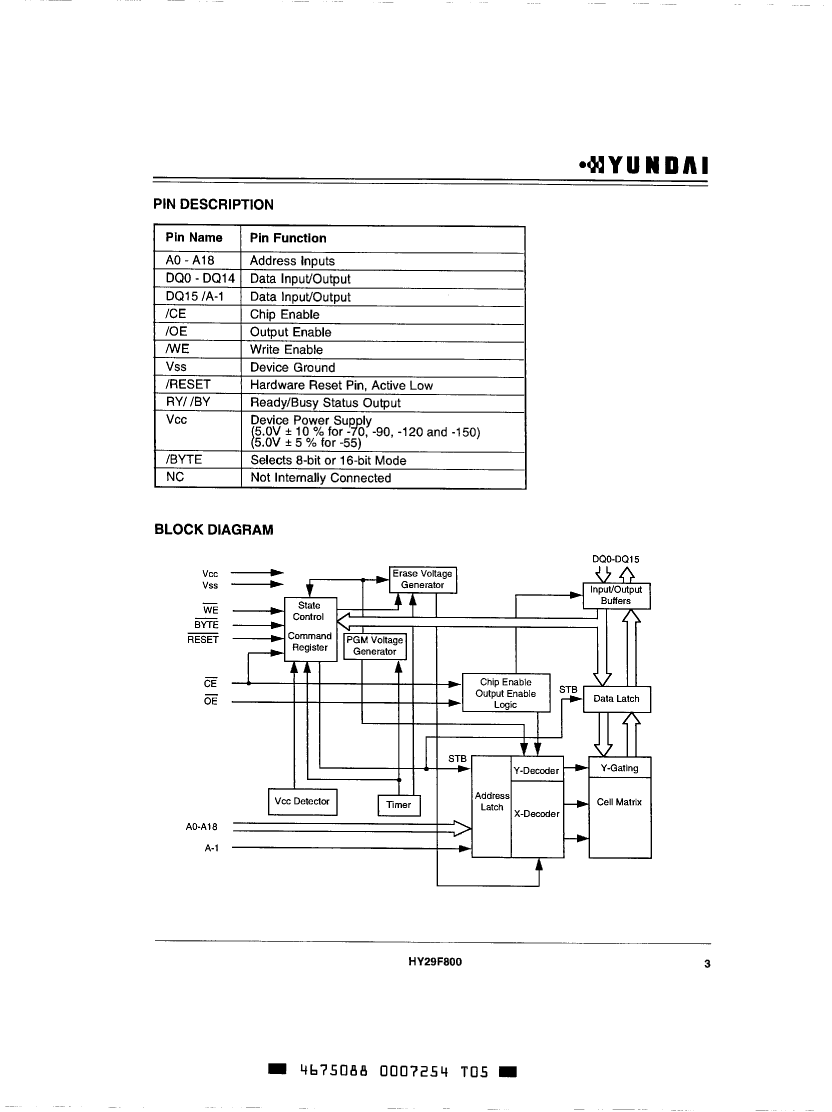

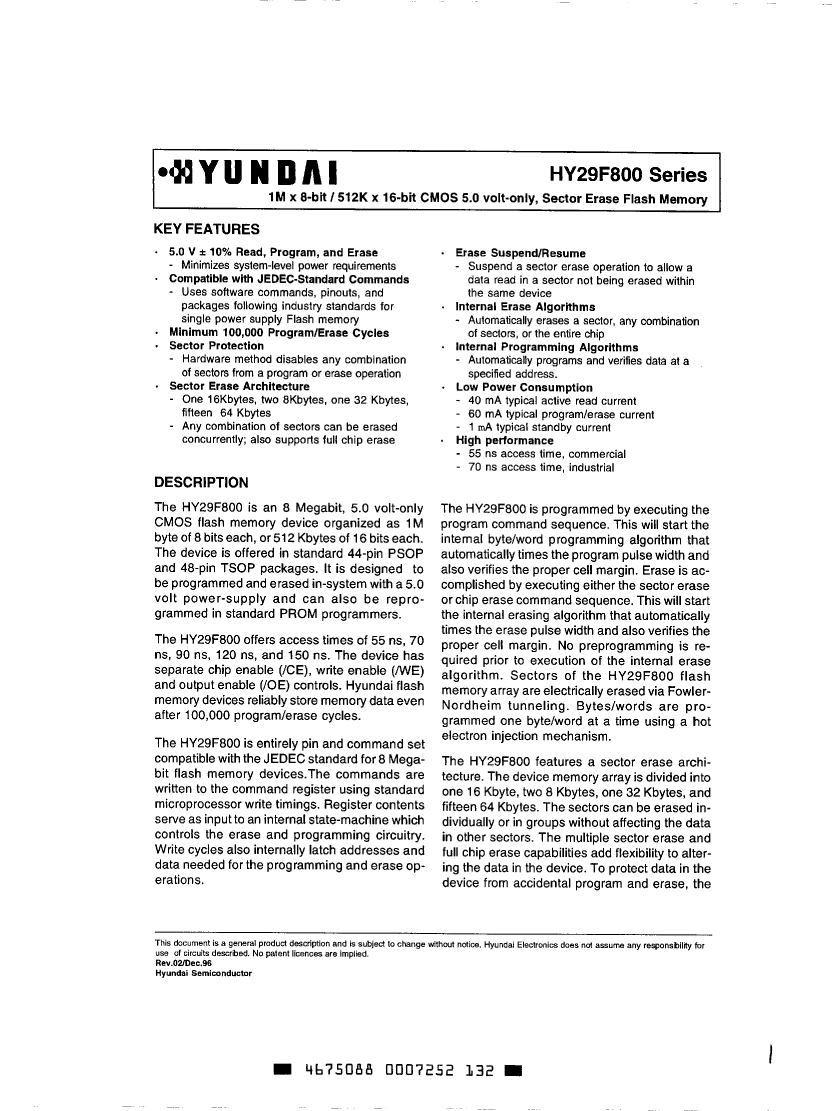

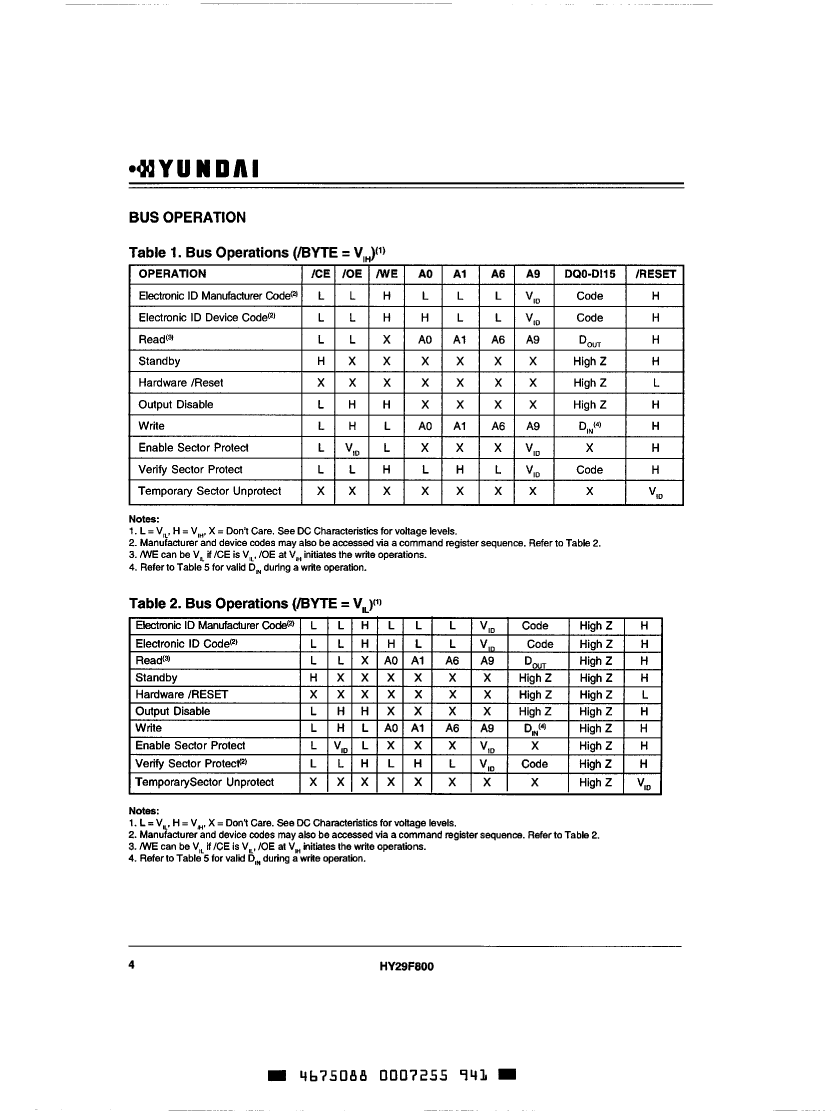

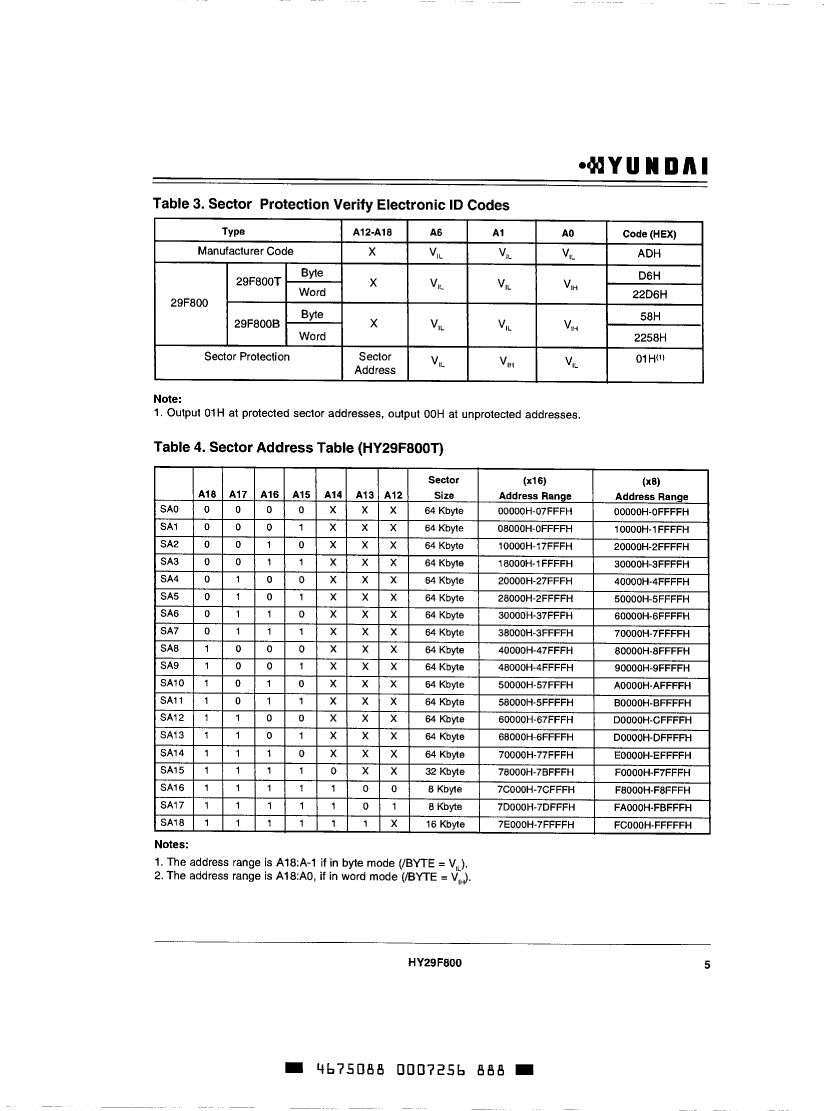

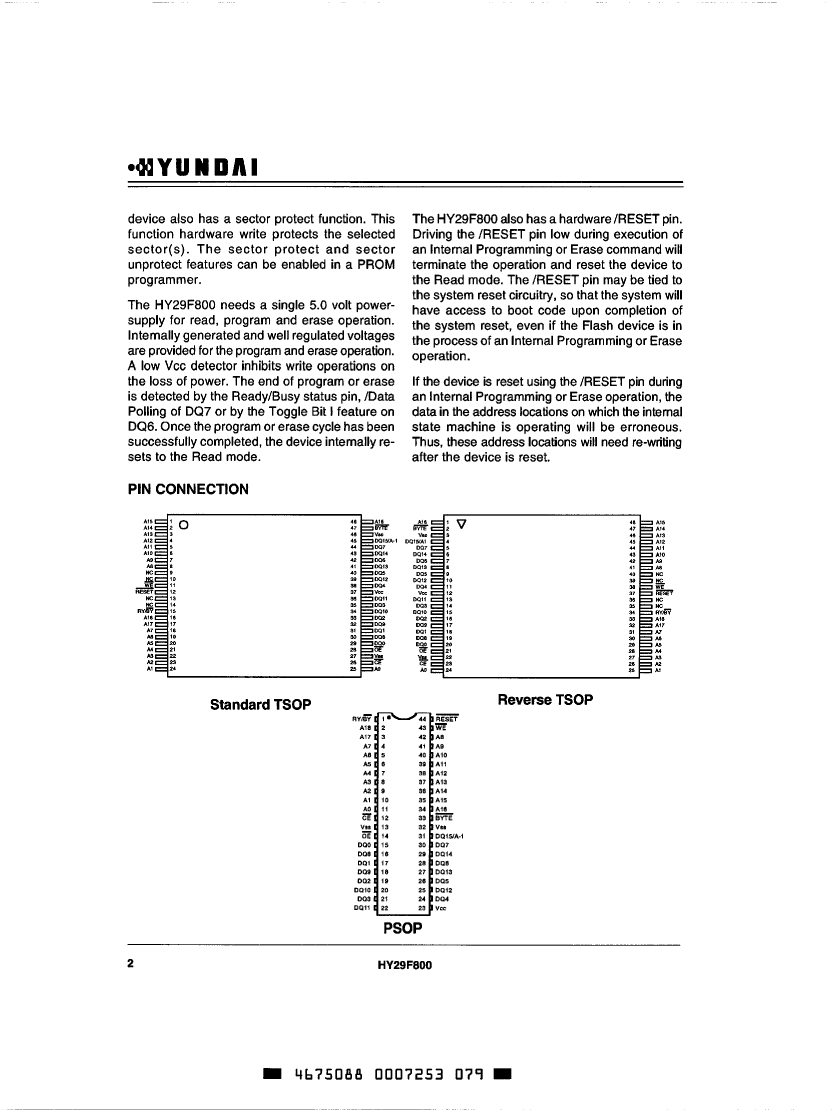

Preview

Download Datasheet

View All

HY29F800TR-15E Related Products

	HY29F800TR-15E	HY29F800BR-15E	HY29F800BR-15I	HY29F800BT-15E	HY29F800BT-15I	HY29F800TT-15E	HY29F800TT-15I	HY29F800TR-15I	HY29F800TP15C
Description	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Flash, 512KX16, 150ns, PDSO48, TSOP-48	Memory IC
package instruction	TSOP1-R, TSSOP48,.8,20	TSOP1-R, TSSOP48,.8,20	TSOP1-R, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	TSOP1, TSSOP48,.8,20	TSOP1-R, TSSOP48,.8,20	,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maximum access time	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns	-
Spare memory width	8	8	8	8	8	8	8	8	-
startup block	TOP	BOTTOM	BOTTOM	BOTTOM	BOTTOM	TOP	TOP	TOP	-
command user interface	YES	YES	YES	YES	YES	YES	YES	YES	-
Data polling	YES	YES	YES	YES	YES	YES	YES	YES	-
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	-
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	-
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	-
length	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	-
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	-
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	-
memory width	16	16	16	16	16	16	16	16	-
Number of functions	1	1	1	1	1	1	1	1	-
Number of departments/size	1,2,1,15	1,2,1,15	1,2,1,15	1,2,1,15	1,2,1,15	1,2,1,15	1,2,1,15	1,2,1,15	-
Number of terminals	48	48	48	48	48	48	48	48	-
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	-
character code	512000	512000	512000	512000	512000	512000	512000	512000	-
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-
Maximum operating temperature	125 °C	125 °C	85 °C	125 °C	85 °C	125 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-55 °C	-40 °C	-55 °C	-40 °C	-40 °C	-
organize	512KX16	512KX16	512KX16	512KX16	512KX16	512KX16	512KX16	512KX16	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	TSOP1-R	TSOP1-R	TSOP1-R	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1-R	-
Encapsulate equivalent code	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	-
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	-
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
ready/busy	YES	YES	YES	YES	YES	YES	YES	YES	-
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	-
Department size	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	16K,8K,32K,64K	-
Maximum standby current	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A	-
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	-
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	-
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	-
Temperature level	MILITARY	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-
switch bit	YES	YES	YES	YES	YES	YES	YES	YES	-
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	-
width	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	12 mm	-
Is Samacsys	-	N	N	N	N	N	N	-	-
Base Number Matches	-	1	1	1	1	1	1	-	-
