HBCD-050-10.00-SED-TED-1-F datasheet, PDF

Datasheet> All Categories > The connector> The connector> HBCD-050-10.00-SED-TED-1-F

HBCD-050-10.00-SED-TED-1-F: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size529KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HBCD-050-10.00-SED-TED-1-F Overview

Interconnection Device, ROHS COMPLIANT

HBCD-050-10.00-SED-TED-1-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

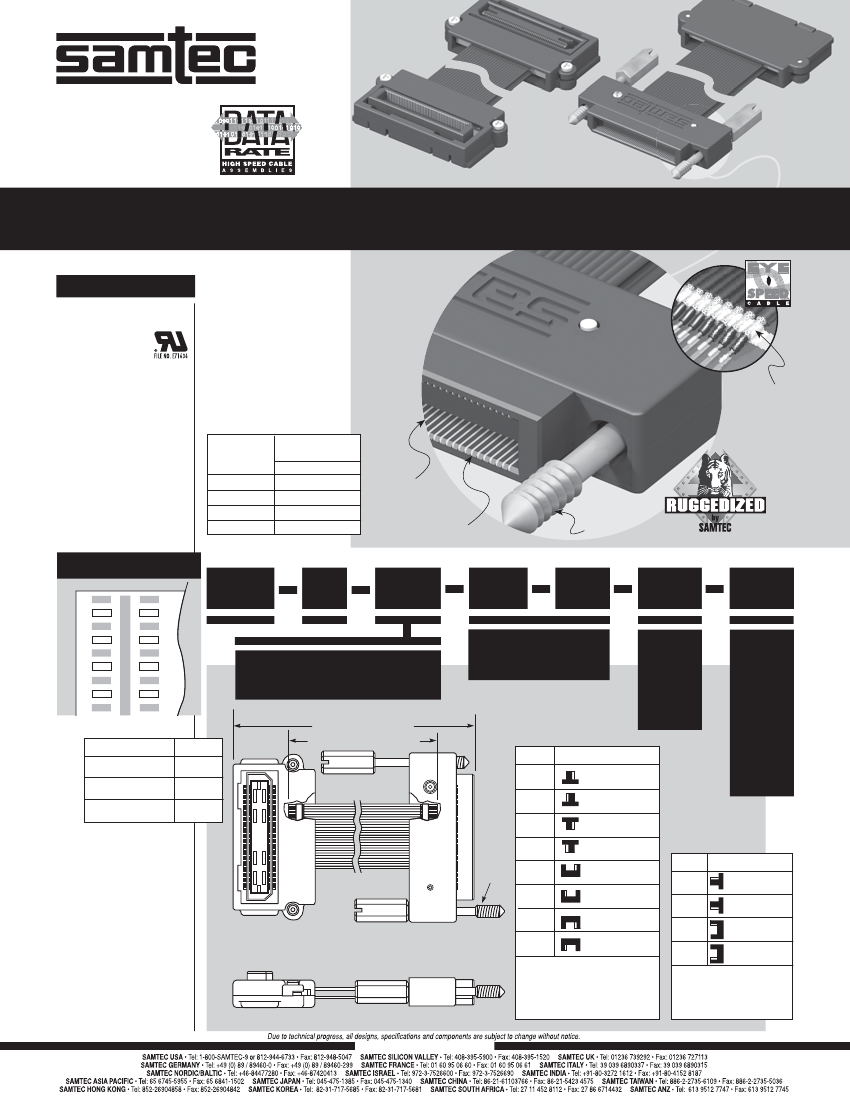

F-209 SUPPLEMENT

HBCD–050–10.00–TED–SBL–2–F

HBCD–050–06.00–TTR–STL–1

0,50

DATA RATE CABLES

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?HBCD

Cable:

38 AWG Eye Speed™

coax micro ribbon

Signal Routing:

50Ω Single-Ended

Overall Length:

(152mm) 6" to

(1m) 40" standard

Cable Flexing Life:

>40,000 cycles

Cable Bending Radius:

<2,5mm

Plating:

Au over 50µ" (1,27µm) Ni

Current Rating:

300 millamp max

Propagation Delay:

4.5 nsec/meter

Operating Temp Range:

-25°C to +105°C

RoHS Compliant:

Yes

HBCD

SERIES

™

Mates with:

BTH, BSH

38 AWG

Eye Speed™

micro ribbon

coax cable

Cable

Length

6" (152,4mm)

19.68" (0,5m)

39.37" (1m)

Rated @ -3dB

Insertion Loss

HBCD

2.76 GHz / 5.52 Gbps

1.36 GHz / 2.72 Gbps

563 MHz / 1.13 Gbps

Socket or

Terminal

Surface Mount

or Edge Mount

Screw

Down

Options

12" (304,8mm)

2.40 GHz / 4.80 Gbps

HBCD ROUTING

HBCD

050

WIRE

LENGTH

END

NO. 1

END

NO. 2

WIRING

OPTION

SCREW

OPTION

–“XX.XX”

= Wire Length in Inches

(95,3mm) 03.75" minimum

Specify

END ASSEMBLIES

from chart

–1

= Pin 1 to

Pin 1

Leave

blank for

no Screw

Option

–2

= Pin 1 to

Pin 2

–F

= End No. 1

OAL = Wire Length +

END TO END

Surface Mount to

Surface Mount

Surface Mount to

Edge Mount

Edge Mount to

Edge Mount

(25,30)

.996

(22,30)

.878

(19,30)

.760

Wire Length

(1,27) .050

–S

= End No. 2

END

SURFACE MOUNT

Terminal, Top,

Notch

Right

Terminal, Top,

Notch

Left

Terminal, Bottom,

Notch

Right

Terminal, Bottom,

Notch

Left

Socket, Top

Notch

Right,

Socket, Top,

Notch

Left

Socket, Bottom,

Notch

Right

Socket, Bottom,

Notch

Left

***TTR

*TTL

***TBR

**TBL

#4-40

Thread

–B

= Both Ends

END

EDGE MOUNT

Terminal, Edge,

Notch

Terminal, Edge,

Notch

Down

Socket, Edge,

Notch

Socket, Edge,

Notch

Down

*STR

**STL

Note:

Cable lengths longer than

40.00" (1 meter) are not

supported with S.I. test data.

Note:

Verify part number and correct

wiring scheme with Samtec’s

Interactive Cable Builder at

www.samtec.com/cable_

builder/pitch.asp

Note:

This Series is non-standard,

non-returnable.

END NO. 1

(–TTR SHOWN)

END NO. 2

(–SEU SHOWN)

*TEU

**TED

**SEU

*SED

NOTES:

**SBR

*SBL

NOTES:

* N/A as First End & N/A with -TTR,

STL, SBR, TEU -SED First End

** N/A as First End & N/A with -TBR,

STR, SBL, TED -SEU First End

*** N/A as Second End

* N/A with -TTR, STL, SBR,

TEU -SED First End

** N/A with -TBR, STR, SBL,

TED -SEU First End

WWW.SAMTEC.COM
