7M826S100CB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 7M826S100CB

7M826S100CB: DescriptionSRAM Module, 128KX8, 100ns, CMOS, CDIP64; Categorystorage storage; File Size248KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

7M826S100CB Overview

SRAM Module, 128KX8, 100ns, CMOS, CDIP64

7M826S100CB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
Maximum access time	100 ns
I/O type	SEPARATE
JESD-30 code	R-XDIP-T64
JESD-609 code	e0
memory density	1048576 bi
Memory IC Type	SRAM MODULE
memory width	8
Number of terminals	64
word count	131072 words
character code	128000
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	128KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP64,.9
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	6
Base Number Matches	1

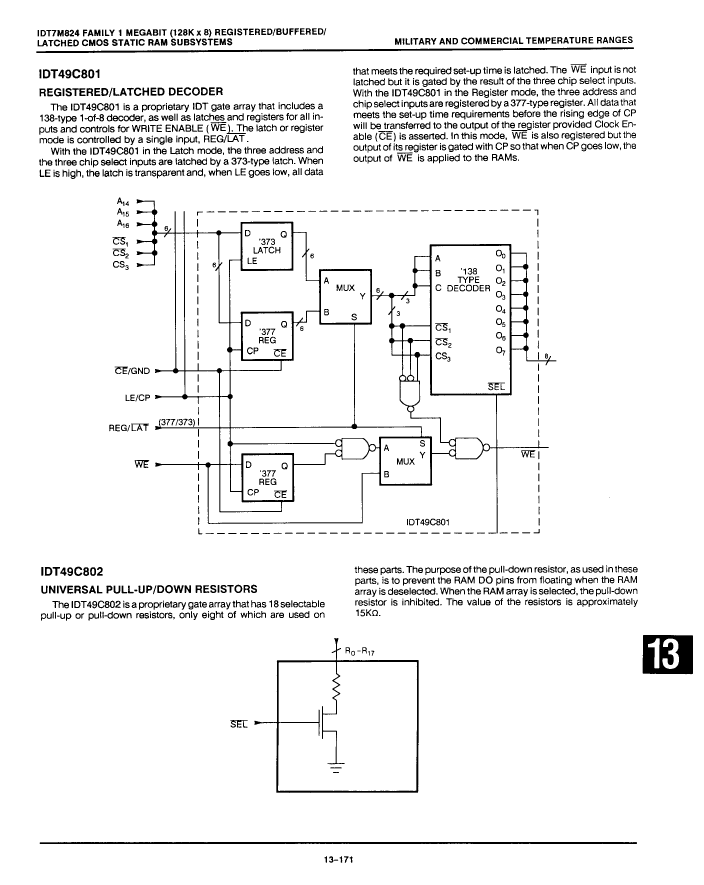

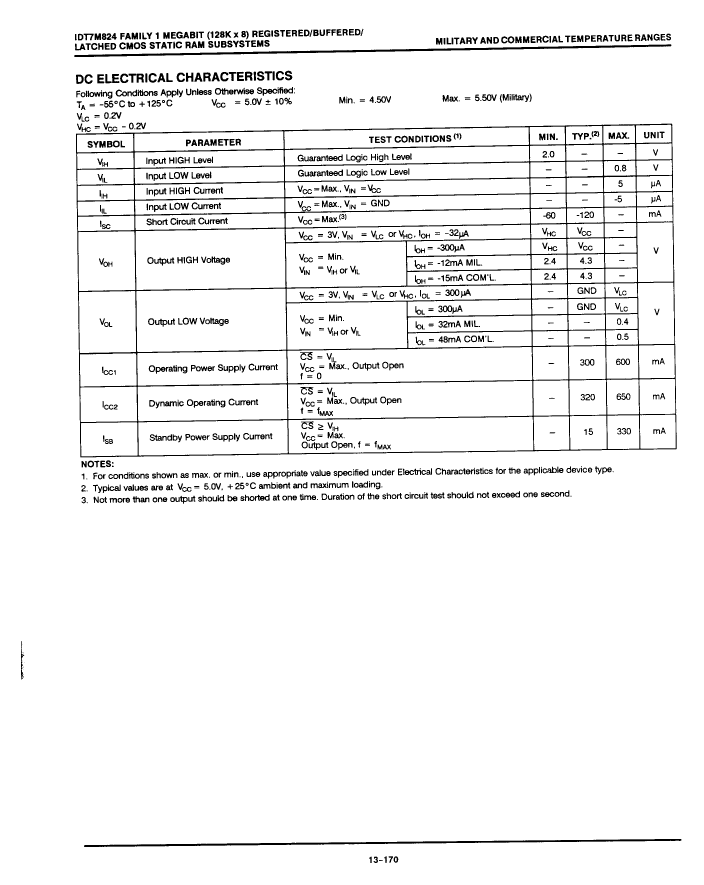

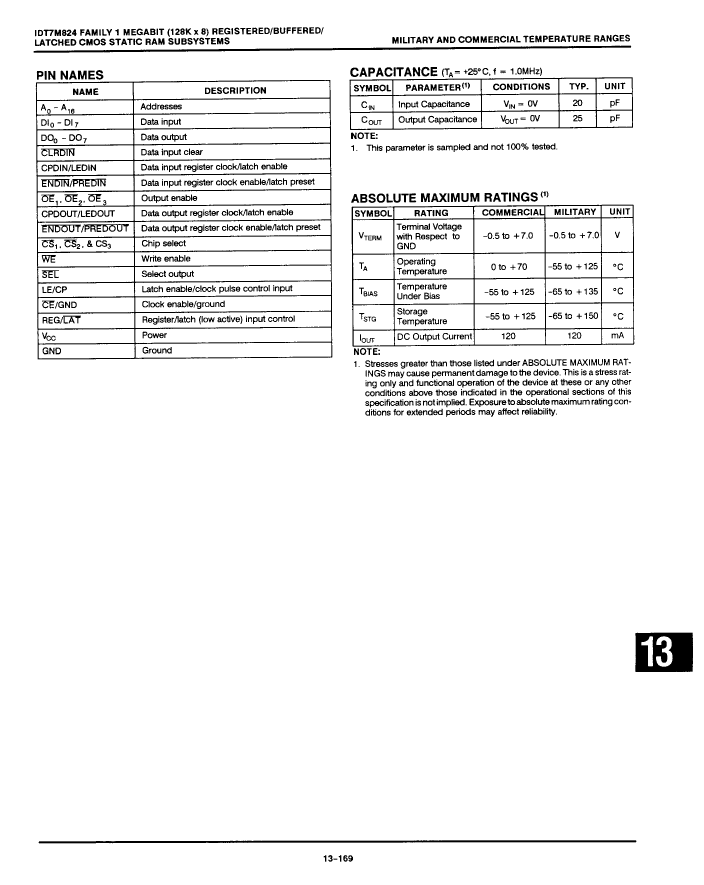

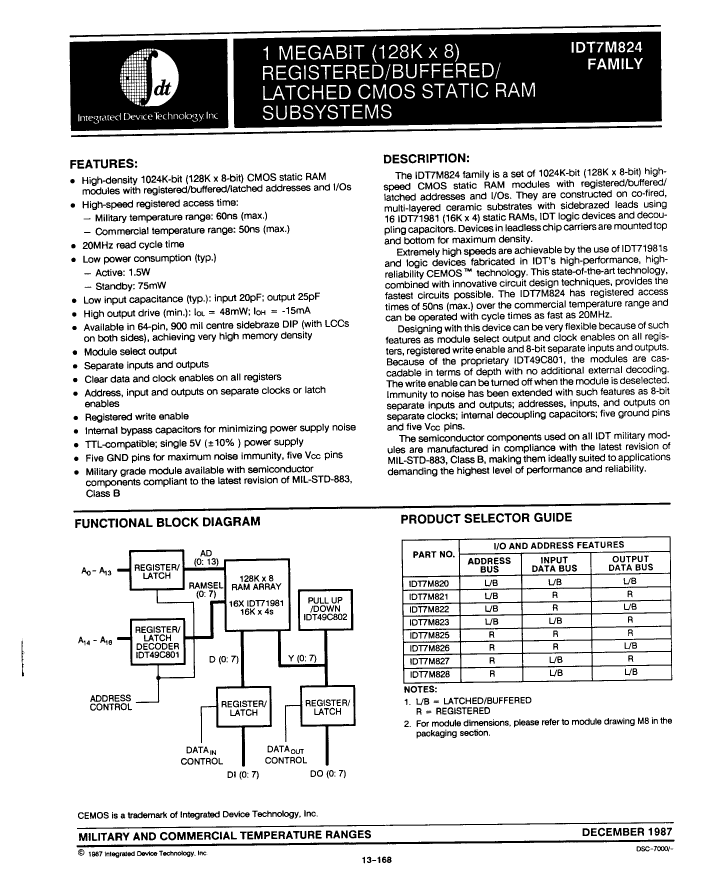

Preview

Download Datasheet

View All

7M826S100CB Related Products

	7M826S100CB	IDT7M826S100CB	IDT7M828S70CB
Description	SRAM Module, 128KX8, 100ns, CMOS, CDIP64	SRAM Module, 128KX8, 100ns, CMOS, CDIP64	SRAM Module, 128KX8, 70ns, CMOS, CDIP64
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	_compli	_compli	not_compliant
Maximum access time	100 ns	100 ns	70 ns
I/O type	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-XDIP-T64	R-XDIP-T64	R-XDIP-T64
JESD-609 code	e0	e0	e0
memory density	1048576 bi	1048576 bi	1048576 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	8	8	8
Number of terminals	64	64	64
word count	131072 words	131072 words	131072 words
character code	128000	128000	128000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP64,.9	DIP64,.9	DIP64,.9
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	260	260	225
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	6	6	30
Base Number Matches	1	1	-
