F.LL.D4.008A.DN.R1: DescriptionThree Phase EMI Filter, 520V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size241KB，2 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric Compare View All

F.LL.D4.008A.DN.R1 Overview

Three Phase EMI Filter, 520V, 50/60HzHz,

F.LL.D4.008A.DN.R1 Parametric

Parameter Name	Attribute value
Maker	KEMET
Reach Compliance Code	compliant
Certification	UL; CSA; VDE
filter type	THREE PHASE EMI FILTER
high	80 mm
high potential	3470 V
Maximum leakage current	3.4 mA
length	120 mm
Manufacturer's serial number	F.LL.D4
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L120.0XB115.0XH80.0 (mm)/L4.724XB4.528XH3.15 (inch)
Rated current	8 A
Rated voltage	520 V

Preview

Download Datasheet

View All

Three Phase + Neutral Filters

Residential / Light industrial environments

General performance, low earth-leakage

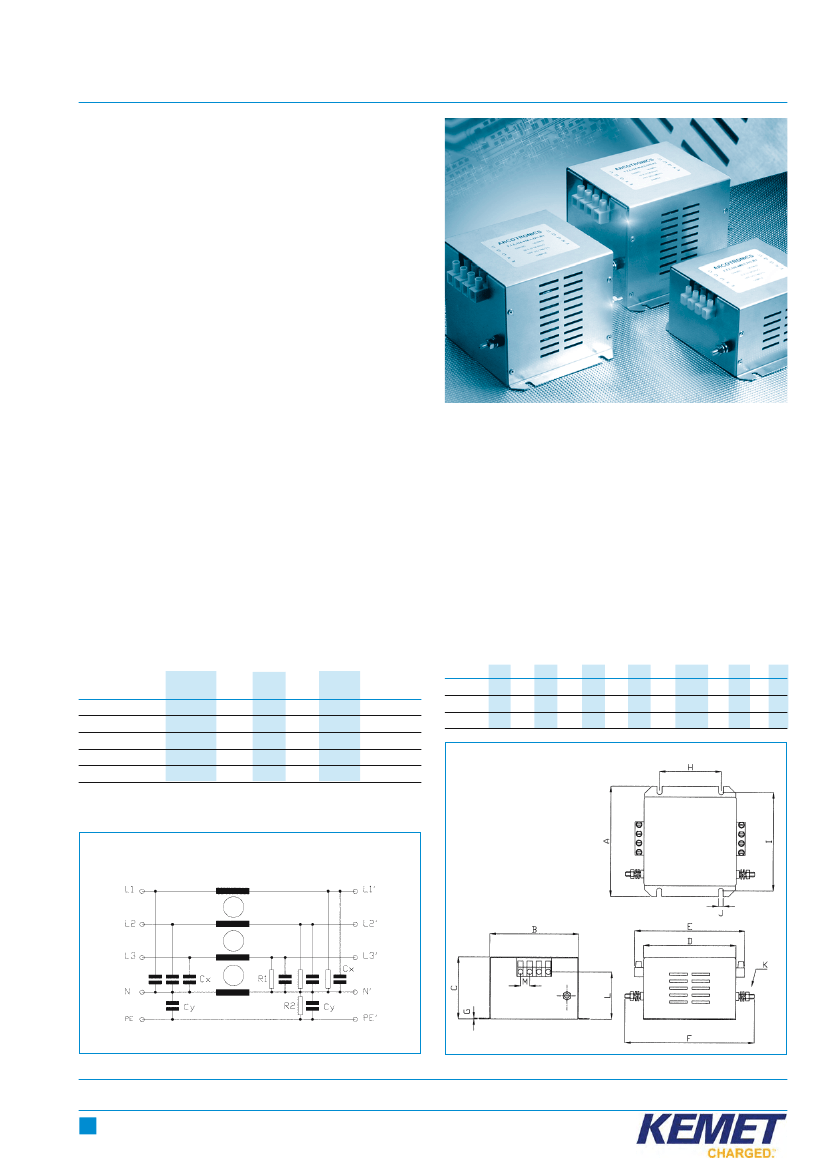

This range of compact lightweight, three phase + neutral filters offer a very

economic design solution for many OEM applications up to 520Vac

operating voltage. Due to its lower earth-leakage current and high

attenuation performance, the DN series is particularly suited for industrial

power systems, machine tools and control cabinets, switch mode power

supplies, process machinery and medical equipment systems.

F.LL.D4

series –

DN

type

•

Current ratings from 8A to 64A

•

High attenuation performance

•

High voltage 520Vac design for worldwide applications

•

Low earth-leakage

•

Compact, lightweight, space saving contruction

•

Screw terminal for quick and easy installation

•

Additional high current ratings available

Mechanical specifications

Manufacture: aluminium case

Connections: strip terminal block -

6mm solid wire, 4mm flex wire - 8A, 16A

2

Electrical specifications

Rated voltage (V

R

): 520Vac 50/60Hz

Rated current (I

R

):

2

referred to 50 (40)°C

fault: 25mA

(only one phase remaining)

Leakage current (I

L

): normal: < 3.4mA

Voltage test (2

S

.):

Climatic category:

line to ground 3470Vdc

line to line 1700Vdc

HMF (25/100/21):

temperature range: -25°C to +100°C

16mm solid wire, 10mm flex wire - 25A, 36A

2

25mm

2

solid wire, 16mm

2

flex wire - 64A

Filter range

Code

F.LL.D4.008A.DN.R1

F.LL.D4.016A.DN.R1

F.LL.D4.025A.DN.R1

F.LL.D4.036A.DN.R1

F.LL.D4.064A.DN.R1

l

R

(A)

8

(9.1)

16 (18.1)

25 (28.3)

36 (40.8)

64 (72.6)

L

(mH)

Cx

(µF)

Cy

(µF)

2x0.1

R1

MΩ

3x1.5

3x0.82

R2

MΩ

1x0.68

Dimensions

Code

8A, 16A

25A, 36A

64A

A

B

C

D

E

F

G

H

80

90

I

J

K

L

M

143 115 80

120 144 163 1

127.5 6.5 M6 64 12

137.5 6.5 M6 94 14.5

4x1.78 6x2.2

4x1.14 6x2.2

4x1.57 6x4.7

4x1.1

4x1

6x4.7

153 125 115 130 159 173 1

153 125 125 140 178 184 1.5

100 137.5 6.5 M6 104 14.5

Dimensions (mm) and connections

Circuit diagram

Approvals

24

Made in accordance to VDE, UL and CSA requirements

Load

Line

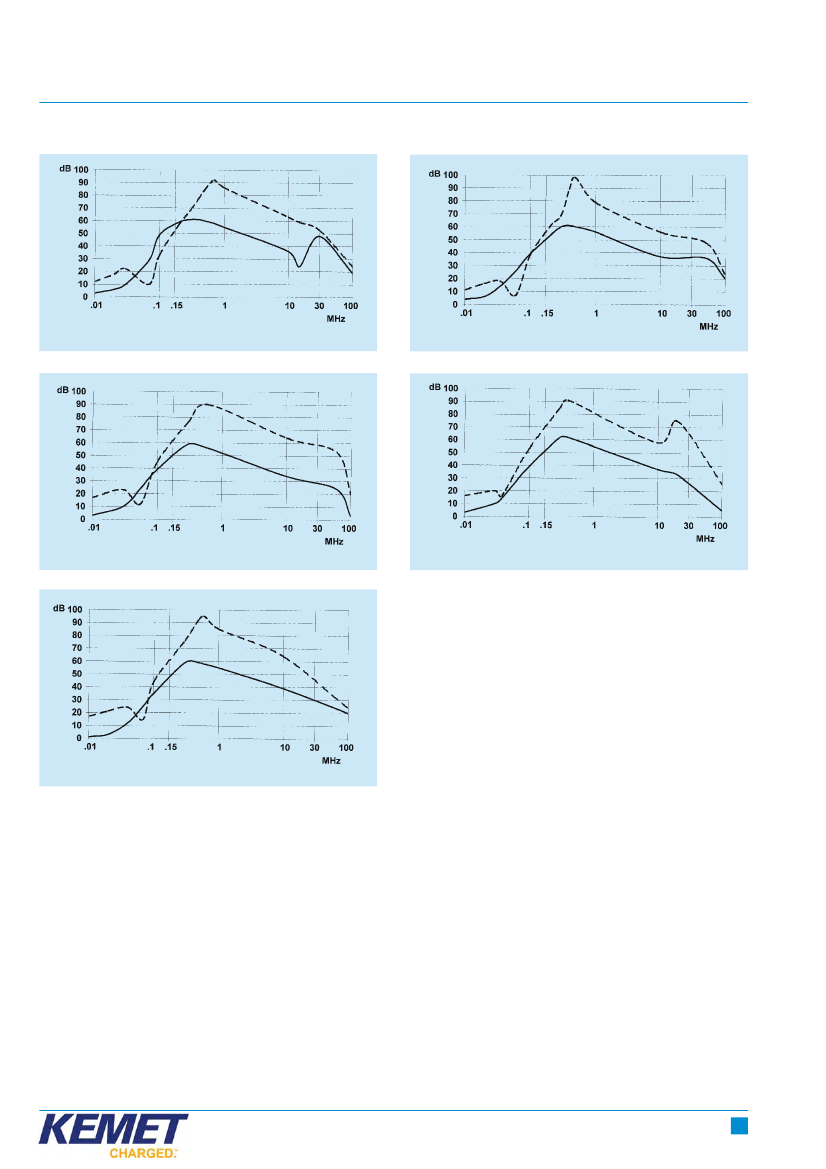

F.LL.D4.008A.DN.R1 Related Products

	F.LL.D4.008A.DN.R1	F.LL.D4.036A.DN.R1	F.LL.D4.064A.DN.R1	F.LL.D4.016A.DN.R1	F.LL.D4.025A.DN.R1
Description	Three Phase EMI Filter, 520V, 50/60HzHz,	Three Phase EMI Filter, 520V, 50/60HzHz,	Three Phase EMI Filter, 520V, 50/60HzHz,	Three Phase EMI Filter, 520V, 50/60HzHz,	Three Phase EMI Filter, 520V, 50/60HzHz,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Certification	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	80 mm	115 mm	125 mm	80 mm	115 mm
high potential	3470 V	3470 V	3470 V	3470 V	3470 V
Maximum leakage current	3.4 mA	3.4 mA	3.4 mA	3.4 mA	3.4 mA
length	120 mm	130 mm	140 mm	120 mm	130 mm
Manufacturer's serial number	F.LL.D4	F.LL.D4	F.LL.D4	F.LL.D4	F.LL.D4
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L120.0XB115.0XH80.0 (mm)/L4.724XB4.528XH3.15 (inch)	L130.0XB125.0XH115.0 (mm)/L5.118XB4.921XH4.528 (inch)	L140.0XB125.0XH125.0 (mm)/L5.512XB4.921XH4.921 (inch)	L120.0XB115.0XH80.0 (mm)/L4.724XB4.528XH3.15 (inch)	L130.0XB125.0XH115.0 (mm)/L5.118XB4.921XH4.528 (inch)
Rated current	8 A	36 A	64 A	16 A	25 A
Rated voltage	520 V	520 V	520 V	520 V	520 V
Maker	KEMET	KEMET	-	KEMET	KEMET
