Commercial
CCT-58
Normally Open
Multi-Throw Internal Terminations DC-26.5GHz

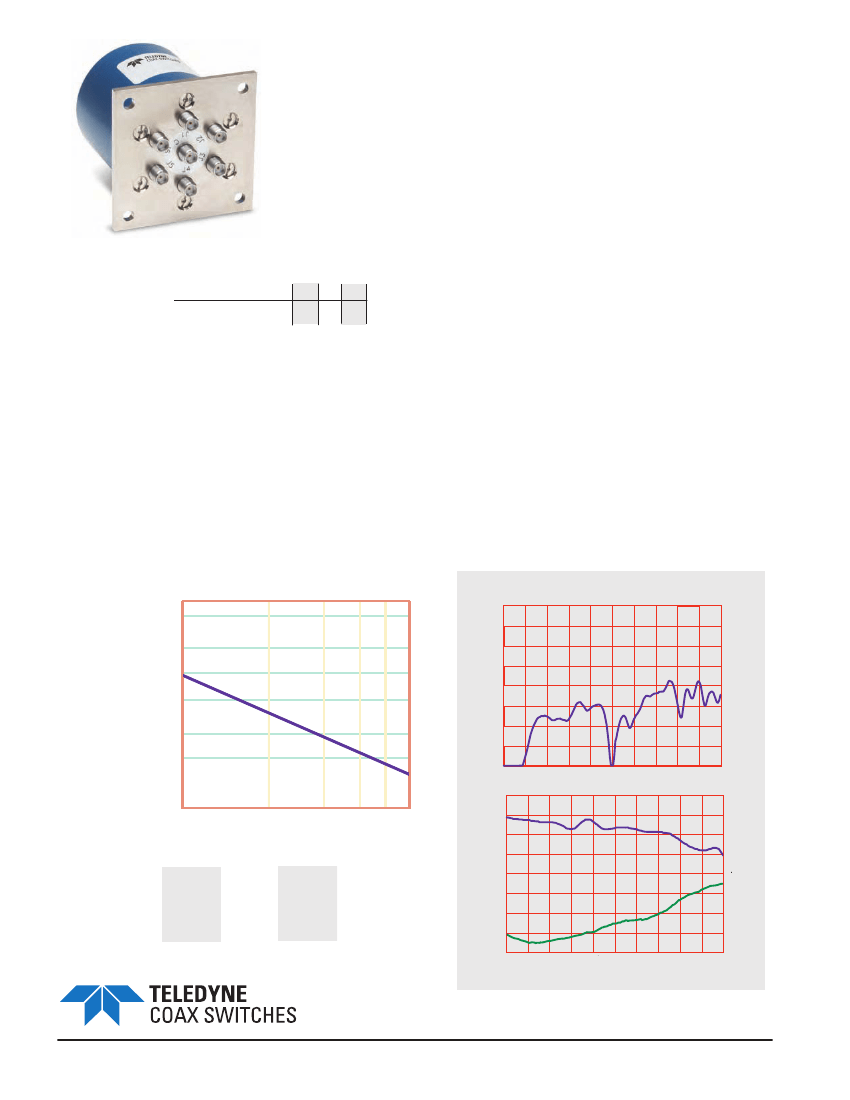

The CCT-58 Switch is an internally terminated, broadband, multi-throw, electromechanical
coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5,
or 6 outputs. The characteristic impedance is 50 Ohms. Internal terminations provide an
impedance match for the unselected ports. The switches are small using the popular
connector spacing on a 1.062" dia. circle. Each position has an individual actuator mechanism
allowing random position selection. This also minimizes switching time.
Specifications
RF Contacts:
Actuator
Break before make
Voltage (VDC) 20
O
C
Current (mA)
Switching Time:
Terminations:
Connectors:
Weight:
15 msec max
50 Ohm 2 Watts CW max
SMA (f)
6 oz. max
12
15
28
The CCT-58 comes with a normally open actuator. For the normally
open actuator, all ports are terminated in 50 Ohms, except the
common input port which is open when the switch is
de-energized.
170 136 180
Temperature Range:
-40
O
C to +65
O
C (Operating)
Shock:
Vibration:
Humidity:
Typical
Contact Life:
MIL-STD-202 Method 213, Condition D (500G Non Operating)
MIL-STD-202 Method 214, Condition D (10G RMS Non Operating)
Moisture Seal Available
5 Million
Cycles
Insertion Loss Repeatability (1 Million Cycles):
DC to 6 GHz: 0.05 dB
DC to 20 GHz: 0.1 dB
RF Power Handling (Non-Terminated)
Typical Performance
3000
800
400
Sta
Power CW (Watts)
nda
rd S
MA
200
Co
15
nne
cto
rs
25
80
40
Return Loss
0.01
Frequency GHz
26.5
1.0
4.0
Frequency GHz
10
18
26.5
0.0
0.4
IL dB
Specifications
VSWR (max)
Insertion Loss (min)
Isolation (max)
DC-6 GHz 6-12 GHz 12-18 GHz 18-26.5 GHz
1.25:1
0.20 dB
70.0 dB
1.40:1
0.40 dB
60.0 dB
1.50:1
0.50 dB
60.0 dB
1.80:1
0.80 dB
50.0 dB
60
70
80
90
0.01
Frequency GHz
26.5
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
Isolation dB
10
0.1
Multi-Throw Internal Terminations DC-26.5GHz
Normally Open
Commercial
CCT-58
Analog
Indicators
SP3T
TTL
SP5T
SP6T
H = 1.85 STD Model
H = 2.50 TTL Model
SP4T

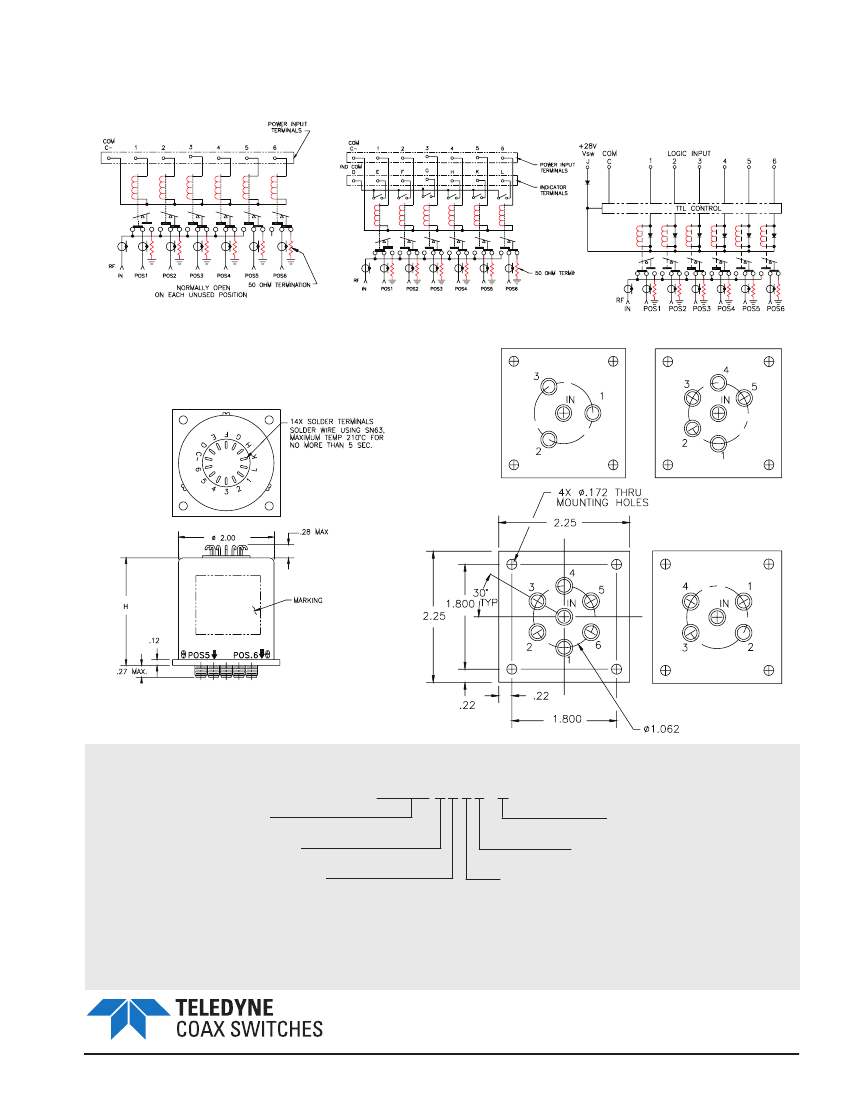

Part Numbering System for CCT-58 (Normally Open)
CCT-58 S 1 5 O - T
Series
Connectors
Actuator Voltage
Connector
S: SMA Female
Actuator Voltage
1: 28Vdc Normally Open
2: 15Vdc Normally Open
3: 12Vdc Normally Open
Number of
Positions
3: SP3T
4: SP4T
5: SP5T
6: SP6T
Options
Actuator Type
Number of Switch Positions
Actuator Type
O: No Indicator Contacts
C: Indicator Contacts
Options
T: TTL Drivers with Diodes
R: Positive + Common
TD: TTL Driver with Decoder
For other options contact Factory
Specifications subject to change without notice.
www.teledynecoax.com
email: coax@teledyne.com
Tel: (800) 351-7368
10/2007
