• Extended guide rails enable accurate and easy card
insertion
• Single row surface mount solder tails facilitate auto
placement and IR soldering
• Optional 2 mm board standoff enables board
population
• Meets CFA standards for known compatibility and
reliability
• Optional ejector and card retainer can be purchased
pre-assembled or separately
• Integral side solder tab with card grounding feature
and also prevent the card from ‘flying’ out of header
during ejection
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3Mconnector.com for compliance
information (RIA E1 & C1 apply)
Date Modified: May 12, 2010
TS-2329-A
Sheet 1 of 4
Physical
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Beige
Insulation:
Contact:
Terminal Plating:
Material: Copper Alloy
Underplating: 80 µ" [2.03 µm] Min. Nickel
Wiping Area: 15 µ” or 30 µ” [0.38 – 0.76 µm] Min. Gold
Solder Tail: 100 µ” [2.54 µm] Min. Matte Tin
Electrical
Insulation Resistance:
10
3
MΩ at 500 V
AC
Withstanding Voltage:
500 V
AC
for 1 minute
Current Rating:
1.5 A per pin
Environmental
Temperature Rating:
-40°C to 85°C
Process Temperature Rating:
Max. 260°C (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

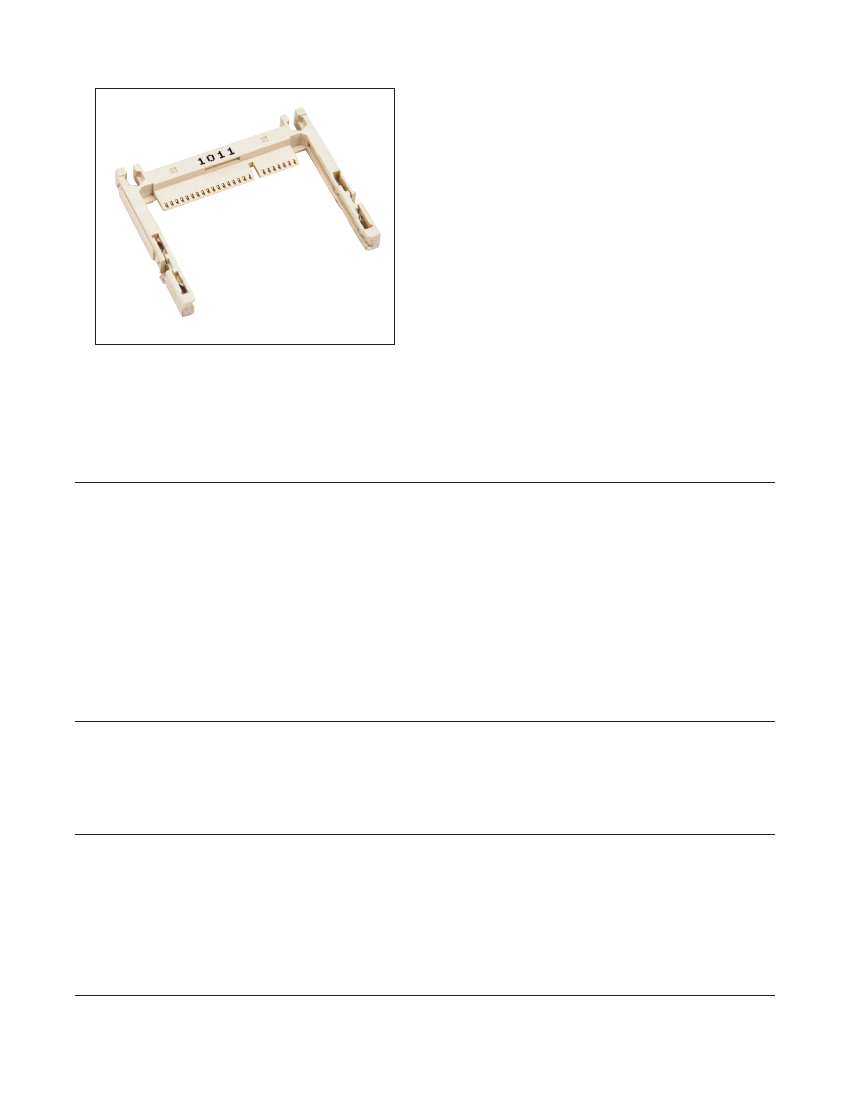

Connector for CFast
™
Card
40.16±0.1
[1.581±0.004]
7G24 Series
( )
7.62
[.300]
1.27
[.050](22X)PITCH
0.45±0.05
[.018±0.002]
B
S1
( )
( )
39.23
[1.545]
26.23
[1.033]
( )
( )
20.32
[.800]
4.595
[.181]
PC17
4.595
[.181]
PC1
S7
25.38±0.1
[.999±0.004]
( )
( )
( )
20.32
[.800]
7.62
[.300]
33.66±0.08
[1.325±0.003]
C
1.27
[.050](22X)PITCH
0.40±0.05
[.016±0.002]
C0.6(2X)
(
(
47.80
[1.882]
48.50
[1.910]
)
)
43.03±0.08
[1.694±0.003]
1.300
[.051]
A
A
C OF C
L
40.16±0.1
[1.581±0.004]
45.40±0.1
[1.788±0.004]
( )
( )
25.10±0.1
[.988±0.004]
1.40
[.055]
1.650
[.065]
1.0
[.039]
0.900
[.035]
1.250
[.049]
mm
[inch]
Part No.
N7G24-A0B2XX-00-XHT
N7G24-A0B2XX-10-XHT
Dimension ‘A’
mm [inch]
5.70 [.224]
7.70 [.303]
Tolerance Unless Noted
.0
mm
inch
±.25
±.010
.00
±.15
±.006
.000
±.05
±.002
[ ] Dimensions for Reference
Only
TS-2329-A
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Connector for CFast
™
Card
49.80
[1.961] MIN
7G24 Series
(
40.16
[1.581]
)
24.80
[.976] TYP
41.05
[1.616] MIN
C OF D
L
18.32
[.721] MAX (2X)
51.60
[2.032] MIN
18.15
[.715] MIN (2X)
COMPONENT REFLOW KEEP OUT ZONE
(FOR NO STANDOFF HEIGHT CONNECTOR)
49.80
[1.961] MIN
(
18.32
[.721] MAX (2X)
40.16
[1.581]
)
6.50
[.256] MIN (2X)
6.92
[.272] MIN (2X)
11.50
[.453] MIN (2X)
C OF D
L
32.80
[1.291] MAX
(
24.80
[.976]
TYP
)
14.75
[.581] MIN (2X)
39.23
[1.545] MAX
51.60
[2.032] MIN
COMPONENT REFLOW KEEP OUT ZONE
(FOR 2MM STANDOFF CONNECTOR)
TS-2329-A
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Connector for CFast
™
Card
7G24 Series
40.16
[1.581]
6.80
[.268]
3.00
[.118]
8.105
[.319]
20.32
[.800]
4.595
[.181]
7.62
[.300]
1.27
[.050](22X)
0.80±0.05
[.031±0.002]
0.08
L
D
Ø2.30
[Ø.091](2X)
Ø1.75
[Ø.069](2X)
3.00
[.118](2X)
4.00
[.157](2X)
PC17
25.10 24.80
[.988] [.976]
2.50
[.098]
PC1
S7
C OF D
L
S1
Ø1.35
[Ø.053](2X)
45.40
[1.788]
46.60
[1.835]
RECOMMENDED PCB THICKNESS 1.65 [0.066] NOMINAL
HOLE & PAD PATTERN TOL ±0.05 [0.002]
Ordering Information
Physical Configuration (Total Arm Length)
A = 39.23 mm
Card Polarization
B = Normal
**D = Inverse
Mounting Style
2 = Surface Mount, Right Angle
1.27 mm Tail Pitch
N7G24 - A 0 X X XX - X 0 - X XX
Packaging Option
HT = Hard Tray
**WF = Tape & Reel
Preassembly
0 = No preassembly accessory
3 = Right Dual-Push Ejector
(P/N: 7G24-B5A6-05)
5 = Left Dual-Push Ejector
(P/N: 7G24-B6A6-05)
7 = Latching Retainer
(P/N: 7E50-C016-00)
0 = No Standoff
1 = 2 mm Standoff
Plating Suffix
**EA=15 µ" min. Gold plated at mated end and Gold Flash at soldertail. 80 µ" min.
Nickel underplated all over.
**EB=30 µ" min. Gold plated at mated end and Gold Flash a soldertail. 80 µ" min.
Nickel underplated all over.
RA=15 µ" min. Gold plated at mated end and 100 µ" min. Matte-Tin plated at soldertail.
80 µ" min. Nickel underplated all over.
RB=30 µ" min. Gold plated at mated end and 100 µ" min. Matte-Tin plated at soldertail.
80 µ" min. Nickel underplated all over.
Notes:
** are for future development
TS-2329-A
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
