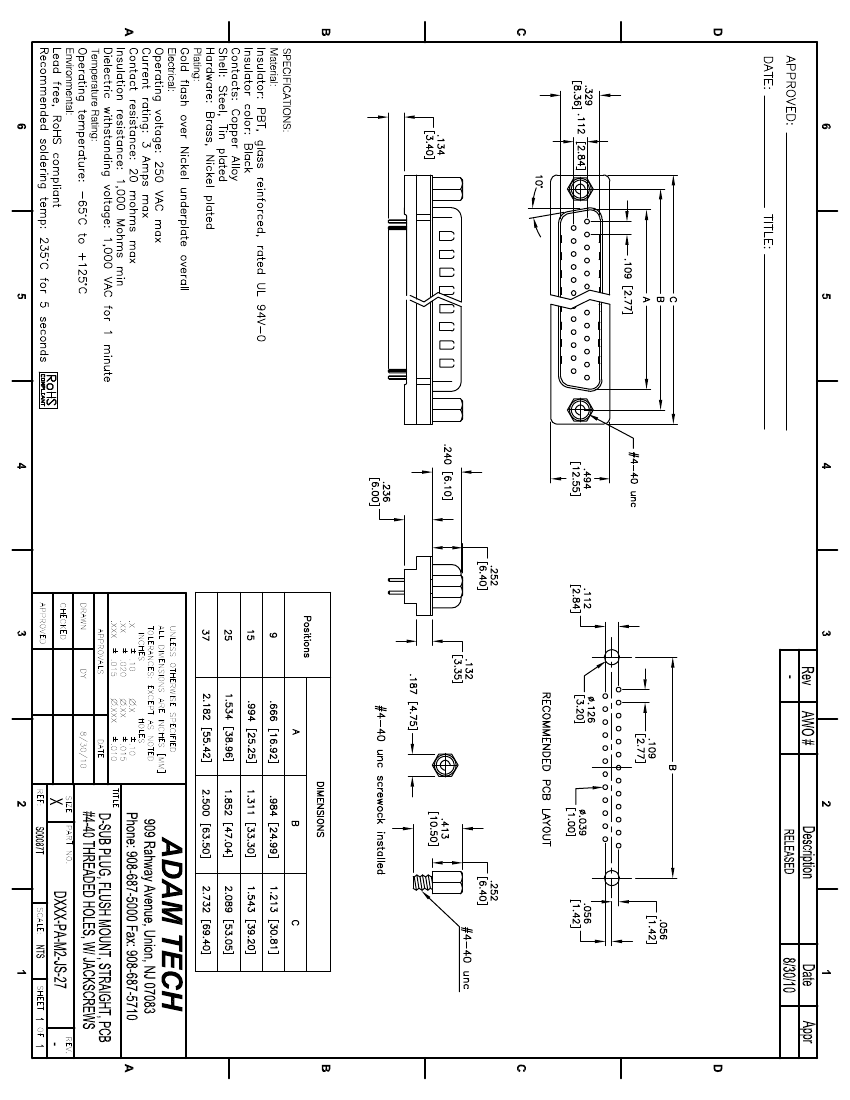

DE09-PA-M2-JS-27

Description
D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size83KB,1 Pages
ManufacturerAdam Tech
Download Datasheet Parametric Compare View All

DE09-PA-M2-JS-27 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DE09-PA-M2-JS-27 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Other featuresROHS, W/THREADED HOLES
body width0.494 inch
subject depth0.236 inch
body length1.213 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberD
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2JACKSCREW
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thicknessFLASH inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.134 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts9
Base Number Matches1

DE09-PA-M2-JS-27 Related Products

DE09-PA-M2-JS-27 DC37-PA-M2-JS-27
Description D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Reach Compliance Code compli compli
Other features ROHS, W/THREADED HOLES ROHS, W/THREADED HOLES
body width 0.494 inch 0.494 inch
subject depth 0.236 inch 0.236 inch
body length 1.213 inch 2.732 inch
Body/casing type PLUG PLUG
Contact to complete cooperation AU ON NI AU ON NI
Contact completed and terminated GOLD OVER NICKEL GOLD OVER NICKEL
Contact point gender MALE MALE
Contact material COPPER ALLOY COPPER ALLOY
contact mode STAGGERED STAGGERED
Contact resistance 20 mΩ 20 mΩ
Contact style RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1000VAC V 1000VAC V
Insulation resistance 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number D D
Plug contact pitch 0.109 inch 0.109 inch
Match contact row spacing 0.112 inch 0.112 inch
Installation option 1 #4-40 #4-40
Installation option 2 JACKSCREW JACKSCREW
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -65 °C -65 °C
PCB contact pattern STAGGERED STAGGERED
PCB contact row spacing 2.8448 mm 2.8448 mm
Plating thickness FLASH inch FLASH inch
Rated current (signal) 3 A 3 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Shell surface TIN TIN
Shell material STEEL STEEL
Terminal length 0.134 inch 0.134 inch
Terminal pitch 2.7686 mm 2.7686 mm
Termination type SOLDER SOLDER
Total number of contacts 9 37
Base Number Matches 1 1
