70400-0503: Description14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; Categorysemiconductor Other integrated circuit (IC); File Size159KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

70400-0503 Overview

14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

Preview

Download Datasheet

View All

This document was generated on 03/30/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0014600146

Active

2.54mm (.100") Pitch SL™ Insulation Displacement Connector Assembly, Female,

Single Row, Version G, Positive Lock, Wire Size 28, 3.81µm (150µ") Tin/Lead (SnPb),

14 Circuits

Documents:

3D Model

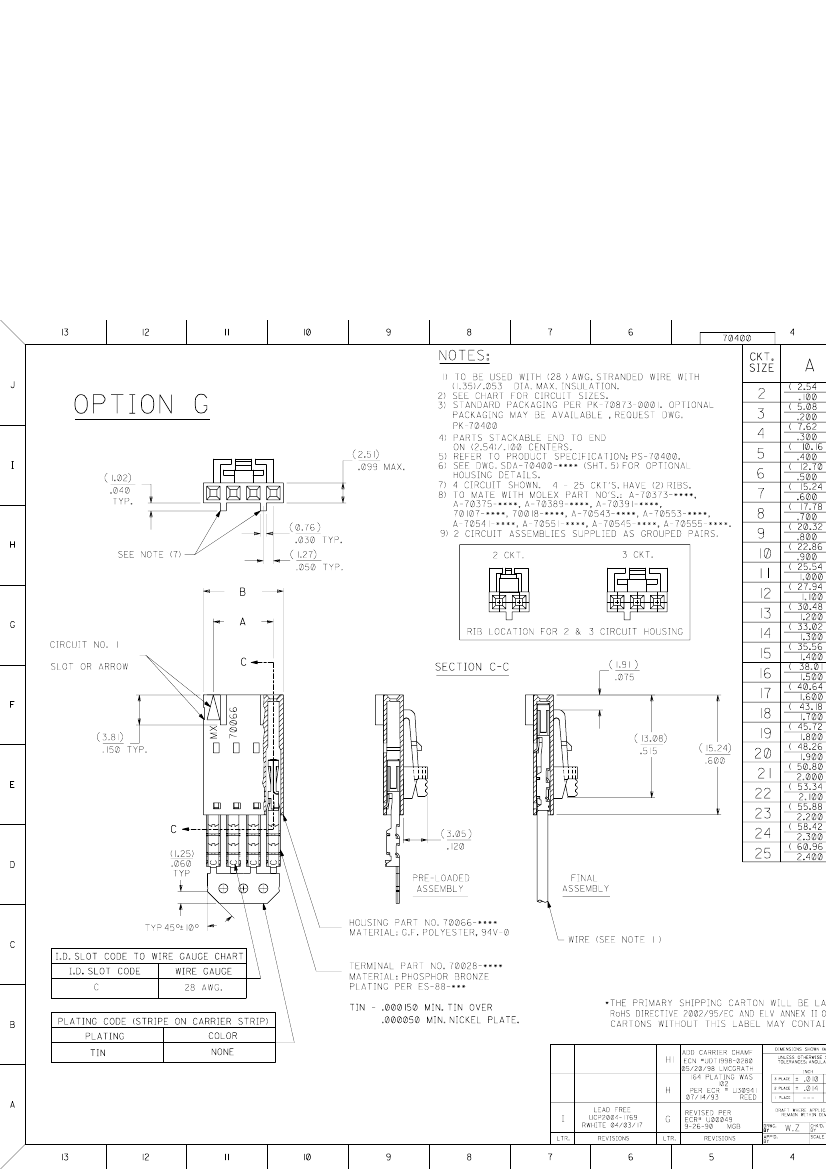

Drawing (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR19980

E29179

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Product Name

Ribbon Cable / Wire Trap Connectors

70400

Terminals Preloaded

Housing

No

SL™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

14

Black

25

Vertical

94V-0

Yes

Phosphor Bronze

Tin

Polyester Alloy

1

None

Tube

0.100 In

2.54 mm

150

3.75

75

1.875

Yes

N/A

-40°C to +105°C

IDT or Pierce

1.35mm (.053") max.

28

Discrete Wire, Ribbon Cable

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

70400S

Mates

70018

70555

Use W

7307 T

28AWG

Topcoa

8997 T

26AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.2A

250V

Material Info

Old Part Number

70400-0503

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Hawk S

Automa

70400-0503 Related Products

	70400-0503	A-70400-0503
Description	14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC	14 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC
