PCB1A18A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PCB1A18A

PCB1A18A: DescriptionCard Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, Screw Terminal; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

PCB1A18A Overview

Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, Screw Terminal

PCB1A18A Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	BRIGHT TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PCB1A
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Termination type	SCREW
Total number of contacts	18
UL Flammability Code	94V-0

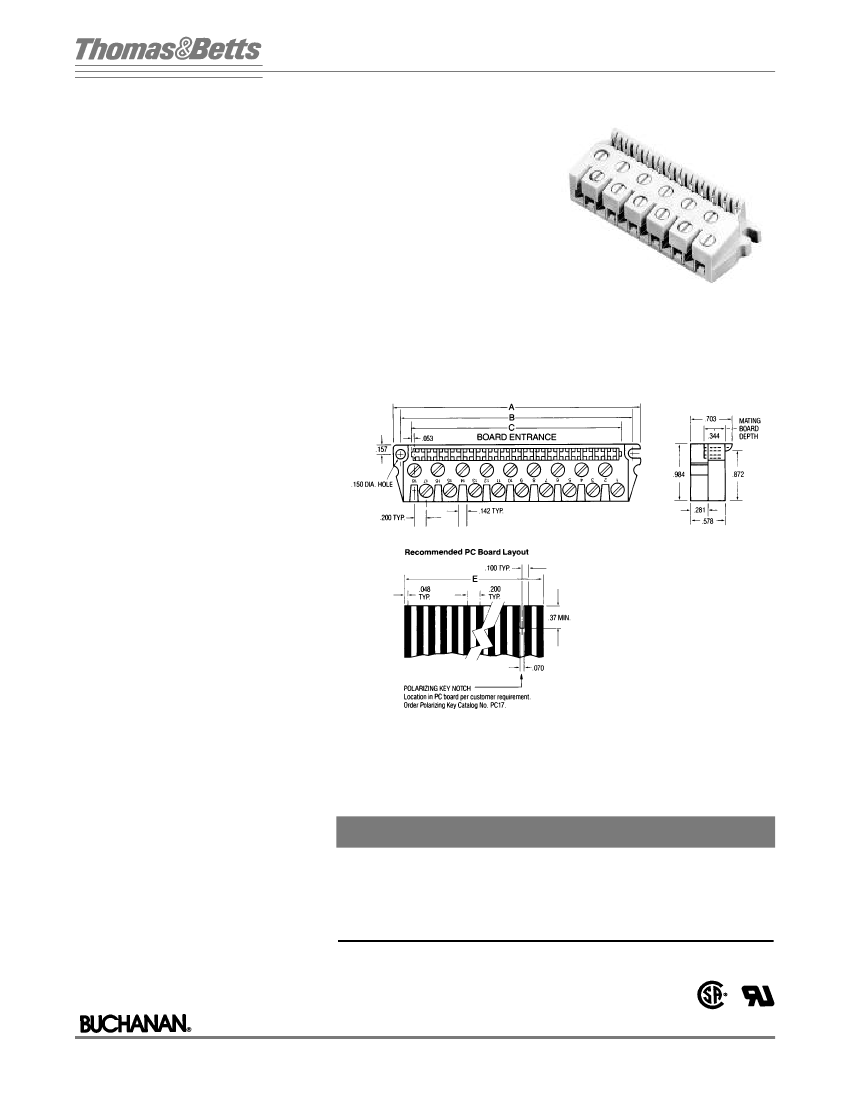

Preview

Download Datasheet

View All

Edge Card Connectors

0.200" PITCH

PCB1A SERIES

HYSICAL

ROPERTIES

Housing

OUSING

ATERIAL

Polyester

LAMMABILITY

UL94V-0

OLOR

White

Terminal

UBULAR

ONTACT

Brass

PC C

ONTACT

Phosphor Bronze with Bright Tin or

Gold over Nickel plating

CREW

Steel with Zinc + Chromate plating

LAMP

Brass

Mechanical

ITCH

ERMINAL

PACING

.200"

CREW

IZE

6-32

OUNTING

CREW

IZE

#4 or #6

IRE

TRIP

ENGTH

.25"

ECOMMENDED

IGHTENING

ORQUE

5-8 in-lbs.

ECOMMENDED

CREWDRIVERS

Xcelite R184,

Sears Craftsman 41429, Stanley 1016

OARD

NSERTION

ORCE

PER

5.6 oz.

(160g)

OARD

EPARATION

ORCE

PER

1.8 oz.

(50g)

URABILITY

Passes MIL-C-21097: 500 cycles

LECTRICAL

ROPERTIES

AXIMUM

URRENT

10A

PERATING

OLTAGE

250V

IRE

ANGE

#12 Stranded Only

IELECTRIC

ITHSTAND

2500V

NSULATION

ESISTANCE

ohms

ONTACT

ESISTANCE

6 milliohms

NVIRONMENTAL

ROPERTIES

PERATING

EMPERATURE

ANGE

-65ºC to +140ºC

(-85ºF to +284ºF)

Ordering Information

CATALOG

PCB1A12S

PCB1A18S

PCB1A24S

PCB1A30S

PCB1A36S

NO. OF

CIRCUITS

DIMENSIONS

2.920

4.120

5.320

6.520

7.720

DIMENSIONS

2.670

3.870

5.070

6.270

7.470

DIMENSIONS

2.310

3.510

4.710

5.910

7.110

DIMENSIONS

2.295

3.495

4.695

5.895

7.095

*NOTE:

For Optional Gold-Over-Nickel Plating On Contacts (Instead Of Standard Bright Tin) Change

The Letter “S” Of The Catalog Number To “A”.

LR25557

E63810

Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in inches.

148

PCB1A18A Related Products

	PCB1A18A	PCB1A24S	PCB1A36A	PCB1A36S	PCB1A18S	PCB1A24A	PCB1A12A	PCB1A12S	PCB1A30A	PCB1A30S
Description	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Screw Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Screw Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	PCB1A	PCB1A	PCB1A	PCB1A	PCB1A	PCB1A	PCB1A	PCB1A	PCB1A	PCB1A
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Total number of contacts	18	24	36	36	18	24	12	12	30	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	BRIGHT TIN OVER NICKEL	GOLD OVER NICKEL	-	GOLD OVER NICKEL	GOLD OVER NICKEL	BRIGHT TIN OVER NICKEL	-	GOLD OVER NICKEL	BRIGHT TIN OVER NICKEL	GOLD OVER NICKEL
JESD-609 code	e3	e4	-	e4	e4	e3	-	e4	e3	e4
