52975-1749 datasheet, PDF - EEWORLD Datasheet

52975-1749: DescriptionCard Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE; CategoryThe connector The connector; File Size194KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

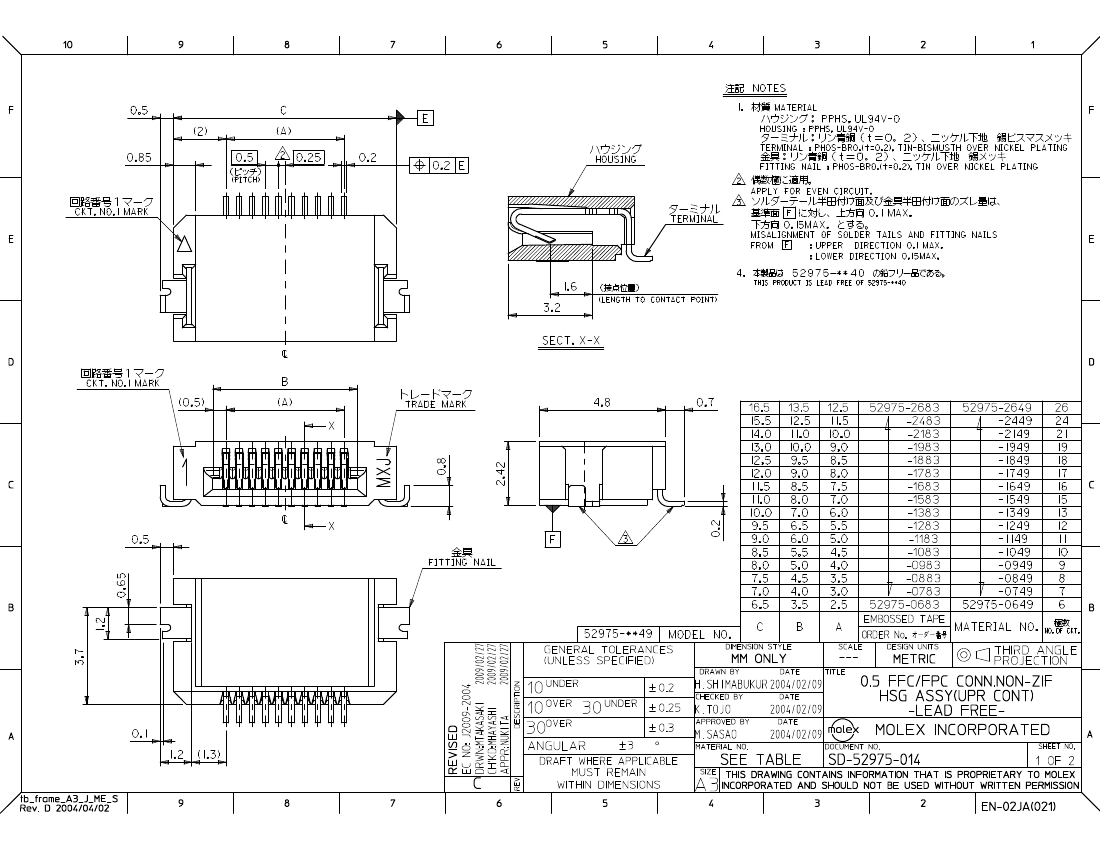

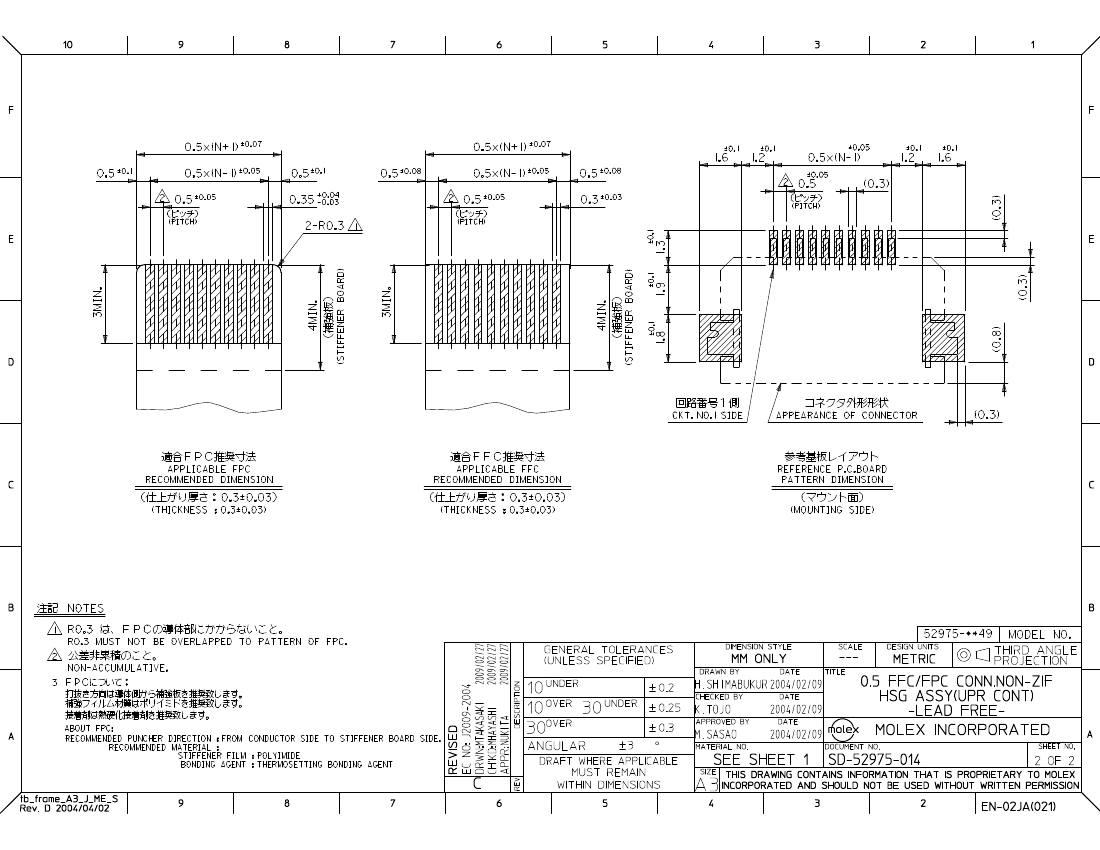

52975-1749 Overview

Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS AND ELV COMPLIANT
Board mount options	FITTING NAIL
body width	0.095 inch
subject depth	0.189 inch
body length	0.472 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN BISMUTH OVER NICKEL
Contact completed and terminated	TIN BISMUTH OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e6
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
UL Flammability Code	94V-0
