HI-200, HI-201
Dual/Quad SPST, CMOS Analog Switches
Description
HI-200/HI-201
are
monolithic
devices
comprising
independently selectable SPST switches which feature fast
switching speeds (HI-200 240ns, and HI-201 185ns)
combined with low power dissipation (15mW at 25
o
C). Each
switch provides low “ON” resistance operation for input signal
voltage up to the supply rails and for signal current up to
80mA. Rugged DI construction eliminates latch-up and
substrate SCR failure modes.
All devices provide break-before-make switching and are
TTL and CMOS compatible for maximum application
versatility. HI-200/HI-201 are ideal components for use in
high frequency analog switching. Typical applications include
signal path switching, sample and hold circuit, digital filters,
and operational amplifier gain switching networks.
INPUT
SOURCE
August 1997
Features
•
•
•
•
•
•
Analog Voltage Range . . . . . . . . . . . . . . . . . . . . . .
±15V
Analog Current Range. . . . . . . . . . . . . . . . . . . . . . 80mA
Turn-On Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240ns
Low r
ON
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55Ω
Low Power Dissipation . . . . . . . . . . . . . . . . . . . . .15mW
TTL/CMOS Compatible
Applications
•
•
•
•
High Frequency Analog Switching
Sample and Hold Circuits
Digital Filters
Operational Amplifier Gain Switching Networks

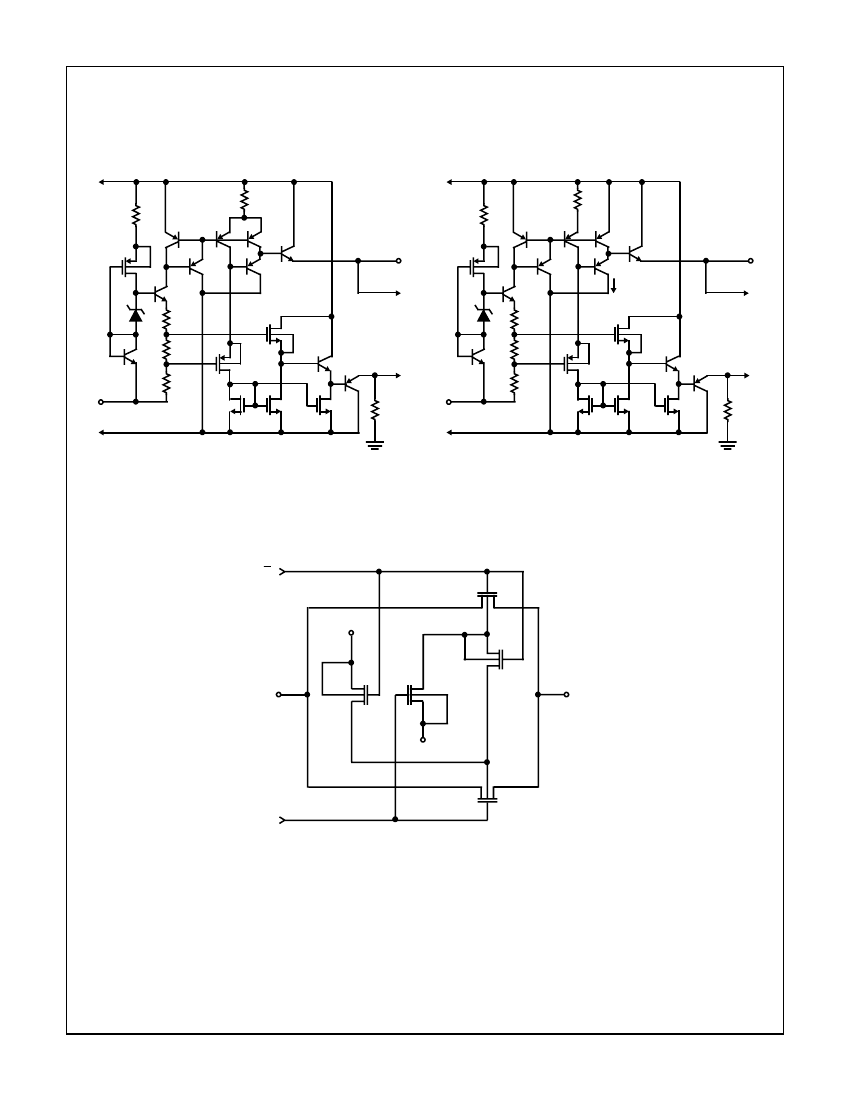

Functional Diagram
+V
V
REF
LOGIC
INPUT
GATE
REFERENCE,
LEVEL SHIFTER,
AND DRIVER
SWITCH
CELL
GATE
HI-200 is a dual SPST CMOS analog switch available in DIP
and (TO-99) metal cans and is pin compatible with other
available “200 series” switches. For MIL-STD-883 compliant
parts, request the HI-200/883 data sheet.
DRAIN
OUTPUT
-V
Pinouts
HI-200 (CERDIP, PDIP, SOIC)
TOP VIEW
A
2
1
NC 2
GND 3
NC 4
IN2 5
OUT2 6
V- 7
14 A
1
13 NC
12 V+
11 NC
10 IN1
9 OUT1
OUT4
8 V
REF
A
4
7
8
10 OUT3
9 A
3
HI-201 (CERDIP, PDIP, SOIC)
TOP VIEW
A
1
OUT1
IN1
V-
GND
IN4
1
2
3
4
5
6
16 A
2
15 OUT2
14 IN2
13 V+
12 V
REF
11 IN3
IN1
V-
NC
GND
IN4
4
5
6
7
8
HI-201 (PLCC, CLCC)
TOP VIEW
OUT1
OUT2
19
18 IN2
17 V+
16 NC
15 V
REF
14 IN3
9
OUT4
10
A4
11
NC
12
A3
13
OUT3
NC
1
A1
A2
20
3
2
HI-200 (METAL CAN)
TOP VIEW
V+
10
A
1
A
2
2
1
9
IN1
8
7
4
5
OUT2
6
V-
OUT1
V
REF
GND 3
IN2
CAUTION: These devices are sensitive to electrostatic discharge. Users should follow proper IC Handling Procedures.
Copyright
©
Harris Corporation 1997
File Number
3121.2
13-62
HI-200, HI-201
Absolute Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44V (±22)
V
REF
to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20V, -5V
Digital Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . +V
SUPPLY
4V
-V
SUPPLY
-4V
Analog Input Voltage (One Switch). . . . . . . . . . . . . . .+V
SUPPLY
2.0V
-V
SUPPLY
-2.0V
ogm
Thermal Information
Thermal Resistance (Typical, Note 1)
θ
JA
(
o
C/W)
θ
JC
(
o
C/W)
14 Ld CERDIP Package (/883 Versions)
80
24
14 Ld CERDIP Package (Non /883 Versions) 95
40
16 Ld CERDIP Package (/883 Versions)
75
20
16 Ld CERDIP Package (Non /883 Versions) 90
35
PLCC Package . . . . . . . . . . . . . . . . . .
80
N/A
PDIP Package . . . . . . . . . . . . . . . . . . .
100
N/A
14 Ld SOIC Package . . . . . . . . . . . . . .
120
N/A
16 Ld SOIC Package . . . . . . . . . . . . . .
115
N/A
10 Pin Metal Can Package (HI-200 Only)
160
75
20 Ld CLCC Package (HI-201 Only) . .
65
13
Maximum Storage Temperature . . . . . . . . . . . . . . . . -65
o
C to 150
o
C
Maximum Junction Temperature (Hermetic) . . . . . . . . . . . . . . 175
o
C
Maximum Junction Temperature (Plastic) . . . . . . . . . . . . . . . . 150
o
C
Maximum Lead Temperature (Soldering, 10s) . . . . . . . . . . . . 300
o
C
(PLCC and SOIC - Lead Tips Only)
Operating Conditions
Temperature Ranges
HI-200-2, HI-201-2 . . . . . . . . . . . . . . . . . . . . . . . . . . -55
o
C to 125
o
C
HI-200-4, HI-201-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . -25
o
C to 85
o
C
HI-200-5, HI-201-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
o
C to 75
o
C
HI200-9, HI201-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40
o
C to 85
o
C
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation
of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
NOTE:
1.
θ
JA
is measured with the component mounted on an evaluation PC board in free air.
Electrical Characteristics
Supplies = +15V, -15V; V
REF
= Open; V
AH
(Logic Level High) = 2.4V,
V
AL
(Logic Level Low) = +0.8V
TEST
CONDITIONS
TEMP
(
o
C)
HI-200, HI-201-2/883
MIN
TYP
MAX
HI-200, HI201 -4, -5, -7, -9
MIN
TYP
MAX
UNITS
PARAMETER
SWITCHING CHARACTERISTICS
Switch On Time, t
ON
HI-200
HI-201
25
25
Full
-
-
-
-
-
-
-
-
-
-
-
-
-
240
185
1000
330
220
1000
70
80
5.5
5.5
11
5
0.5
500
500
-
500
500
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
240
185
1000
500
220
1000
70
80
5.5
5.5
11
5
0.5
-
-
-
-
-
-
-
-
-
-
-
-
-
ns
ns
ns
ns
ns
ns
dB
dB
pF
pF
pF
pF
pF
Switch Off Time, t
OFF
HI-200
HI-201
25
25
Full
“Off Isolation”
HI-200
HI-201
Input Switch Capacitance, C
S(OFF)
Output Switch Capacitance, C
D(OFF)
Output Switch Capacitance, C
D(ON)
Digital Input Capacitance, C
A
Drain-to-Source Capacitance,
C
DS(OFF)
DIGITAL INPUT CHARACTERISTICS
Input Low Threshold, V
AL
Input High Threshold, V
AH
Input Leakage Current (High or Low),
I
A
Analog Signal Range, V
S
On Resistance, r
ON
(Note 1)
(Note 2)
Full
Full
Full
-
2.4
-
-
-
-
0.8
-
1.0
-
2.4
-
-
-
-
0.8
-
1.0
V
V
µA
(Note 4)
25
25
25
25
25
25
25
ANALOG SWITCH CHARACTERISTICS
Full
25
Full
-15
-
-
-
55
80
+15
70
100
-15
-
-
-
55
72
+15
80
100
V
Ω
Ω
