A-41672-A18A102 Overview

18 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

This document was generated on 03/22/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0026481186
Active
3.96mm (.156") Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 18
Circuits, Tin (Sn) Plating
Documents:
3D Model

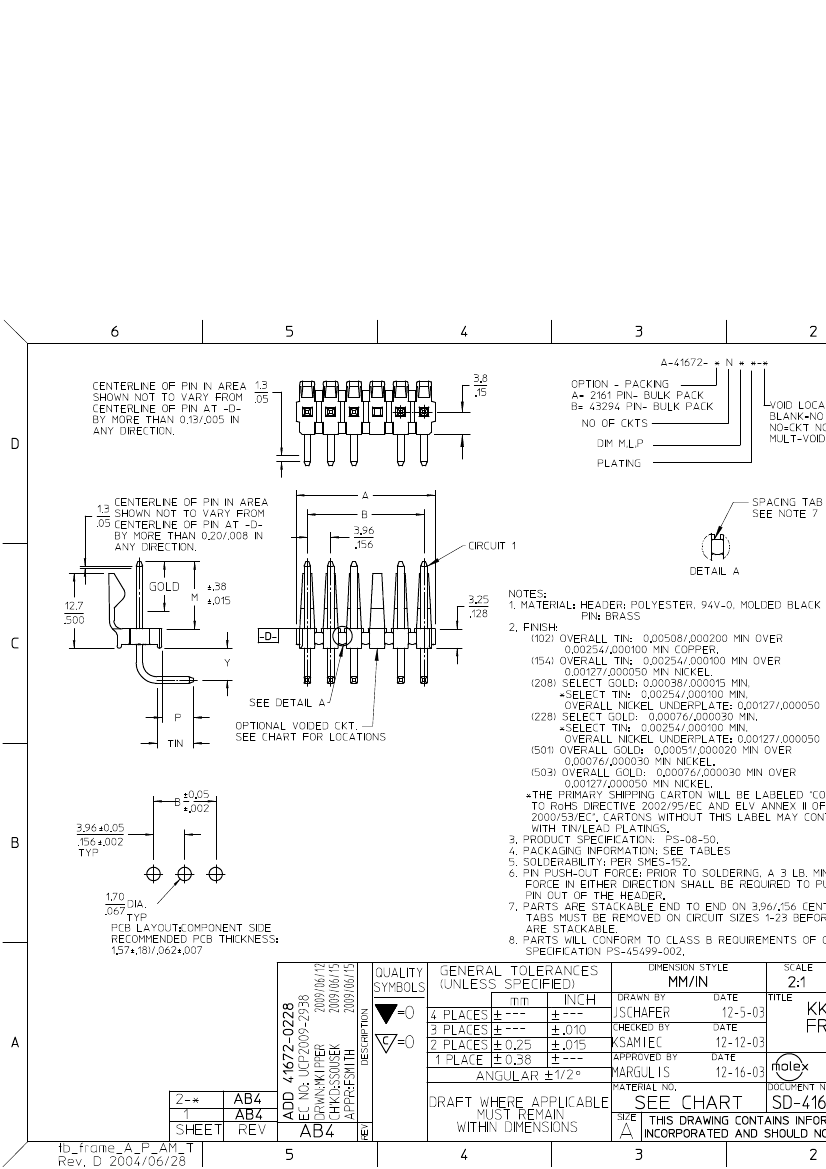

Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
41672
Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
18
18
Black
25
94V-0
No
Yes
Brass
Tin
Polyester
1
Right Angle
0.212 In
5.38 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
No
Yes
No
No
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
41672S
Mates
3069 ,
7675 ,
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
5
Wave Capable (TH only)
