2N5323TIN/LEAD

Description
Small Signal Bipolar Transistor, 2A I(C), PNP,
CategoryDiscrete semiconductor    The transistor
File Size501KB,2 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric Compare View All

2N5323TIN/LEAD Overview

Small Signal Bipolar Transistor, 2A I(C), PNP,

2N5323TIN/LEAD Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instruction,
Reach Compliance Code_compli
Maximum collector current (IC)2 A
ConfigurationSingle
Minimum DC current gain (hFE)40
JESD-609 codee0
Maximum operating temperature200 °C
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
Maximum power dissipation(Abs)10 W
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Maximum time at peak reflow temperatureNOT SPECIFIED
Nominal transition frequency (fT)50 MHz
Base Number Matches1
2N5320 2N5321
2N5322 2N5323
NPN
PNP
w w w. c e n t r a l s e m i . c o m
COMPLEMENTARY SILICON
SWITCHING TRANSISTORS
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 2N5320, 2N5322
series types are complementary silicon power
transistors manufactured by the epitaxial planar process,
designed for amplifier and switching applications.
MARKING: FULL PART NUMBER

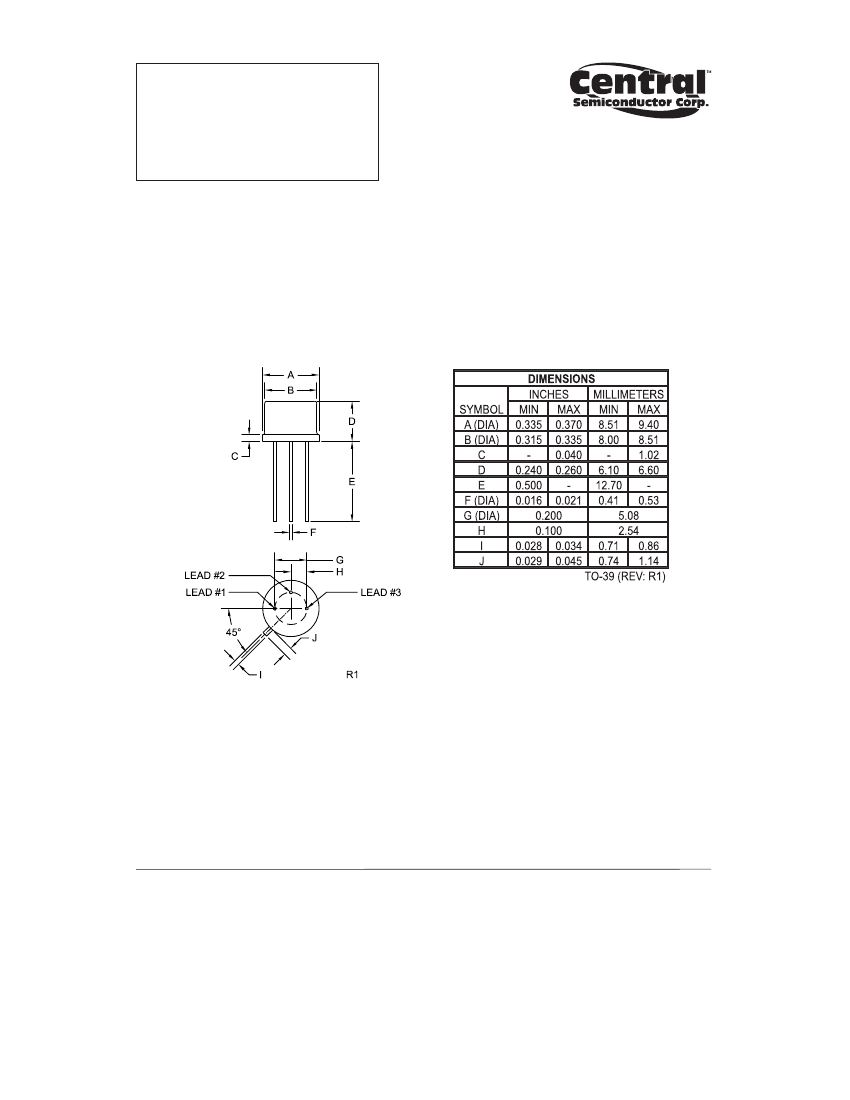

TO-39 CASE
MAXIMUM RATINGS:
(TC=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Continuous Base Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
Thermal Resistance
SYMBOL
VCBO
VCEV
VCEO
VEBO
IC
IB
PD
TJ, Tstg
Θ
JA
Θ
JC
2N5320
2N5322
100
100
75
6.0
2N5321
2N5323
75
75
50
5.0
UNITS
V
V
V
V
A
A
W
°C
°C/W
°C/W
2.0
1.0
10
-65 to +200
175
17.5
ELECTRICAL CHARACTERISTICS:
(TC=25°C unless otherwise noted)
2N5320
2N5322
SYMBOL
TEST CONDITIONS
MIN
MAX
ICBO
VCB=80V
-
0.5
ICBO
VCB=60V
-
-
IEBO
IEBO
BVCEV
BVCEO
BVEBO
VCE(SAT)
VCE(SAT)
VCE(SAT)
VCE(SAT)
VBE(ON)
hFE
hFE
fT
VEB=5.0V
VEB=4.0V
IC=100μA, VBE=1.5V
IC=10mA
IE=100μA
IC=500mA, IB=50mA (2N5320)
IC=500mA,
IC=500mA,
IC=500mA,
VCE=4.0V,
VCE=4.0V,
VCE=2.0V,
IB=50mA (2N5321)
IB=50mA (2N5322)
IB=50mA (2N5323)
IC=500mA
IC=500mA
IC=1.0A
-
-
100
75
6.0
-
-
-
-
-
30
10
50
0.1
-
-
-
-
0.5
-
0.7
-
1.1
150
-
-
2N5321
2N5323
MIN
MAX
-
-
-
5.0
-
-
75
50
5.0
-
-
-
-
-
40
-
50
-
0.5
-
-
-
-
0.8
-
1.2
1.4
250
-
-
UNITS
μA
μA
μA
μA
V
V
V
V
V
V
V
V
VCE=4.0V, IC=50mA, f=10MHz
MHz
R4 (11-June 2012)

2N5323TIN/LEAD Related Products

2N5323TIN/LEAD 2N5320TIN/LEAD 2N5320LEADFREE 2N5323LEADFREE 2N5321LEADFREE 2N5322LEADFREE 2N5321TIN/LEAD
Description Small Signal Bipolar Transistor, 2A I(C), PNP, Small Signal Bipolar Transistor, 2A I(C), 75V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 2A I(C), 75V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 2A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 2A I(C), 75V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN Small Signal Bipolar Transistor, 2A I(C), NPN,
Is it Rohs certified? incompatible incompatible conform to conform to conform to conform to incompatible
package instruction , CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 CYLINDRICAL, O-MBCY-W3 ,
Reach Compliance Code _compli _compli compli compli compli compli not_compliant
Maximum collector current (IC) 2 A 2 A 2 A 2 A 2 A 2 A 2 A
Configuration Single SINGLE SINGLE SINGLE SINGLE SINGLE Single
Minimum DC current gain (hFE) 40 10 30 40 40 30 40
JESD-609 code e0 e0 e3 e3 e3 e3 e0
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED 260 260 260 260 NOT SPECIFIED
Polarity/channel type PNP NPN NPN PNP NPN PNP NPN
surface mount NO NO NO NO NO NO NO
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED 10 10 10 10 NOT SPECIFIED
Nominal transition frequency (fT) 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz 50 MHz
Base Number Matches 1 1 1 1 1 1 -
Is it lead-free? - Contains lead Lead free Lead free Lead free Lead free -
Parts packaging code - TO-39 TO-39 TO-39 TO-39 TO-39 -
Contacts - 3 3 3 3 3 -
ECCN code - EAR99 EAR99 EAR99 EAR99 EAR99 -
Collector-emitter maximum voltage - 75 V 75 V 50 V 50 V 75 V -
JEDEC-95 code - TO-39 TO-39 TO-39 TO-39 TO-39 -
JESD-30 code - O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 O-MBCY-W3 -
Number of components - 1 1 1 1 1 -
Number of terminals - 3 3 3 3 3 -
Package body material - METAL METAL METAL METAL METAL -
Package shape - ROUND ROUND ROUND ROUND ROUND -
Package form - CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL -
Terminal form - WIRE WIRE WIRE WIRE WIRE -
Terminal location - BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM -
transistor applications - SWITCHING SWITCHING SWITCHING SWITCHING SWITCHING -
Transistor component materials - SILICON SILICON SILICON SILICON SILICON -
Maximum off time (toff) - 800 ns 800 ns 1000 ns 800 ns 1000 ns -
Maximum opening time (tons) - 80 ns 80 ns 100 ns 80 ns 100 ns -
Certification status - - Not Qualified Not Qualified Not Qualified Not Qualified -
