MR-QK95-04GB5: DescriptionRubber, rubber insulation, RN-F series, HAR approved; File Size79KB，1 Pages; ManufacturerSHIELD; Websitehttp://www.shield.net/

Download Datasheet View All

MR-QK95-04GB5 Overview

Rubber, rubber insulation, RN-F series, HAR approved

Preview

Download Datasheet

View All

CABLES -

CAVI

MR-PK

MR-QK

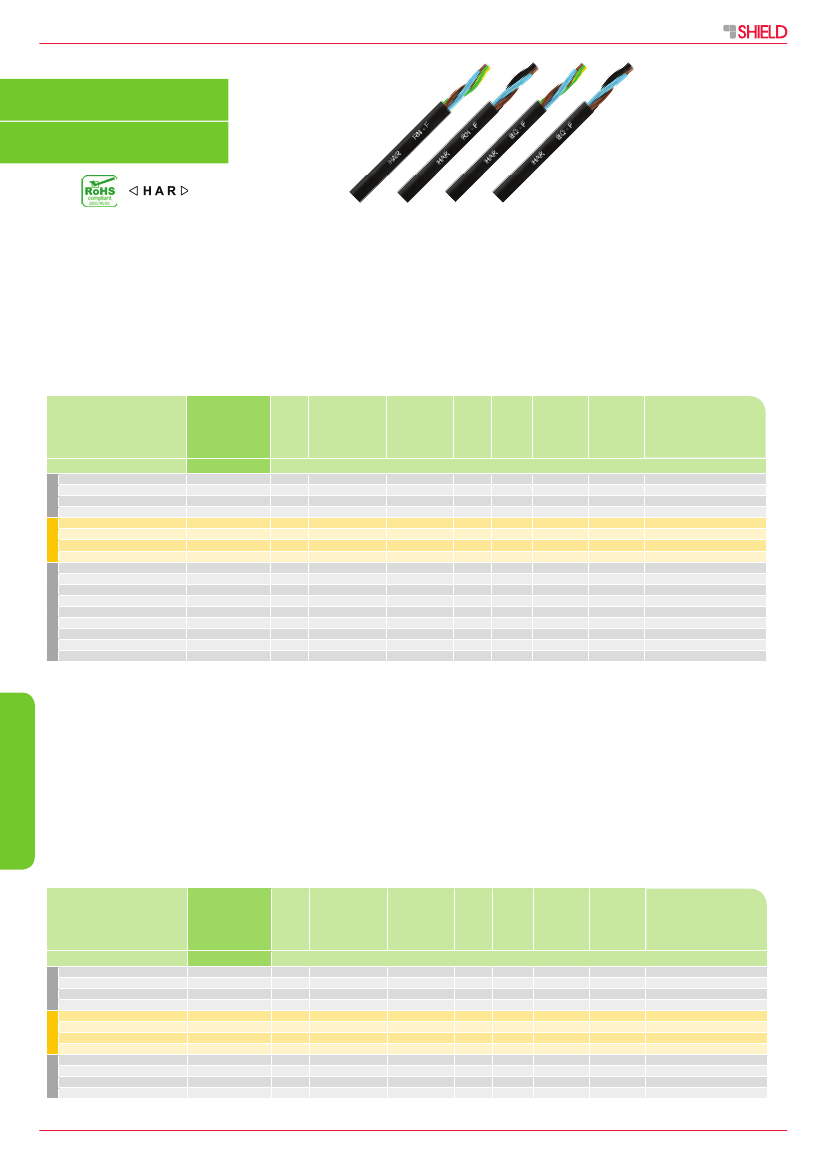

Rubber, rubber insulation, RN-F series,

HAR approved

Description.

Conductor insulation: EI4 rubber. Outer sheath: EM2 rubber.

Application.

Suitable for wet and dry environments, permanent outdoor and indoor use.

Approved with HAR mark (European Harmonization) up to 5 wires. Flame resistance degree:

IEC 60332-1. Good resistance to oils, water and weather. Good resistance to abrasion.

Max working voltage:

300/500 V up to 1,00 mm

and 450/750 V over.

Test voltage:

2000 V up to 1,00 mm

and 2500 V over, according to norms.

Note to table:

(a) example: 3 = three wires; 2+1 = two wires + yellow/green earth.

(b) colours: A = brown, blue, black, white, grey; yellow/green earth if present.

B = brown, grey, black, blue; green/yellow earth if present.

Gomma, isolante gomma, serie RN-F,

omologato HAR

Descrizione.

Isolante conduttori: gomma EI4. Guaina esterna: gomma EM2.

Impiego.

Adatto per ambienti secchi e umidi, uso permanente in ambienti interni ed esterni.

Omologato con marchio HAR (Armonizzazione Europea) ﬁno a 5 conduttori. Resistenza

alla ﬁamma: IEC 60332-1. Buona resistenza a oli, acqua e intemperie. Buona resistenza

all’abrasione.

Tensione massima di lavoro:

300/500 V ﬁno a 1,00 mm

e 450/750 V oltre.

Tensione di prova:

2000 V ﬁno a 1,00 mm

e 2500 V oltre, secondo norme.

Note alla tabella:

(a) esempio: 3 = tre conduttori; 2+1 = due conduttori + terra giallo/verde.

(b) colori: A = marrone, blu, nero, bianco; giallo/verde terra se presente.

B = marrone, grigio, nero, blu; giallo/verde terra se presente.

Formation

Formazione

Descriptive code

Codice descrittivo

Short

code

Codice

breve

Refer. or style

Rifer. o style

Sheath colour

Colore guaina

Wires

colour

Colore

cond.

(b)

Copper

class

Classe

rame

IEC 60228

Static

application

Applicazione

statica

°C

Dynamic

application

Applicazione

dinamica

°C

Note

Nota

n x mm

(a)

(c)

RAL

2x0,75

(2+1)x0,75

3x0,75

(3+1)x0,75

2x1,00

(2+1)x1,00

3x1,00

(3+1)x1,00

2x1,50

(2+1)x1,50

3x1,50

(3+1)x1,50

(4+1)x1,50

(6+1)x1,50

(9+1)x1,50

(11+1)x1,50

(18+1)x1,50

MR-PK9

MR-PK95-02XA5

MR-PK95-03GA5

MR-PK95-03XB5

MR-PK95-04GB5

MR-PK96-02XA5

MR-PK96-03GA5

MR-PK96-03XB5

MR-PK96-04GB5

MR-PK97-02XA5

MR-PK97-03GA5

MR-PK97-03XB5

MR-PK97-04GB5

MR-PK97-05GB5

MR-PK97-07GN5

MR-PK97-10GN5

MR-PK97-12GN5

MR-PK97-19GN5

0,75

536

5R2

6R1

6R2

7R1

7R2

7R5

7R6

769

RN-F HAR

RN-F

bk 9005

-30...+ 60

PUR, rubber insulation, BQ-F series,

HAR approved, cold resistant (- 40°C)

Description.

Conductor insulation: EI6 rubber. Sheath of matt halogen free polyether

polyurethane (PUR).

Application.

Suitable for wet and dry environments, permanent indoor and outdoor use even at

very low temperature. Approved with HAR mark (European Harmonization). Good resistance to

oils, water and weather. Good resistance to abrasion, tearing and cutting. Good ﬂexibility at low

temperature down to -40°C.

Max working voltage:

300/500 V up to 1,00 mm

and 450/750 V.

Test voltage:

2000 V up to 1,00 mm

and 2500 V over, according to norms.

Note to table:

(a) example: 3 = three wires; 2+1 = two wires + yellow/green earth.

(b) colours: A = brown, blue, black, white, grey; yellow/green earth if present.

B = brown, grey, black, blue; green/yellow earth if present.

1,50

1,00

PUR, isolante gomma, serie BQ-F,

omologato HAR, resistente al freddo (- 40°C)

Descrizione.

Isolante conduttori: gomma EI6. Guaina in poliuretano (PUR) polietere opaco

senza alogeni.

Impiego.

Adatto per ambienti secchi e umidi, uso permanente in ambienti interni ed esterni

anche a tempertature molto basse. Omologato con marchio HAR (Armonizzazione Europea).

Buona resistenza a oli, acqua e intemperie. Buona resistenza a abrasione, taglio e lacerazione.

Buona ﬂessibilità a basse temperature ﬁno a -40°C.

Tensione massima di lavoro:

300/500 V ﬁno a 1,00 mm

e 450/750 V oltre.

Tensione di prova:

2000 V ﬁno a 1,00 mm

e 2500 V oltre, secondo norme.

Note alla tabella:

(a) esempio: 3 = tre conduttori; 2+1 = due conduttori + terra giallo/verde.

(b) colori: A = marrone, blu, nero, bianco; giallo/verde terra se presente.

B = marrone, grigio, nero, blu; giallo/verde terra se presente.

Formation

Formazione

Descriptive code

Codice descrittivo

Short

code

Codice

breve

Refer. or style

Rifer. o style

Sheath colour

Colore guaina

Wires

colour

Colore

cond.

(b)

Copper

class

Classe

rame

IEC 60228

Static

application

Applicazione

statica

°C

Dynamic

application

Applicazione

dinamica

°C

Note

Nota

n x mm

(a)

(c)

RAL

2x0,75

(2+1)x0,75

3x0,75

(3+1)x0,75

2x1,00

(2+1)x1,00

3x1,00

(3+1)x1,00

2x1,50

(2+1)x1,50

3x1,50

(3+1)x1,50

MR-QK9

MR-QK95-02XA5

MR-QK95-03GA5

MR-QK95-03XB5

MR-QK95-04GB5

MR-QK96-02XA5

MR-QK96-03GA5

MR-QK96-03XB5

MR-QK96-04GB5

MR-QK97-02XA5

MR-QK97-03GA5

MR-QK97-03XB5

MR-QK97-04GB5

0,75

5R3

5R4

6R3

6R4

7R3

7R4

BQ-F HAR

bk 9005

-40...+ 80

33 MR-P

1,50

1,00
