part number:
10-00247
description:
Cable, 1830 mm, USB A plug to 5.5x2.5x12
mm 50-00026 right angle plug, center
negative, 22 AWG, UL2468
Specifications:
plug description (1)
plug description (2)
plug overmold (3)
cable description (4)
cable outer diameter
cable color
cable gauge
cable length
twist tie (5)
rated load
date:
unit:
page:
rev:
11/10/09
mm
1 of 2
A
USB-A plug; inner mold: 30P, PVC, black; outer mold: 60P, PVC,
black
dc plug, 5.5x2.5xL23 mm, molding style, spring contacts, black in-
sulator, P/N 50-00026
30P, PVC, black, UL94V0
UL2468, 0.16 x 17 strands, 2 conductor, twin wire
Ø3.6 (1.8 x 2) ± 0.1 mm
black
AWG #22
1830 ± 50
black, 89 ± 3
1 A at 5 Vdc
Notes:
Function test: no open, no reversed polarity, no short circuit, no INT
Hi-POT test: 600 Vac, 0.5 mA, 1 sec.
RoHS compliant

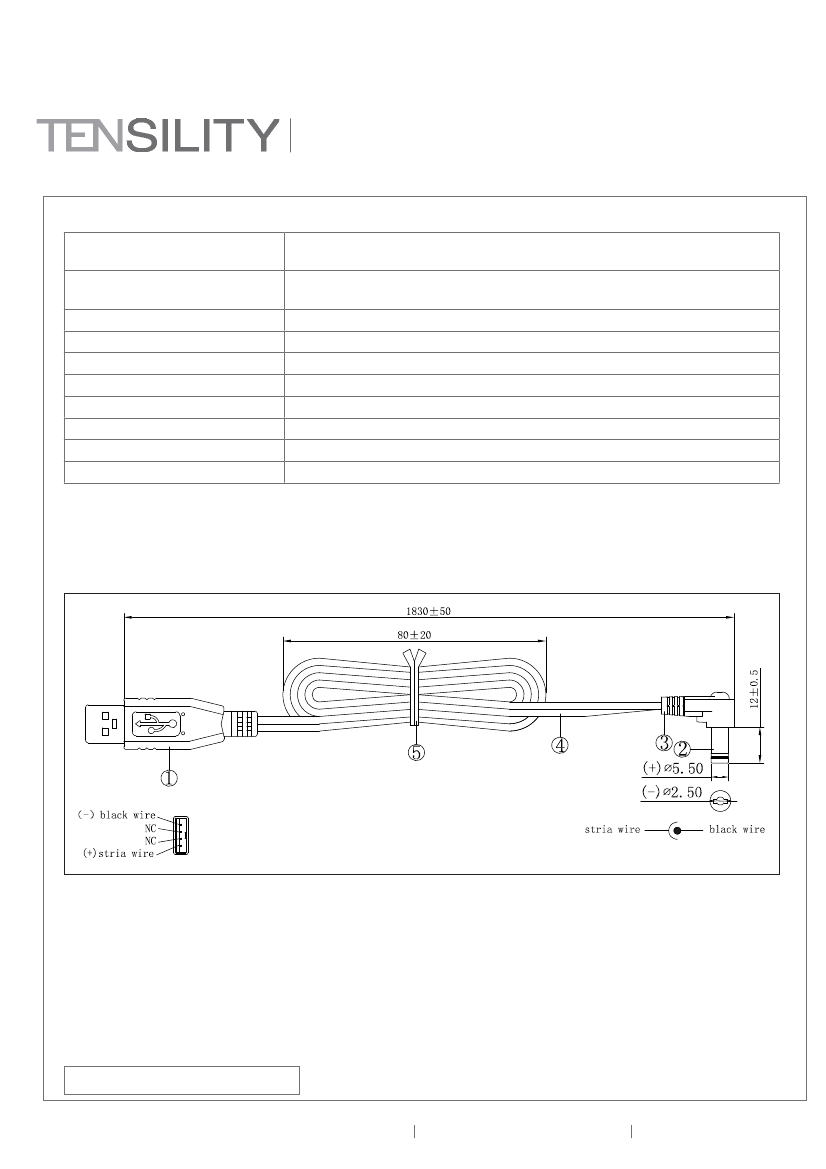

Mechanical drawing:
Initial
Date
tolerance
X: ±0.5 mm
.X: ±0.3 mm
.XX: ±0.05 mm
29033 Avenue Sherman Ste 203 Valencia, CA 91355
ph 661.702.0035 fx 661.702.0038
www.tensility.com
part number:
10-00247
description:
Cable, 1830 mm, USB A plug to 5.5x2.5x12
mm 50-00026 right angle plug, center
negative, 22 AWG, UL2468
date:
unit:
page:
rev:
11/10/09
mm
2 of 2
A
Revision notes:
Rev
A
Date
November 10, 2009
Description
initial release
Specification Approval
Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and
confirm that it meets your requirements. This specification reflects the part as it will be ordered. Orders
will not be processed until the specification pages have been initialed and the approval page has been
signed. This specification is confidential and is not to be transmitted without prior approval from Tensility.
Signature
Name
Title
Date
