AR2504: Description25 A, 400 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size79KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric Compare View All

AR2504 Overview

25 A, 400 V, SILICON, RECTIFIER DIODE

AR2504 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
package instruction	O-PEDB-N2
Reach Compliance Code	compli
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-PEDB-N2
Maximum non-repetitive peak forward current	400 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	25 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	DISK BUTTON
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	5 µA
surface mount	YES
Terminal form	NO LEAD
Terminal location	END

Preview

Download Datasheet

View All

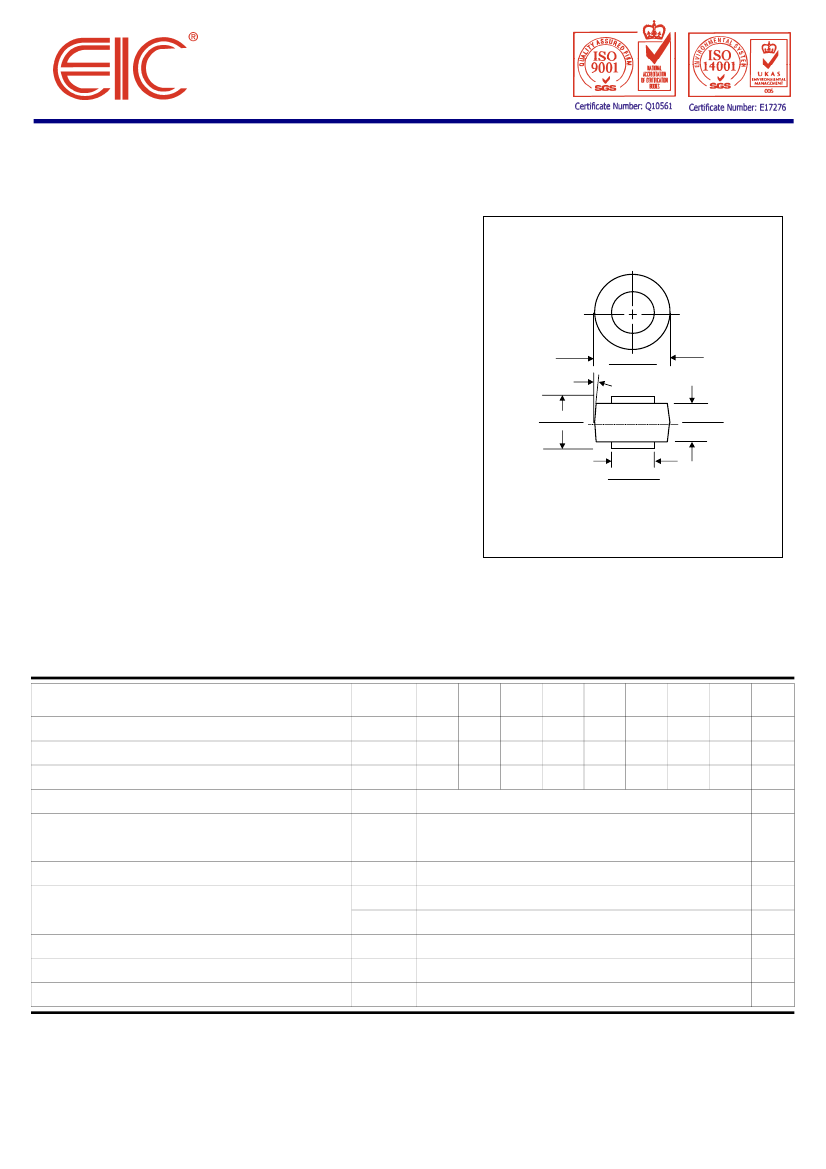

AR2500 - AR2512

PRV : 50 - 1200 Volts

Io : 25 Amperes

FEATURES :

*

High current capability

High surge current capability

High reliability

Low reverse current

Low forward voltage drop

Pb / RoHS Free

AUTOMOTIVE

RECTIFIER DIODES

BUTTON CASE

5

°

NOM

0.410 (10.4)

0.380 (9.70)

0.250 (6.4)

0.235 (6.0)

0.185 (4.7)

0.165 (4.2)

MECHANICAL DATA :

*

Case : Molded plastic

Epoxy : UL94V-O rate flame retardant

Terminals : Terminal are readily solderable

Polarity : Cathode polarity band

Mounting position : Any

Weight : 1.80 grams

0.225 (5.7)

0.215 (5.5)

Dimensions in inches and (millimeters)

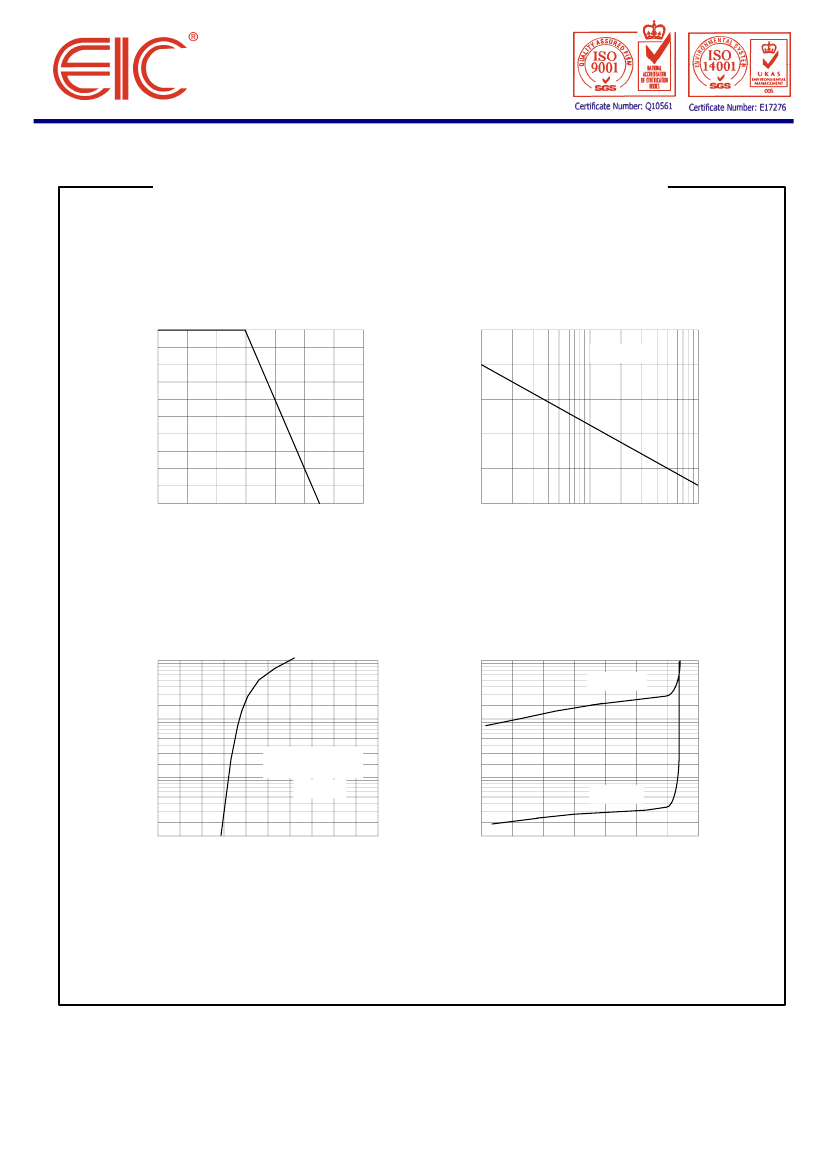

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25

°

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

RATING

Maximum Repetitive Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Average Rectified Forward Current Tc = 150°C

Peak Forward Surge Current Single half sine

wave superimposed on rated load (JEDEC Method)

Maximum Forward Voltage at I

F

= 25 Amps.

Maximum DC Reverse Current

at rated DC Blocking Voltage

Thermal Resistance (Note 1)

Junction Temperature Range

Storage Temperature Range

Ta = 25

°C

Ta = 100

°C

SYMBOL

V

RRM

V

RMS

V

DC

I

F(AV)

I

FSM

V

F

I

R

I

R(H)

R

ӨJC

T

J

T

STG

AR

2500

50

35

50

AR

2501

100

70

100

AR

2502

200

140

200

AR

2504

400

280

400

AR

2506

600

420

600

25

AR

2508

800

560

800

AR

2510

1000

700

1000

AR

UNIT

2512

1200

840

1200

V

A

V

μA

mA

°C/W

°C

400

1.0

5.0

1.0

0.8

- 65 to + 175

Note

: (1) Thermal resistance from junction to case. Single side cooled.

Page 1 of 2

Rev. 03 : March 14, 2006
