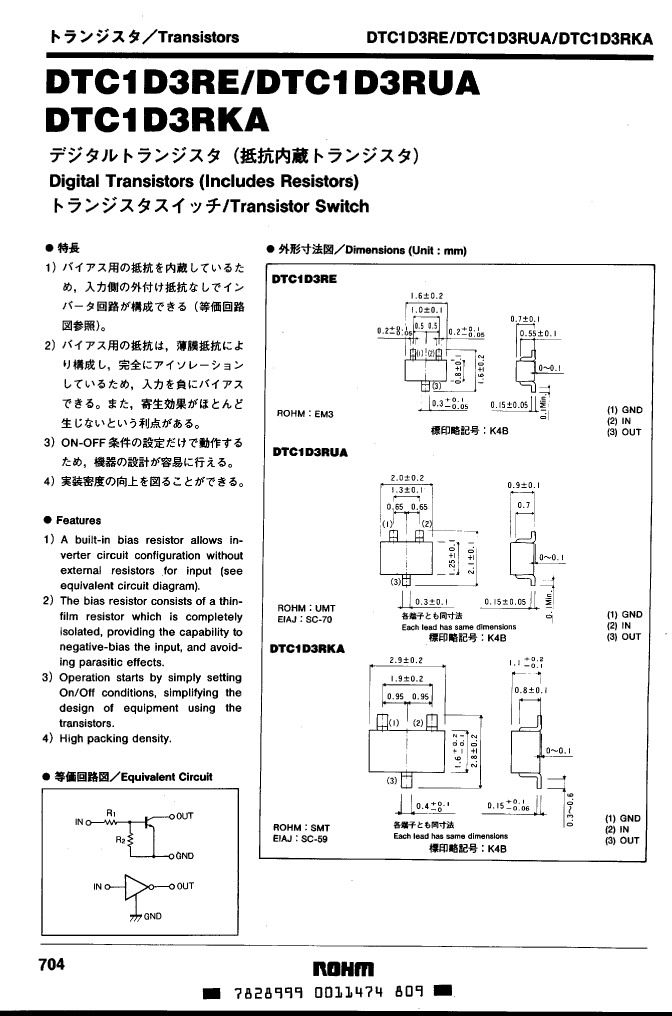

DTC1D3RKA Overview

Small Signal Bipolar Transistor, 0.03A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon

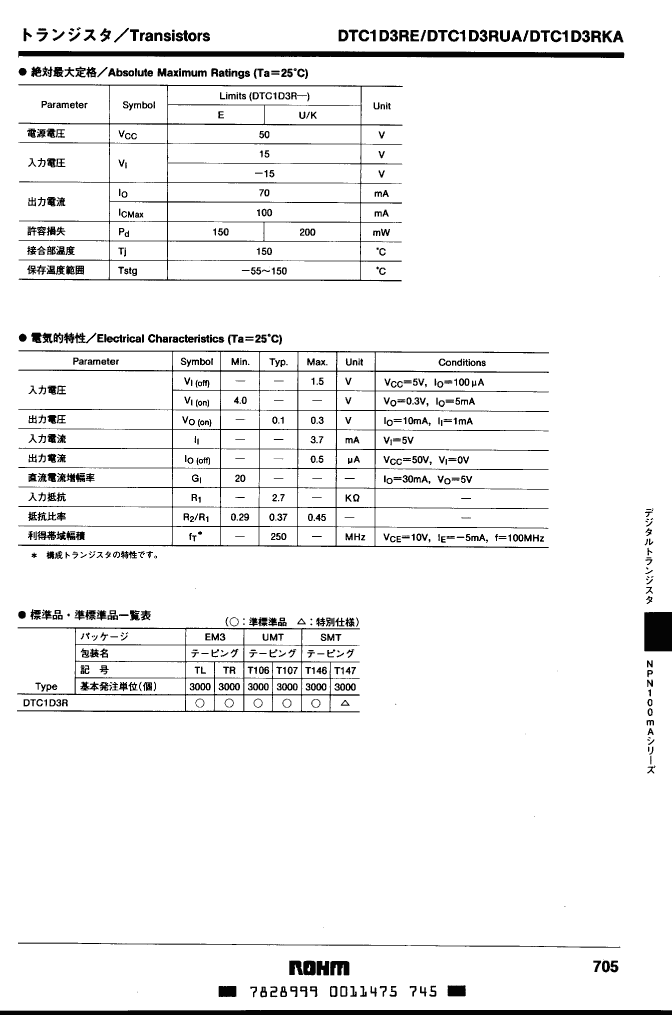

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DIGITAL, BUILT-IN BIAS RESISTOR RATIO IS 0.4
Maximum collector current (IC)	0.03 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	20
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON

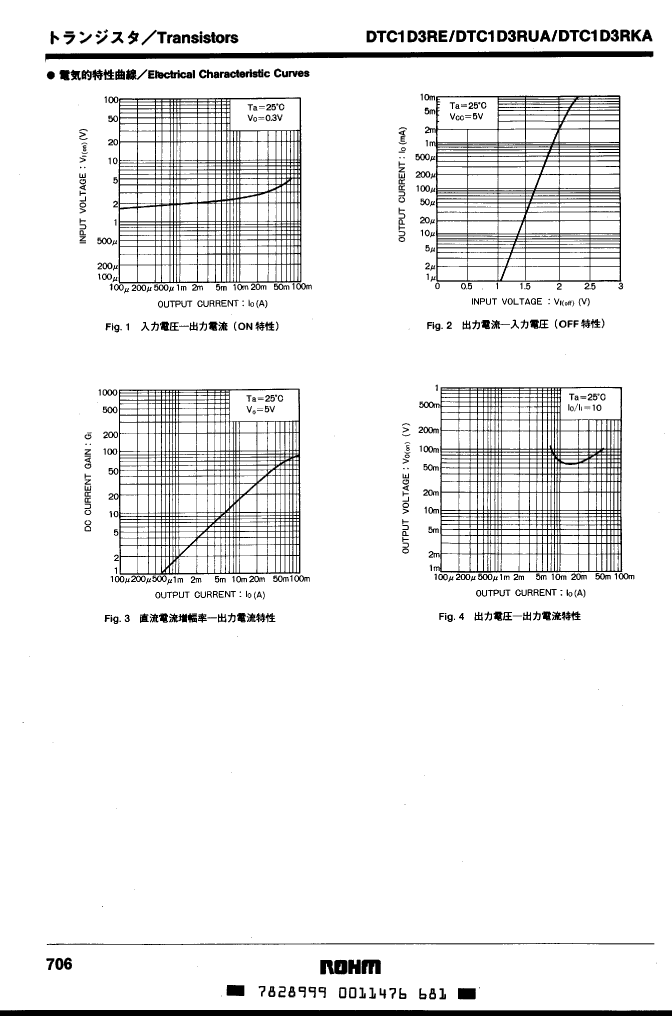

	DTC1D3RKA	DTC1D3RE	DTC1D3RUA
Description	Small Signal Bipolar Transistor, 0.03A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.03A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon
Is it Rohs certified?	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3	,	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	compliant	unknown
Maximum collector current (IC)	0.03 A	0.1 A	0.03 A
Minimum DC current gain (hFE)	20	20	20
Number of components	1	1	1
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.2 W	0.15 W	0.2 W
surface mount	YES	YES	YES
Transistor component materials	SILICON	SILICON	SILICON
ECCN code	EAR99	-	EAR99
Other features	DIGITAL, BUILT-IN BIAS RESISTOR RATIO IS 0.4	-	DIGITAL, BUILT-IN BIAS RESISTOR RATIO IS 0.4
Collector-emitter maximum voltage	50 V	-	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	-	SINGLE WITH BUILT-IN RESISTOR
JESD-30 code	R-PDSO-G3	-	R-PDSO-G3
Number of terminals	3	-	3
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified
Terminal form	GULL WING	-	GULL WING
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
transistor applications	SWITCHING	-	SWITCHING
