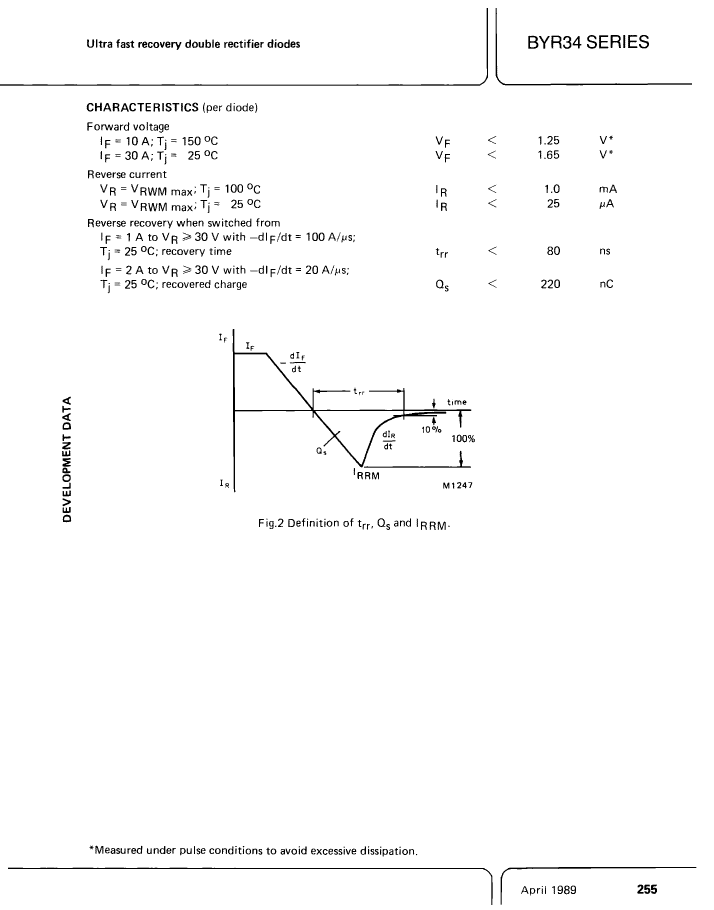

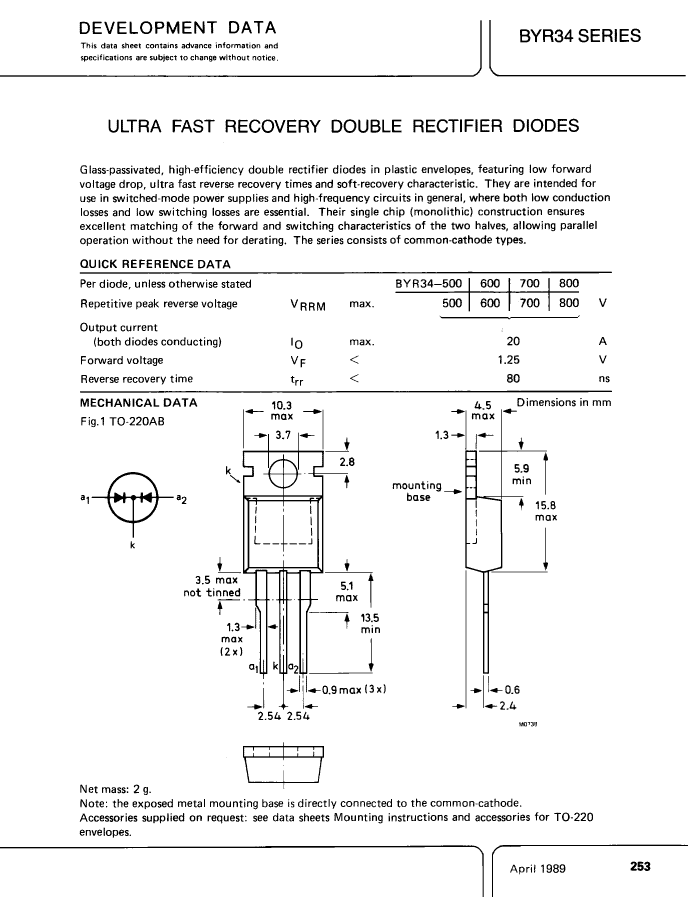

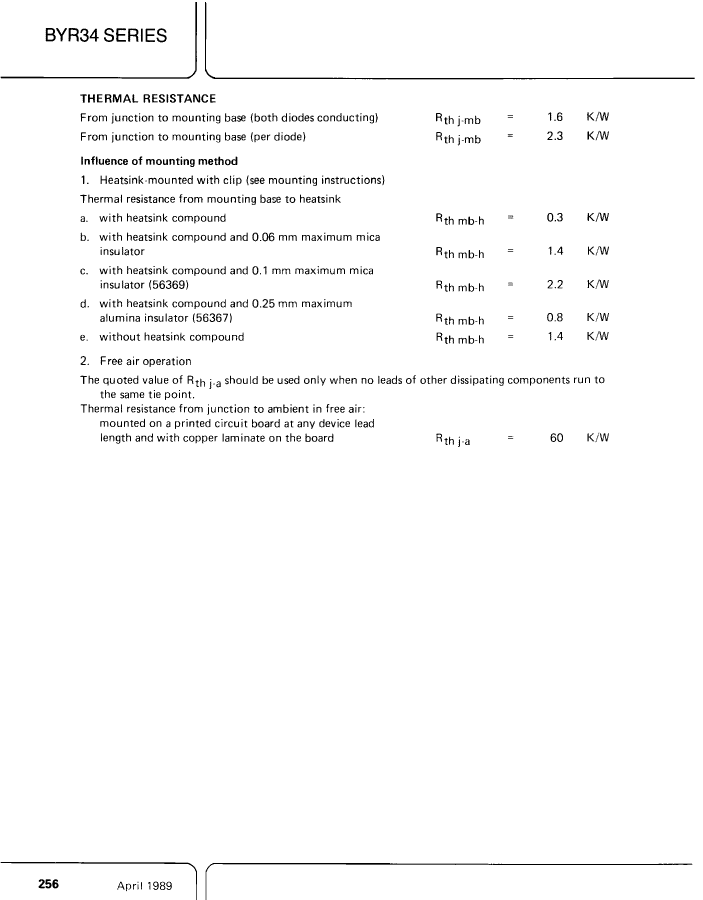

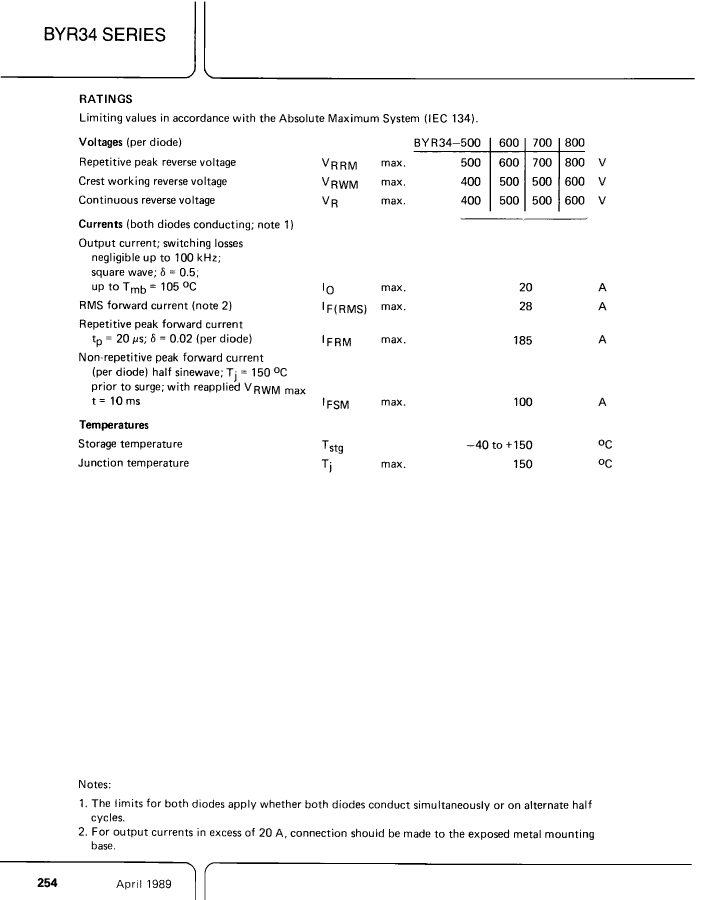

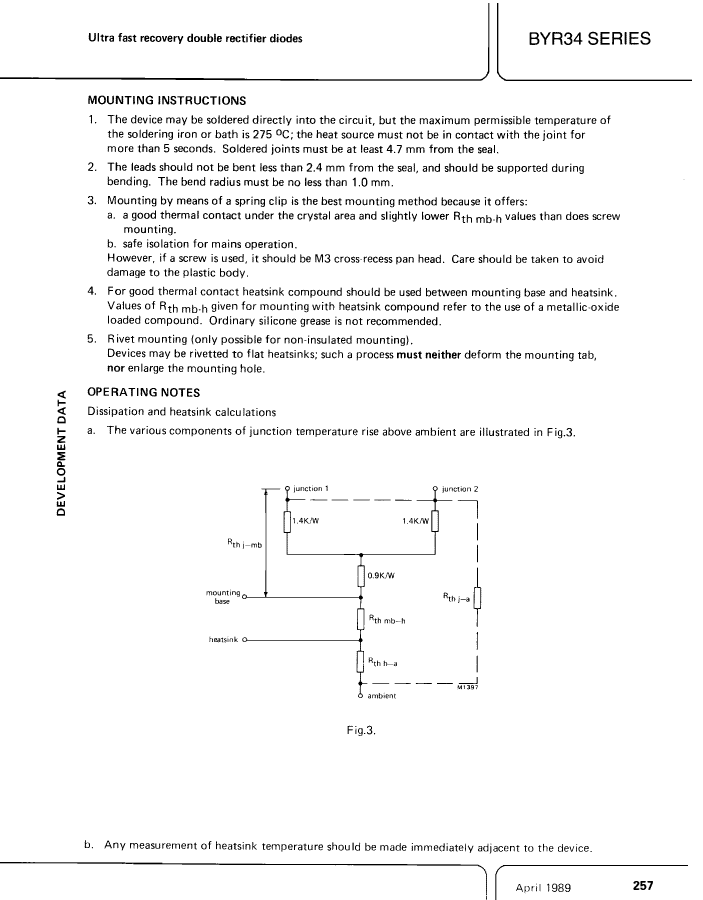

BYR34-700: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 700V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size226KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYR34-700 Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 700V V(RRM), Silicon,

BYR34-700 Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.65 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	100 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	700 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.08 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

BYR34-700 Related Products

	BYR34-700	BYR34-500	BYR34-600	BYR34-800
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 10A, 500V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 10A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 10A, 800V V(RRM), Silicon,
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.65 V	1.65 V	1.65 V	1.65 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	10 A	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	700 V	500 V	600 V	800 V
Maximum reverse current	25 µA	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.08 µs	0.08 µs	0.08 µs	0.08 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maker	YAGEO	-	YAGEO	YAGEO
