26-01-1066 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 26-01-1066

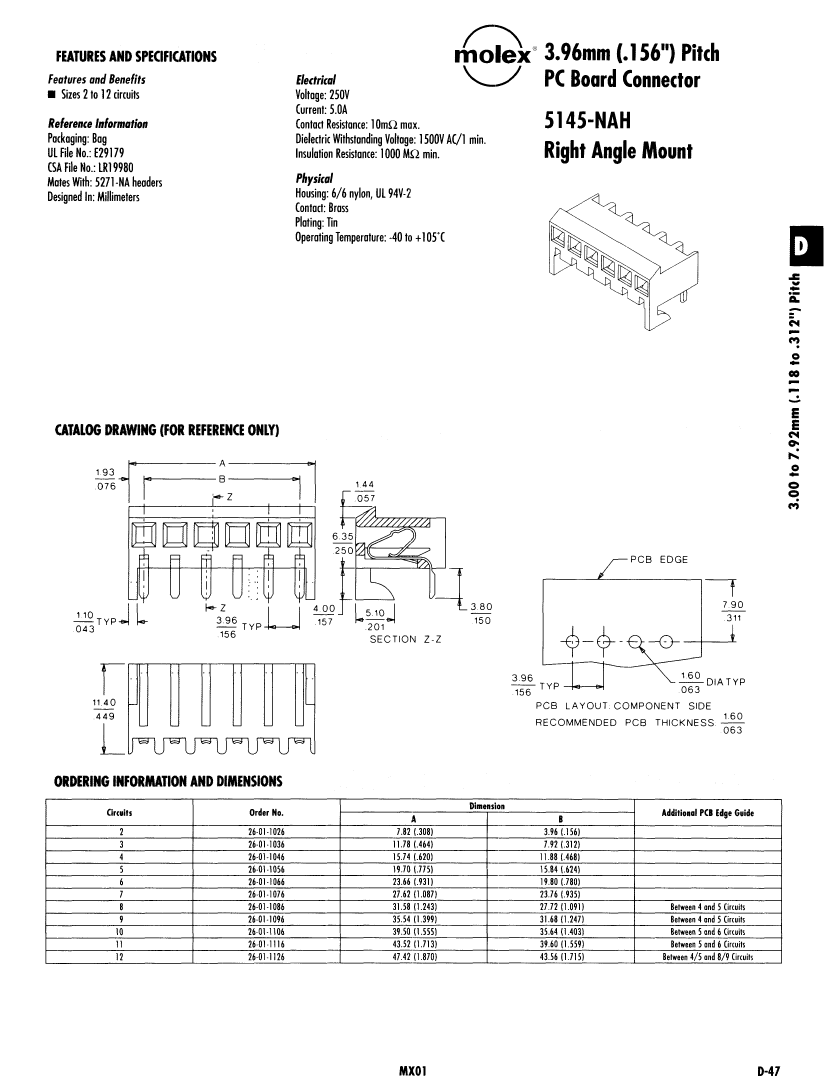

26-01-1066: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

26-01-1066 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	26-01-1066	-	-	View	Buy Now

26-01-1066 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle

26-01-1066 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Board mount options	EDGE MOUNT
body width	0.307 inch
subject depth	0.449 inch
body length	0.931 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.417 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5145
Plug contact pitch	0.156 inch
Plug information	09-67-4061
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	PLASTIC
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-2
Evacuation force-minimum value	.0834 N
Base Number Matches	1

Preview

Download Datasheet

View All

26-01-1066 Related Products

	26-01-1066	26-01-1126	26-01-1026	26-01-1036	26-01-1076	26-01-1086	26-01-1096	26-01-1116	26-01-1046
Description	Board Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle,	Board Connector, 2 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	unknow	unknow	unknow	unknow	unknow	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Board mount options	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT
body width	0.307 inch	0.307 inch	0.307 inch	0.307 inch	0.307 inch	0.307 inch	0.307 inch	0.307 inch	0.307 inch
subject depth	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch
body length	0.931 inch	1.87 inch	0.308 inch	0.464 inch	1.087 inch	1.243 inch	1.399 inch	1.713 inch	0.62 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5145	5145	5145	5145	5145	5145	5145	5145	5145
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Plug information	09-67-4061	09-67-4121	09-67-4021	09-67-4031	09-67-4071	09-67-4081	09-67-4091	09-67-4111	09-67-4041
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	12	2	3	7	8	9	11	4
UL Flammability Code	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2	94V-2
Base Number Matches	1	1	1	1	1	1	1	1	1
maximum insertion force	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	-	.417 N
Evacuation force-minimum value	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	.0834 N	-	.0834 N
