M20-9723906: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size625KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M20-9723906 Overview

Board Connector, 78 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

M20-9723906 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M20-9
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	78

Preview

Download Datasheet

View All

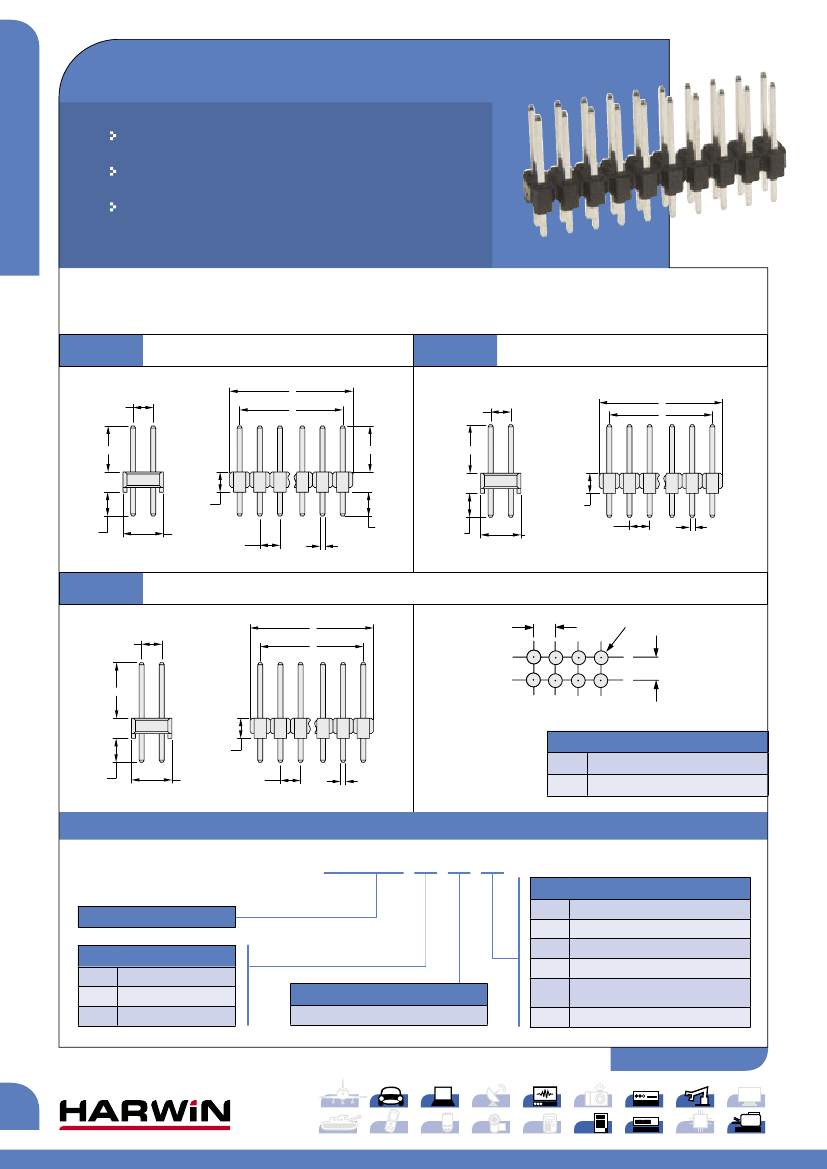

M20 Connectors

2.54mm (.100") PITCH

3.00

Vertical PC Tail Male Connectors – Double Row

Suitable for use with female connectors shown

on pages 43 to 49.

Choice of mating pin lengths – or specify your own pin header

(see page 57).

Un-shrouded pin headers can be cut into smaller sizes.

5.8mm

A

6.1mm

A

2.54

B

2.54

B

5.80

GOLD

6.10

2.54

TIN

2.54

0.64 SQ

2.54

5.08

0.64 SQ

5.08

3.00

7.0mm

A

2.54

Hole Ø 1.0

2.54

B

2.54

7.00

Recommended PC Board Pattern

2.54

CALCULATION

A

2.54 x No. of ways per row

2.54 x (No. of ways per row – 1)

2.54

0.64 SQ

5.08

B

HOW TO ORDER

M20 – 9 XX XX XX

FINISH

SERIES CODE

SIZE

72

76

98

7.0mm Mating Height

5.8mm Mating Height

6.1mm Mating Height

05

06

22

42

Gold (M20-972, 998)

Tin/Lead

Gold + Tin/Lead (M20-976)

Gold + Tin (M20-976)

Gold, Hi-Temp Mould (M20-972, 998)

Tin

NO. OF WAYS PER ROW

02 to 40

45

46
