Scorpion
Materials and Finishes:
Insulators:
Contacts:
Technical Characteristics
Mechanical Characteristics:
, UL 94V-0. Blue color.
Super Mating System:
Blind Mating System:
Locking Latch System:
Integral guide feature allows for
misalignment up to 3.80 mm [0.150 inch].
Integral guide feature allows for
misalignment up to 2.00 mm [0.079 inch].
Design of connector body provides locking
system for cable to cable, cable to printed
board and cable to panel mount applications.
Standard threads, 4-40 UNC.
Consult sales for other screw sizes
Design of connector body provides
polarization features.
Install contact from rear face of insulator,
release from front face of insulator with
a contact extraction tool, thereafter extract
contact from rear face of insulator.
Size 8, Size 12, Size 16, Size 18 and Size 22
female contacts feature “Closed entry”
design for highest reliability.
Consult sales for availability.
Precision machined copper alloy with gold
upon request.
Size 22 PCB straight and right angle (90°) contact
also available in precision formed copper alloy
15.7mm X 80mm
and tin over nickel plate at termination end.
Mounting Brackets:
Brass with tin plate.
Push-on Fasteners:
Copper alloy with tin plate.
Float Mount Bushings:
Steel with zinc plate.
Mounting clips:
Beryllium copper with nickel plate.
Jackscrew System:
Passivated stainless steel.
Jackscrew System:
Polarization:
Removable Contacts:
Electrical Characteristics:
Contact Current Rating (See Page 6 for details of Power Contacts)
Standard Conductivity Contacts:
Size 8 Contacts:
50 amperes, continuous.
Size 12 Contacts:
40 amperes, continuous.
Size 16 Contacts:
26 amperes, continuous.
Size 18 Contacts:
16 amperes, continuous.
Size 22 Contacts:
3 amperes, nominal.
Hyperboloid Contacts
0.60mm [0.0236] :
4 amperes, nominal
High Conductivity Contacts:
Size 8 Contacts:
80 amperes, continuous.
Size 12 Contacts:
60 amperes, continuous.
Size 16 Contacts:
40 amperes, continuous.
Size 18 Contacts:
23 amperes, continuous.
Initial Contact Resistance (Standard Conductivity
Contacts) per IEC 512-2, Test 2b:
Size 8 Contacts:
0.0006 ohms, maximum.
Size 12 Contacts:
0.001 ohms, maximum.
Size 16 Contacts:
0.0016 ohms, maximum.
Size 18 Contacts:
0.003 ohms, maximum.
Size 22 Contacts:
0.005 ohms, maximum.
Hyperboloid Contacts
0.60mm [0.0236] :
0.005 ohms, maximum.
Initial Contact Resistance (High Conductivity
Contacts) per IEC 512-2, Test 2b:
Size 8 Contacts:
0.0004 ohms, maximum.
Size 12 Contacts:
0.0004 ohms, maximum.
Size 16 Contacts:
0.0007 ohms, maximum.
Size 18 Contacts:
0.0007 ohms, maximum.
Insulation Resistance per IEC 512-2, Test 3a, Method A:
5 G ohms.
Voltage Proof per IEC 512-2, Test 4a, Method C:
For size 8, 12, 16 and 18 contacts, 2200 V r.m.s. typical;
for size 22 contacts, 1600 V r.m.s. typical;
for Hyperboloid contacts 0.60mm [0.0236], 1200 V r.m.s. typical.
Working Voltage, Clearance and Creepage Distances:
Hot Pluggable [50 Couplings per UL1977, paragraph 15]:
Size 12 Contacts:
250 VAC at 25 amperes. Contact sales for details.
Size 16 Contacts:
Contact sales for availability.
Keying Features:
Removable Contact Retention in Connector Body
per IEC 512-8, Test 15a:
Size 8, Size 12
67N [15 lbs.] minimum.
and Size 16 Contacts:
Size 18 Contacts:
45N [10 lbs.] minimum.
Size 22 Contacts:
27N [6 lbs.] minimum.
Non Removable Crimp
Contact:
Insert contact to rear face of insulator.
Size 22 female contact has “closed entry”
design for highest reliability.
Non Removable Crimp Contact Retention in Connector Body
per IEC 512-8, Test 15a:
Size 22 Contacts:
27N [ 6 lbs.] minimum.
Fixed Contacts:
Printed board terminations, both straight and
right angle. Size 8, 12, 16, 18 and Hyperboloid
0.60mm [0.0236] female contacts feature
“Closed entry” design for highest reliability.
Size 22 female contact has “Open Entry” design.
Fixed Contact Retention in Connector Body
per IEC 512-8, Test 15a:
Size 8 Contacts:
67N [15 lbs.] minimum.
Size 12 and Size 16 Contacts:
45N [10 lbs.] minimum.
Size 18 Contacts:
45N [10 lbs.] minimum.
Size 22 Contacts:
27N [ 6 lbs.] minimum.
Size 22 Precision Formed Contact:
27N [ 6 lbs.] minimum.
Hyperboloid Contacts 0.60mm [0.0236]:
27N [ 6 lbs.] minimum.
Sequential Contact Mating System:
Size 8 Contacts:
One level. Consult sales for two levels.
Size 12 Contacts:
Two levels. Consult sales for three levels.
Size 16 Contacts:
Two levels. Consult sales for three levels.
Size 18 Contacts:
Two levels. Consult sales for three levels.
Size 22 Contacts:
One level.
Two levels for Printed Board mount connectors.
Hyperboloid Contacts
0.60mm [0.0236]:
One level.
Printed Board and Panel Mounting Holes:
Mounting holes provided in connector body for both printed board and panel
mounting. Self-tapping screws or push-on fastener options are available.
Mechanical Operations per IEC 512-5:
Size 8, 12, 16 and 18 contacts:
Size 22 contacts:
Size 22 Precision Formed contact:
Hyperboloid Contacts 0.60mm [0.0236] :
Recognized:
1000 cycles minimum.
500 cycles minimum.
250 cycles minimum.
Up to 100,000 cycles.
Climatic Characteristic:
Working Temperature:
-55°C to +125°C.
UL in process. Consult sales for TÜV.
Information in this catalog is proprietary to Positronic and its subsidiaries.
Positronic believes the data contained herein to be reliable. Since the technical
information is given free of charge, the user employs such information at his
own discretion and risk. Positronic Industries assumes no responsibility for
results obtained or damages incurred from use of such information in whole
or in part.
Positronic®, Positronic Industries, Inc.®, P+ logo, Positronic Global
Connector Solutions®, Connector Excellence® and their logo designs are
registered trademarks of Positronic Industries, Inc.
PICMG® logo is a registered trademark of the PCI Industrial Computers
Manufacturers Group.
Blue colored connectors shown in this
catalog are a trademark of Positronic
Industries, Inc, registered in the US.
1
Positronic Industries
www.connectpositronic.com
www.positronicasia.com
A-010 Rev B4
Scorpion
Typical Scorpion Modular Connectors

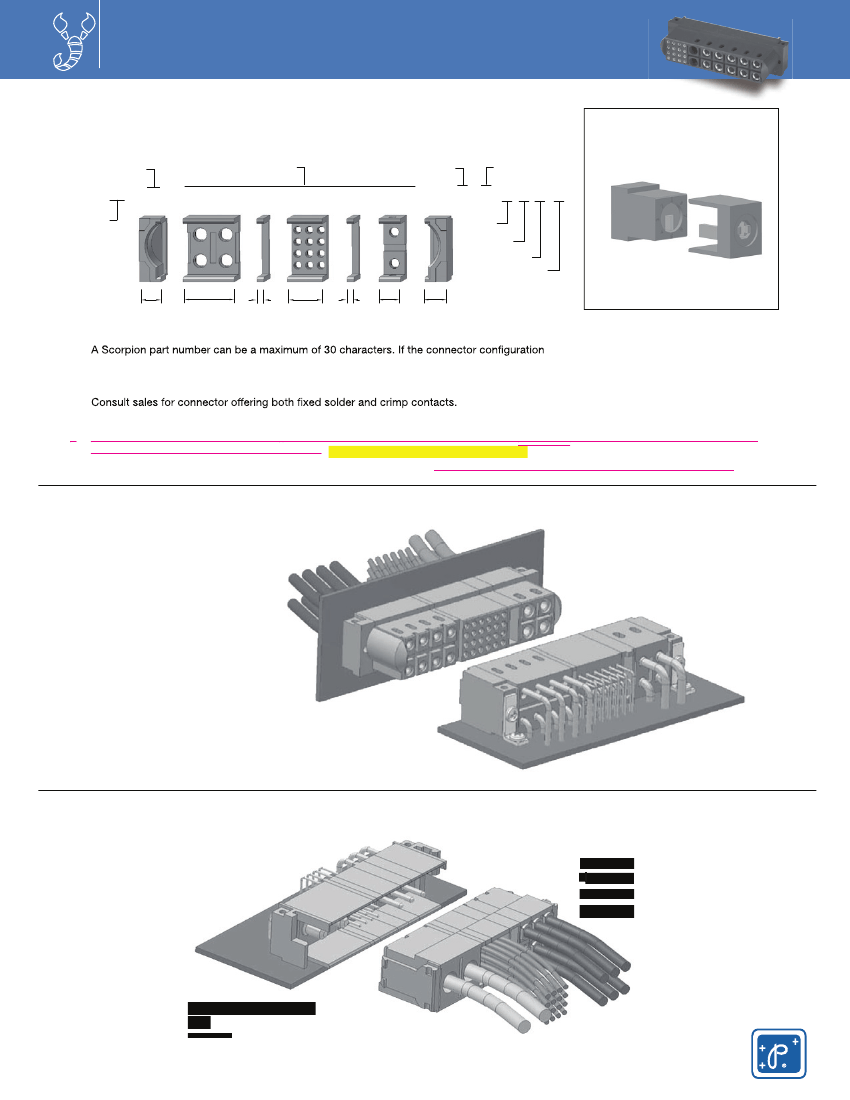

How to calculate Over All Length (OAL) of a Scorpion connector:
Overall Length (OAL) of a connector is the sum of all the modules length. Refer to example
below for OAL calculation. See page 7 and 8 for individual module dimensions.
Step 2
SP
2
Y
Step 3
N
K
N
B
Step 4
48
M
Step 5
0 0 0 A2
The keying module is designed to
offer maximum 8 keying positions.
Consult sales for availability
KEYING MODULES
Step 1
Step 6
Step 7
Step 8
Step 9
Example:
5.00
[0.197]
1.62
+
[0.465]
+
[0.064]
11.80
8.10
[0.319]
1.62
[0.064]
4.96
[0.195]
5.00
[0.197]
=
36.48
[1.436]
(OAL)
Notes:
1
exceeds this number, please consult sales for a special part number for your unique requirement.
2 Contact position numbers may not be continuous. Consult sales for more information.
3 Consult sales for connector length exceeding 101.00 mm [3.976 inch].
4
5 Alignment bar is only available for size 16, size18, size 22, and hyperboloid 0,60 [0.0236] right angle (90°) contacts.
6 Consult sales for availability of hood system.
7 If a size 18 or size 22 crimp modules are placed immediately next to end modules, it is suggested to insert a blank module “N” between
the end module and size 18 or size 22 module.
THIS STATEMENT NOW OBSOLETE.
8 Posiband contacts available for size 12, 16, 18 and 22 contacts only.
Specify code F in step 5 when ordering crimp connector.
Bo ard to Pa n e l w ith Bli n d Mati n g S ys te m
Female Panel Mount Connector
Typical part number:
SP2YN4TND1F0091
(Contacts ordered separately)
Male Right Angle PCB Mount Connector
Typical part number:
SP2YN4TND4M0B9A1
C ab l e t o B o ard w ith L o c ki n g L atc h S ys te m
Female Cable Connector
T
Typical part number:
SP5SNHKN4BC1F0001
o
(Contacts ordered separately)
Male Right Angle PCB Mount Connector
ypical
Typical part number:
SP5SNHKN4BC4M000A1
A-010 Rev B4
4
Positronic Industries
