29F53L1M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 29F53L1M

29F53L1M: DescriptionRegistered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28, CERAMIC, LCC-28; Categorylogic logic; File Size279KB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

29F53L1M Overview

Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28, CERAMIC, LCC-28

29F53L1M Parametric

Parameter Name	Attribute value
package instruction	QCCN,
Reach Compliance Code	unknow
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	F/FAST
JESD-30 code	S-CQCC-N28
length	11.43 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	9 ns
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

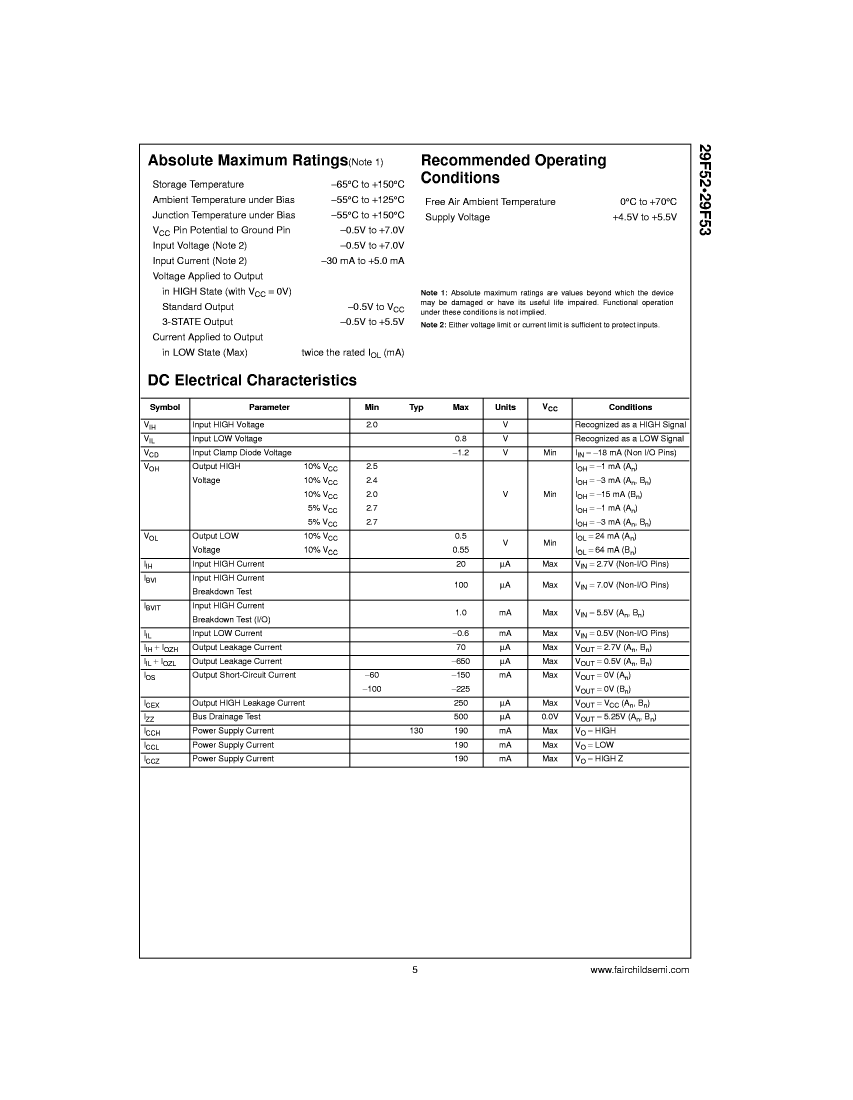

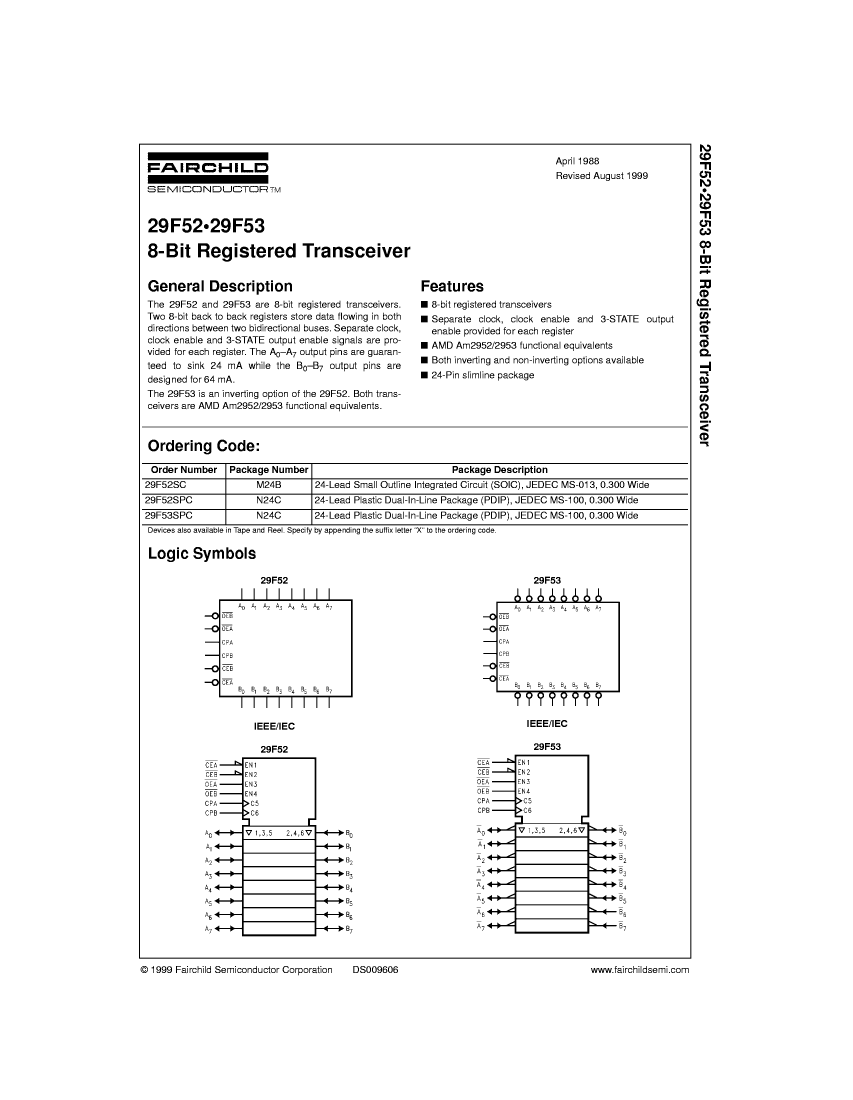

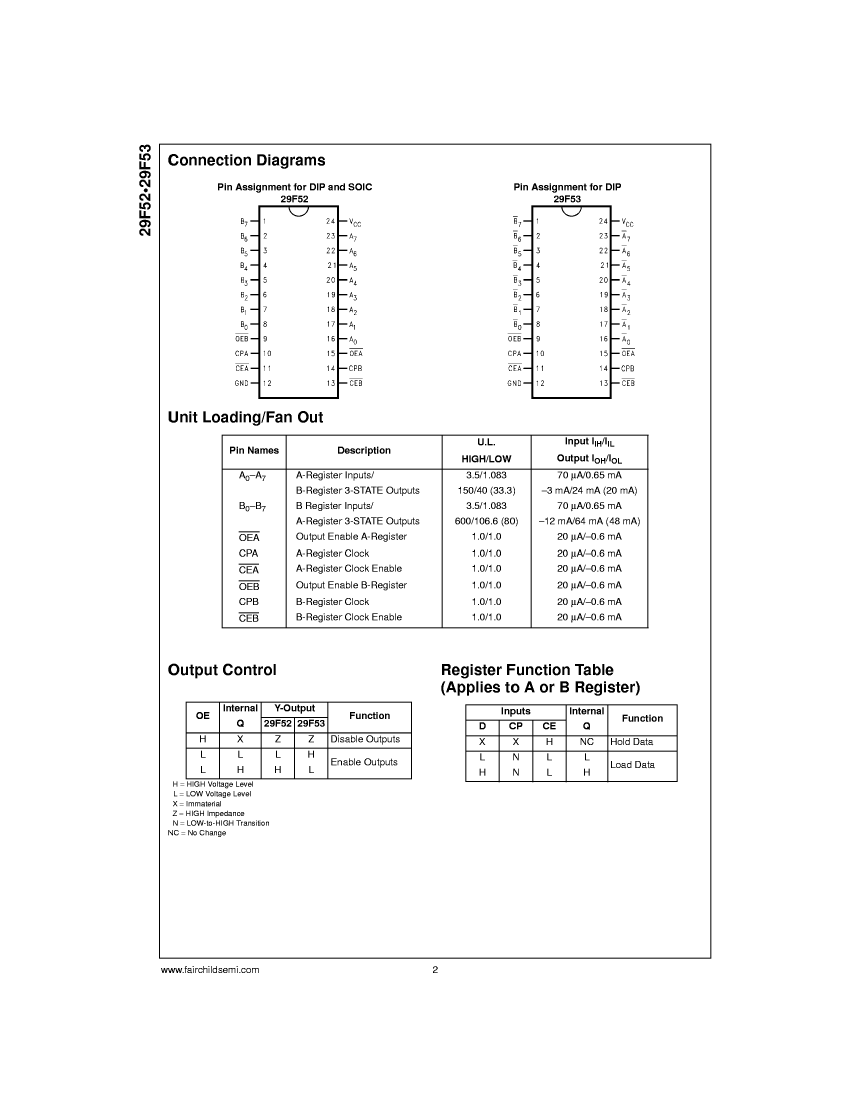

Preview

Download Datasheet

View All

29F53L1M Related Products

	29F53L1M	29F52QC	29F52SDC	29F53SPCQR	29F52L1M	29F53SDM	29F53QC
Description	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28, CERAMIC, LCC-28	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PQCC28, PLASTIC, CC-28	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, PDIP24, 0.300 INCH, SLIM, PLASTIC, DIP-24	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC28, CERAMIC, LCC-28	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24	Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, PQCC28, PLASTIC, CC-28
package instruction	QCCN,	QCCJ,	DIP,	DIP,	QCCN,	DIP,	QCCJ,
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N28	S-PQCC-J28	R-GDIP-T24	R-PDIP-T24	S-CQCC-N28	R-GDIP-T24	S-PQCC-J28
length	11.43 mm	11.5062 mm	32.77 mm	30.095 mm	11.43 mm	32.77 mm	11.5062 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2
Number of terminals	28	28	24	24	28	24	28
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	TRUE	TRUE	INVERTED	TRUE	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	QCCN	QCCJ	DIP	DIP	QCCN	DIP	QCCJ
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
propagation delay (tpd)	9 ns	10 ns	10 ns	10 ns	9 ns	9 ns	10 ns
Maximum seat height	2.54 mm	4.57 mm	5.08 mm	5.08 mm	2.54 mm	5.08 mm	4.57 mm
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.25 V	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.75 V	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	NO LEAD	J BEND	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD
width	11.43 mm	11.5062 mm	7.62 mm	7.62 mm	11.43 mm	7.62 mm	11.5062 mm
Base Number Matches	1	1	1	1	1	1	-
