DSC571-04323KI0-T datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DSC571-04323KI0-T

DSC571-04323KI0-T: DescriptionPROC SPECIFIC CLOCK GENERATOR; CategoryThe embedded processor and controller Microcontrollers and processors; File Size670KB，11 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

DSC571-04323KI0-T Overview

PROC SPECIFIC CLOCK GENERATOR

DSC571-04323KI0-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microchip
package instruction	HVQCCN,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ELIMINATED THE EXT QUARTZ CRYSTAL AND USED MEMS CLOCK GENERATORS AS EXT CLOCK
JESD-30 code	R-XQCC-N20
length	5 mm
Humidity sensitivity level	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	460 MHz
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	RECTANGULAR
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Filter level	AEC-Q100
Maximum seat height	0.9 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.25 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	3.2 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC

Preview

Download Datasheet

View All

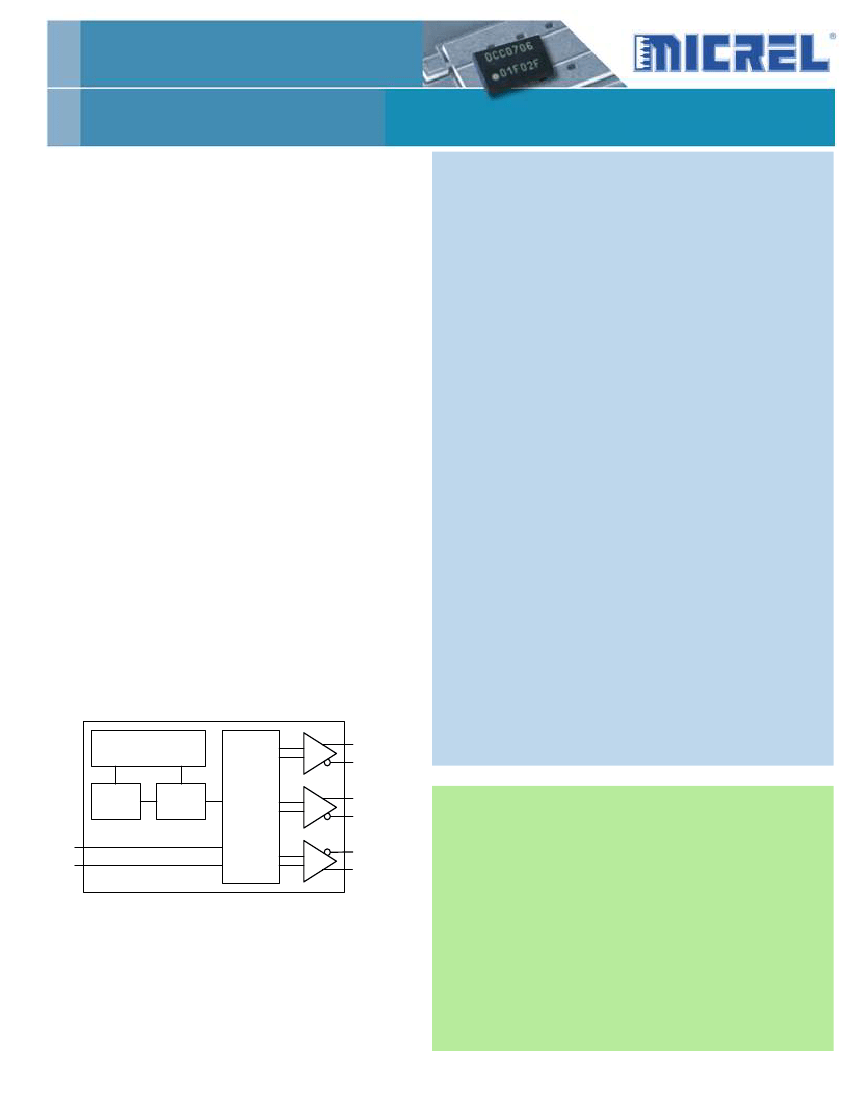

DSC571-04

Crystal-less™ XAUI/SGMI/SRIO/PCIe Clock Generator

General Description

The DSC571-04 is a Crystal-less™ XAUI

clock generator with support for SGMI,

SRIO and PCI express Gen1, Gen2, and

Gen3 specifications. The clock generator

uses proven silicon MEMS technology to

provide excellent jitter and stability over a

wide range of supply voltages and

temperatures. By eliminating the external

quartz crystal, MEMS clock generators

significantly

enhance

reliability

and

accelerate product development, while

meeting stringent clock performance criteria

for a variety of communications, storage,

and networking applications.

DSC571-04 has input pins OE1 and OE2 for

Output Enable / Disable feature allowing it

to disable all outputs when OE(1:2) = 0.

See the OE function table 1 for more detail.

The device is available in a 20 pin QFN.

Output formats are available in any

combination of LVPECL, LVDS, HCSL and

LVCMOS

Features



Three outputs (typical format usage):

XAUI: 156.25MHz (LVPECL)

SGMI/SRIO: 125MHz (LVPECL)

PCIe: 100MHz (HCSL)



XAUI, SGMI, SRIO & PCIe Ready



Available Output Formats:

HCSL, LVPECL, LVDS or LVCMOS per output

Industrial: -40° to 85° C

Ext. commercial: -20° to 70° C

For additional temp ranges, contact factory



Wide Temperature Range



Supply Range of 2.25 to 3.6 V



Low Power Consumption

30% lower than competing devices

Qualified to MIL-STD-883

5.0mm x 3.2mm 20 QFN



Excellent Shock & Vibration Immunity



Available Footprints: 5.0 x 3.2mm



Lead Free & RoHS Compliant



Short Lead Time: 2 Weeks



AEC-Q100 Automotive Qualified



Block Diagram*

Control Circuitry

Output

Control

and

Divider

CLK0+

CLK0-

CLK1+

CLK1-

CLK2-

CLK2+

MEMS

PLLs

Applications



Communications/Networking

Ethernet

1G, 10GBASE-T/KR/LR/SR, and FcoE

Routers and Switches

Gateways, VoIP, Wireless AP’s

Passive Optical Networks

OE1

OE2

Clk0+/- is 100MHz per PCIe standard.

Clk1+/- is 125MHz per SGMI/SRIO requirements.

Clk2 +/- is 156.25MHz per XAUI standards.

For other frequencies, please contact the factory.



Storage

SAN, NAS, SSD, JBOD



Embedded Applications

_____________________________________________________________________________________________________________________________ _________________

DSC571-04

Page 1
