AM2907PC: DescriptionRegistered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP20, PLASTIC, DIP-20; Categorylogic logic; File Size1MB，13 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AM2907PC Overview

Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP20, PLASTIC, DIP-20

AM2907PC Parametric

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknow
Other features	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS
series	TTL/H/L
JESD-30 code	R-PDIP-T20
length	26.289 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	3
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR/3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	36 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

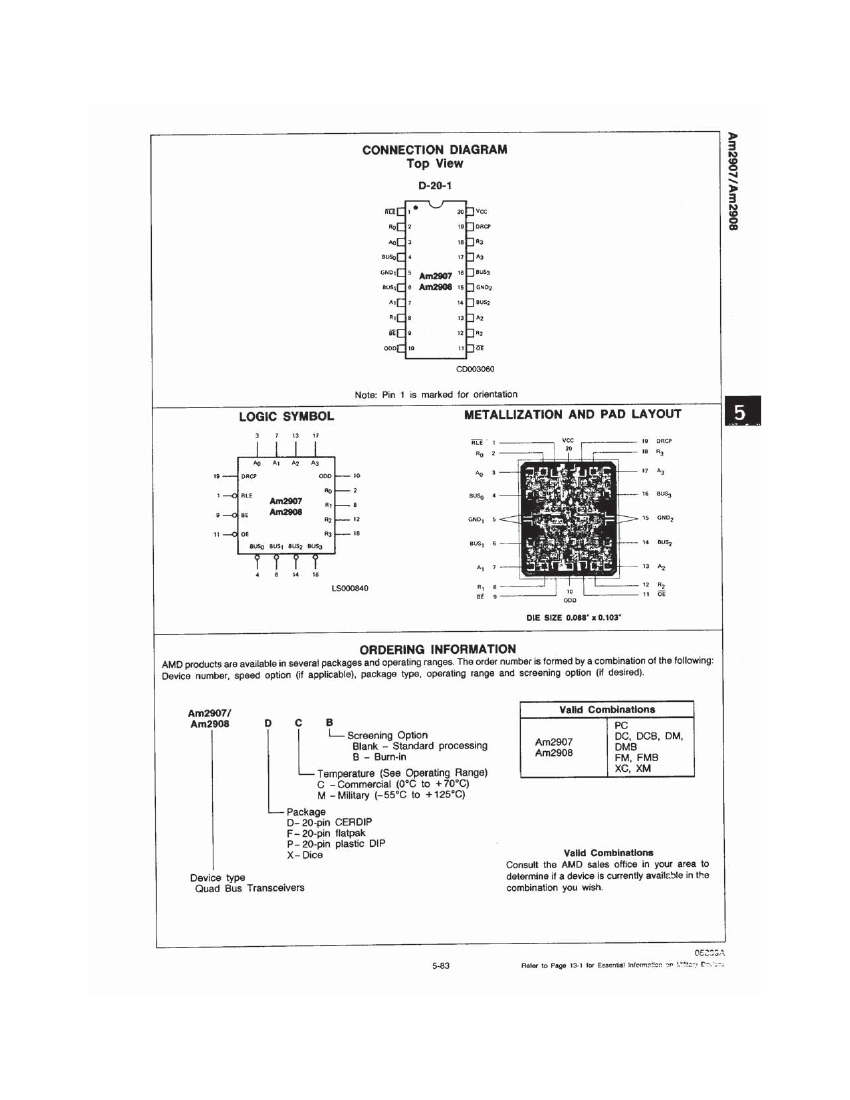

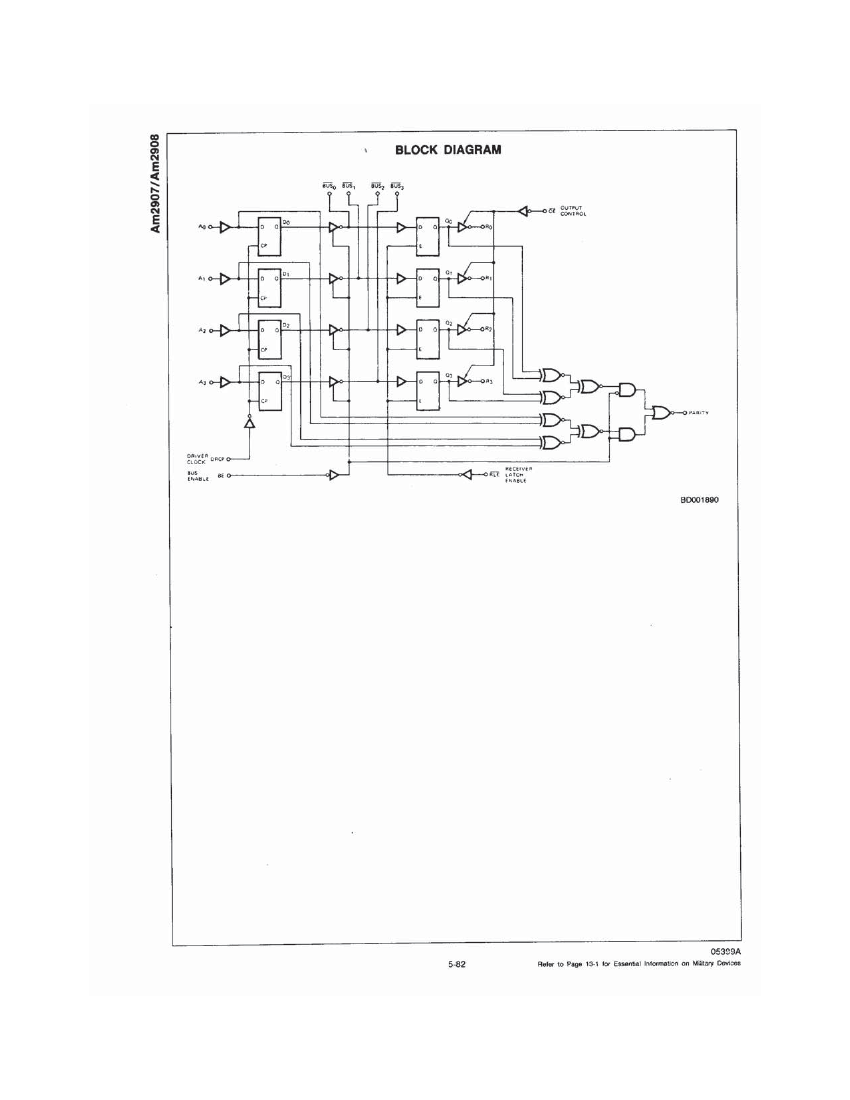

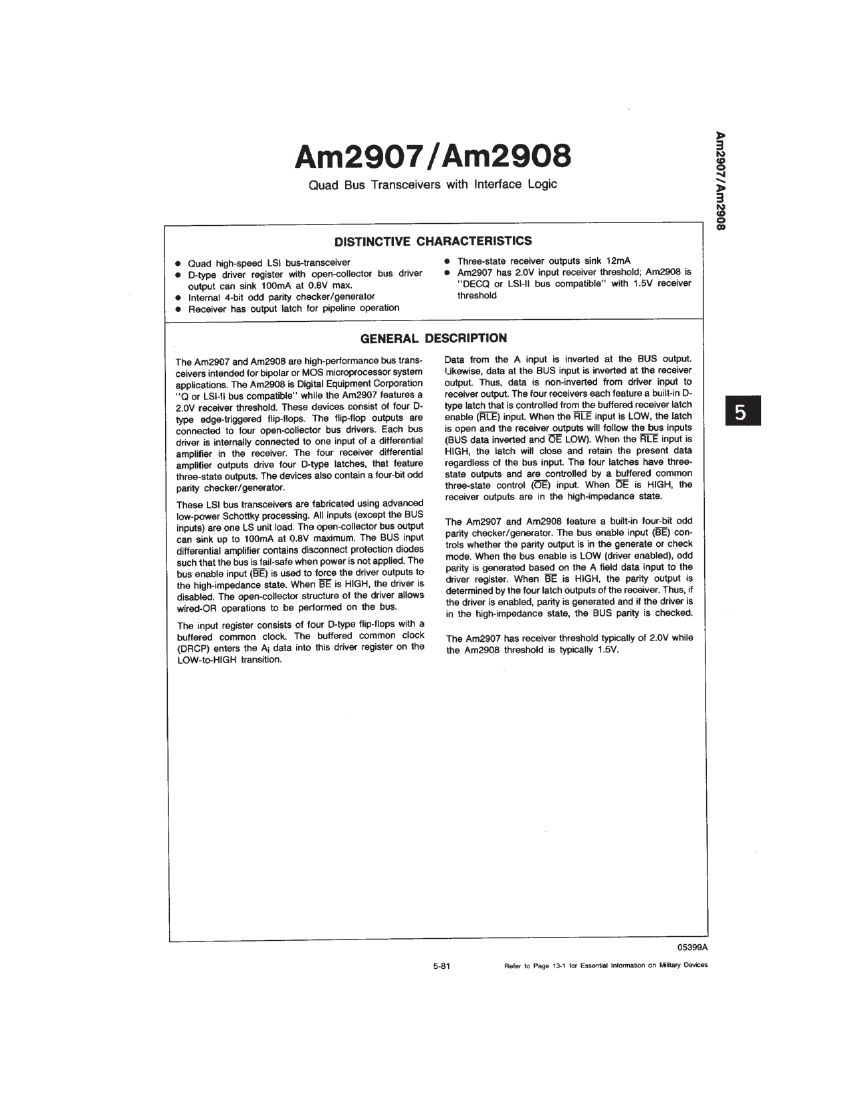

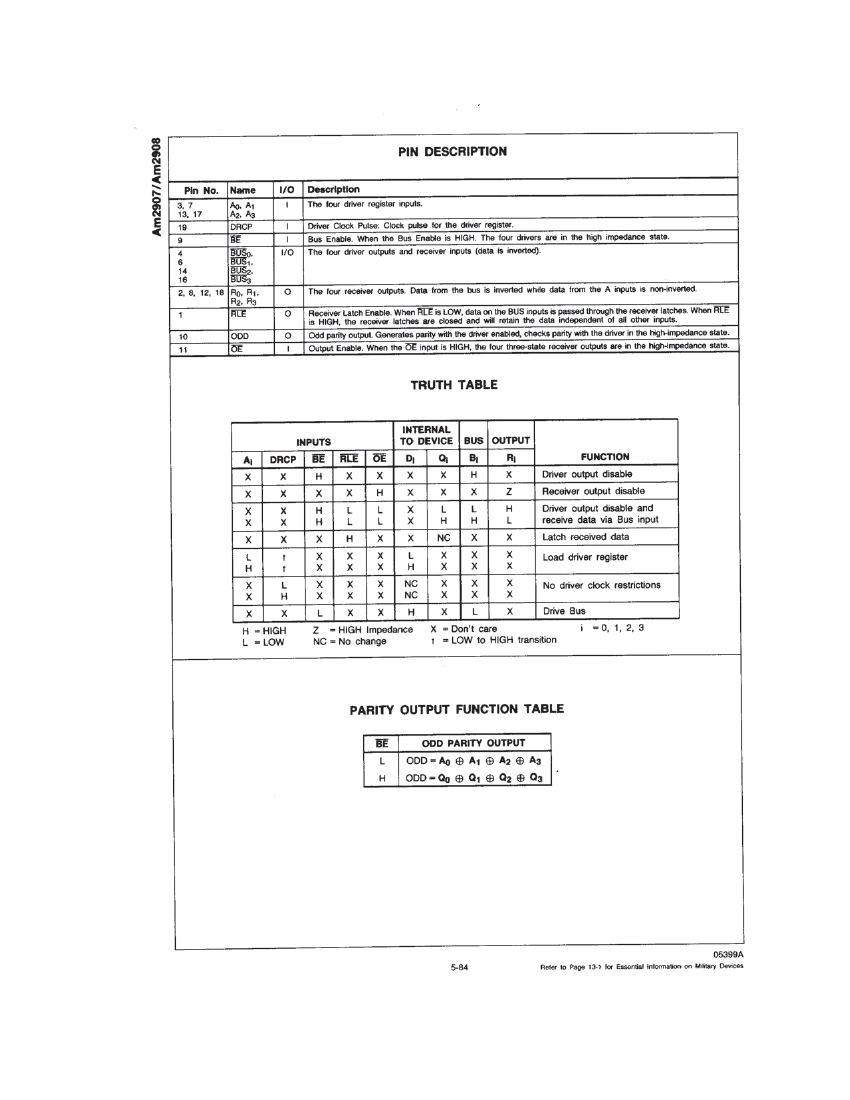

REI Datasheet

AM2907, AM2908

Quad Bus Transceivers with Interface Logic

The AM2907 and AM2908 are high-performance bus transceivers intended for bipolar or MOS

microprocessor system applications. These devices consist of four D-type edge-triggered flip-flops.

The flip-flop outputs are connected to four open-collector bus drivers. Each bus driver is internally

connected to one input of a differential amplifier in the receiver. The four receiver differential amplifier

outputs drive four D-type latches, that feature three-state outputs. The devices also contain a four-bit

odd parity checker/generator.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

AM2907PC Related Products

	AM2907PC	AM2907DC	AM2908DC	AM2908PC	AM2908DM	AM2908DMB	AM2908FM	AM2907DM/B	AM2907FM
Description	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP20, PLASTIC, DIP-20	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, PDIP20, PLASTIC, DIP-20	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, CDFP20, FP-20	Registered Bus Transceiver	Registered Bus Transceiver, TTL/H/L Series, 1-Func, 4-Bit, Inverted Output, TTL, CDFP20, FP-20
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DFP,	,	DFP,
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Other features	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS	-	BUS O/PS & RECEIVER O/PS ARE AVAILABLE; SELECTABLE MULTIPLEXER INPUTS
series	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	-	TTL/H/L
JESD-30 code	R-PDIP-T20	R-CDIP-T20	R-CDIP-T20	R-PDIP-T20	R-CDIP-T20	R-CDIP-T20	R-CDFP-F20	-	R-CDFP-F20
length	26.289 mm	24.4602 mm	24.4602 mm	26.289 mm	24.4602 mm	24.4602 mm	12.827 mm	-	12.827 mm
Number of digits	4	4	4	4	4	4	4	-	4
Number of functions	1	1	1	1	1	1	1	-	1
Number of ports	3	3	3	3	3	3	3	-	3
Number of terminals	20	20	20	20	20	20	20	-	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C	125 °C	-	125 °C
Output characteristics	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	OPEN-COLLECTOR/3-STATE	-	OPEN-COLLECTOR/3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	-	INVERTED
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DFP	-	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	-	FLATPACK
propagation delay (tpd)	36 ns	36 ns	36 ns	36 ns	40 ns	40 ns	40 ns	-	40 ns
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	2.159 mm	-	2.159 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V
surface mount	NO	NO	NO	NO	NO	NO	YES	-	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	-	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	-	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	-	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	6.731 mm	-	6.731 mm
Base Number Matches	1	1	1	1	1	1	1	-	-
