AM26LS30PC: DescriptionLine Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size989KB，16 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound19parts with similar functions to AM26LS30PC

Download Datasheet Parametric Compare View All

AM26LS30PC Overview

Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16

AM26LS30PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	PROGRAMMABLE SLEW RATE
Differential output	YES
Number of drives	4
High level input current maximum value	0.00004 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422; EIA-423
JESD-30 code	R-PDIP-T16
length	19.1135 mm
Nominal negative supply voltage	-5 V
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	2 V
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/+-5 V
Certification status	Not Qualified
Maximum receive delay
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	200 ns
width	7.62 mm
Base Number Matches	1

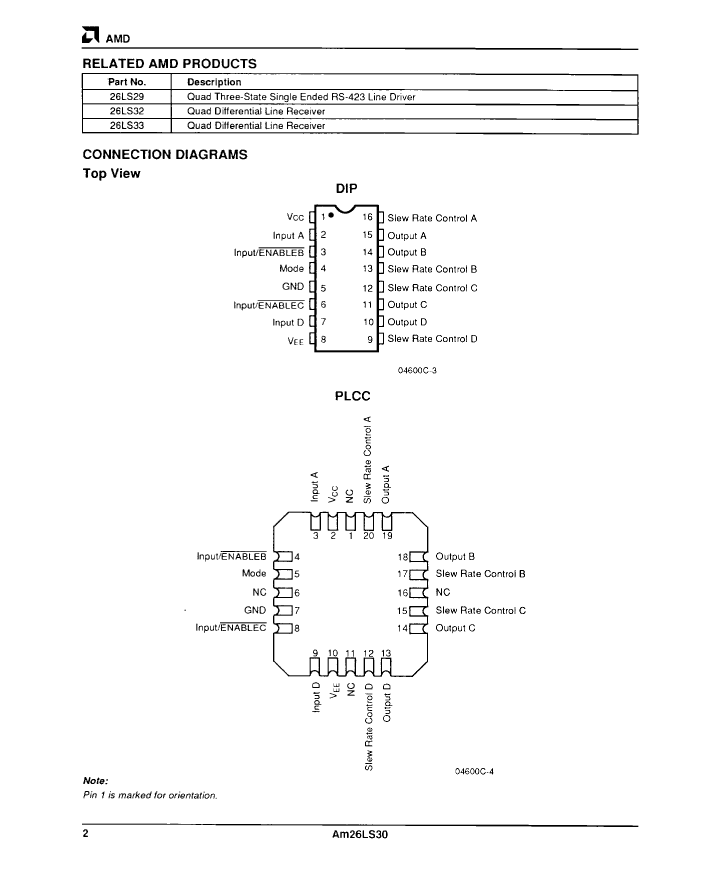

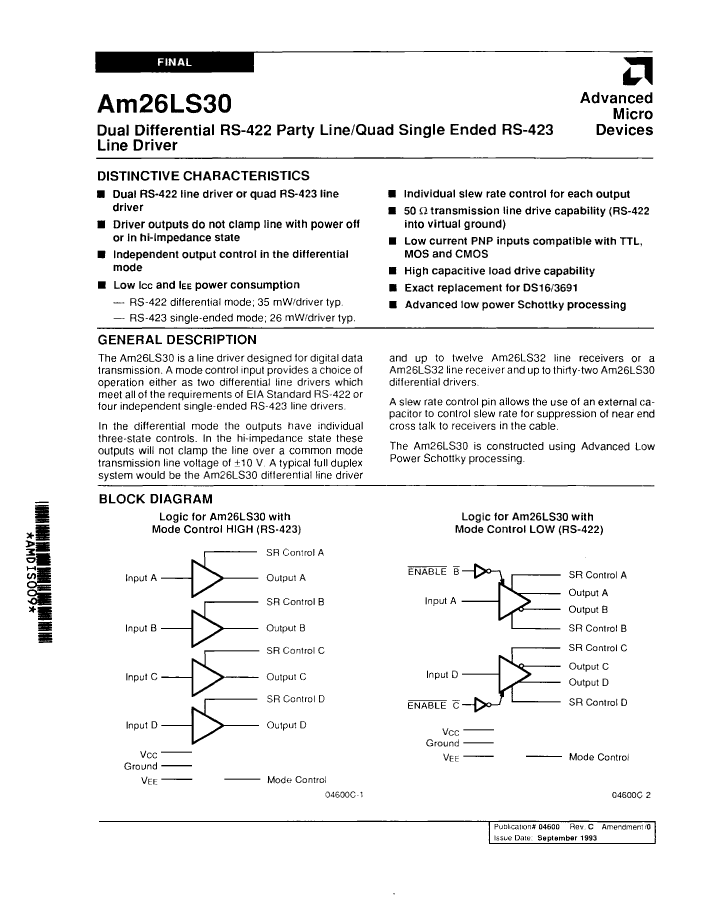

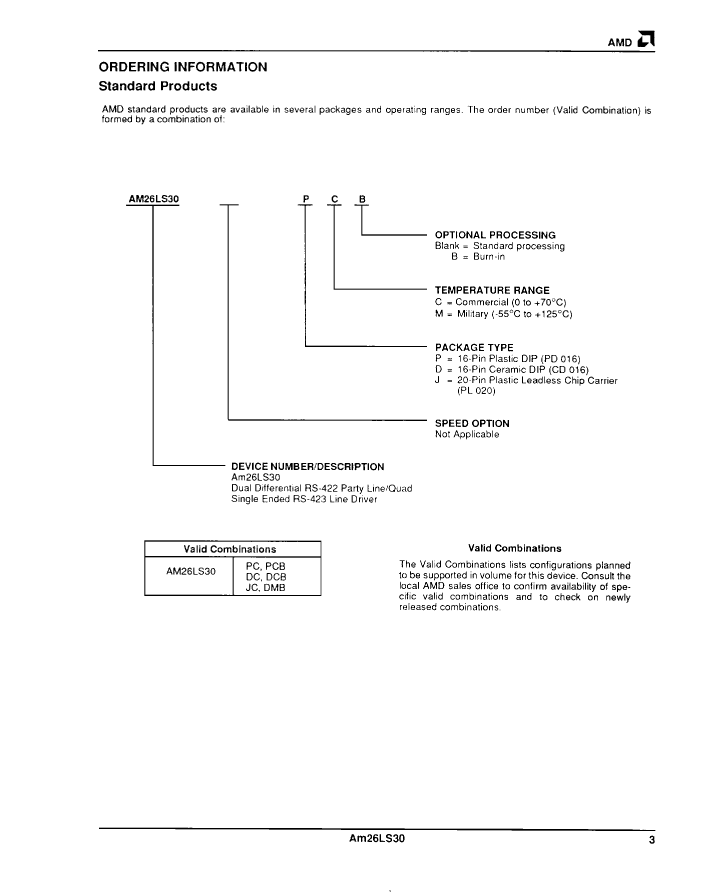

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

AM26LS30PC Related Products

	AM26LS30PC	AM26LS30JC	AM26LS30JCTR
Description	Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, PQCC20, PLASTIC, LCC-20	QUAD LINE DRIVER, PQCC20, PLASTIC, LCC-20
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	QLCC	QLCC
package instruction	DIP, DIP16,.3	PLASTIC, LCC-20	PLASTIC, LCC-20
Contacts	16	20	20
Reach Compliance Code	unknow	unknow	unknow
Other features	PROGRAMMABLE SLEW RATE	PROGRAMMABLE SLEW RATE	PROGRAMMABLE SLEW RATE
Differential output	YES	YES	YES
Number of drives	4	4	4
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423
JESD-30 code	R-PDIP-T16	S-PQCC-J20	S-PQCC-J20
length	19.1135 mm	8.9662 mm	8.9662 mm
Nominal negative supply voltage	-5 V	-5 V	-5 V
Number of functions	4	4	4
Number of terminals	16	20	20
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	QCCJ
Package shape	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	5.08 mm	4.572 mm	4.572 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
maximum transmission delay	200 ns	200 ns	200 ns
width	7.62 mm	8.9662 mm	8.9662 mm
Base Number Matches	1	1	1
ECCN code	EAR99	EAR99	-
High level input current maximum value	0.00004 A	0.00004 A	-
Minimum output swing	2 V	2 V	-
Output characteristics	3-STATE	3-STATE	-
Encapsulate equivalent code	DIP16,.3	LDCC20,.4SQ	-
power supply	5/+-5 V	5/+-5 V	-
Certification status	Not Qualified	Not Qualified	-
