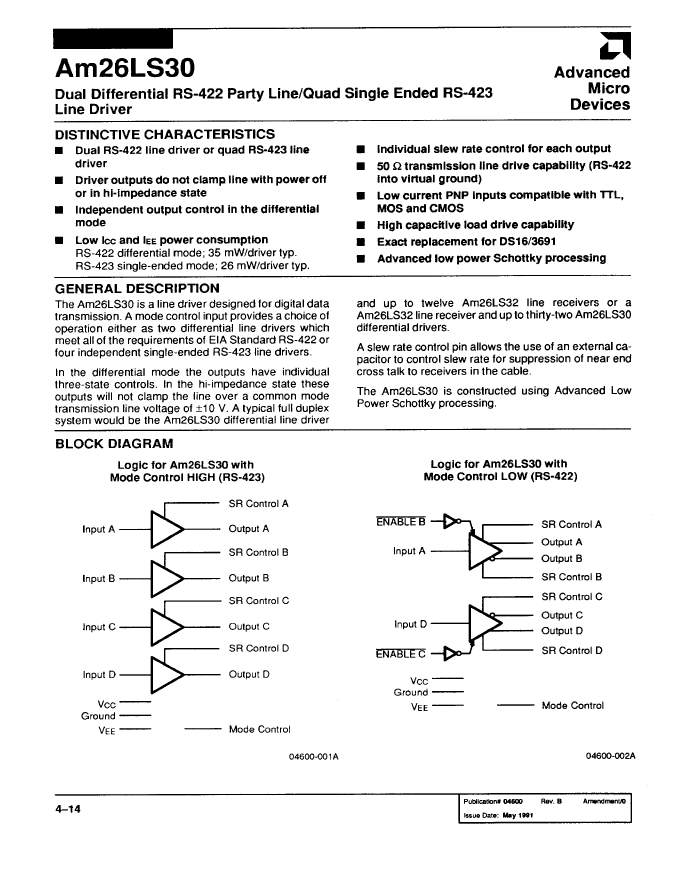

Preview

AM26LS30PCB: DescriptionLine Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size313KB，14 Pages; ManufacturerAMD; Websitehttp://www.amd.com; Related ProductsFound20parts with similar functions to AM26LS30PCB

Download Datasheet Parametric Compare View All

AM26LS30PCB Overview

Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16

AM26LS30PCB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	PROGRAMMABLE SLEW RATE
Differential output	YES
Number of drives	4
High level input current maximum value	0.00004 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422; EIA-423
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.1135 mm
Nominal negative supply voltage	-5 V
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	2 V
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/+-5 V
Certification status	Not Qualified
Maximum receive delay
Maximum seat height	5.08 mm
Maximum slew rate	30 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	200 ns
width	7.62 mm
Base Number Matches	1

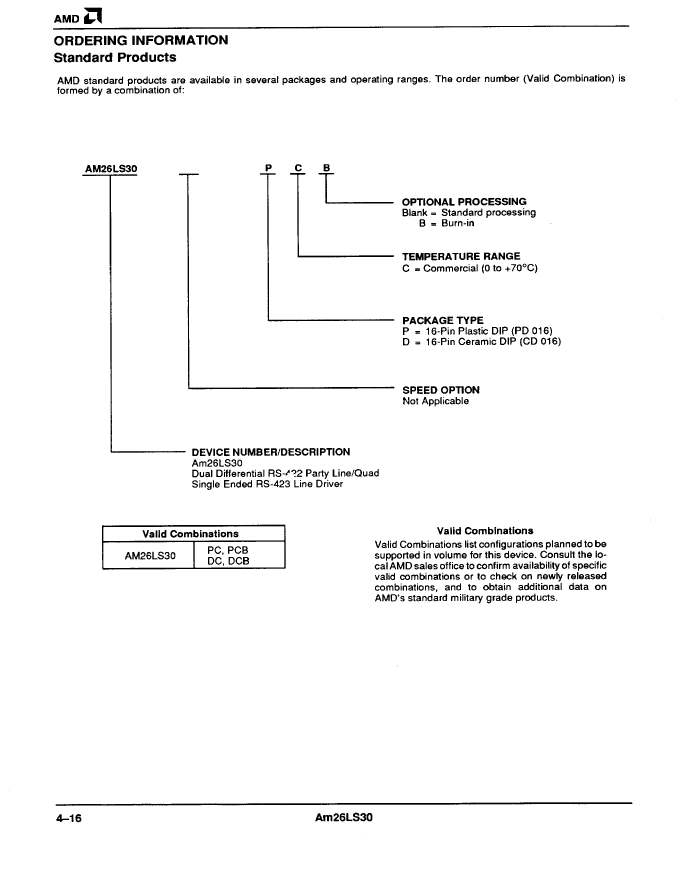

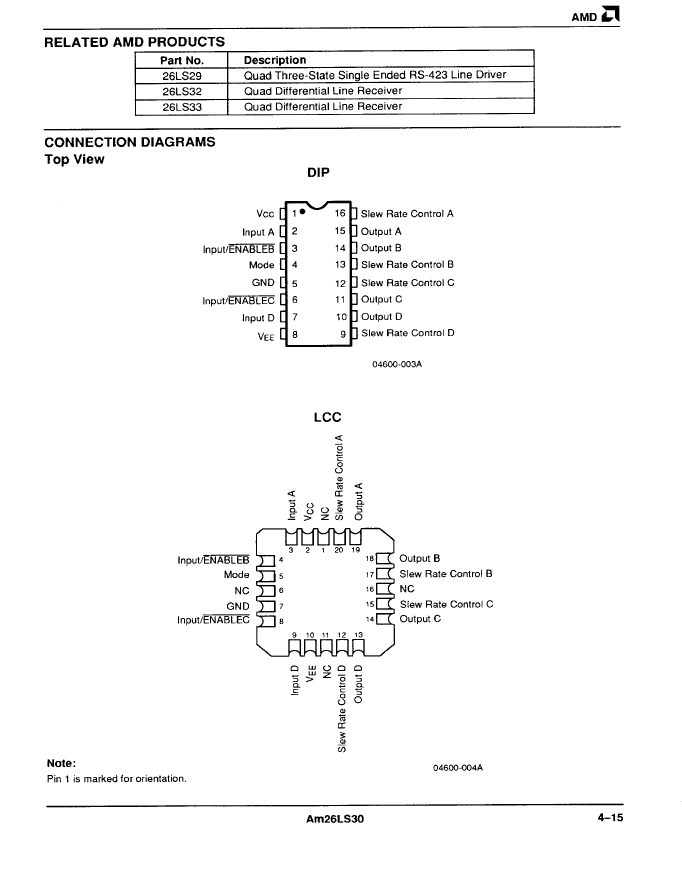

Preview

Download Datasheet

View All

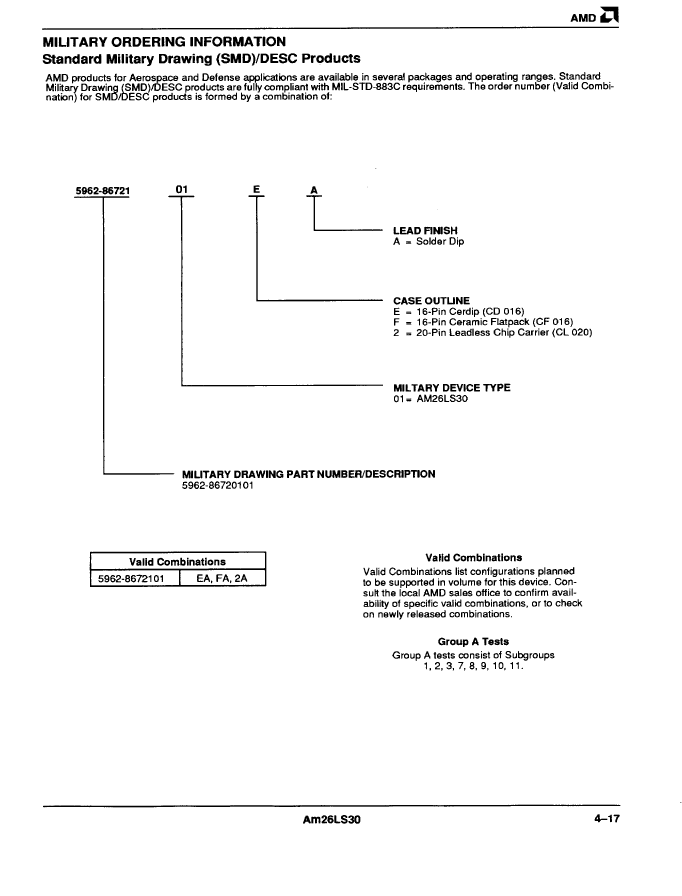

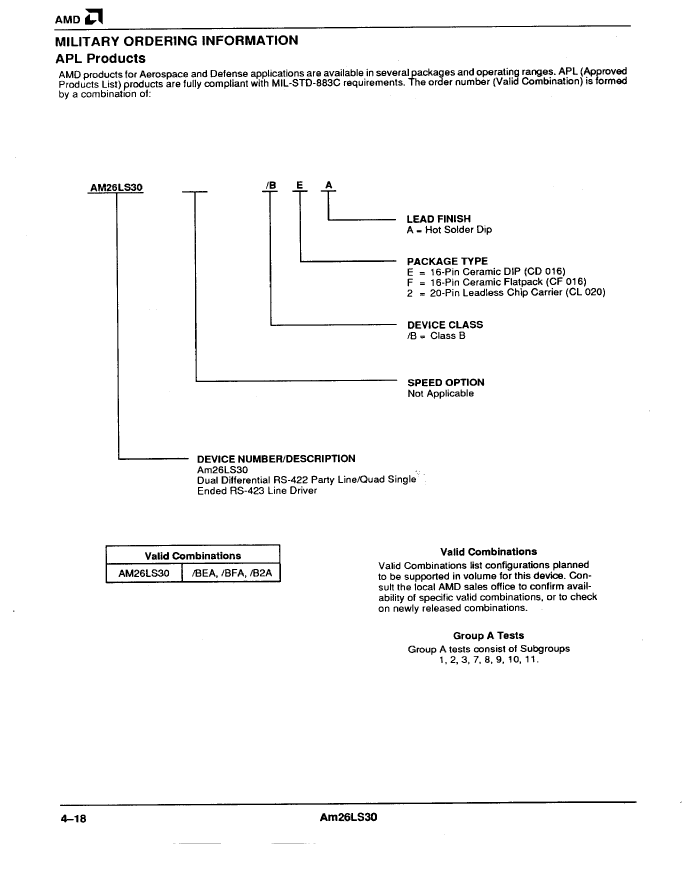

AM26LS30PCB Related Products

	AM26LS30PCB	5962-8672101EA	5962-8672101FA	5962-86721012A	AM26LS30/B2A
Description	Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16	Line Driver, 4 Func, 4 Driver, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, CDFP16, CERAMIC, FP-16	Line Driver, 4 Func, 4 Driver, CQCC20, CERAMIC, LCC-20	Line Driver, 4 Func, 4 Driver, BIPolar, CQCC20, LLCC-20
Parts packaging code	DIP	DIP	DFP	QLCC	QLCC
package instruction	DIP, DIP16,.3	DIP,	DFP,	QCCN,	QCCN, LCC20,.35SQ
Contacts	16	16	16	20	20
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES
Number of drives	4	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423
JESD-30 code	R-PDIP-T16	R-GDIP-T16	R-GDFP-F16	S-CQCC-N20	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	e0
Number of functions	4	4	4	4	4
Number of terminals	16	16	16	20	20
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DFP	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	FLATPACK	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD
maximum transmission delay	200 ns	375 ns	375 ns	375 ns	300 ns
Nominal negative supply voltage	-5 V	-	-5 V	-5 V	-5 V
Base Number Matches	1	1	1	1	-
Maker	-	AMD	AMD	AMD	AMD
Filter level	-	MIL-STD-883	MIL-PRF-38535	MIL-PRF-38535	38535Q/M;38534H;883B
