AM26LS31DMB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS31DMB

AM26LS31DMB: DescriptionLine Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，12 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound7parts with similar functions to AM26LS31DMB

Download Datasheet Parametric Compare View All

AM26LS31DMB Overview

Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16

AM26LS31DMB Parametric

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknow
ECCN code	EAR99
Differential output	YES
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422; FED STD 1020
JESD-30 code	R-GDIP-T16
length	19.431 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	30 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

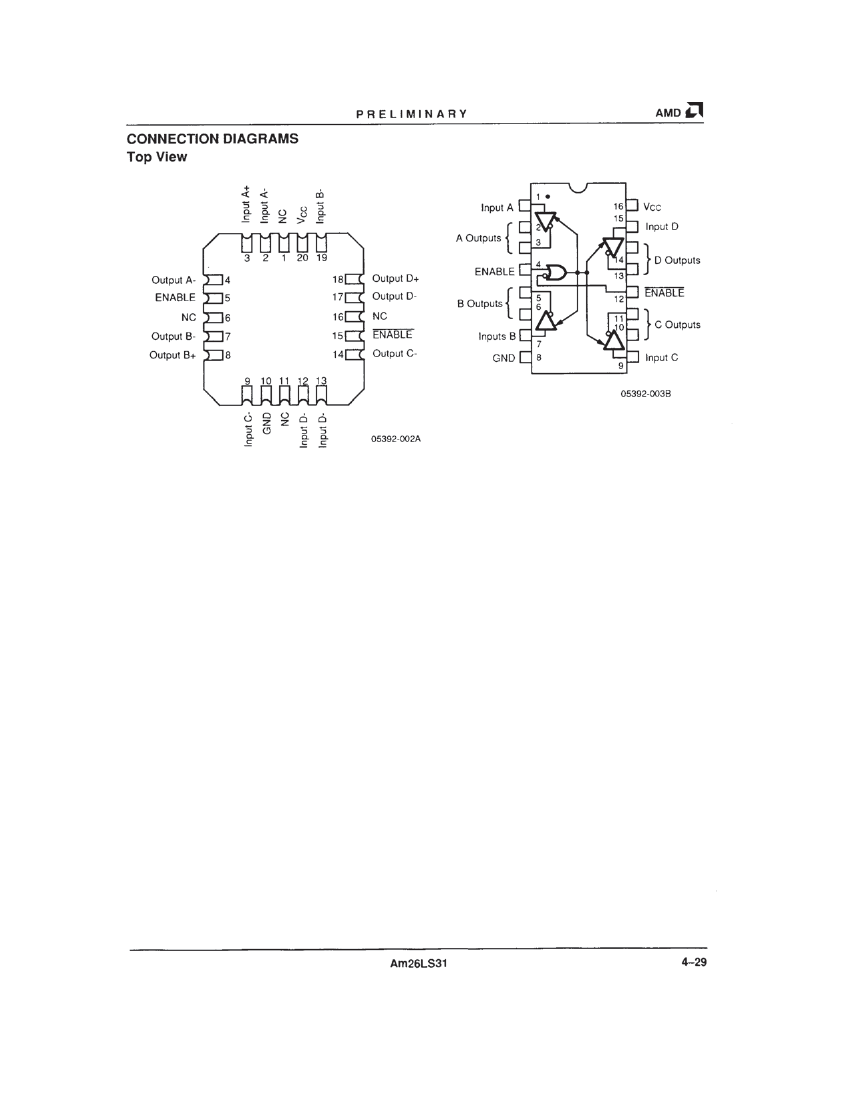

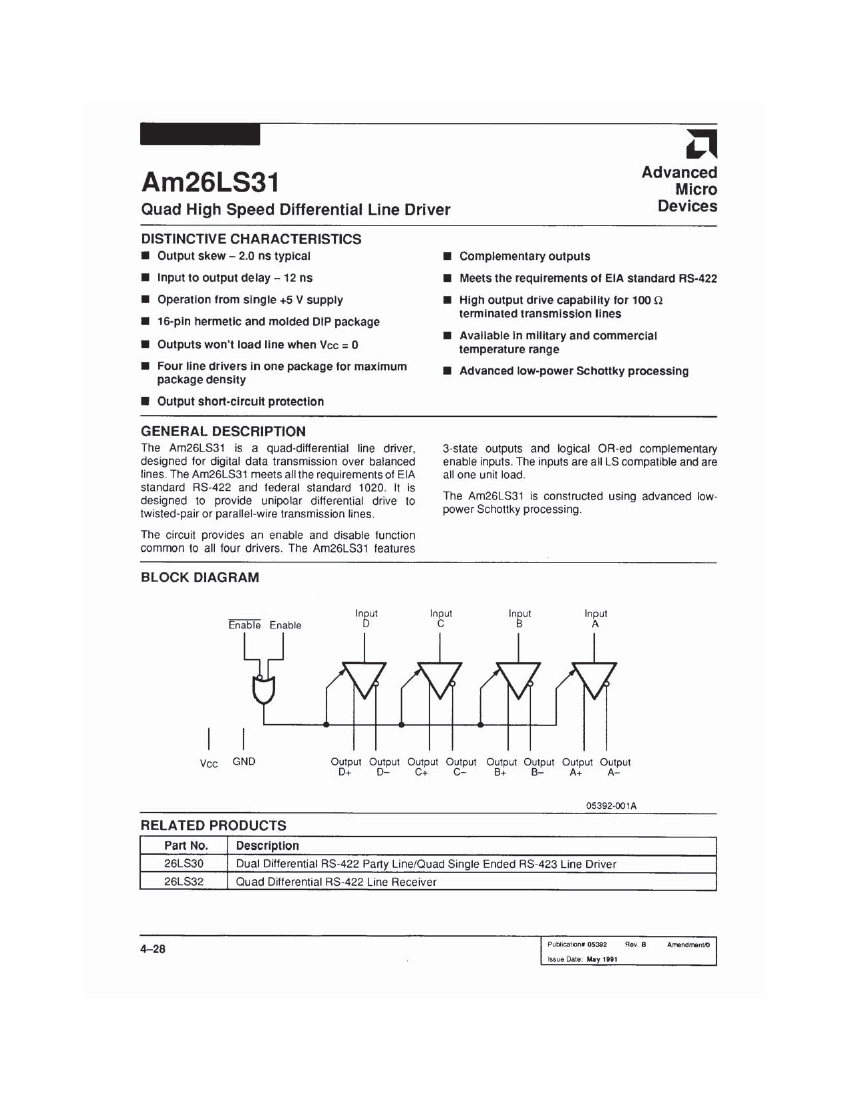

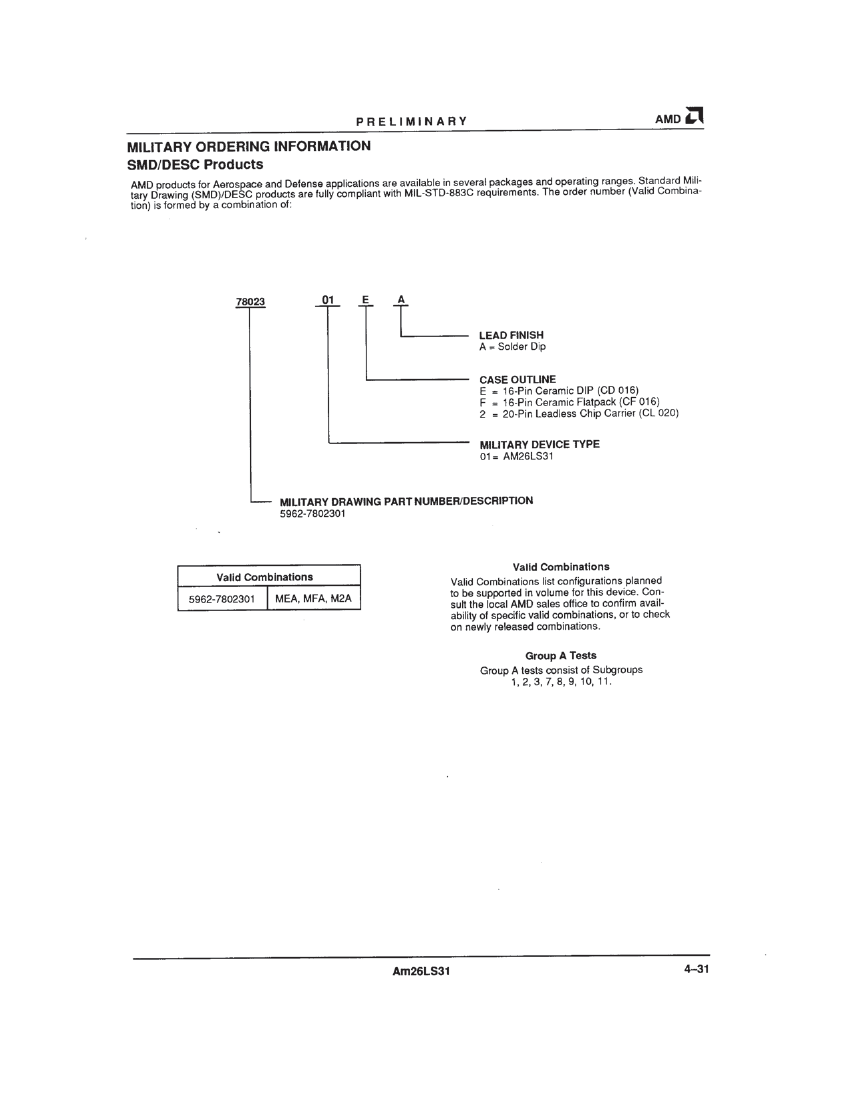

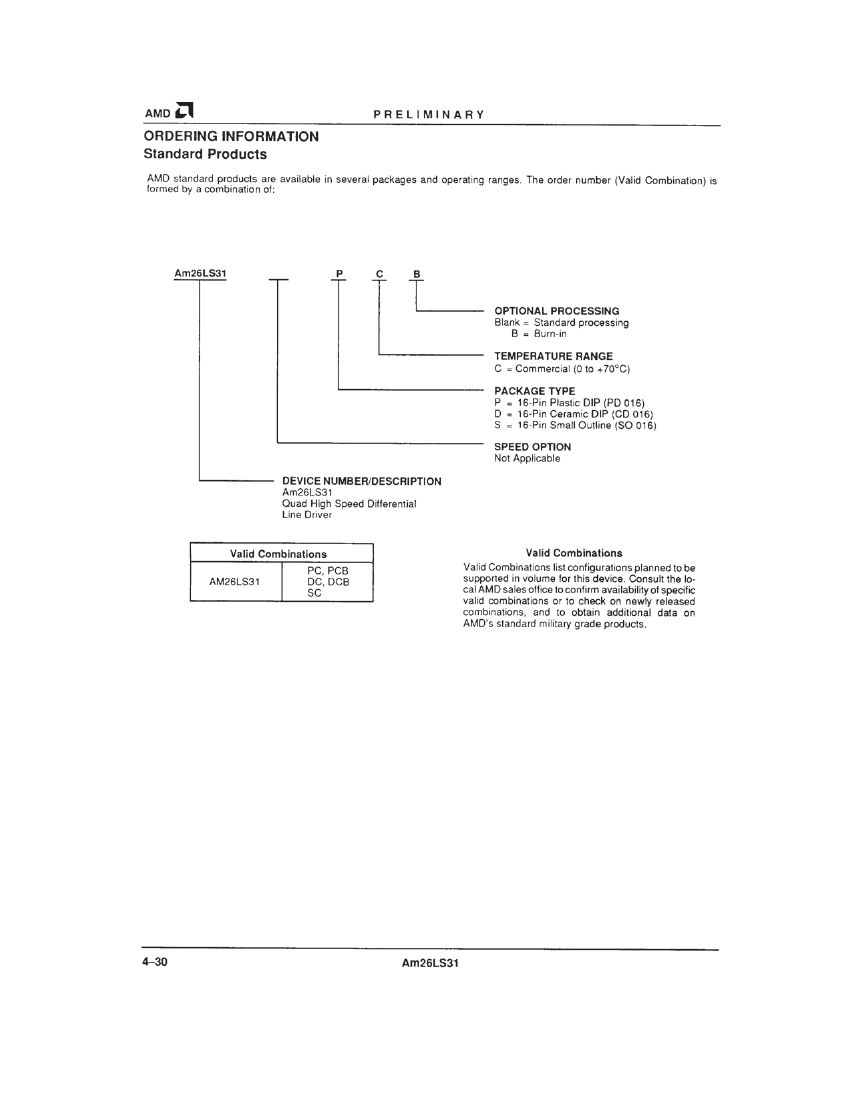

AM26LS31

Quad High Speed Differential Line Driver

The AM26LS31 is a quad-differential line driver, designed for digital data transmission over balanced

lines. The AM26LS31 meets all the requirements of EIA standard RS-422 and federal standard 1020.

It is designed to provide unipolar differential drive to twisted-pair or parallel-wire transmission lines.

The circuit provides an enable and disable function common to all four drivers. The AM26LS31

features 3-state outputs and logical OR-ed complementary enable inputs. The inputs are all LS

compatible and are all one unit load.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

AM26LS31DMB Related Products

	AM26LS31DMB	AM26LS31PC	AM26LS31SCTR	AM26LS31DCB	AM26LS31DC	AM26LS31FM
Description	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, PDSO16, SO-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDFP16, CERPACK-16
package instruction	DIP,	DIP,	SOP,	DIP,	DIP,	DFP,
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES	YES
Number of drives	4	4	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020	EIA-422; FED STD 1020
JESD-30 code	R-GDIP-T16	R-PDIP-T16	R-PDSO-G16	R-GDIP-T16	R-GDIP-T16	R-CDFP-F16
length	19.431 mm	19.1135 mm	9.9 mm	19.431 mm	19.431 mm	10.0965 mm
Number of functions	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	SOP	DIP	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	FLATPACK
Maximum seat height	5.08 mm	5.08 mm	2 mm	5.08 mm	5.08 mm	2.159 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm	7.62 mm	7.62 mm	6.731 mm
Base Number Matches	1	1	1	1	1	1
Maximum supply voltage	5.5 V	5.25 V	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage	4.5 V	4.75 V	4.75 V	4.75 V	4.75 V	-
maximum transmission delay	30 ns	30 ns	30 ns	30 ns	30 ns	-
