AM26LS32JC: DescriptionLine Receiver, 4 Func, 4 Rcvr, BIPolar, PQCC20, PLASTIC, LCC-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，13 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound7parts with similar functions to AM26LS32JC

Download Datasheet Parametric Compare View All

AM26LS32JC Overview

Line Receiver, 4 Func, 4 Rcvr, BIPolar, PQCC20, PLASTIC, LCC-20

AM26LS32JC Parametric

Parameter Name	Attribute value
package instruction	QCCJ,
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	S-PQCC-J20
length	8.9662 mm
Number of functions	4
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum receive delay	25 ns
Number of receiver bits	4
Maximum seat height	4.572 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.9662 mm
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

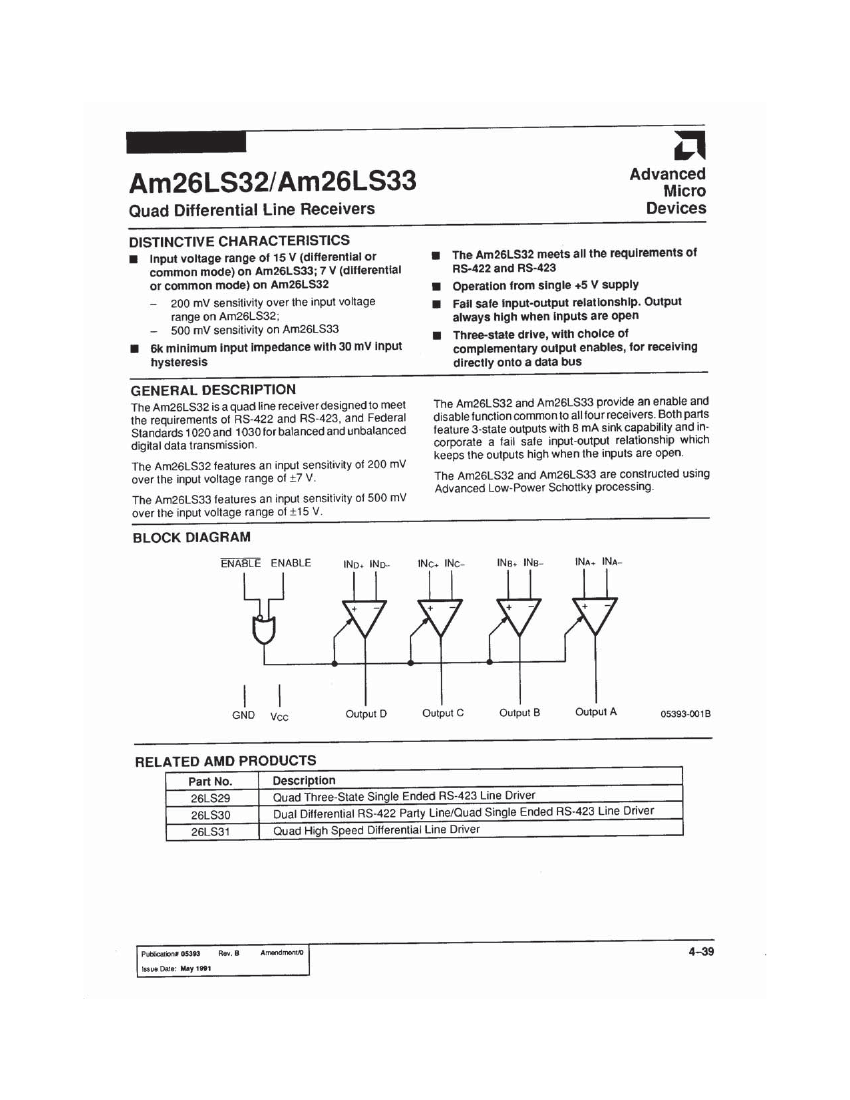

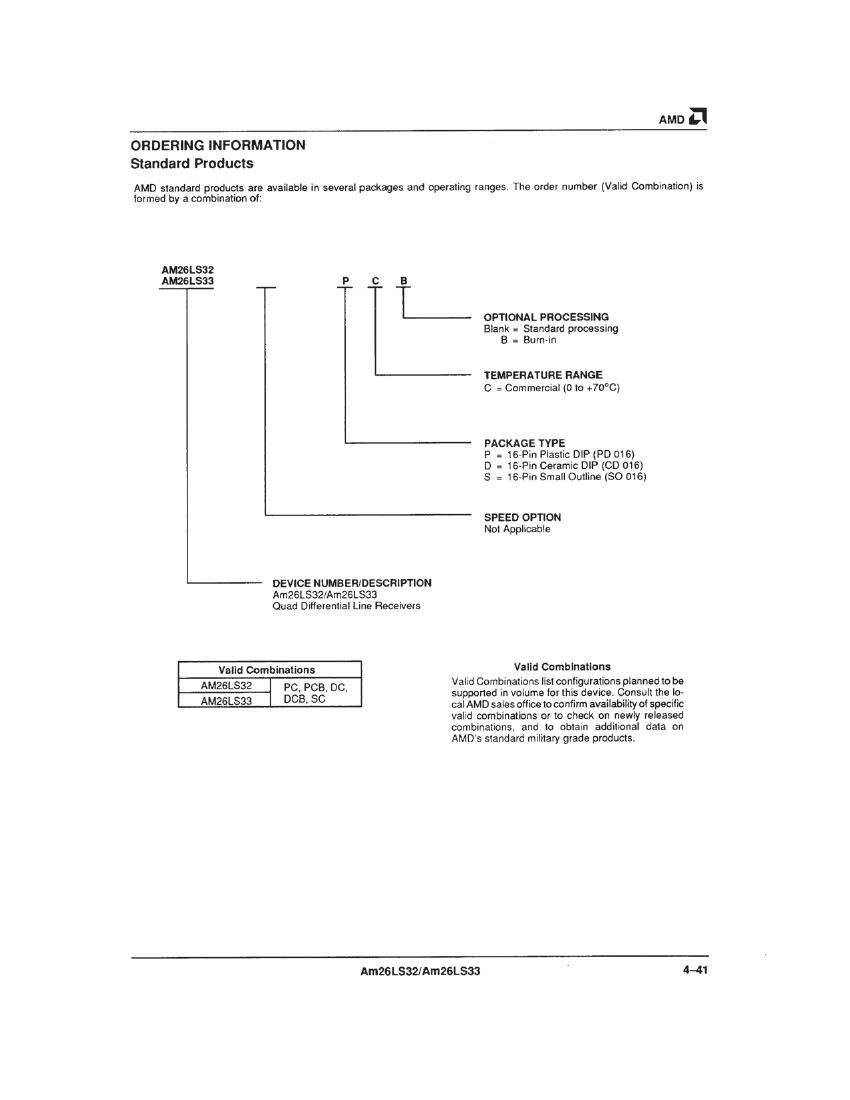

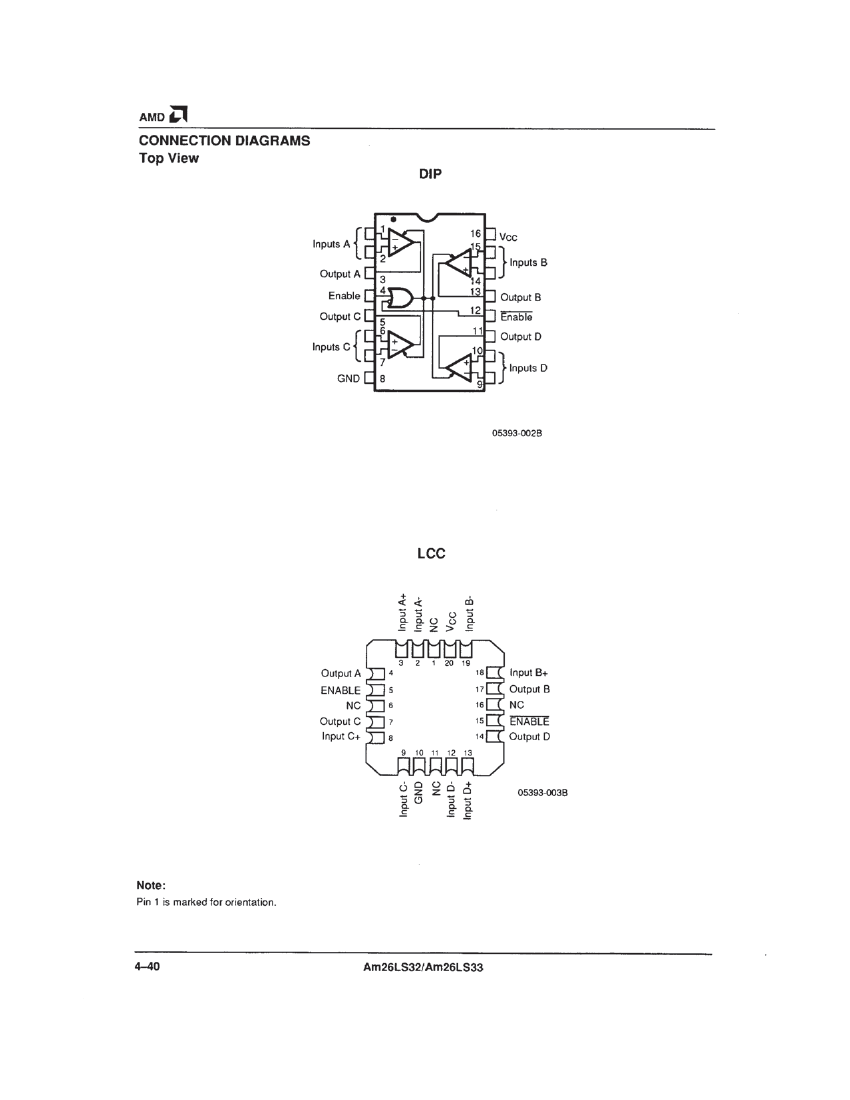

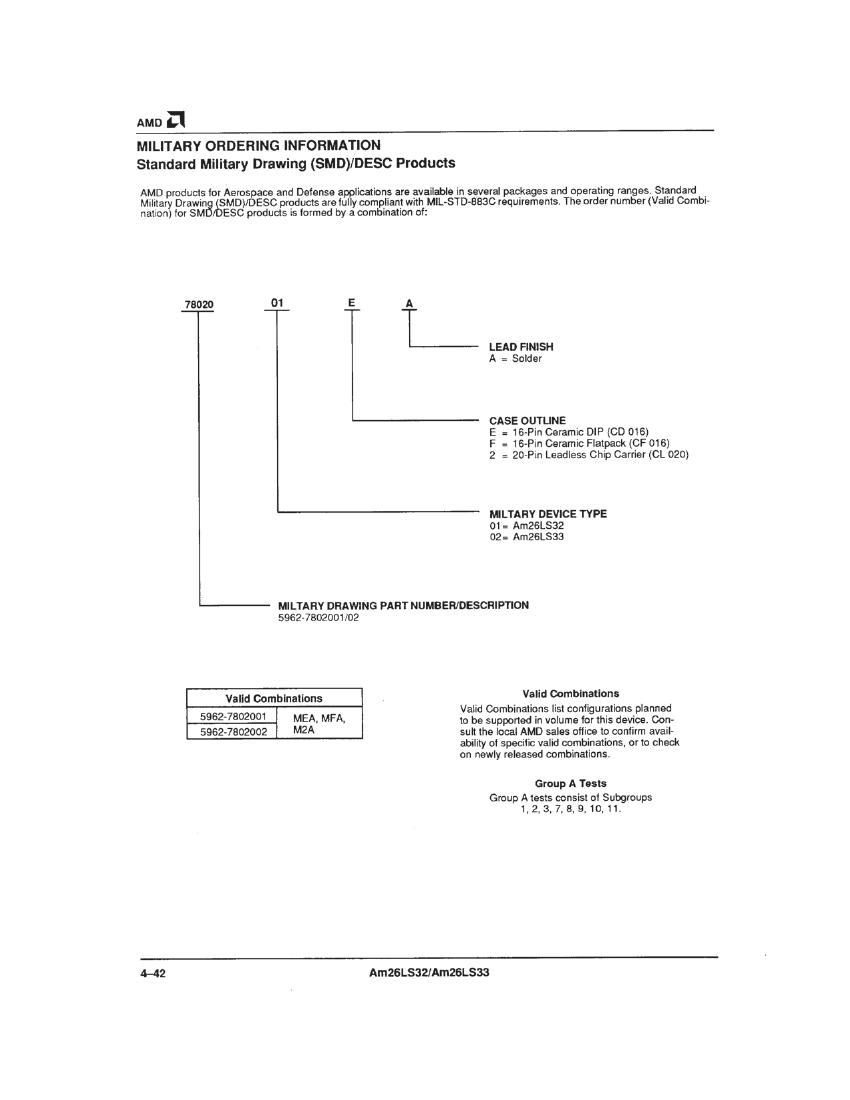

AM26LS32, AM26LS33

Quad Differential Line Receivers

The AM26LS32 is a quad line receiver designed to meet the requirements of RS-422 and RS-423,

and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission.

The AM26LS32 features an input sensitivity of 200 mV over the input voltage range of

±7V.

The

AM26LS33 features an input sensitivity of 500 mV over the input voltage range of

±15

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

AM26LS32JC Related Products

	AM26LS32JC	AM26LS32DMB	AM26LS32SC	AM26LS32DCB	AM26LS32DC	AM26LS32DM
Description	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PQCC20, PLASTIC, LCC-20	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, HERMETIC SEALED, DIP-16
package instruction	QCCJ,	DIP,	SOP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	S-PQCC-J20	R-GDIP-T16	R-PDSO-G16	R-GDIP-T16	R-GDIP-T16	R-CDIP-T16
length	8.9662 mm	19.431 mm	9.9 mm	19.431 mm	19.431 mm	19.431 mm
Number of functions	4	4	4	4	4	4
Number of terminals	20	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	70 °C	125 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ	DIP	SOP	DIP	DIP	DIP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Number of receiver bits	4	4	4	4	4	4
Maximum seat height	4.572 mm	5.08 mm	2 mm	5.08 mm	5.08 mm	5.08 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	J BEND	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
width	8.9662 mm	7.62 mm	3.9 mm	7.62 mm	7.62 mm	7.62 mm
Maximum receive delay	25 ns	38 ns	25 ns	25 ns	25 ns	-
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage	4.75 V	4.5 V	4.75 V	4.75 V	4.75 V	-
