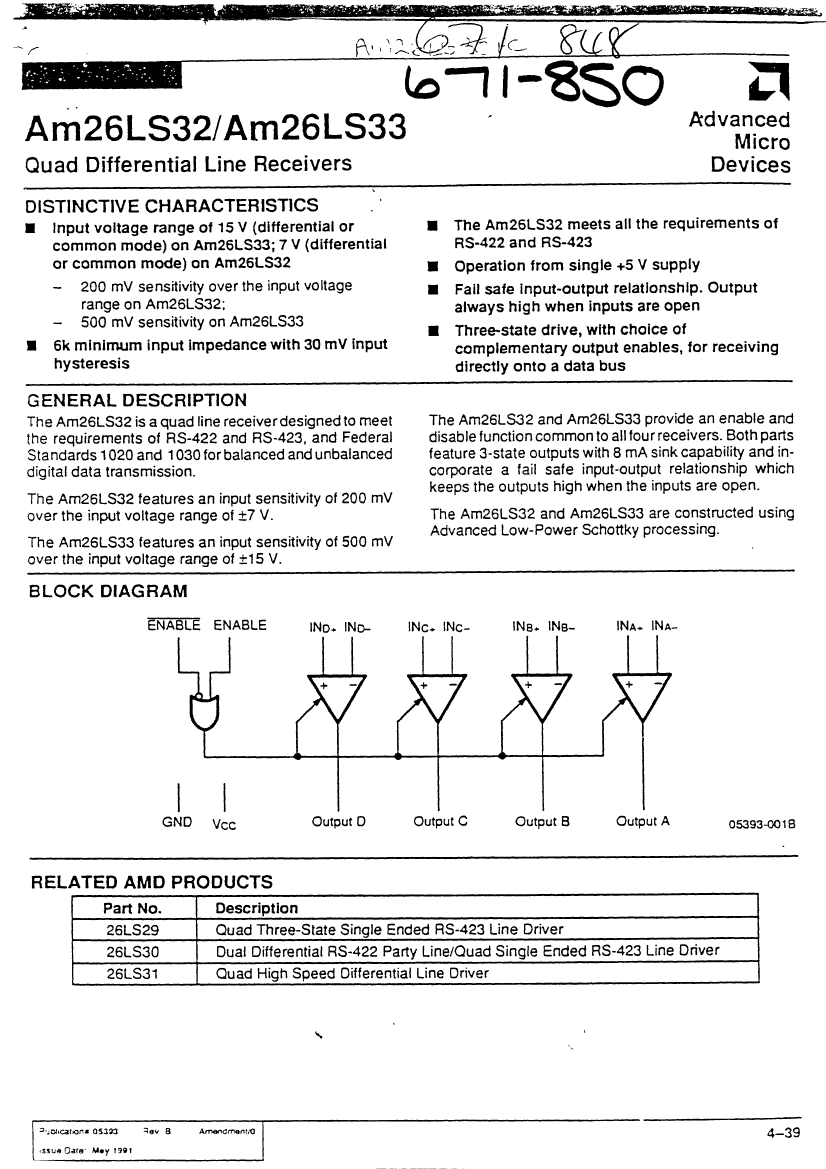

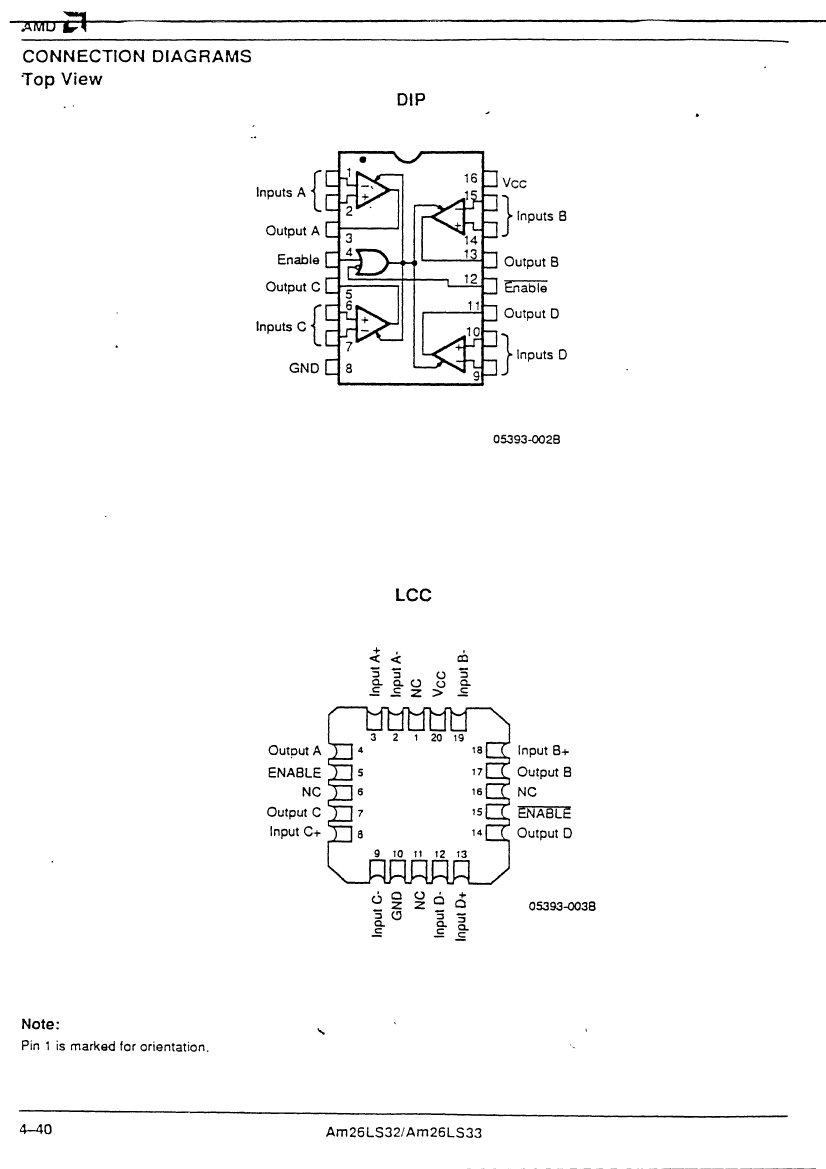

Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SOP-16

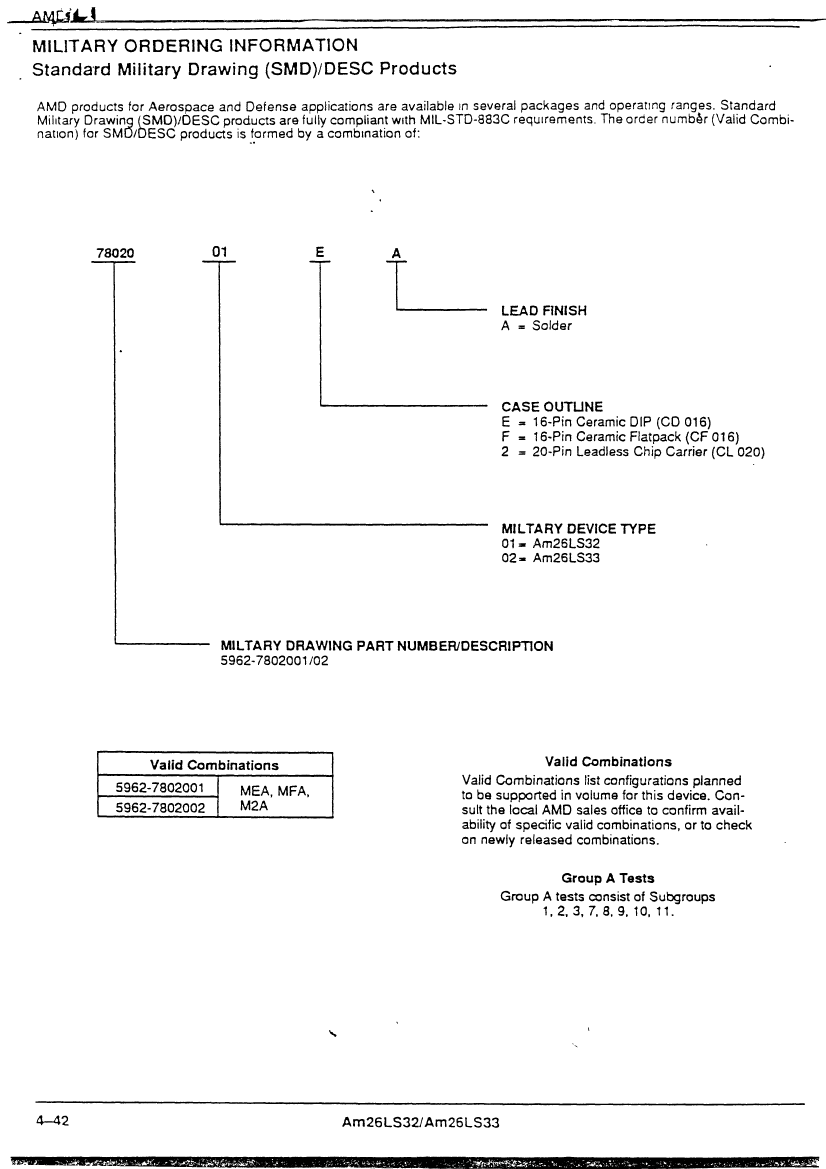

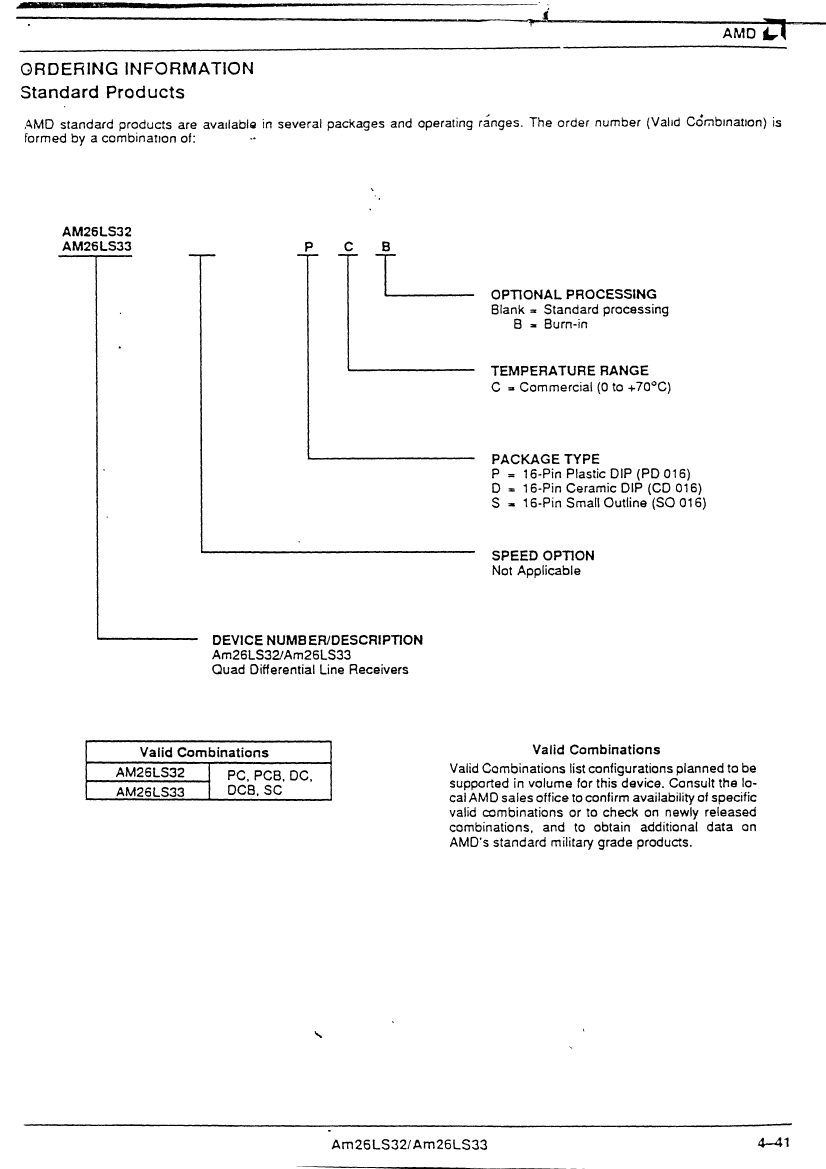

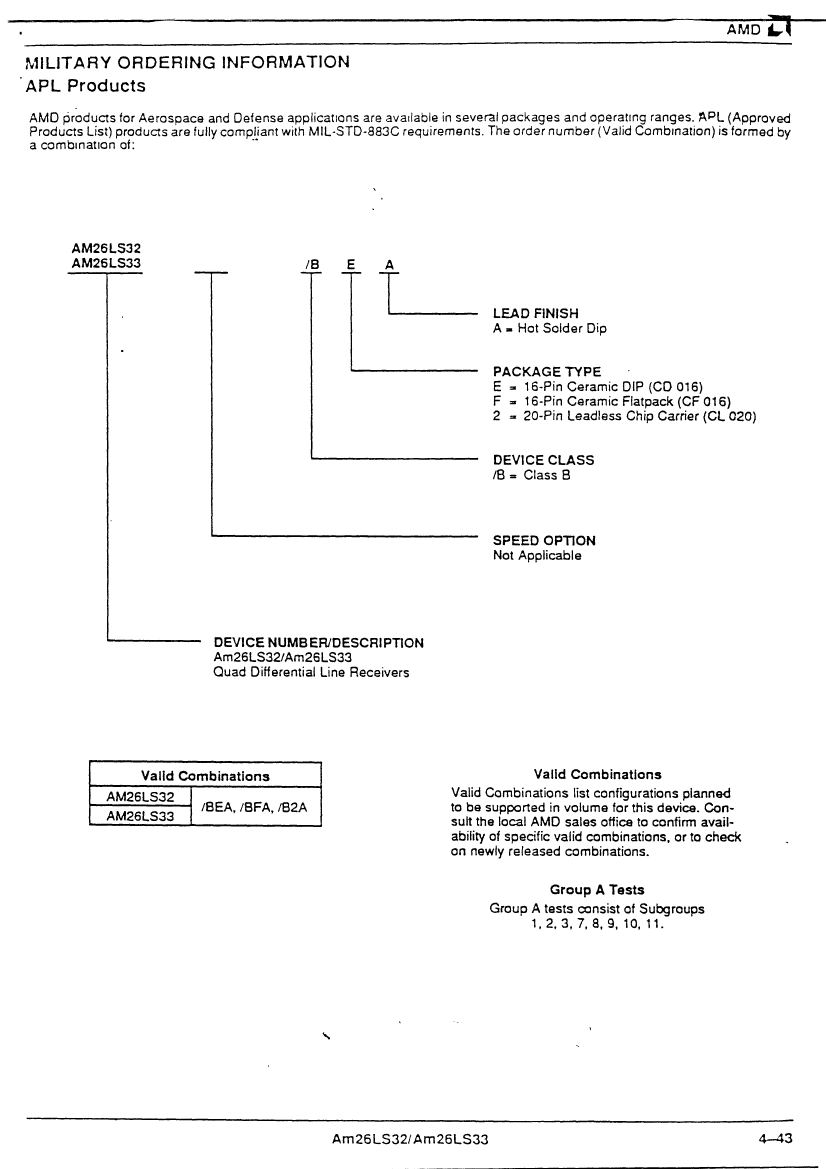

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP16,.25 |
| Contacts | 16 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Input properties | DIFFERENTIAL SCHMITT TRIGGER |
| Interface integrated circuit type | LINE RECEIVER |
| Interface standards | EIA-422; EIA-423; FED STD 1020; FED STD 1030 |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| length | 9.9 mm |
| Number of functions | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Maximum output low current | 0.008 A |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum receive delay | 25 ns |
| Number of receiver bits | 4 |
| Maximum seat height | 2 mm |
| Maximum slew rate | 70 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 3.9 mm |
| Base Number Matches | 1 |
| AM26LS32SC | AM26LS33SC | AM26LS32DCB | |
|---|---|---|---|
| Description | Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SOP-16 | Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16 | Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERAMIC, DIP-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | SOIC | SOIC | DIP |
| package instruction | SOP, SOP16,.25 | SOP, SOP16,.25 | DIP, DIP16,.3 |
| Contacts | 16 | 16 | 16 |
| Reach Compliance Code | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Input properties | DIFFERENTIAL SCHMITT TRIGGER | DIFFERENTIAL SCHMITT TRIGGER | DIFFERENTIAL SCHMITT TRIGGER |
| Interface integrated circuit type | LINE RECEIVER | LINE RECEIVER | LINE RECEIVER |
| Interface standards | EIA-422; EIA-423; FED STD 1020; FED STD 1030 | EIA-422; EIA-423; FED STD 1020; FED STD 1030 | EIA-422; EIA-423; FED STD 1020; FED STD 1030 |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-GDIP-T16 |
| JESD-609 code | e0 | e0 | e0 |
| length | 9.9 mm | 9.9 mm | 19.431 mm |
| Number of functions | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Maximum output low current | 0.008 A | 0.008 A | 0.008 A |
| Output polarity | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED |
| encapsulated code | SOP | SOP | DIP |
| Encapsulate equivalent code | SOP16,.25 | SOP16,.25 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum receive delay | 25 ns | 25 ns | 25 ns |
| Number of receiver bits | 4 | 4 | 4 |
| Maximum seat height | 2 mm | 2 mm | 5.08 mm |
| Maximum slew rate | 70 mA | 70 mA | 70 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 3.9 mm | 3.9 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 |
| Part Number | Manufacturer | Description |
|---|---|---|
| AM26LS32ACNSR | Texas Instruments(德州仪器) | Quadruple Differential Line Receivers 16-SO 0 to 70 |
| AM26LS33ID | NXP(恩智浦) | IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver |
| HD26LS32FPEL | Renesas(瑞萨电子) | Quadruple Differential Line Receivers With 3 State Outputs |
| AM26LS32ACNS | Texas Instruments(德州仪器) | QUAD LINE RECEIVER, PDSO16, SOP-16 |
| MC26LS32D | NXP(恩智浦) | IC,LINE RECEIVER,QUAD,ALS-TTL,DIFFERENTIAL,SOP,16PIN,PLASTIC |
| AM26LS32CD | NXP(恩智浦) | IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver |
| AM26LS32ID | NXP(恩智浦) | IC QUAD LINE RECEIVER, PDSO16, Line Driver or Receiver |
| AM26LS33CD-T | NXP(恩智浦) | IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver |
| AM26LS32CD-T | NXP(恩智浦) | IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver |
| AM26LS32ID-T | NXP(恩智浦) | IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver |
| AM26LS32SCTR | AMD(超微) | Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16 |
| DS26LS33ACM | National Semiconductor（TI ） | QUAD LINE RECEIVER, PDSO16 |
| AM26LS33ID-T | NXP(恩智浦) | IC QUAD LINE RECEIVER, PDSO16, PLASTIC, SO-16, Line Driver or Receiver |
| AM26LS33SC | AMD(超微) | Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16 |
| DS26LS32CM | National Semiconductor（TI ） | QUAD LINE RECEIVER, PDSO16 |
| DS26LS32ACM/NOPB | Texas Instruments(德州仪器) | Quad Differential Line Receivers 16-SOIC 0 to 70 |
| DS26LS32ACMX/NOPB | National Semiconductor（TI ） | IC QUAD LINE RECEIVER, PDSO16, SOP-16, Line Driver or Receiver |
| DS26LS32CM/NOPB | Texas Instruments(德州仪器) | Quad Differential Line Receivers 16-SOIC 0 to 70 |
| DS26LS32ACM | National Semiconductor（TI ） | QUAD LINE RECEIVER, PDSO16 |
