AM26LS33SCTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS33SCTR

AM26LS33SCTR: DescriptionLine Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size318KB，12 Pages; ManufacturerAMD; Websitehttp://www.amd.com; Related ProductsFound19parts with similar functions to AM26LS33SCTR

Download Datasheet Parametric Compare View All

AM26LS33SCTR Overview

Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16

AM26LS33SCTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Maximum output low current	0.008 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum receive delay	25 ns
Number of receiver bits	4
Maximum seat height	2 mm
Maximum slew rate	70 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Base Number Matches	1

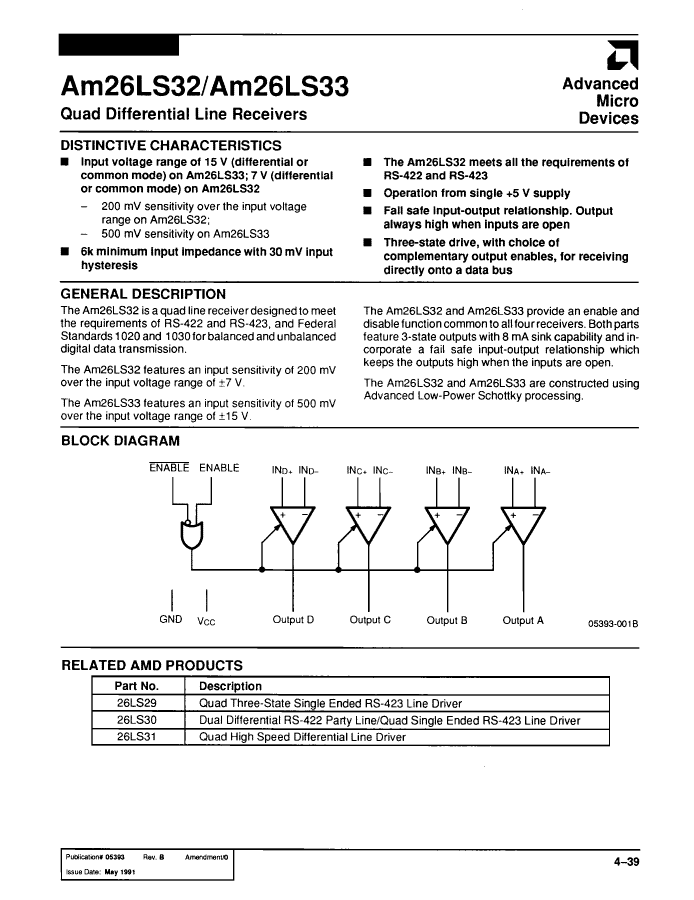

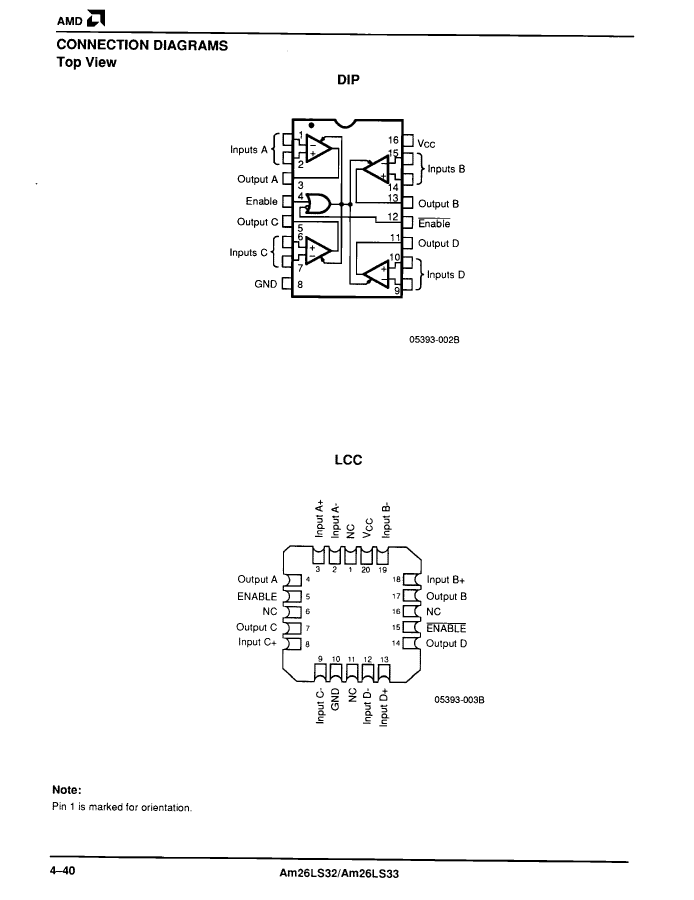

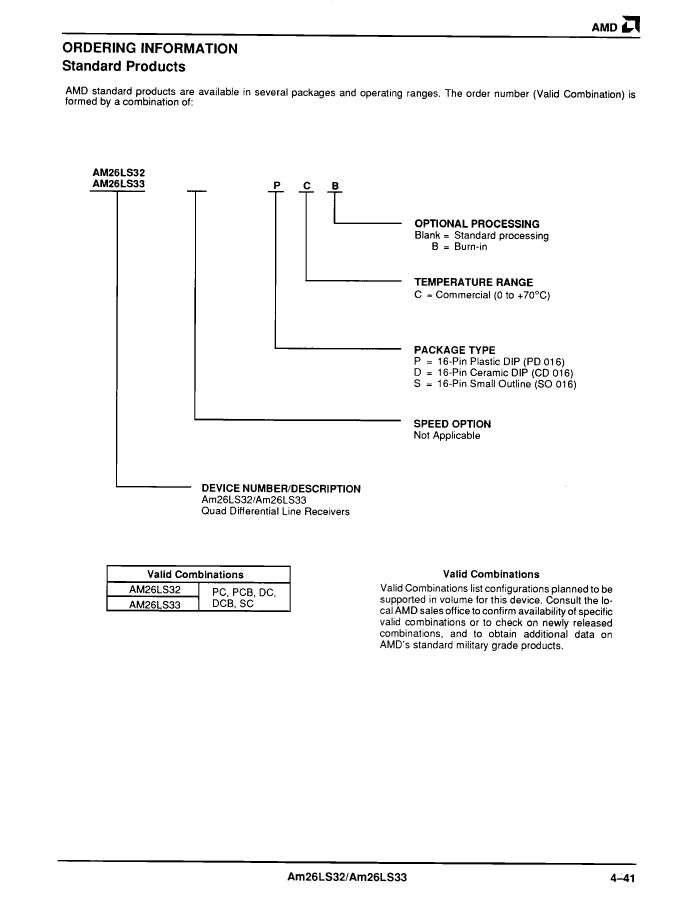

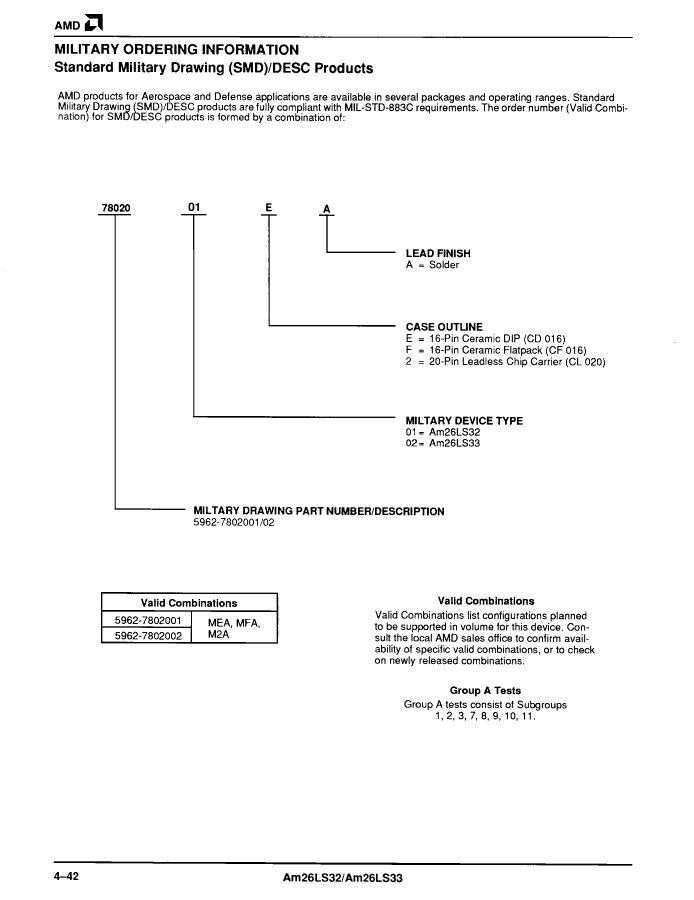

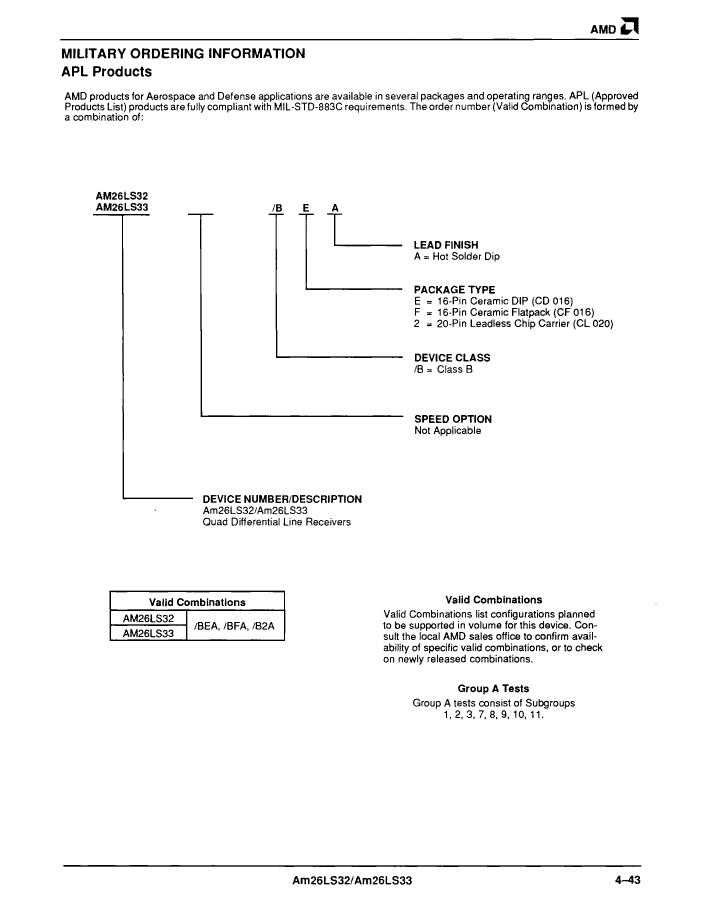

Preview

Download Datasheet

View All

AM26LS33SCTR Related Products

	AM26LS33SCTR	AM26LS32SCTR
Description	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO16, SO-16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	SOIC
package instruction	SOP, SOP16,.25	SOP, SOP16,.25
Contacts	16	16
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER
Interface standards	EIA-422; EIA-423; FED STD 1020; FED STD 1030	EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0
length	9.9 mm	9.9 mm
Number of functions	4	4
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Output characteristics	3-STATE	3-STATE
Maximum output low current	0.008 A	0.008 A
Output polarity	TRUE	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP16,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum receive delay	25 ns	25 ns
Number of receiver bits	4	4
Maximum seat height	2 mm	2 mm
Maximum slew rate	70 mA	70 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	3.9 mm
Base Number Matches	1	1
