CRO1880A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> CRO1880A

Preview

CRO1880A: DescriptionVoltage-Controlled Oscillator Surface Mount Module; CategoryPassive components oscillator; File Size83KB，2 Pages; ManufacturerZ-Communications, Inc.; Websitehttps://www.zcomm.com/

Download Datasheet Parametric Compare View All

CRO1880A Overview

Voltage-Controlled Oscillator Surface Mount Module

CRO1880A Parametric

Parameter Name	Attribute value
Maker	Z-Communications, Inc.
Reach Compliance Code	compli
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Modulation sensitivity	5 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	1881 MHz
Minimum operating frequency	1879 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	4 dBm
phase noise	-120 dBc/Hz
physical size	12.7mm x 12.7mm x 5.59mm
power change	2 dB
Nominal supply voltage	5 V
surface mount	YES

Preview

Download Datasheet

View All

CRO1880A

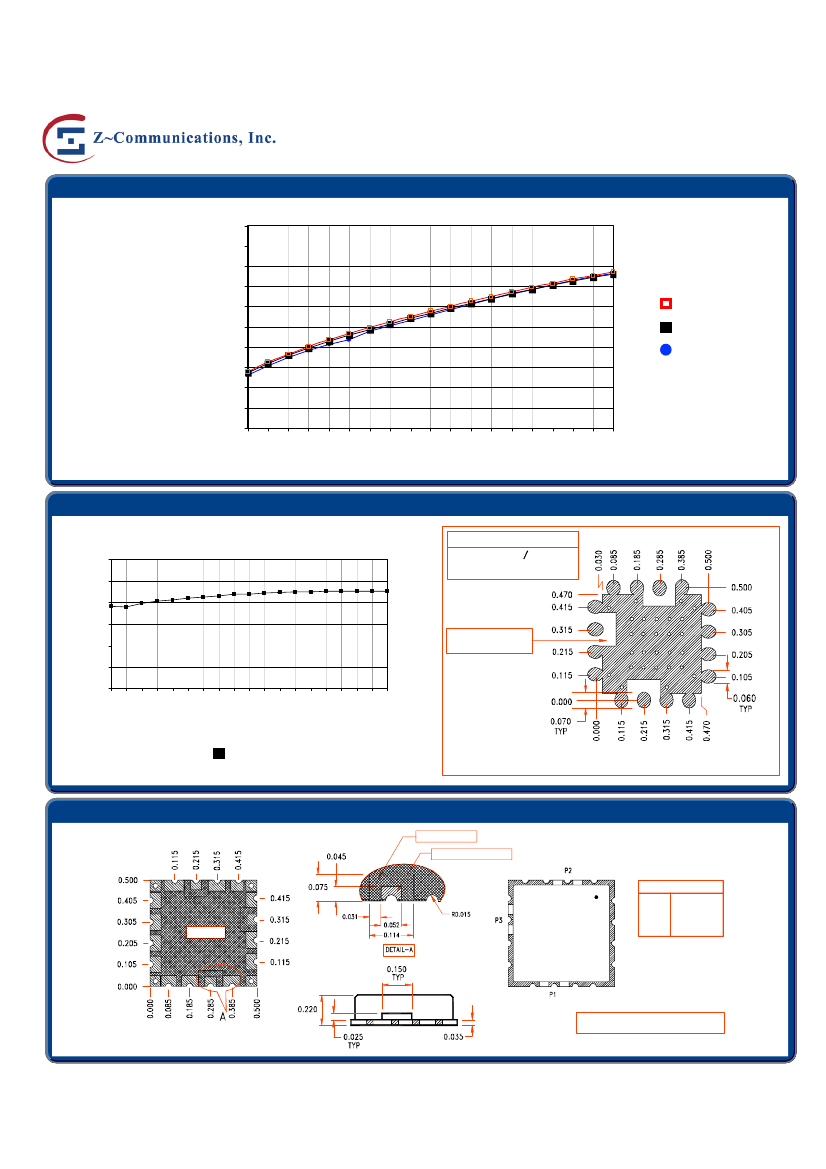

PHASE NOISE (1 Hz BW, typical)

14118 Stowe Drive, Suite B | Poway, CA 92064

TEL: (858) 621-2700 | FAX: (858) 486-1927

URL: www.zcomm.com

EMAIL: applications@zcomm.com

Rev A1

-80

-90

-100

£(f) (dBc/Hz)

Voltage-Controlled Oscillator

Surface Mount Module

Applications

•

Digital Radio Equipment

•

Fixed Wireless Access

•

Satellite Communication Systems

Application Notes

• AN-101: Mounting and Grounding

• AN-102: Output Loading

• AN-107: Manual Soldering

-110

-120

-130

-140

-150

1 E+3

10 E+3

100 E+3

OFFSET (Hz)

Performance Specifications

Oscillation Frequency Range

Phase Noise @ 10 kHz offset (1 Hz BW)

Harmonic Suppression (2nd)

Tuning Voltage

Tuning Sensitivity (avg.)

Power Output

Load Impedance

Input Capacitance

Pushing

Pulling (14 dB Return Loss, Any Phase)

Operating Temperature Range

Package Style

Power Supply Requirements

Supply Voltage (Vcc, nom.)

Supply Current (Icc)

Additional Notes

Min

1879

Typ

-120

-20

Max

1881

-18

4.5

Units

MHz

dBc/Hz

dBc

Vdc

MHz/V

dBm

pF

MHz/V

MHz

°C

0.5

5

2

4

50

6

50

.5

-40

MINI-16-SM

Min

Typ

5

20

85

Max

24

Units

Vdc

mA

LFSuffix = RoHS Compliant. All specifications are subject to change without notice.

Page 1 of 2

FRM-S-002 B
