P54FCT3651CDMB

Description
Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP28
Categorylogic    logic
File Size543KB,6 Pages
ManufacturerPyramid Semiconductor Corporation
Websitehttp://www.pyramidsemiconductor.com/
Download Datasheet Parametric Compare View All

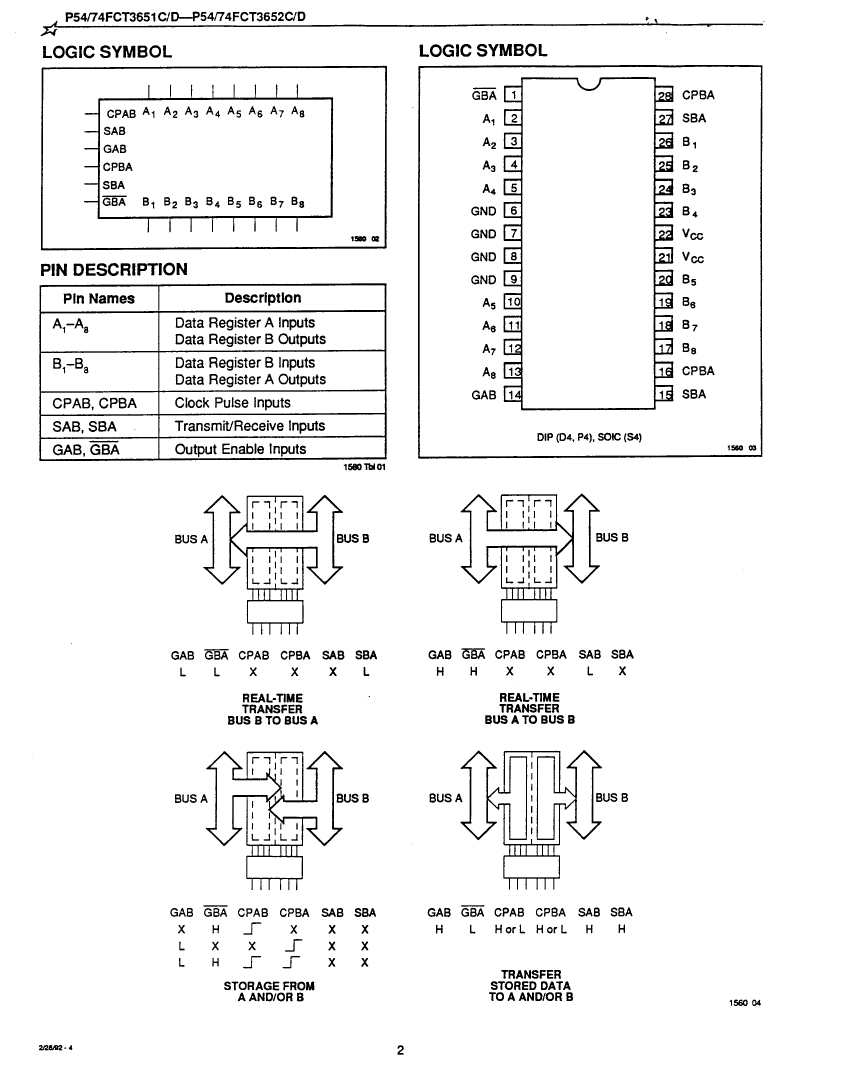

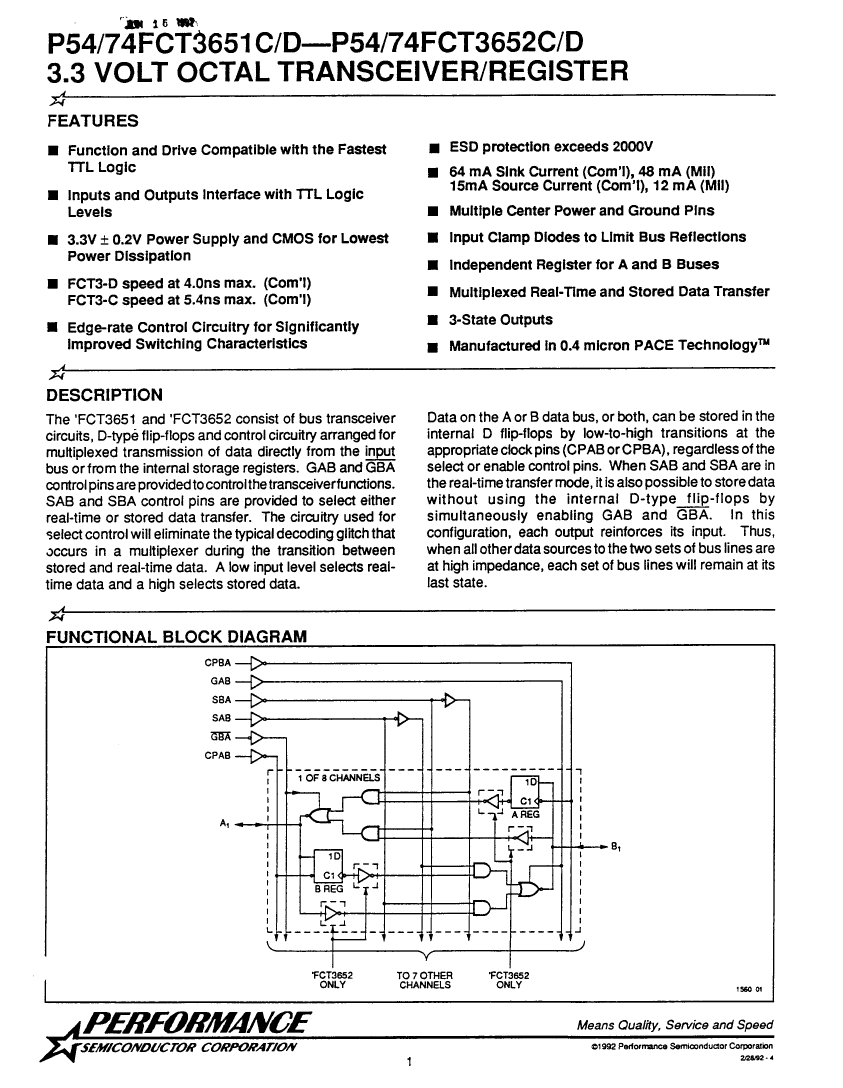

P54FCT3651CDMB Overview

Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP28

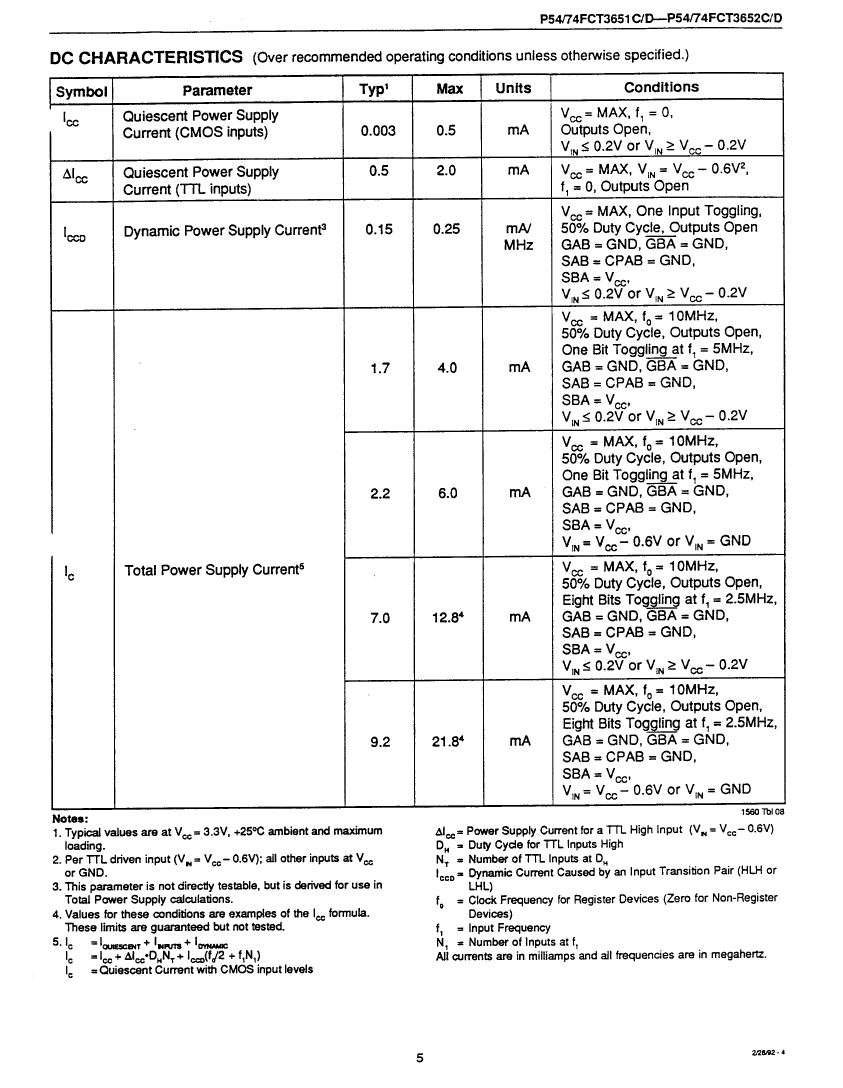

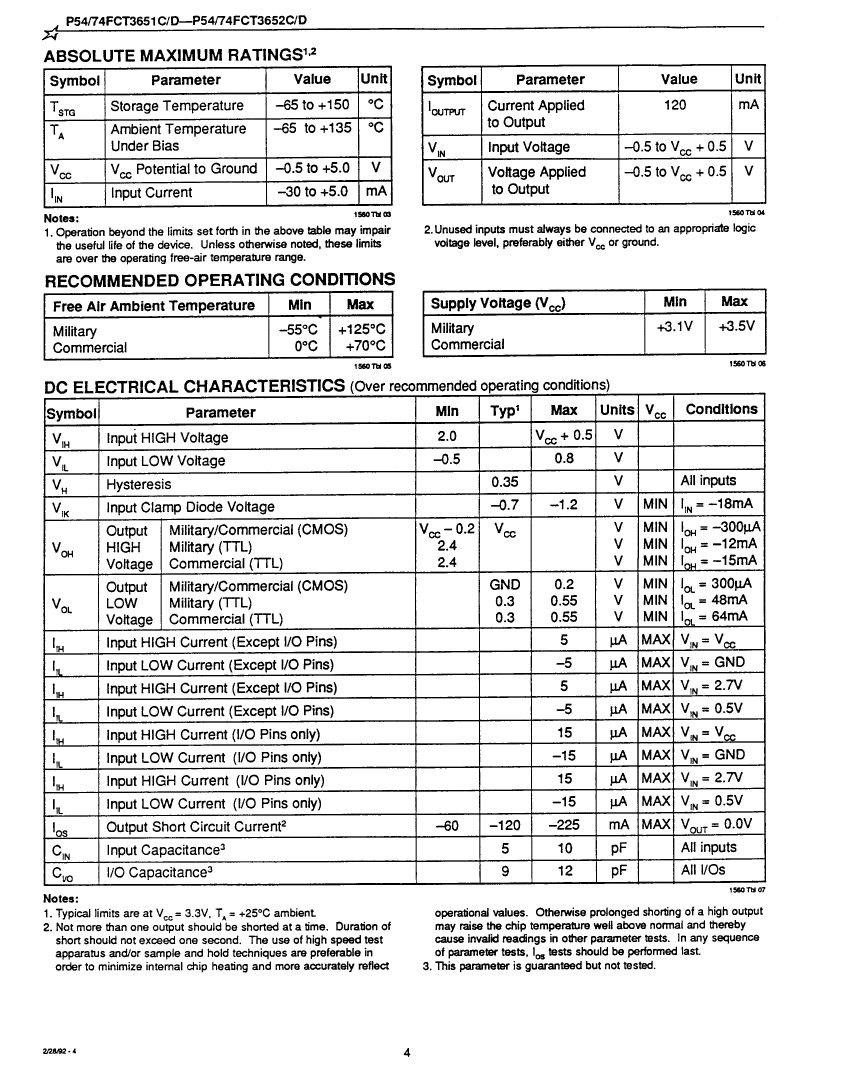

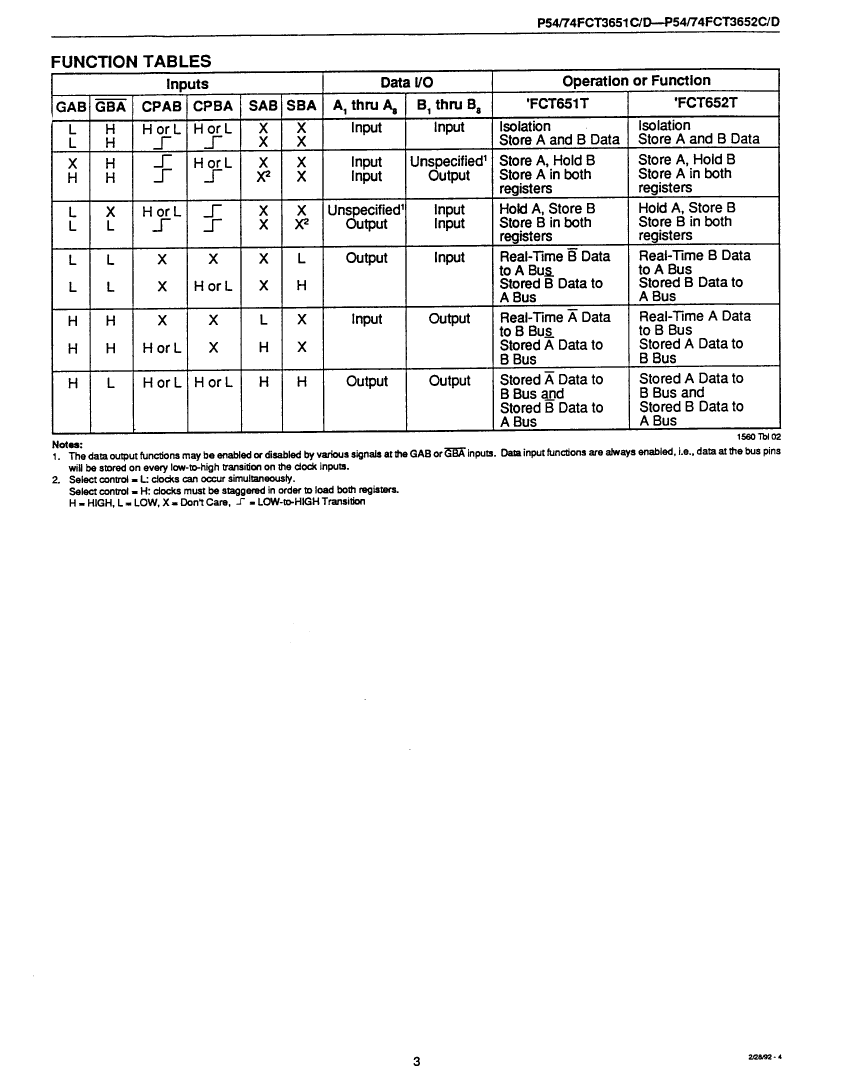

P54FCT3651CDMB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPyramid Semiconductor Corporation
package instructionDIP, DIP28,.3
Reach Compliance Codeunknown
Control typeINDEPENDENT CONTROL
Counting directionBIDIRECTIONAL
JESD-30 codeR-XDIP-T28
JESD-609 codee0
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
MaximumI(ol)0.048 A
Number of digits8
Number of functions1
Number of terminals28
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP28,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply3.3 V
Prop。Delay @ Nom-Sup6 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)3.3 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE

P54FCT3651CDMB Related Products

P54FCT3651CDMB P54FCT3652DDMB
Description Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP28 Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP28
Is it Rohs certified? incompatible incompatible
Maker Pyramid Semiconductor Corporation Pyramid Semiconductor Corporation
package instruction DIP, DIP28,.3 DIP, DIP28,.3
Reach Compliance Code unknown unknown
Control type INDEPENDENT CONTROL INDEPENDENT CONTROL
Counting direction BIDIRECTIONAL BIDIRECTIONAL
JESD-30 code R-XDIP-T28 R-XDIP-T28
JESD-609 code e0 e0
Logic integrated circuit type REGISTERED BUS TRANSCEIVER REGISTERED BUS TRANSCEIVER
MaximumI(ol) 0.048 A 0.048 A
Number of digits 8 8
Number of functions 1 1
Number of terminals 28 28
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output characteristics 3-STATE 3-STATE
Output polarity INVERTED TRUE
Package body material CERAMIC CERAMIC
encapsulated code DIP DIP
Encapsulate equivalent code DIP28,.3 DIP28,.3
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
power supply 3.3 V 3.3 V
Prop。Delay @ Nom-Sup 6 ns 5.4 ns
Certification status Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Nominal supply voltage (Vsup) 3.3 V 3.3 V
surface mount NO NO
technology CMOS CMOS
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm
Terminal location DUAL DUAL
Trigger type POSITIVE EDGE POSITIVE EDGE
