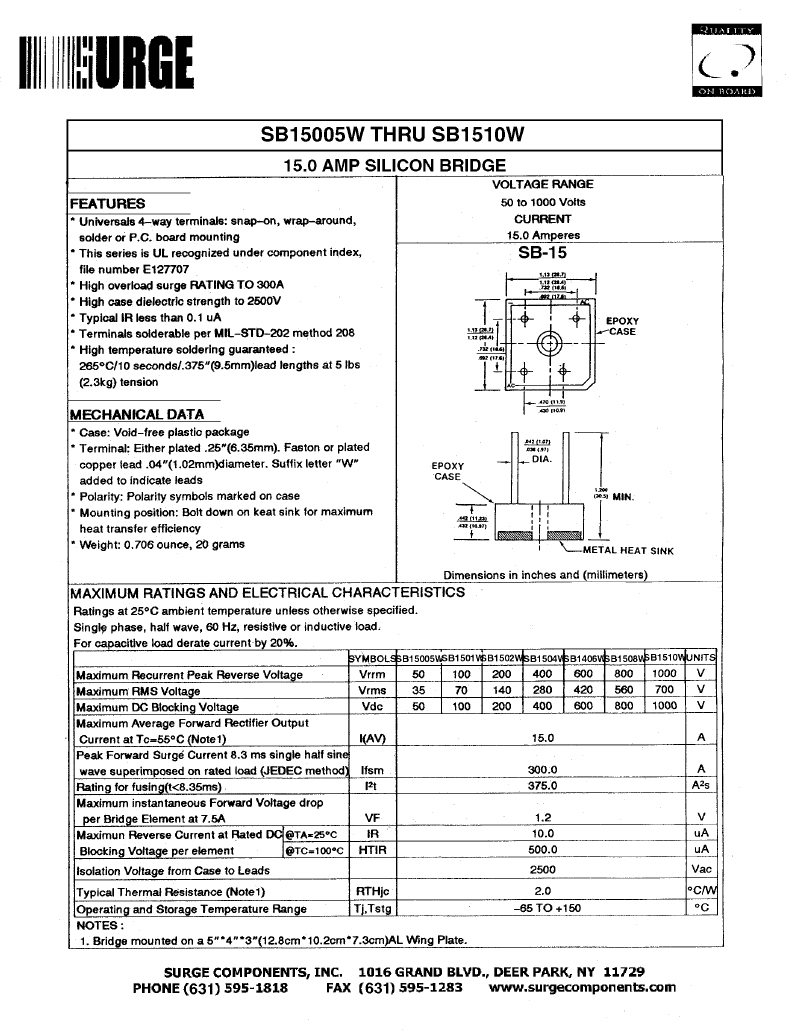

SB1501W datasheet, PDF - EEWORLD Datasheet

SB1501W: DescriptionBridge Rectifier Diode,; CategoryDiscrete semiconductor diode; File Size199KB，4 Pages; ManufacturerSurge Components; Websitehttp://www.surgecomponents.com/

Download Datasheet Parametric Compare View All

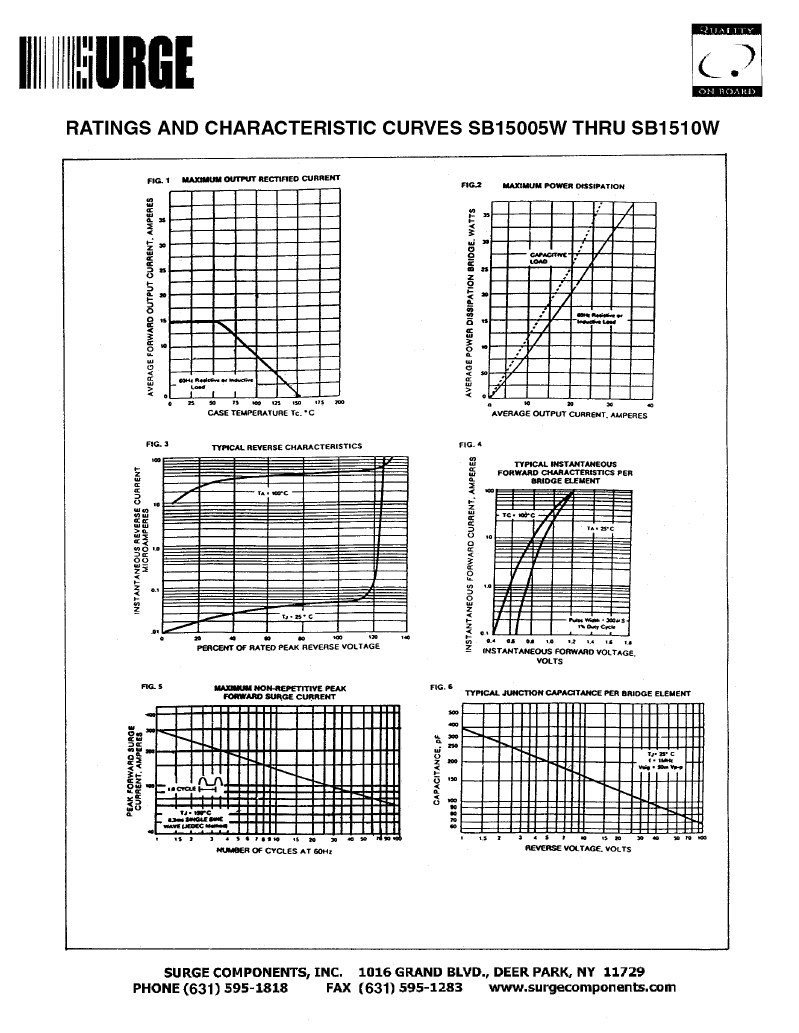

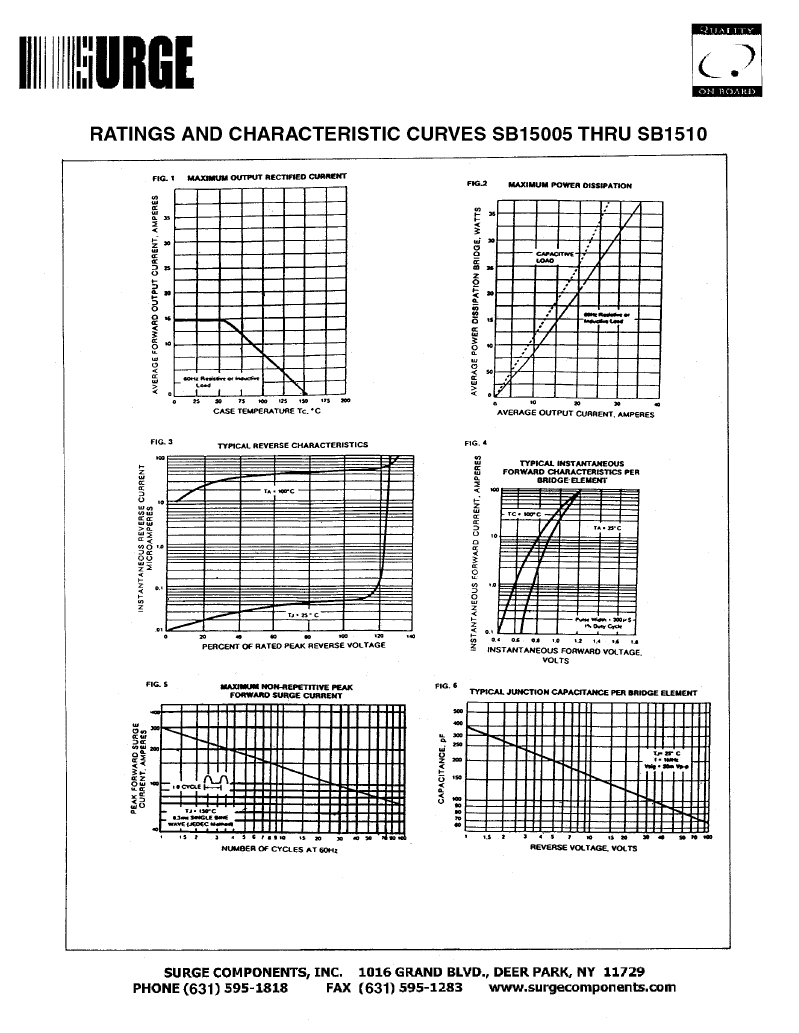

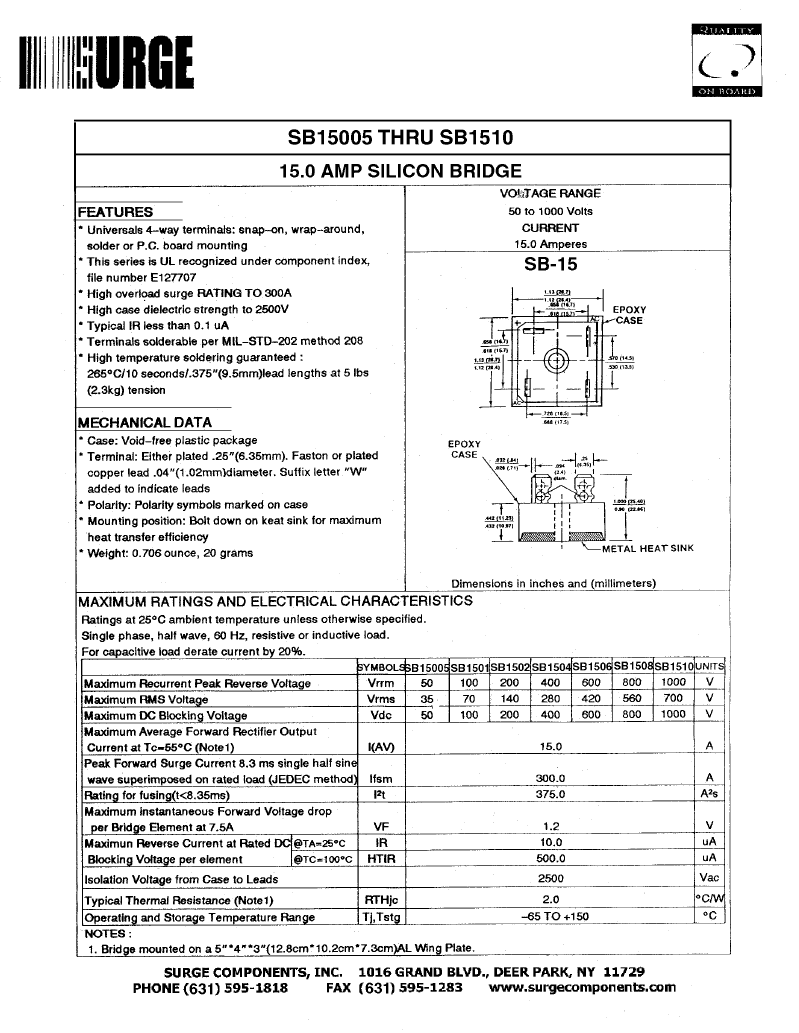

SB1501W Overview

Bridge Rectifier Diode,

	SB1501W	SB1508W	SB1510W	SB15005W	SB1502W	SB1504W	SB1506W
Description	Bridge Rectifier Diode,	Bridge Rectifier Diode,	Bridge Rectifier Diode	Bridge Rectifier Diode,	Bridge Rectifier Diode,	Bridge Rectifier Diode,	Bridge Rectifier Diode,
package instruction	S-PUFM-W4	S-PUFM-W4	S-MDFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-W4	S-PUFM-W4	S-MDFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4	S-PUFM-W4
Number of terminals	4	4	4	4	4	4	4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	UPPER	UPPER	DUAL	UPPER	UPPER	UPPER	UPPER
Maker	Surge Components	-	Surge Components	Surge Components	Surge Components	Surge Components	Surge Components
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
surface mount	NO	NO	-	NO	NO	NO	NO
