FE3A ~ FE3D
PRV : 50 -
200
Volts
Io : 3.0 Amperes

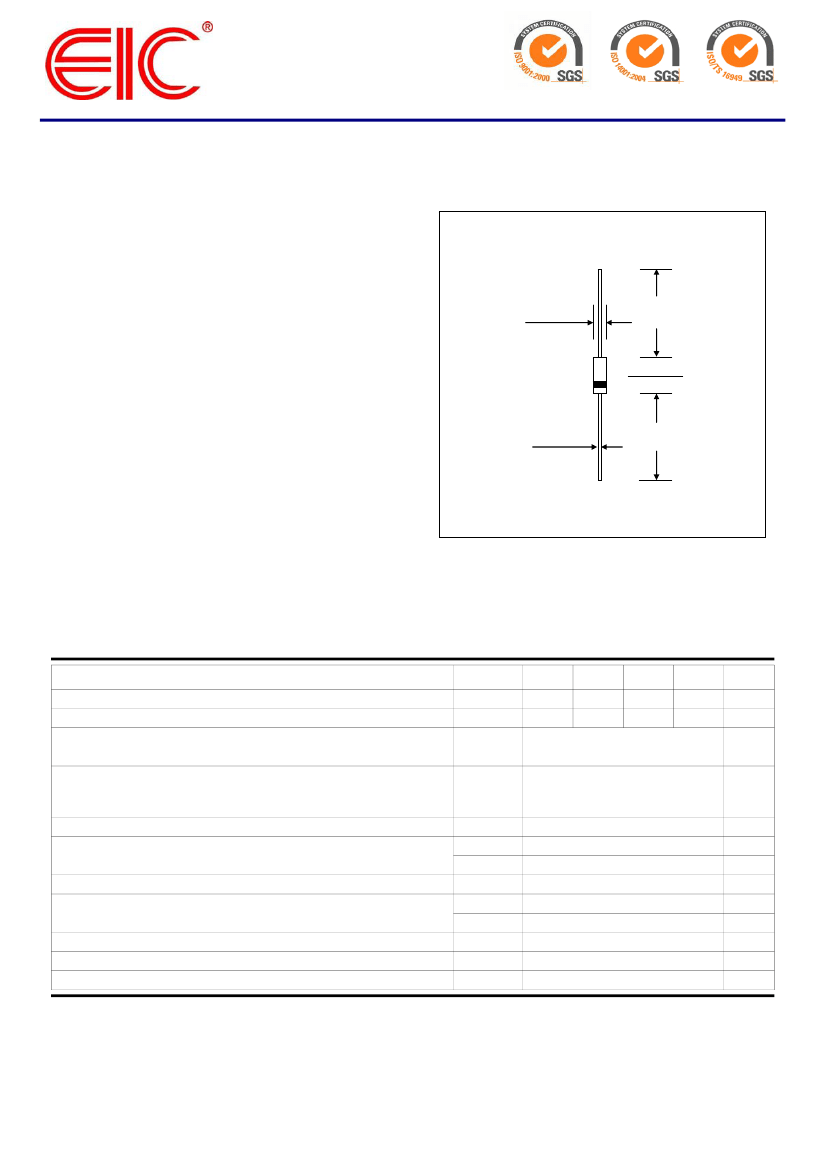

FEATURES :
*
*
*
*
*
*
*
Glass passivated junction chip
Superfast recovery time for high efficiency
High surge current capability
High current capability
Low leakage current
Low forward voltage drop
Pb / RoHS Free
GLASS PASSIVATED JUNCTION
SUPER FAST RECTIFIERS
DO-201AD
1.00 (25.4)
MIN.
0.21 (5.33)
0.19 (4.82)
0.375 (9.52)
0.285 (7.24)
0.052 (1.32)
0.048 (1.22)
1.00 (25.4)
MIN.
MECHANICAL DATA :
* Case : DO-201AD Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 1.16 grams
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum Reverse Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead Length
Ta = 75 °C
Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum instantaneous Forward Voltage at I
F
= 3 A
Maximum Reverse Current
at Rated Peak Reverse Voltage
V
R
= V
RRM
, Ta = 25 °C
V
R
= V
RRM
, Ta = 100 °C
SYMBOL
V
RRM
V
R
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
Trr
R
ӨJA
R
ӨJL
C
J
T
J
T
STG
FE3A
50
50
FE3B
100
100
3.0
FE3C
150
150
FE3D
200
200
UNIT
V
V
A
A
V
μA
μA
ns
K/W
K/W
pF
°C
°C
125
0.95
5.0
50
35
55
20
100
- 55 to + 175
- 55 to + 175
Maximum Reverse Recovery Time ( Note 1 )
Typical Thermal Resistance ( Note 2, 3 )
Typical Junction Capacitance ( V
R
= 4V, f = 1 MHz )
Operating Junction Temperature Range
Storage Temperature Range
Notes :
(1) Reverse Recovery Test Conditions : I
F
= 0.5 A, I
R
= 1.0 A, Irr = 0.25 A.
(2) Thermal resistance from junction to ambient and/or lead, 0.375 "(9.5mm) lead length mounted on P.C.B. with 0.5x0.5 (12x12mm)copper pads.
(3) Thermal resistance from junction to lead at 0.375 " (9.5 mm) lead length with both leads attached to heatsinks
Page 1 of 2
Rev. 00 : January 28, 2008
TH97/10561QM
TW00/17276EM
IATF 0060636
SGS TH07/1033

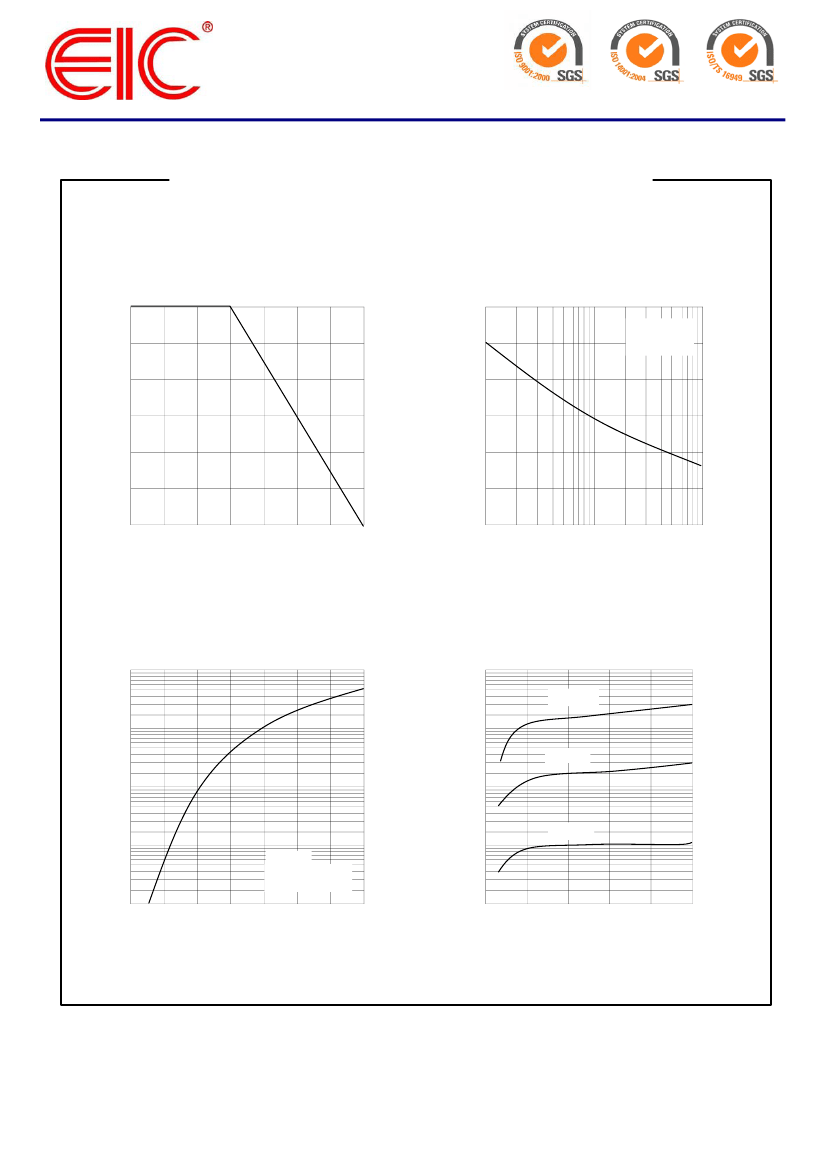

RATING AND CHARACTERISTIC CURVES ( FE3A ~ FE3D )
FIG.1 - FORWARD CURRENT DERATING CURVE
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
150
8.3ms Single
Half Sine-Wave
Tj = Tjmax
3.0
AVERAGE FORWARD CURRENT, (A)
125
2.0
PEAK FORWARD SURGE
CURRENT, (A)
0
25
50
75
100
125
150
175
100
75
1.0
50
25
0
0
1
2
4
6
10
20
40
60
100
AMBIENT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
100
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
100
T
J
= 125 °C
INSTANTANEOUS FORWARD
CURRENT, (A)
INSTANTANEOUS REVERSE
CURRENT, (μA)
10
10
T
J
= 100
1
1
T
J
= 25 °C
0.1
0.1
T
J
= 25 °C
Pulse Width = 300
μs
1% Duty Cycle
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.01
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE, (V)
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 00 : January 28, 2008
